User Manual
CTX30
Cable Toner and Tracer
Introduction

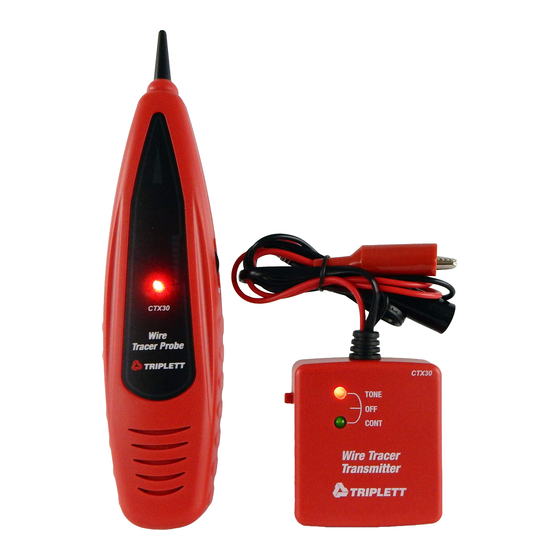

Congratulations on your purchase of the Triplett CTX30. This cable toner
and tracer set is used to quickly trace and identify cables or wires within a
group and also check the operation of phone lines. With proper use and
care, this meter will provide many years of reliable service.
Advertisement
Table of Contents
Summary of Contents for Triplett CTX30
- Page 1 Cable Toner and Tracer Introduction Congratulations on your purchase of the Triplett CTX30. This cable toner and tracer set is used to quickly trace and identify cables or wires within a group and also check the operation of phone lines. With proper use and...
- Page 2 Meter Description Operating Instructions Note: To extend battery life, remember to turn off the probe and transmitter after tracing the cables Self-Check Turn the probe on and set the transmitter to TONE. The RED LED on both units will light up. Replace the batteries if they do not.
- Page 3 Cable/Wire tracing CAUTION: Do not connect the transmitter to any wire or cable with an active circuit of more than 24VAC. Connect the transmitter to the cable For cables terminated at one end, connect the red alligator clip to a wire and the black alligator clip to equipment ground For un-terminated cables, connect the red alligator clip to one wire and the black alligator clip to another wire.
- Page 4 Connect the RED clip to a line. The LED color identifies the line. GREEN indicates the Ring line, RED indicates the Tip line. If both RED and GREEN light up, AC voltage is present (do not exceed 24V) Identifying telephone cable Line Condition Switch the transmitter to the OFF position Plug the connector into the phone line or connect the RED clip to the RING line and the BLACK clip to the TIP line.
- Page 5 Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
