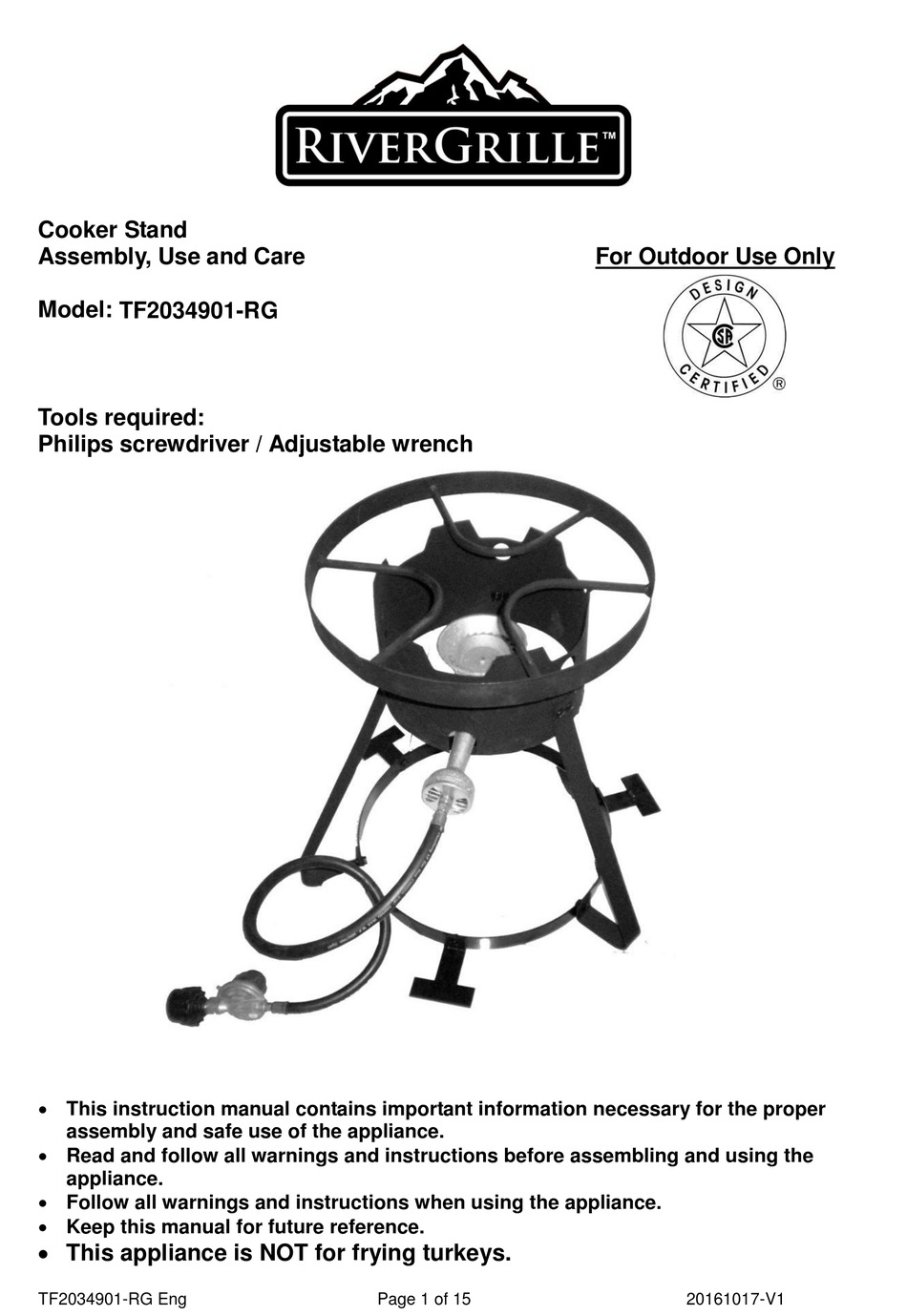

Cooker Stand
Assembly, Use and Care
Model: TF2034901-RG
Tools required:
Philips screwdriver / Adjustable wrench
This instruction manual contains important information necessary for the proper
assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the
appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
This appliance is NOT for frying turkeys.
TF2034901-RG Eng
Page 1 of 15
For Outdoor Use Only
20161017-V1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverGrille TF2034901-RG
Summary of Contents for RiverGrille TF2034901-RG
- Page 1 Cooker Stand Assembly, Use and Care For Outdoor Use Only Model: TF2034901-RG Tools required: Philips screwdriver / Adjustable wrench This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow all warnings and instructions before assembling and using the appliance.
- Page 2 7. The minimum environmental temperature of this appliance is -21°F (-10°C).Do not use this appliance under above rated temperature. Failure to follow these instructions could result in fire, explosion or burn hazard which could cause property damage, personal injury or death. TF2034901-RG Eng Page 2 of 15 20161017-V1...
- Page 3 WARNING: Indicates a potentially hazardous situation which, if not avoided, will result in death or serious injury. CAUTION CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury. TF2034901-RG Eng Page 3 of 15 20161017-V1...
- Page 4 Do not move the appliance when in use. Allow the cooking vessel to cool to 115°F (45°C) before moving or storing. TF2034901-RG Eng Page 4 of 15 20161017-V1...
- Page 5 If you see, smell, or hear escaping gas, immediately get away from the LP tank / appliance and call your FIRE DEPARTMENT. All spare LP tanks must have safety caps installed on the LP tank outlet. TF2034901-RG Eng Page 5 of 15 20161017-V1...
- Page 6 Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous practice. To remove gas from LP tank, contact an LP dealer or call a local FIRE DEPARTMENT for assistance. Check the telephone directory under “GAS Companies” for nearest certified LP dealers. TF2034901-RG Eng Page 6 of 15 20161017-V1...
- Page 7 The regulator will seal on the back-check feature in the LP tank valve, resulting in some resistance. An additional one-half to three quarters turn is required to complete connection. TIGHTEN BY HAND ONLY – DO NOT USE TOOLS. TF2034901-RG Eng Page 7 of 15 20161017-V1...
- Page 8 Customer Service Center at 1 – 888 – 837 – 1380. Use only replacement parts specified by manufacturer. 6. Always close LP tank valve after performing tank test by turning hand wheel clockwise. Counterclockwise to open the gas supply Match TF2034901-RG Eng Page 8 of 15 20161017-V1...
- Page 9 Such a fire can cause operator injury and serious damage to the appliance. To help prevent a blockage and ensure full heat output, clean and inspect burner tube often (once or TF2034901-RG Eng Page 9 of 15 20161017-V1...
- Page 10 Replace corroded or damaged burners that would emit excess gas. For cooking surfaces like pots and pans: Clean the cooking surface with soapy water and a nylon cleaning pad. TF2034901-RG Eng Page 10 of 15 20161017-V1...
- Page 11 Product Diagram Part# Description Welded Stand Legs Stand Ring Burner Regulator Hose Assembly Stand Support Hook Heat Shield Hardware List Part# Description Diagram Qty. Bolt M6 x 12 12pcs Flange Nut M6 12pcs TF2034901-RG Eng Page 11 of 15 20161017-V1...
- Page 12 2. Assemble the Legs (2) to the Stand Ring (3) by using 3pcs bolts (A) and 3pcs flange nuts (B). Assemble the Stand Support (6) by using 3pcs bolts (A) and 3pcs flange nuts (B). TF2034901-RG Eng Page 12 of 15...
- Page 13 4. Insert the Regulator Hose Assembly (5) fitting into the burner and tighten. Be sure not to strip threads on brass fitting. DO NOT OVERTIGHTEN. Proper connection is critical for correct operation of the unit. TF2034901-RG Eng Page 13 of 15 20161017-V1...
- Page 14 Prior to lighting, position thermometer clip so that at least 2.75” of thermometer tip is submerged in oil. Reposition thermometer as necessary to cook. Continue to use thermometer until burner is turned off. TF2034901-RG Eng Page 14 of 15 20161017-V1...
- Page 15 CUSTOMER SERVICE: 1 – 888 – 837 – 1380 For assistance, contact customer service at customerservice@rankam.com or at 1 – 888 – 837 – 1380, Mon to Fri, 8:00am – 5:00pm Pacific Standard time TF2034901-RG Eng Page 15 of 15 20161017-V1...
