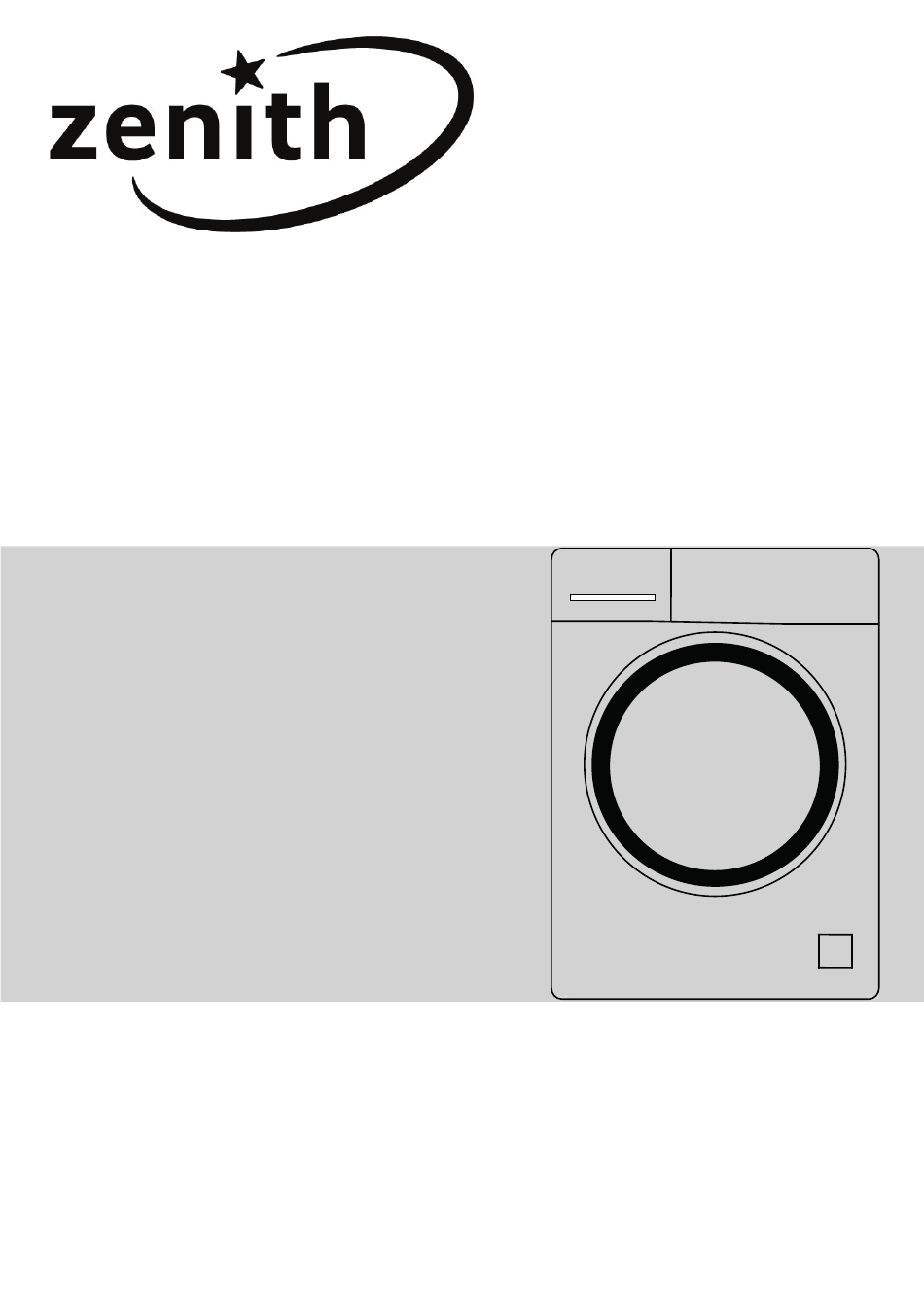

- Page 1 ZWM7121W Washing Machine User Manual Document Number 2820529542_EN/ 04-06-21.(12:27)
-
Page 2: General Safety Instructions
General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device. -
Page 3: Children's Safety
1.2 Children's safety This product can be used by children who are at the age of 8 and over and the people whose physical, sensory or mental skills are not fully developed or who do not have necessary required experience and knowledge as long as they are supervised or trained about the safe use of the product and its risks. -
Page 4: Hot Surface Safety
Do not wash the product by spraying or pouring water onto it! Risk of electric shock! Never touch the power cable plug with wet hands! Do not grab the power cord to unplug the machine, always unplug it by holding the socket with one hand, and pulling the plug with the other hand. -
Page 5: Important Instructions For The Environment
Important instructions for the environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 6: Your Product
Your product 4.1 Overview 1- Power cable 2- Top panel 3- Control panel 4- Drain hose 5- Loading door 6- Filter cap 7- Adjustable feet 8- Detergent drawer 6 / EN Washing Machine / User Manual... -
Page 7: Package Contents
4.2 Package Contents 9- Power cable 10- Drain hose 11- Transportation safety bolts* 12- Mains water inlet hose (One of the following filter types is used for the mains hose connection.) a- Electronic water shut-off b- Mechanical water shut-off c- Standard 13- Liquid detergent container** 14- User Manual 15- Blind plug***... -
Page 8: Technical Specifications
4.3 Technical specifications Supplier name or trademark ZENITH ZWM7121W Model name 7137241600 Rated capacity (kg) Maximum spin speed (rpm) 1200 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz) -
Page 9: Appropriate Installation Location
4.4 Installation • Preparation of the location and electrical, tap water and waste water installations at the place of installation is the customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. -
Page 10: Removing The Transportation Locks
4.4.3 Removing the transportation locks Loose all bolts with an appropriate wrench until they turn freely. Remove the transport safety bolts by rocking them slightly. Insert the plastic covers from the bag containing the user manual into the openings on the rear panel. -
Page 11: Adjusting The Feet
• In case the drain hose is elevated after laying it on the floor level or close to the ground (less than 40 cm above the ground), water discharge becomes more difficult and the laundry may come out excessively wet. Therefore, follow the heights described in the figure. -
Page 12: Electrical Connection
4.4.7 Electrical connection Connect the product to a grounded outlet protected by a 13 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations. •... -
Page 13: Important Fitting A Different Plug
Important Fitting a different plug As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals on your plug, proceed as follows: Connect the green - yellow or green (earth) wire to the terminal in the plug marked ‘E’... -
Page 14: Sorting The Laundry
4.5 Preparation 4.5.1 Sorting the laundry * Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. * Always obey the instructions given on the garment tags. LAUNDRY WASH SYMBOLS Symbols for washing on machine WASH Maximum... -
Page 15: Preparing Laundry For Washing
4.5.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwiring , belt buckles or metal buttons will damage the product or break the glass door. Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case. •... -
Page 16: Correct Load Capacity
4.5.5 Correct load capacity The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired. The product automatically adjusts the water amount according to the weight of the laundry put inside it. WARNING: Comply with the information in the section "Programme and consumption table". -
Page 17: Adjusting Detergent Amount
• All recommendations about detergents are valid for selectable temperature range of programmes. CAUTION: Use only detergents manufactured specifically for washing machines. CAUTION: Do not use soap powder. Adjusting detergent amount The amount of washing detergent to be used depends on the amount of laundry, the degree of soiling and water hardness. -
Page 18: Using Gel And Tablet Detergent
If the product does not contain a liquid detergent cup: • Do not use liquid detergent for the prewash in a programme with prewash. • Liquid detergent stains your clothes when used with "End Time" function that delays start time. If you are going to use the End Time function, do not use liquid detergent. Using gel and tablet detergent •... - Page 19 4.5.7 Tips for efficient washing Clothes Delicates/ Light Colours and Black/Dark Colours Woollens/ Whites Colours Silks (Recommended (Recommended (Recommended (Recommended temperature temperature temperature range temperature range based range based on range based on based on soiling level: on soiling level: 40-90 soiling level: cold soiling level: cold cold -40...
-
Page 20: Preparing The Machine
4.6 Operating the product 4.6.1 Control panel 1 - Programme Selection knob 5 - Delayed Start Indicator LEDs (Uppermost position On / Off) 6 - Programme Follow-up LEDs 2 - Spin Speed Indicator LEDs 7 - Start / Pause Button 3 - Child Lock Enabled LED 8 - Delayed Start Setting Button 4 - Door Lock Enabled LED... -
Page 21: Programme And Consumption Table
4.6.4 Programme and consumption table Programme 2,45 1200 1,90 1200 Cottons 1,10 1200 0,58 1200 1,95 1200 Cottons 60° with Prewash 1,080 1200 40*** 0,730 1200 Eco 40-60 40*** 0,410 1200 40*** 0,80 1200 Synthetics 0,26 1200 0,15 1200 Mini 0,47 1200 Hand Wash... -
Page 22: Main Programmes
Consumption Values (EN) 1,080 1200 03:27 Eco 40-60 0,730 1200 02:41 0,410 1200 02:41 Cottons 0,58 1200 03:15 Cottons 60° with Prewash 1,95 1200 03:35 Synthetics 0,80 1200 02:10 Mini 0,15 1200 00:28 The values given for programmes other than the eco 40-60 programme are indicative only. 4.6.5 Main programmes Depending on the type of fabric, use the following main programmes. -
Page 23: Additional Programmes
4.6.6 Additional programmes For special cases, additional programmes are available in the machine. Additional programmes may differ according to the model of the machine. • Eco 40-60 The eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle, and that this programme is used to assess the compliance with the EU ecodesign legislation. - Page 24 • Spin+Drain You can use this function to remove the water on the garment of drain the water in the machine. Before selecting this programme, select the desired spin speed and press Start / Pause button. First, the machine will drain the water inside of it. Then, it will spin the laundry with the set spin speed and drain the water coming out of them.
-
Page 25: Starting The Programme
4. Press Start / Pause button. Previous delayed start time light turns off and next delayed start time light turns on after every 3 hours. 5. At the end of the countdown, all delayed start lights will turn off and the selected programme will start. -
Page 26: Progress Of Programme
4.6.12 Progress of programme Progress of a running programme can be followed from the Programme Follow-up indicator. At the beginning of every programme step, the relevant indicator light will turn on and light of the completed step will turn off. You can change the speed settings without stopping the programme flow while the programme is running. -
Page 27: Cancelling The Programme
4.6.15 Cancelling the programme To cancel the programme, turn the Programme Selection knob to select another programme. Previous programme will be cancelled. End / Cancel light will flash continuously to notify that the programme has been cancelled. Your machine will end the programme when you turn the Programme Selection knob; however, it does not drain the water inside. -
Page 28: Maintenance And Cleaning
4.7 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.7.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. -
Page 29: Cleaning The Water Intake Filters
4.7.4 Cleaning the water intake filters There is a filter at the end of each water intake valve at the rear of the product and also at the end of each water intake hose where they are connected to the tap. These filters prevent foreign substances and dirt in the water to enter the product. - Page 30 In order to clean the dirty filter and discharge the water: 1 Unplug the product to cut off the supply power. CAUTION: Temperature of the water inside the product may rise up to 90 ºC. To avoid the burning risk, clean the filter after the water inside the product is cooled down. 2.
-
Page 31: Troubleshooting
Troubleshooting Problem Reason Solution Programme does not start • *Press the Start / Pause / Cancel Start / Pause / Cancel button was not pressed. button. after closing the door. • Reduce the amount of laundry and It may be difficult to close the loading door in case make sure that the loading door is of excessive loading. - Page 32 Problem Reason Solution No water can be seen in the The water level is not visible from outside of the • This is not a failure. washing machine. machine during washing. Loading door cannot be • Drain the water by running the Pump Door lock is activated because of the water level in the machine.
- Page 33 Problem Reason Solution Machine does not switch to There might be unbalanced load in the machine. • Automatic unbalanced load detection system might be activated due to the spinning step. (*) unbalanced distribution of the laundry in the drum. • Check the filter and the draining hose. The machine will not spin if water is not drained completely.
- Page 34 Problem Reason Solution Colour of the clothes faded. Excessive laundry was loaded in. • Do not load the machine in excess. (**) Detergent in use is damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 35 Problem Reason Solution Detergent residue in the Detergent is put in wet drawer. • Dry the detergent drawer before putting in detergent. detergent drawer. (**) • Keep detergents closed in an Detergent has gotten damp. environment free of humidity and do not expose them to excessive temperatures.
- Page 36 Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in www.zenithappliance.co.uk/support, might give raise to safety issues not attributable to Zenith, and will void the warranty of the product.
