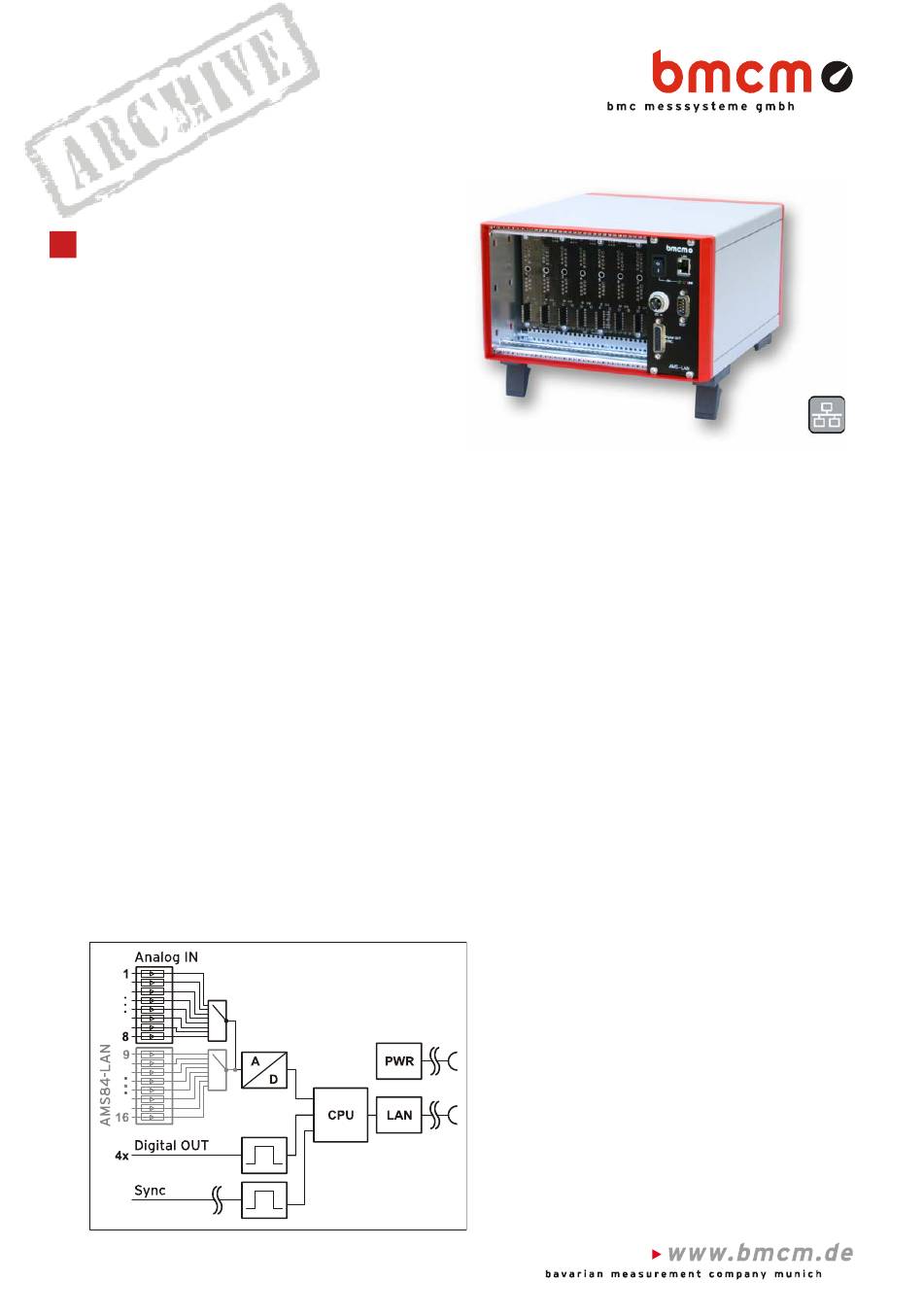

AMS42/84-LAN
5B amplifier measurement system (LAN)
All-In-One Measurement System.
Compact or 19 inch.

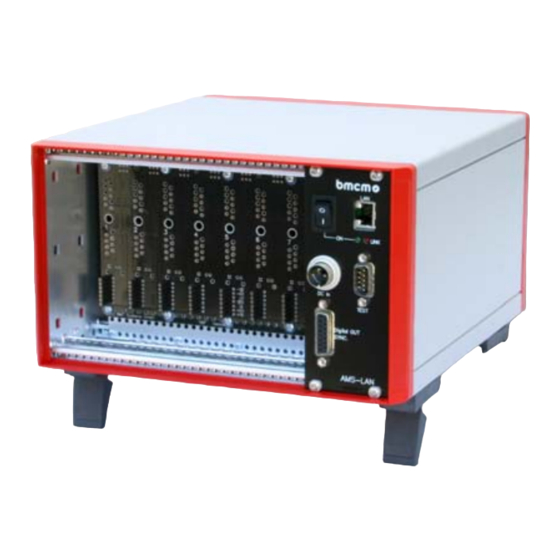

The AMS42/84-LAN, a complete solution: am-
plifier technology and data acquisition. A net-
work data acquisition system is already inte-
grated. Available in a robust aluminum housing
as a mobile tabletop unit (AMS42-LAN) with
skid-proof, tip-up feet or as a stationary version
(AMS84-LAN) for 19'' rack systems.
Modular concept.
Equip individually. Be flexible.
The AMS device is equipped with cassettes, on
which the required 5B measuring amplifiers are
mounted. The variety of available 5B modules al-
lows for the optimum adaptation of the
AMS42/84-LAN to any special measuring task.
Choose connector.
Mount 5B amplifier. Done.
The available plug-in cassettes have different
connectors at the front panel. Depending on the
sensor or signal to be connected, the suitable cas-
sette can be chosen. Now the 5B module only has
to be fixed on the cassette and be integrated in the
AMS.
Functional diagram
Clearly safe.
The galvanic isolation provided by the 5B mod-
ules guarantees interference-free operation and
protects the DAQ system and the PC against high
potentials.
8/16 analog inputs. 25kHz.
4 digital outputs.
Signals are connected at 8/16 analog inputs with
15 bit resolution and 25kHz total sampling rate.
Digital states can be controlled via four digital
outputs.
DAQ via network. Remote.
Synchronized, if you like.
The LAN technology of the AMS42/84-LAN al-
lows for measurement applications across great
distances. The recorded data are transmitted via
network from arbitrarily many measuring points
to a server PC. The signals of several devices can
be synchronized with each other.
TCP/IP. Guaranteed reliable.
The TCP/IP protocol stands for reliable data
transmission - even via the internet.
Open for everyone.
Widely supported: The amplifier measurement
system can be used under Windows
well as under MAC OS X, Free BSD and Linux.
The complete software for installation and pro-
gramming of the AMS42/84-LAN is included for
free. The device is supported by NextView
the software for data acquisition and analysis.
®
7/XP as
4,
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMS42/84-LAN and is the answer not in the manual?

Questions and answers

Summary of Contents for BMC AMS42/84-LAN

  • Page 1 Mount 5B amplifier. Done. Synchronized, if you like. The available plug-in cassettes have different The LAN technology of the AMS42/84-LAN al- connectors at the front panel. Depending on the lows for measurement applications across great sensor or signal to be connected, the suitable cas- distances.

  • Page 2: Installation

    AMS42/84-LAN Installation Assembly a) Equip the AMS42/84-LAN with the plug-in cassettes (see chapter 8.2) carrying the required 5B mod- ules. b) Carefully push the cassette along the guide bars of the relevant slot until the 7-pole pin connector of the cassette and the pins of the 5B module are plugged into the corresponding connectors on the AMS backplane.

  • Page 3: Block Diagram

    Twisted Pair connection (10Mbit). If directly connecting the AMS42/84-LAN to the PC, a crosslink cable must be used. Both cables are available as accessories (ZUKA10T or ZUKA- CL10T). A firewall software installed on the PC might hinder the operation of the AMS42/84-LAN. In this case, please contact your network administrator. Page 3...

  • Page 4: Power Supply

    60V DC (according to VDE Association of German Electrical Engineers). 3.6 Synchronization The AMS42/84-LAN features a synchronization input and output, which can be reached at the 15-pole Sub- D socket on the back of the device (see chapter 3.5).

  • Page 5: Digital Outputs

    AMS42/84-LAN 3.7 Digital outputs The AMS42/84-LAN features 4 digital outputs (low: 0V..0.7V; high: 3.0V..5V). All connections are led to the 15-pole Sub-D female con- nector on the back of the device. The pin assignment is as follows: Assignment Assignment DOut 1...
  • Page 6 BURR BROWN etc. However, an additional 0EX pin has been intro- duced, which is particularly suitable for ungrounded shielding. This is a specific assignment of BMC Messsysteme GmbH. This pin is not con- nected in modules of other manufacturers. 5.3 Fuse The fusing of the AMS backplane is effected on the backplane with one reversible semi-conductor fuse.

  • Page 7: Software Installation And Configuration

    Collection" CD included with delivery. When inserting the CD, a CD starter opens automatically (otherwise: start openhtml.exe). Change to the product page of the AMS42/84-LAN by selecting the entry "Products" in the CD starter and then the hardware ("AMS42-LAN" or "AMS84-LAN") listed under the interface "LAN".
  • Page 8 Each IP address contains the network number identifying the net your PC belongs to. Please make sure the PC and the AMS42/84-LAN are in the same net, that means they have the same network number, to be able to communicate with each other.
  • Page 9 (also Windows ) is included on the product page of the AMS42/84-LAN. For further information about how to integrate the SDK in the pro- gramming environment, please see the corresponding programming manual SDK-LIBAD-IG. Using the LIBAD4 requires advanced programming experience! 6.3 Using AMS42/84-LAN with NextView...
  • Page 10 AMS42/84-LAN 7 AMS42/84-LAN and NextView ® The device perfectly goes together with the modern data acquisition and analysis program NextView ® different versions (Demo, Live!, Lite, Professional, Analysis, Client/Server) available unlimited number of devices (even of different type) can be installed (except for: NextView 4 Lite) ®...
  • Page 11 (type K) AMS-K-THK 8.3 AMS-HANDLE, AMS-HANDLE2 For mobile use, the AMS42/84-LAN can be equipped with a lateral, foldaway strap carrying handle (AMS-HANDLE) or with two stable metal handles at the housing frame (AMS-HANDLE2).

  • Page 12: Technical Data

    (versions: Professional, Lite, Client/Server) for the acquisition and analysis of ® ® measurement data on Windows 7/XP 01/19/2011 Manufacturer: BMC Messsysteme GmbH. Subject to change due to technical improvements. Errors and printing errors excepted. Rev. 4.0 Page 12...
