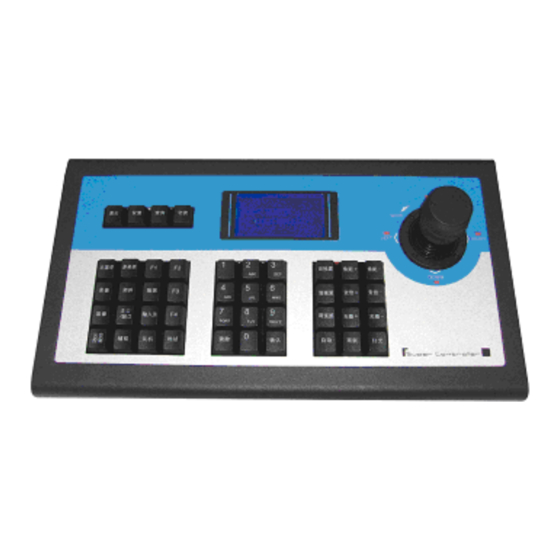

BMK-1010K Keyboard User Manual

V1.0

Thanks a lot for purchasing our product. If there is any question, please feel free to contact us.

This manual may have something inaccurate in technology, unsuited with the product's functions and operations or the

misprints. The manual's content will change with the enhanced functions of the product, as well as give the regular

advance or renew the product and procedure in this manual. The renewed content will be added in the new edition of this

manual and no separate notice will be given.

Table of Contents

Need help?

Do you have a question about the BMK-1010K and is the answer not in the manual?

Questions and answers

Summary of Contents for Neostar BMK-1010K

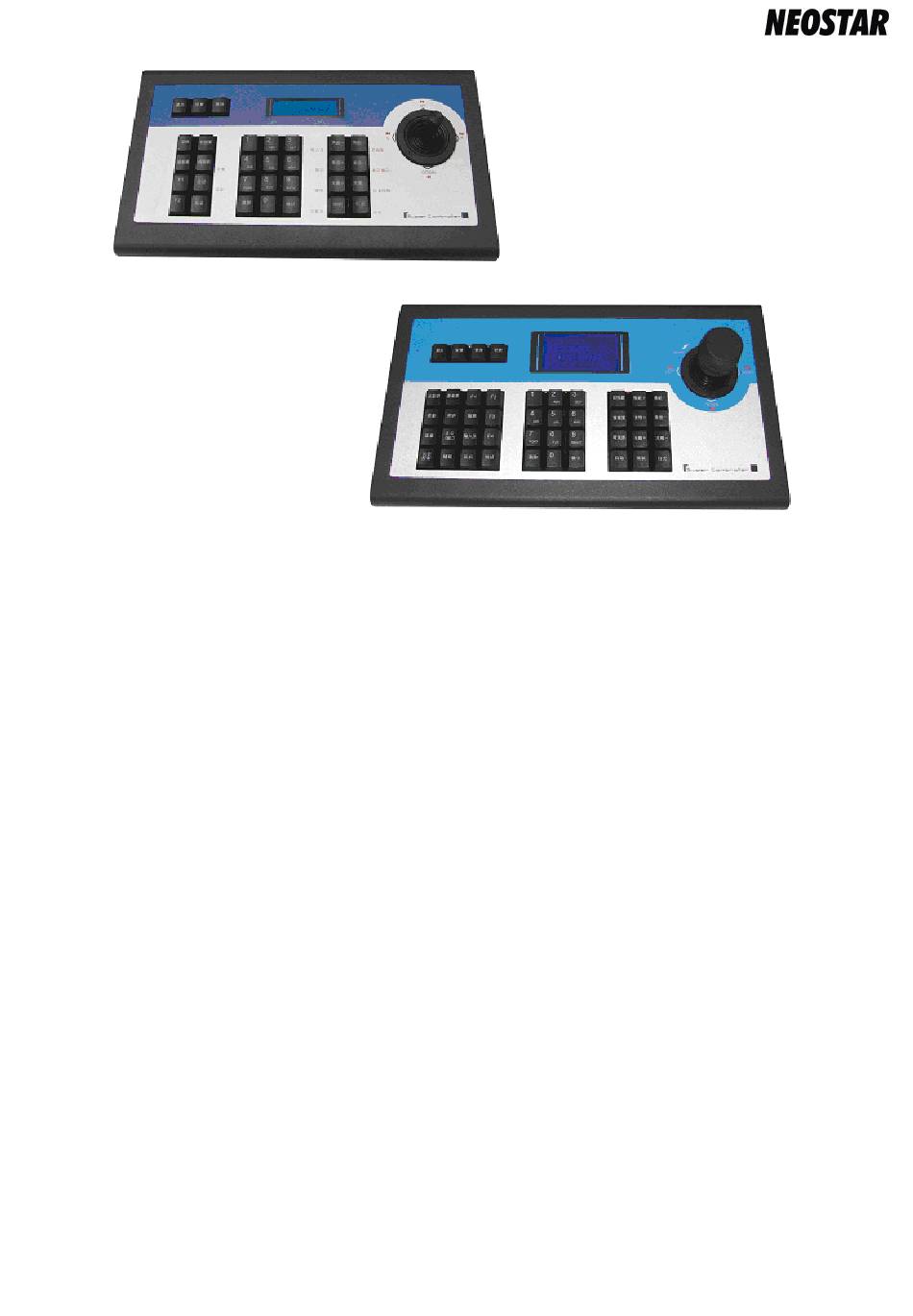

Page 1 BMK-1010K Keyboard User Manual V1.0 Thanks a lot for purchasing our product. If there is any question, please feel free to contact us. This manual may have something inaccurate in technology, unsuited with the product’s functions and operations or the misprints.
Page 2 Notes: LCD display can be easily damaged. Please do not press or exposure in sunshine for a long time; The joystick can be easily damaged. If it needs to be repaired, please wrap and ship it by using original or safety packaging;...
Page 3: Table Of Contents
BMK-1000K front panel introduction ...........................6 Key button function introduction .......................... 6 Joystick control introduction ..........................7 LCD display indication introduction ........................7 BMK-1010K front panel introduction ...........................7 Key button functions introduction ........................8 Joystick control introduction ..........................9 LCD display indication introduction ........................9 Keyboard configuration and query ............................
Page 4: Main Features
Main Features BMK-1000K and BMK-1010K keyboards are compatible with all of our company’s full series embedded DVRs. These keyboards can control speed dome and PTZ either directly, or through the DVRs. Also they can control DVRs as well. Control Completely replace the all functions of DVR front panel.
Page 5: Install Introduction
Install Introduction Back panel interface introduction Introduction: BMK-1000K、BMK-1010K Back panel interfaces are the same Fig 1 Physical interface Connect introduction Output of control PTZ Host keyboard connects PTZ RS485 port. Ta is for RS485+, and Tb is for PTZ-CON RS485- Host keyboard connects auxiliary keyboard for PTZ control.
Page 6: Bmk-1000K Front Panel Introduction
BMK-1000K front panel introduction Fig 2 Key button function introduction Button name Function introduction back to up-level menu Setup hold for 3 seconds, enter into keyboard configuration state (default password: 8888) Search press 1 second, check keyboard Configuration: the PTZ protocol Shift switch the control mode of embedded DVR or speed dome PRESET...
Page 7: Joystick Control Introduction
In DVR control mode: control record file forward LCD display indication introduction Any operation is displayed and corresponding in LCD. The LCD will turn into electricity-save mode (minimum the lightness) in 30 seconds without any input signal. BMK-1010K front panel introduction...
Page 8: Key Button Functions Introduction
Fig 3 Key button functions introduction Function introduction Button name back to up-level menu hold for 3 seconds, enter into keyboard configuration state (default password: 8888) Setup press 1 second, check keyboard configuration: PTZ protocol Search switch the control mode of embedded DVR or speed dome Shift show the main menu MENU...
Page 9: Joystick Control Introduction
Light on/off the light relay Joystick control introduction function introduction operation In PTZ control mode: control the movement of pan/tilt In DVR control mode: play record file fast In PTZ control mode: control the pan/tilt to move upon down In DVR control mode: play record file slowly In PTZ control mode: control pan/tilt to move left left In DVR control mode: control record file backward...
Page 10: Keyboard Configuration And Query
Keyboard configuration and query All the operation of keyboard configuration and query can be done via joystick and certain key buttons. Keyboard menu tree Configuration menu tree: PTZ setup PTZ address corresponding protocol Baud Rate keyboard parameter） password setup Restore default setup Sound setup Keyboard ID setup Inquire Keyboard parameter:...
Page 11: Typical Wiring Diagram
Typical wiring diagram Control speed dome Figure 4...
Page 12: Control Dvr
PTZ-CON PTZ-AUX Ground DVR-AUX DVR-CON RS485 PTZ DVR EXPORT DC-12V RS485-EXPORT BMK-1000K or BMK-1010K keyboard Connect host keyboard pin4 (Ra) Connect host keyboard pin3 (Rb) with auxiliary keyboard pin2 (Ta) with auxiliary keyboard pin1 (Tb) Host keyboard PTZ-CON PTZ-AUX Ground...
Page 13: Technical Specification
Technical Specification BMK-1000K BMK-1010K Keyboard model Supported DVR number Supported PTZ number RS-485 half-duplex mode Control mode Baud rate: 1200 ~ 19200bps Communication interface RS-485 port LCD screen 122mm* 32mm 128mm*64mm Joystick Maximum cable length 1200m Power supply DC 12V Working temperature -10℃-- +55℃...
