DC000A - R9c Draft Installation and Operations Manual

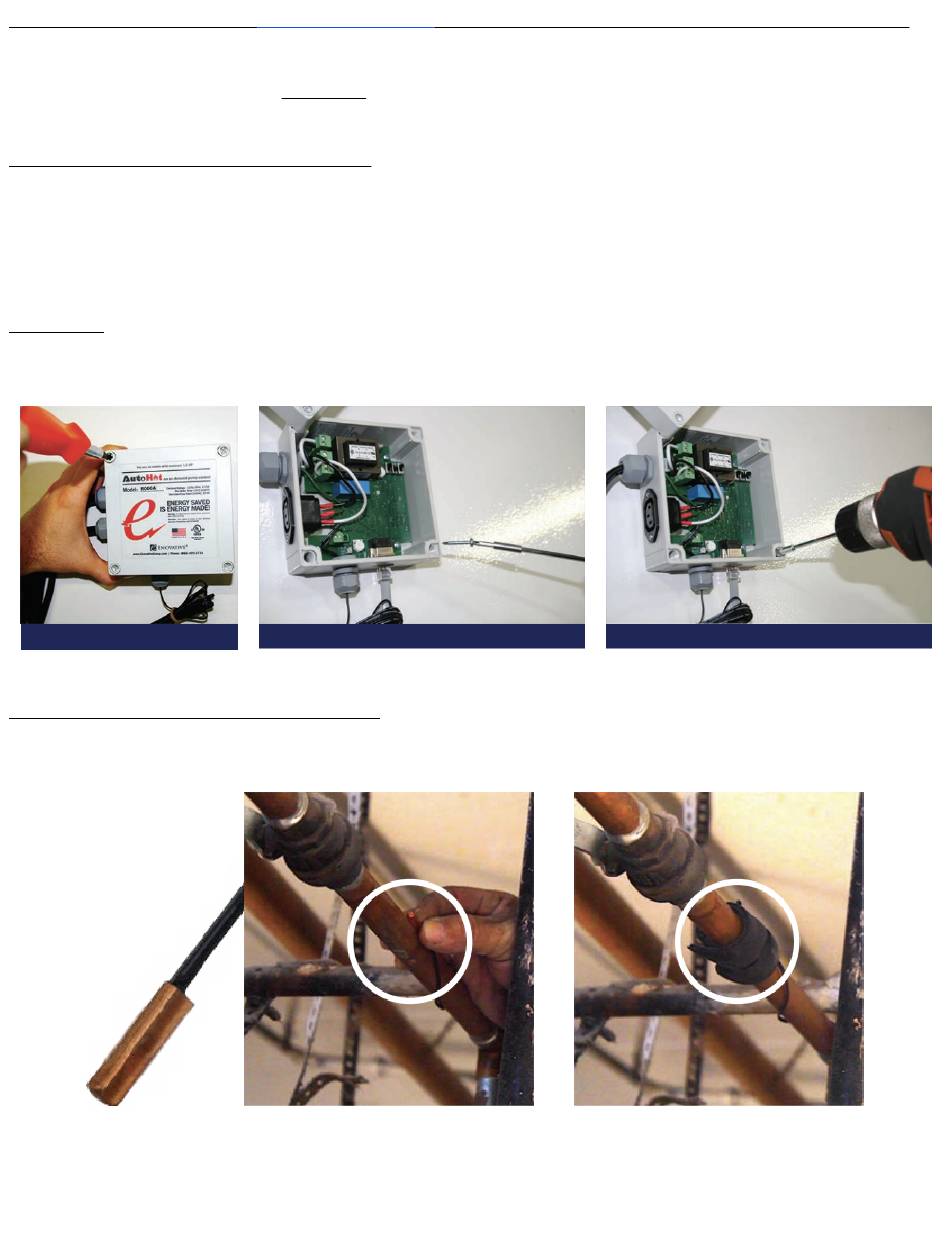

Mount the AutoHot Control Box
AutoHot® can be mounted to a nearby surface using screws. Unscrew lid (avoid power
tools as it may strip the screws). Use the same holes as the lid screws to mount the
box (make sure the wall screw head fits in the hole, and make sure you have a drill but
that is long and skinny enough to go all the way in. Drill into wall.
: Make sure the location where you mount the box is reachable for all the
Important
sensors, cables, and power.
Attach the Temperature Sensors
Use the included insulation tape to attach the temperature sensor, concave side
towards the pipe. Zip ties will secure them into place.
R9c 101920 - draft
