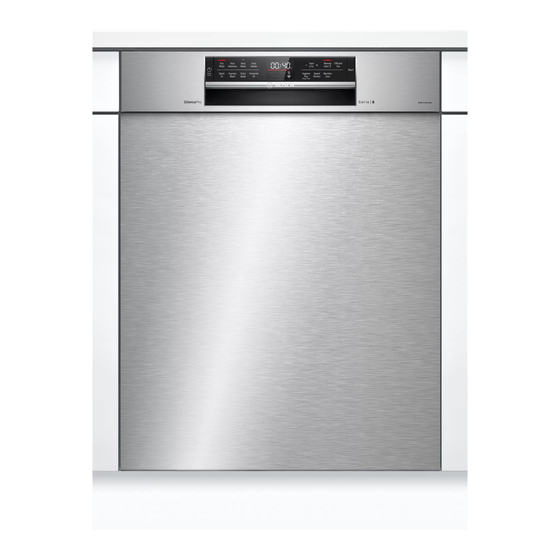

- Page 1 Dishwasher SMU6HAS01A [aus] User manual...
-
Page 2: Table Of Contents
Table of contents Safety .......... 4 Features......... 23 General information...... 4 Top basket ........ 24 Intended use........ 4 Bottom basket ........ 25 Restriction on user group.... 4 Cutlery basket ........ 25 Safe installation ........ 5 Etagere ........... 25 Safe use ........... 6 Folding prongs ....... 26 Damaged appliance ...... 8 Knife shelf........ 26 Risk to children ........ 8 Baking sheet spray head .... 26... - Page 3 Customer Service...... 57 Terminate programme.... 36 Product number (E-Nr.), produc- Switching off appliance .... 36 tion number (FD) and consecut- Basic settings........ 37 ive numbering (Z-Nr.) ..... 58 Overview of basic settings ..... 37 AQUA-STOP guarantee .... 58 Changing basic settings.... 38 Technical specifications.... 58 Home Connect ......
-
Page 4: Safety
aus Safety Safety Please read the safety information to ensure that you use the ap- pliance safely. General information You can find general information about this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡... -
Page 5: Safe Installation
Safety aus Keep children under the age of 8 years away from the appliance and power cable. Safe installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of injury! Improper installation may cause injury. ▶ When installing and connecting the appliance, follow the in- structions in the manual and installation instructions. -
Page 6: Safe Use
aus Safety WARNING ‒ Risk of fire! It is dangerous to use an extended power cord and non-ap- proved adapters. ▶ Do not use extension cables or multiple socket strips. ▶ If the power cord is too short, contact Customer Service. ▶ Only use adapters approved by the manufacturer. WARNING ‒ Risk of injury! Hinges move when opening and closing the appliance door and can cause injury. - Page 7 Safety aus ¡ Highly caustic alkaline or highly acidic cleaning agents in con- junction with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in conjunction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
aus Safety ▶ Never kink, crush or modify the power cord. Damaged appliance Follow the safety instructions if the appliance is damaged. WARNING ‒ Risk of electric shock! ¡ If the appliance or the power cord is damaged, this is danger- ous. ▶ Never operate a damaged appliance. ▶... - Page 9 Safety aus ¡ Children may breathe in or swallow small parts, causing them to suffocate. ▶ Keep small parts away from children. ▶ Do not let children play with small parts. WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk.
-
Page 10: Safety Systems
aus Safety Safety systems Protect children from possible hazards resulting from the appli- ance. The appliance is equipped with a "Childproof lock " → Page 12. -
Page 11: Preventing Material Damage
Preventing material damage aus Only use the water hoses sup- ▶ Preventing material damage Preventing material dam- plied with the appliance or genu- ine spare hoses. Never re-use water hoses that ▶ have been used before. Preventing material damage Safe installation ¡... -
Page 12: Childproof Lock
aus Childproof lock Deactivating the door lock Childproof lock Childproof lock Open the appliance door. Push the catch of the childproof The childproof lock lets you protect Childproof lock lock to the right and slide it children from possible hazards result- backwards ing from the appliance. -
Page 13: Saving Energy
Installation and connection aus Saving energy Sensor setting Description SE:00 Optimum setting for a If you follow these instructions, your mixed load and heavily appliance will use less electricity and soiled tableware. Saves less water. both energy and water. Use the Eco Wash programme. SE:01 Adjusts the programme strength for effective re-... -
Page 14: Installing And Connecting The Appliance
aus Installation and connection ¡ Installation Instructions Drainage connection ¡ Warranty Connect your appliance to drainage ¡ Installation material connection so dirty water is dis- ¡ Steam guard plate charged via the wash cycle. ¡ Mains cable Installing the drainage connection Installing and connecting the Consult the installation instructions appliance... -
Page 15: Electrical Connection
Installation and connection aus Electrical connection Connect your appliance to the power supply. Connecting the appliance to the electricity supply Notes ¡ Follow the "Safety instructions" → Page 5. ¡ Please note that the water safety system is only functional if there is a power supply. -
Page 16: Familiarising Yourself With Your Appliance
aus Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with "E number and FD number" → Page 58. -
Page 17: Controls
Familiarising yourself with your appliance aus "Detergent" → Page 30 is added to the detergent Detergent dispenser dispenser. "Bottom basket" → Page 25 Bottom basket Lower spray arm The lower spray arm washes the tableware in the bot- tom basket. If the tableware has not been washed properly, clean the spray arms. - Page 18 aus Familiarising yourself with your appliance "Switching on the appliance" → Page 35 ON/OFF button and reset button "Switching off the appliance" → Page 36 "Terminating the programme" → Page 36 Programme buttons Programmes Programme sequence display The programme sequence display shows the cur- rent cycle of the appliance, e.g. washing, rinsing or drying.
- Page 19 Familiarising yourself with your appliance aus Water supply display Display for water supply "Opening the appliance door" → Page 34 Door opener Depending on the appliance specifications...
-
Page 20: Programmes
aus Programmes Programmes Programmes You can find an overview of the pro- ditional function" → Page 23 selec- Programmes grammes that can be selected here. ted. The running time will change if Different programmes, which can be the rinse aid system is switched off found on the control panel of your or rinse aid needs to be added. - Page 21 Programmes aus Programme Consumption values Programme se- quence 1) Duration in hrs:mins 2) Energy consump- tion in kWh 3) Water consump- tion in litres ¡ 1) 2:00 - 3:10 Tableware: Sensor-controlled: ¡ Mixed tableware ¡ Optimised by ¡ 2) 0,980 - 1,550 Auto Wash and cutlery sensors depending ¡...
-
Page 22: Information For Test Institute
aus Programmes Programme Consumption values Programme se- quence 1) Duration in hrs:mins 2) Energy consump- tion in kWh 3) Water consump- tion in litres ¡ 1) 2:10 Use only if appliance is Machine Care 70 °C unloaded. ¡ 2) 1,350 Machine Care ¡... -
Page 23: Additional Functions
Additional functions aus Tip: To reset the programme, either Additional func- use the Home Connect app or reset tion your appliance back to the factory ¡ For a better drying res- settings. ult the final rinse tem- → "Overview of basic settings", Extra Dry perature is increased Page 37 and the drying phase... -
Page 24: Top Basket
aus Features Press in the levers on the right and Top basket left on the outside of the basket. Arrange cups and glasses in the top basket. The basket can then slip down slightly. Raise or lower the basket evenly to Knife shelf the right level. -
Page 25: Bottom Basket
Features aus Bottom basket Cutlery basket Arrange pans and plates in the bot- Arrange cutlery in the cutlery basket, tom basket. always without sorting it and with the sharp points downwards. Cutlery basket Large plates up to a diameter of Etagere 31 cm can be arranged in the bottom basket as shown. -
Page 26: Folding Prongs
aus Features Folding prongs Knife shelf Use the folding prongs to position Use the shelf for knives and long tableware securely, e.g. plates. items of cutlery. You can fold the prongs down to po- Baking sheet spray head sition pans, bowls and glasses better. -
Page 27: Extra Clean Zone
Features aus Remove top basket. Selecting Extra Clean Zone Insert the baking sheet spray head Note: Consumption will increase if in the holder and turn to the you operate your appliance with the right . Extra Clean Zone switched on. Pull out the top basket. Set the slider to ON or OFF. -
Page 28: Basket Heights
aus Before using for the first time Place the Extra Clean Zone in the Push in the top basket. top basket and lock in place . Check that the mounts are in the correct position. a The Extra Clean Zone audibly clicks into position ... -
Page 29: Rinse Aid System
Rinse aid system aus To remove any marks from water Add rinse aid up to the max mark. or other residues, we recommend you operate the appliance without tableware before using it for the first time. Tip: You can change this setting and other "Basic settings"... -
Page 30: Switching The Rinse Aid System Off
aus Detergent To save the settings, press starch and remove protein. Oxygen- for 3 seconds. based bleaching agents are generally used to remove coloured stains, e.g. tea or ketchup. Switching the rinse aid sys- tem off Note: Follow the manufacturer's in- structions for each detergent. If you find the rinse aid refill indicator Detergent Description... -
Page 31: Unsuitable Detergents
Detergent aus Unsuitable detergents Detergent Description ¡ Do not select timer Do not use detergent which could programming for cause damage to the appliance or starting the pro- present a risk to health. gramme. Detergent Description The dosage can be Hand washing-up Hand washing-up liquid adjusted to the level liquid... -
Page 32: Adding Detergent
aus Tableware Close the lid of the detergent dis- Adding detergent penser. To open the detergent dispenser, press the locking latch. Add the detergent to the dry deter- gent dispenser. 50 ml 25 ml 15 ml a The lid clicks into position. a The detergent dispenser will open automatically at the optimum time during the programme. -
Page 33: Damage To Glass And Tableware
Tableware aus Damage to glass and table- Cause Recommendation ware The water temperat- Select a programme ure of the programme with lower temperat- Avoid damage to glass and table- is too high. ures. ware. After the programme has ended, take glass- Cause Recommendation ware and cutlery out... -
Page 34: Removing Tableware
aus Basic operation Observe the following when arran- Removing tableware ging tableware: – Put heavily soiled tableware in WARNING the bottom basket, e.g. pans. Risk of injury! The more powerful the spray jet, Hot tableware can cause burns to the the better the dishwashing result skin. -
Page 35: Switching On The Appliance
Basic operation aus Press . Switching on the appliance a This activates time preselection. Press . ▶ Tip: To deactivate timer program- The programme last selected and ming, press repeatedly the additional function last selec- until "00h:00m" appears in the dis- ted will be set by default. -
Page 36: Deactivate Button Lock
aus Basic operation a The button lock remains activated with a power failure. Deactivate button lock Press for approx. 3 seconds. ▶ Interrupting programme Note: When you open the appliance door once the appliance has heated up, leave the door slightly ajar for a few minutes and then close it. -
Page 37: Basic Settings
Basic settings aus Basic settings Basic settings You can configure the appliance to meet your needs. Basic settings Overview of basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Rinse aid dispensing r:05 ... -
Page 38: Changing Basic Settings
aus Basic settings Basic setting Display text Selection Description Start programme SP:00 SP:00 - SP:01 Set a default programme for when the appliance is switched on. ¡ With the setting "SP:00", the last programme selected and the last additional function selected are set by default when the appliance is switched on. -
Page 39: Home Connect
Home Connect aus You can change several settings. Home Connect quick start To save the settings, press Connect your appliance to a mobile for 3 seconds. device quickly and easily. Installing app Home Connect Home Connect Install the Home Connect app on your mobile device. This appliance is network-capable. -
Page 40: Home Connect Settings
aus Home Connect Home Connect settings Remote Diagnostics Adapt Home Connect to your needs. Customer Service can use Remote You can find the Home Connect set- Diagnostics to access your appliance tings in the basic settings for your ap- if you contact them, have your appli- pliance. -
Page 41: Cleaning And Servicing
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which... -
Page 42: Filter System
aus Cleaning and servicing Phase Removal of Detergent Placement Food remnants and de- Machine cleaner Detergent dispenser posits To ensure optimum cleaning perform- ¡ Activate the "Extra Clean Zone" ance, the programme doses the de- → Page 27 function. tergents independently of each an- Remove any coarse soiling in the other during the relevant cleaning interior with a damp cloth. - Page 43 Cleaning and servicing aus Press the locking catches Coarse filter gether and lift the coarse filter out . Cleaning filters Soiling in the dishwashing water may block the filters. After each wash check the filters for residue. Turn the coarse filter anticlockwise and remove the filter system ...
-
Page 44: Cleaning Spray Arms
aus Cleaning and servicing Cleaning spray arms Limescale and soiling in the dish- washing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly. Unscrew the upper spray arm and pull down to remove . Pull up the lower spray arm to re- move. -
Page 45: Troubleshooting
Troubleshooting aus Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 46 aus Troubleshooting Fault Cause Troubleshooting E:32-00 will light up altern- Water tap is jammed or Turn on the water tap. ▶ ately or indicator for water furred up. The flow rate must be at least 10 l/ supply lights up. min when the water supply is open. The filters in the water con- Switch off the appliance.
-
Page 47: Washing Results
Troubleshooting aus Fault Cause Troubleshooting E:61-02 will light up altern- Cover of the wastewater Secure the cover of the "Wastewa- ▶ ter pump " → Page 56 so it clicks ately. pump is loose into position. E:90-01 will light up altern- Mains voltage is too low. This is not a fault on the appliance. - Page 48 aus Troubleshooting Fault Cause Troubleshooting Tableware is not dry. Water collects in recesses of Position tableware at an angle ▶ the tableware or cutlery. where possible. The combined detergent Use rinse aid to improve drying per- used has a poor drying per- formance.
- Page 49 Troubleshooting aus Fault Cause Troubleshooting Remnants of food on table- Tableware is placed too Arrange tableware with sufficient ware. close together or basket is space in between. overfilled. The spray jets must reach the sur- faces of the tableware. Avoid points of contact. Spray arm rotation is Arrange tableware so that it does ▶...
- Page 50 aus Troubleshooting Fault Cause Troubleshooting Detergent residue in the ap- Tabs are used in the quick Select a more intensive Programme ▶ pliance or short programme. Dissolv- or use Powder detergent. ing time of the tab is not at- tained. Washing effect and dissolv- Change your "detergent"...
- Page 51 Troubleshooting aus Fault Cause Troubleshooting Coloured coatings (blue, yel- The formation of films is due Clean the appliance. ▶ low, brown) that are difficult to substances contained in You can remove deposits with or impossible to remove are vegetables (cabbage, celery, "Mechanical cleaning"...
- Page 52 aus Troubleshooting Fault Cause Troubleshooting Removable streaks are Tableware has been pre- Only remove large remnants of food ▶ present on glasses, glass- cleaned too intensely. The and do not prerinse tableware. ware with a metallic appear- sensors chose a weaker pro- Adjust the sensitivity of the sensors.
-
Page 53: Home Connect Problem
Troubleshooting aus Home Connect problem Fault Cause Troubleshooting Connection to home net- WLAN on router is not act- Check the wireless network con- ▶ work is not established. ive. nection of your router. WLAN display is flashing. Connection to home net- Activate the wireless network con- ▶... -
Page 54: Mechanical Damage
aus Troubleshooting Fault Cause Troubleshooting Appliance does not start. The mains fuse has tripped. Check the relevant fuse. ▶ Mains cable is not inserted. Check whether the socket works. Check whether the mains cable is properly inserted in the socket and on the rear of the appliance. -
Page 55: Noise
Troubleshooting aus Noise Fault Cause Troubleshooting Filling valves making knock- Caused by the domestic in- Can only be remedied in the do- ▶ ing noises. stallation. No appliance fault mestic installation. present. Does not affect functioning of the appliance. Knocking or rattling noise. Spray arm is striking table- Arrange tableware so that the spray ▶... -
Page 56: Clean Wastewater Pump
aus Transportation, storage and disposal Insert the pump cover and press Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 57: Protect Appliance From Frost
Customer Service aus Protect appliance from frost Disposing of old appliance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 58: Product Number (E-Nr.), Produc- Tion Number (Fd) And Consecut- Ive Numbering (Z-Nr.)
aus Technical specifications With any warranty claims, we will from water damage, the appliance make sure that your appliance is re- must be connected to the power paired by trained after-sales techni- supply. cians using genuine spare parts, in- ¡ The liability guarantee is valid for cluding after the manufacturer's war- the service life of the appliance. -
Page 59: Information Regarding Free And Open Source Software
The applicable licence information is Declaration of Conformity stored on your home appliance. You can also access the applicable li- Robert Bosch Hausgeräte GmbH cence information via your Home hereby declares that the appliance Connect App: "Profile -> Legal inform- with Home Connect functionality ation ->... - Page 60 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
