STEELCRAFT PRODUCTS
P.O. Box 90365 - Pasadena, CA 91109
PHN 626-798-7401 FAX 626-798-1482
NOTE: NUMBER OF BRACES VARIES BY MODEL OF BACKBOARD
F
C

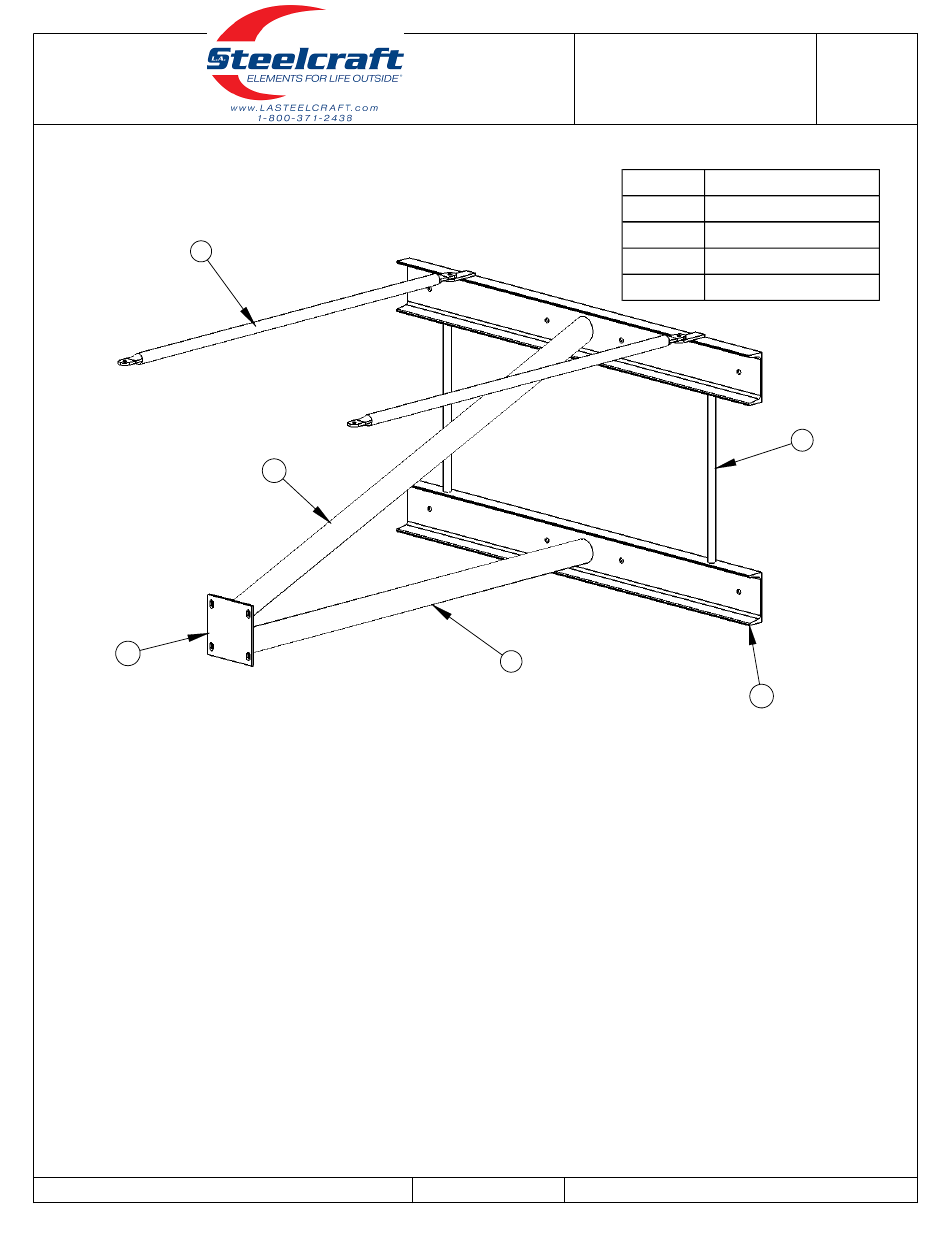

PART LIST:
A.
( 2 EA.) CHANNEL: 3" X 1" X 1" STEEL FORMED CHANNEL, 36" LONG/ 11 GA.
(TOP CHANNEL HAS (2) TABS WELDED TO TOP)
B.
(2 EA.) 1" DIA. ROD X 22" LONG
C.
(1 EA.) 3/16" X 6" X 6" STEEL PLATE
D.
(1 EA.) 2-3/8" OD STEEL TUBING
E.
(1 EA.) 2-3/8" OD STEEL TUBING
F.
(2 EA.) BRACES: 1" OD GALV. STEEL PIPE X 14-5/8" C.L.
G.
(4 EA.) 5/16" X 1-1/4" HEX BOLTS W/ N, FW & LW (FOR BRACES)
H.
(8 EA.) 5/16" KWIK BOLTS, LAG ANCHORS OR TOGGLE BOLTS DEPENDING ON WHAT
KIND OF WALL IS USED.
I.
(4 EA) 3/8" X 2" (FOR STD. FIBERGLASS BOARD) OR 3/8" X 1-3/4" (FOR ALUM. BOARD)
HEX BOLTS W/ N, FW, & LW (FOR GOAL RIM).
J.
(1 EA) GOAL RIM & NET UNIT
NOTE: SPECIFICATIONS ARE SUBJECT TO CHANGE
DO NOT SCALE DRAWING
D
DATE: 7/8/09
MODEL
LA-WMEF1
WALL MOUNT FOR
FAN SHAPED BACKBOARD
MODEL
WMEF1
WMEF3
WMEF4
WMEF6
E
DRAWN BY: AFS
EXT. LENGTH
1'-0"
3'-0"
4'-0"
6'-0"
B
A
Advertisement
Table of Contents
Summary of Contents for Steelcraft WMEF1
- Page 1 MODEL STEELCRAFT PRODUCTS LA-WMEF1 WALL MOUNT FOR P.O. Box 90365 - Pasadena, CA 91109 FAN SHAPED BACKBOARD PHN 626-798-7401 FAX 626-798-1482 NOTE: NUMBER OF BRACES VARIES BY MODEL OF BACKBOARD MODEL EXT. LENGTH WMEF1 1'-0" WMEF3 3'-0" WMEF4 4'-0" WMEF6 6'-0"...
- Page 2 MODEL STEELCRAFT PRODUCTS WALL MOUNT P.O. Box 90365 - Pasadena, CA 91103 INSTALLATION PHN 626-798-7401 FAX 626-798-1482 WALL MOUNT BACKBOARD INSTALLATION: Attach extension frame to surface with (8 EA) 5/16" bolts (item H). Attach backboard w/goal rim net unit to 3/16" X 6" X 6" steel plate welded on end of extension frame, using 5/16"...
