Bellhowell WP10 Splash Blue Instruction Manual

WP10 Splash Instruction Manual
IMPORTANT
- Do not open the battery door while submerged in water.
- Close the battery door properly for the best water-tight seal.
- Ensure that the latch on the battery door is correctly closed.
- Rinse with clean water after use.
1. Getting to Know Your Camera
Ultra Slim Waterproof Design
Waterproof up to 10 ft. / 3 meters
12.0 Mega Pixels Max Resolution
Digital Still Camera
Digital Video Camcorder
Built-in Flash Light
8X Digital Zoom
2.4" LCD Color Display
Micro SD / SDHC Card Support
2x AAA Alkaline Batteries
Smile Detection
Face Detection
Anti-Shaking Image Stabilization for Still Images

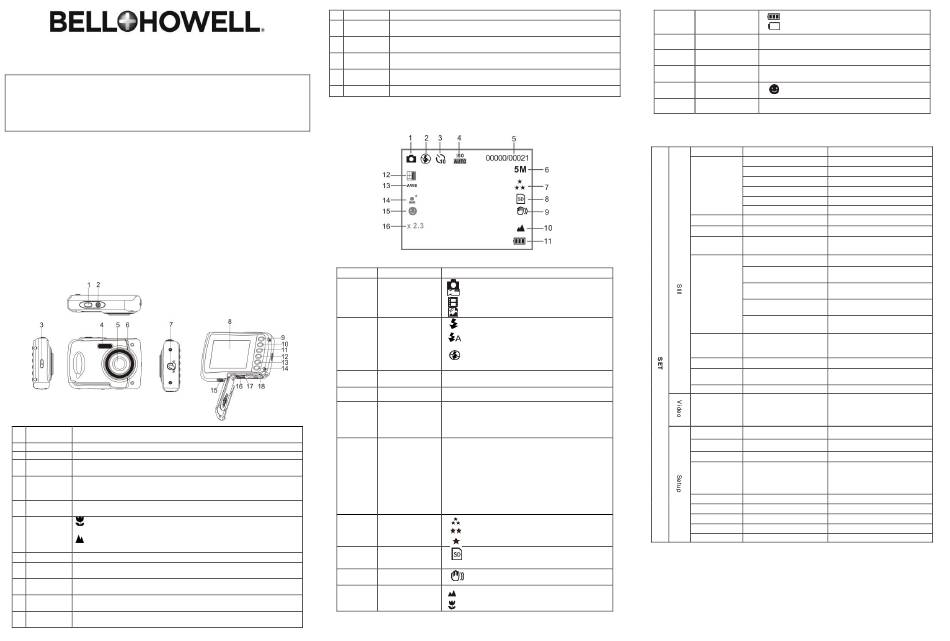

2. Camera Overview
Press to take photographs or to start and stop recording a video clip.
1
Shutter
Press to confirm changes in menu mode.
2 Power Press this button to power the unit of or off.
3 Strap Hook Hook for attaching the wrist strap to the camera.
Use the built-in flash for extra lighting in dark situations. For best results,
4 Flash Light
use flash mode when within a distance of 5 ft / 1.5m.
Optical input to records video and capture images.
5 Lens Note: Keep the lens clean. Dirt and fingerprints will affect the quality of the
picture.
LED
6
Denotes the camera is busy carrying out an operation when blinking.
Indicator
MACRO mode: Select this mode to take close-up photographs
Macro (distance 11cm - 18cm).
7
Switch
NORMAL mode: Select this mode to take photographs from 0.5m -
infinity.
8 LCD Screen Displays photos, video clips, camera settings and menu.
UP directional selection in menu mode. Digital zoom-in during photo and
9 UP
video mode.
Down directional selection in menu mode. Digital zoom-out during photo
10 DOWN
and video mode.
LEFT / LEFT directional selection in menu mode.
11
To access the flash's settings when in PHOTO mode.
Flash Light
RIGHT/ RIGHT directional selection in menu mode.
12
Playback Press to enter into playback mode when in PHOTO or MOVIE mode.
13 Mode Press to enter into PHOTO / MOVIE mode.
Menu / Press to enter into setting mode.
14
Delete Press to delete a photo or videos when in playback mode.
Tripod
15
To mount the camera onto a tripod.
Connector
Micro SD
16 SD card storage location.
Card Slot
USB Download images and video clips to a computer using the included USB
17
Interface cable.
18 Battery Door Compartment for the AAA batteries.
3. Explanation of Status Icons
Item Function
PHOTO mode.
VIDEO mode.
1 Current Mode
Playback VIDEO mode.
Playback PHOTO mode.
Flash On: The flash will fire in every situation,
whether dark or light.
Auto Flash: The flash sensor will determine if
2 Flash Status
the flash is needed or not.
Flash Off: The flash is turned off and will not
fire.
Self-Timer
3 Shows the current Self-Timer setting.
Status
4 ISO Status Shows the current ISO Sensitivity setting.
Show the pictures remaining in PHOTO mode.
Shows the time remaining in VIDEO mode.
Photo / Video
5
Show the elapsed time during recording
Counter
Shows the total amount of pictures and videos.
12M = 4032x3024 pixels
8M = 3264x2448 pixels
Current 5M = 2560x1920 pixels
6
Resolution 3M = 2048x1536 pixels
1.3 = 1280x960 pixels
VGA = 640x480 pixels
Super Fine Quality.
7
Picture quality
Fine Quality.
Standard Quality.
A micro SD card is inserted and will be used as
Micro SD Card
8
storage for photos and videos.
Indicator
Anti-Shaking
Anti-Shaking Image Stabilizaton ON/OFF.
9
Mode Status
Normal mode (0.5m – infinity)
Normal / Macro
10
Mode Indicator
Macro mode (11cm –18cm)
11
12
13
14
15
16
4. Details for Camera Setup
Description
Note: The camera will remain in the last setting when it is turned off.
5. Using the Camera
5.1 Battery Installation
Battery status, fully charged.
Battery Status
Indicator
Battery status, no charge remaining.
Exposure Status Shows the current EV± value.
White Balance
Shows the current White Balance setting.
Status
Scene Mode Shows the current Scene Mode ( Auto / Landscape /
Status Backlight / Night Scene / Portrait / Sport)
Smile Detection
Smile Detection ON/OFF.
Status
Zoom Indicator Shows current Zoom setting.
Single or 10s timer selection
Capture Mode Single / 10s Timer
12 Mega Pixel Resolution 4032 x 3024 (12.0 Mega Pixels)
8 Mega Pixel Resolution 3264 x 2448 (8.0 Mega Pixels)
5M pixel resolution 2560 x 1920 (5.0 Mega Pixels)
Resolution
3M pixel resolution 2048 x 1536 (3,0 Mega Pixels)
1.3M pixel resolution 1280 x 960 (1.3 Mega Pixels)
VGA resolution 640 x 480 (300k Pixels)
Quality Super Fine/Fine/Normal Picture quality setting
Sharpness Strong/Normal/Soft Sharpness setting
±2.0, ±5/3, ±4/3, ±
Exposure Exposure setting
1.0, ±2/3, ±1/3, 0
Automatic white balance mode.
Auto
White balance mode for
Daylight
Daylight/Outdoor setting.
White balance mode for
Cloudy
White balance
Cloudy/Outdoor setting.
White balance mode for tungsten
Tungsten
setting.
White balance mode for
Fluorescent
fluorescent setting.
Auto / Landscape /
Scene Backlight / Night scene / Scene Mode.
Portrait / Sports
ISO Auto / 50 / 100 / 200 ISO Sensitivity setting.
Smile
On / Off Smile Detection setting.
Detection
Anti-Shaking On / Off Anti-Shaking setting.
VGA 640 x 480
Resolution Video Resolution setting.
QVGA 320 x 240
Date/Time YY/MM/DD Date or time setting.
Auto Power Off Off / 1 Minute / 3 Minutes Auto Power Off setting.
Beep Sound On / Off Beep Sound setting.
English/T-Chinese/
S-Chinese/French/
Language Display language setting.
Deutsch/Italian/Spanish/
Portuguese/Japanese
Date stamp setting.
Date Stamp Date &Time / Date / Off
Power frequency setting.
Frequency 50Hz / 60Hz
Format the Micro SD Card.
Format Micro SD card
Reset to default settings.
Default setting Cancel / OK
Version View the firmware version.
