Unimac WL70-3B Instruction Manual

Wet & dry vacuum cleaner
Hide thumbs

Advertisement

Quick Links

Download this manual
100L VACUUM CLEANER
INSTRUCTION MANUAL
WET&DRY VACUUM CLEANER

Advertisement

loading
Need help?

Need help?

Do you have a question about the WL70-3B and is the answer not in the manual?

Questions and answers

Summary of Contents for Unimac WL70-3B

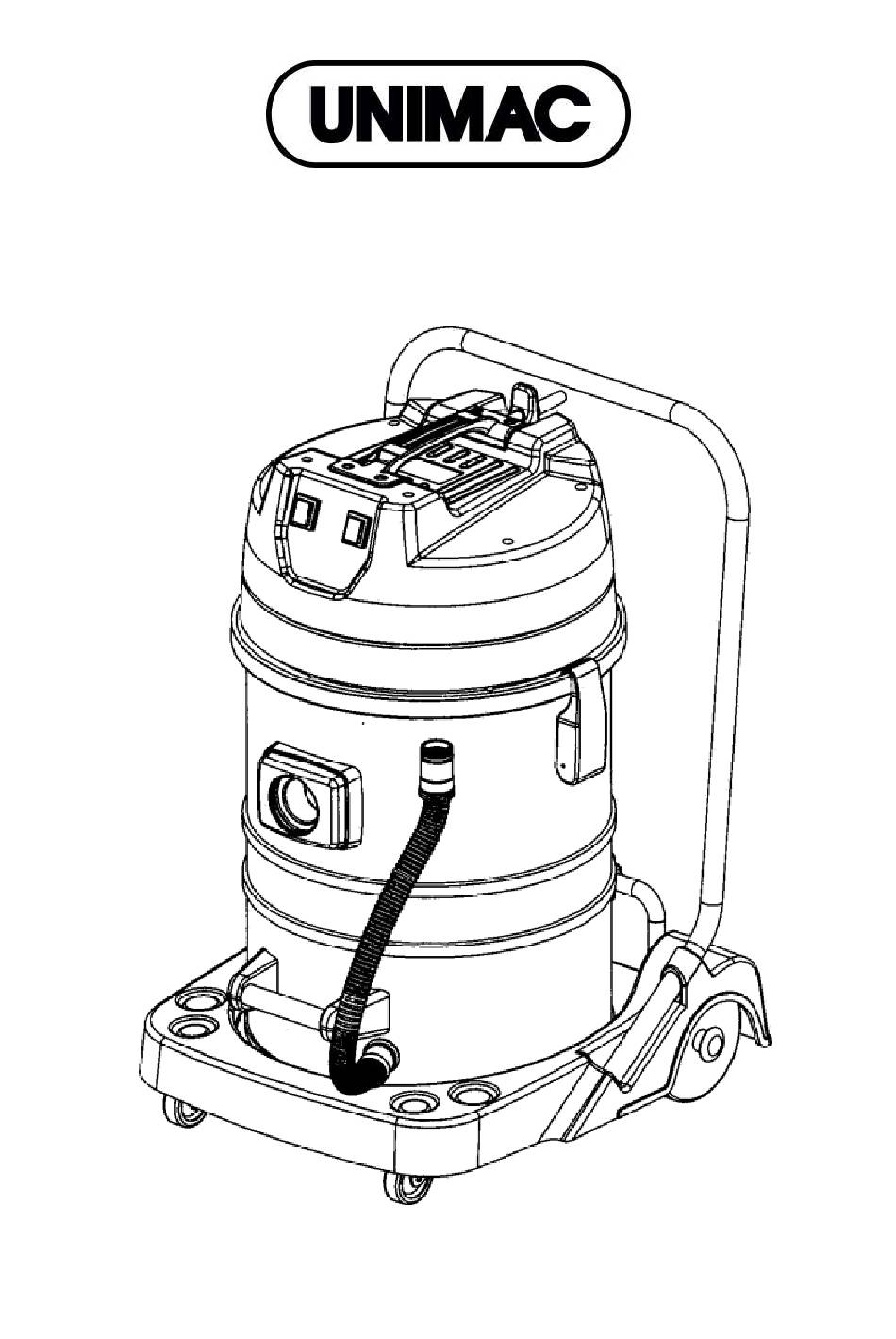

  • Page 1 100L VACUUM CLEANER INSTRUCTION MANUAL WET&DRY VACUUM CLEANER...
  • Page 2 1. Characteristics 1. Vacuum cleaner for wet and dry 2. With double wheels motor,motors work at the same time with stronger suction 3. Jacks on the base,easy for depositing accessories 4. With special and good-looking design,suitable for hotel,office,factory etc. 5. Stainless steel barrel for permanent use 2.

  • Page 3: Safety Instruction

    3. Safety Instruction 1. Check before operation that the power voltage is the same as the specification on the rating labell 2. Do not use machine in the combustible Do not jam the air inlet mouth,in case and explosive place in case the motor causing high temperature rise and spark cause fire.
  • Page 4 5.Warning: If water out from air outlet mouth,do not overturn the machine when repairing in case water goes into the motor and cause damage Do not use this machine as pump in case damaging the motor 6. Turn off the machine and remove the plug each time after using or when repairing 7.

  • Page 5: Use Instruction

    4. Use Instruction 1. Connection Insert the hose connector into the air inlet mouth as picture shows,make sure the connector is tightly fastened. Connect all the accessories as picture shows. 2. Check whether the dust filter is put in before operation 3.

  • Page 6: Protection Device

    5. Protection Device Special instruction concerning preotective device 1. When the water in the barrel is full,the device begin to work.The suction power with vanish tat this moment.The machine will make a noise which indicates the motor is running at a big speed.Under this circumstance.you should cut off the electricity,clean out the water.Then equip ths machine and turn it on,it will begin to work normally.

  • Page 7: Warranty Information

    7. Warranty Information The manufacturer provides warrantly in accordance with the legislation of the customer’s own country of residence,with a minimum of 1 year,starting from the date on which the appliance is sold to the end users. The warrantly only covers defects in material or workmanship. The repairs under warranty may only be carried out by an authorized service centre.When making a claim under the warrantly,the original bill of purchase(with purchase date) must be submitted.
  • Page 8 8. Maintence 1. Barrel Cleaning After working or when the barrel is full of dust which cause suction decreases considerably,you should cut off the electricity and clean the dust away from the barrel. 1) Unfasten the locking knob,lift up the top cover 2) Take off the filter bag,clean the dust away in the dust barrel.
  • Page 9 9. WET/DRY VACUUM CLEANER Technique Parameter Type WL70-3B Power 3000W Cooling Recycle system Vacuum 20Kpa degree Capacity 100L Tank diameter 420mm Function Wet/Dry Voltage 220V-240V Length 4.5m cable Accessories Suction hose Short Connector Long Connector Metal Tube Dry floor nozzle...
  • Page 10 Handlez Coating Power cable Top cover Switch Middle cover Spong Capacitor 10. Middle cover gasket 11. Air outlet sponge 12. Upper gasket 13. Motor 14. Lower gasket 15. Air inlet blocking board 16. Motor pedestal 17. Barrel cover 18. windtight ring 19.
  • Page 11 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
