Summary of Contents for Kontron JFLEX-DUALDVI

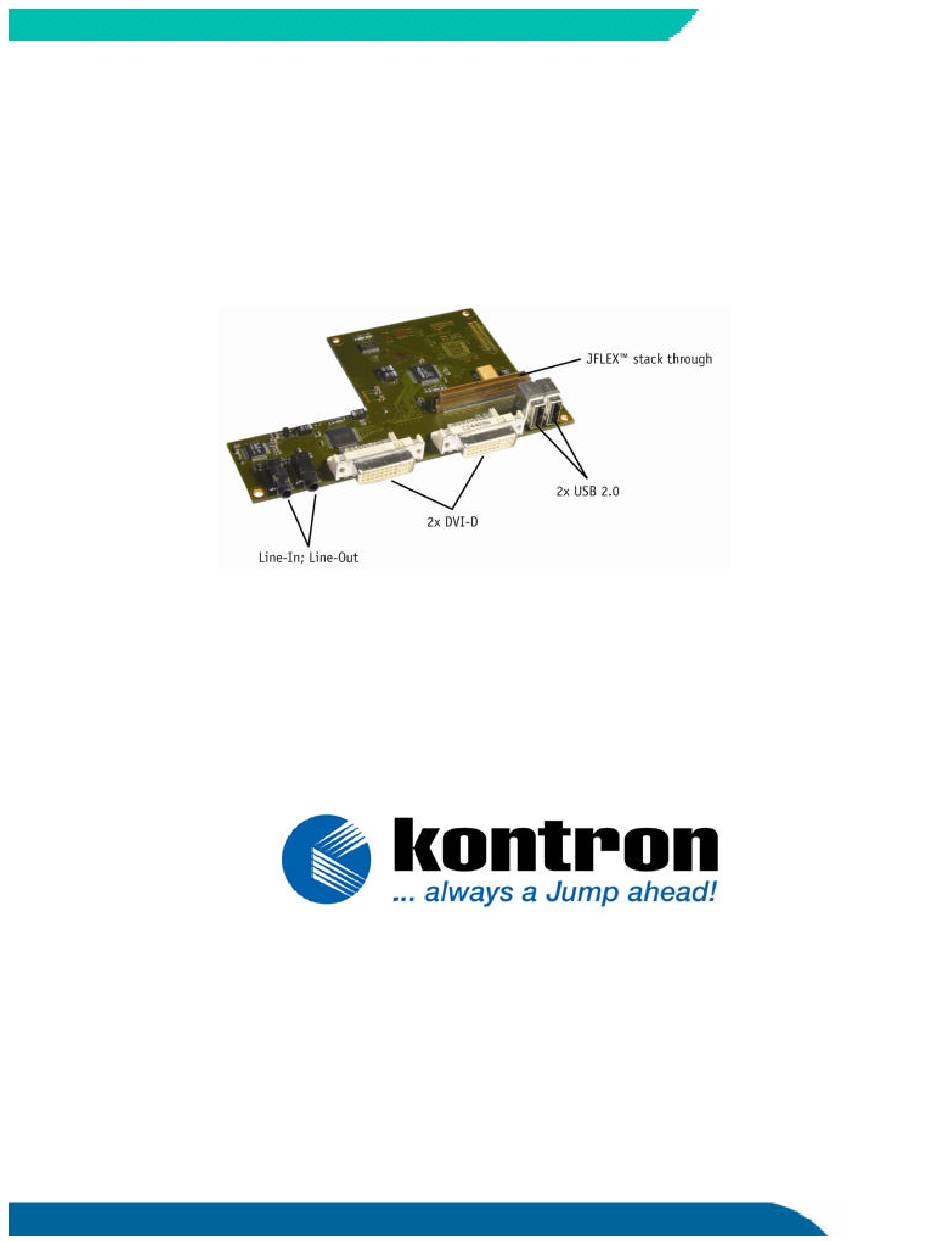

- Page 1 JFLEX-DUALDVI User’s Guide Document Revision 0.1 PRELIMINARY...
-
Page 3: Table Of Contents
1.6 Technical Support ..................4 2. INTRODUCTIONS ....................5 2.1 JFLEX-DUALDVI ................... 5 3. SPECIFICATION ....................7 3.1 JFLEX-DUALDVI with Silicon Image SIL164 and Texas Instruments TFP410..... 7 3.2 Mechanical Specifications ................7 3.2.1. Dimensions................... 7 3.3 Electrical Specifications ................. 8 3.3.1. Supply Voltage ..................8 3.3.2. -
Page 4: User Information
“as-is” and is subject to change without notice. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned. Copyright Notice Copyright ©... -
Page 5: Standards
Kontron Embedded Modules will not be responsible for any defects or damages to other products not supplied by Kontron Embedded Modules that are caused by a faulty Kontron Embedded Modules product. -
Page 6: Technical Support
Kontron Technical Support Technicians and engineers from Kontron Embedded Modules and/or its subsidiaries are available for technical support. We are committed to making our product easy to use and will help you use our products in your systems. Before contacting Kontron Embedded Modules technical support, please consult our Web site at http://www.kontron-em.com/index-en.html... -
Page 7: Introductions
Kontron INTRODUCTIONS JFLEX-DUALDVI The JFLEX-DUALDVI is an extension for Kontrons JRex 3,5’’ SBC family. Following features are provided by the JFLEX-DUALDVI: • One Realtek ALC650 sound controller compatible to Intel Audio Codec ® ´97 Rev. 2.2 Input connectors: Line, CD-ROM (internal) Output connectors: Line •... - Page 8 Kontron The assembled JRex-PM and JFLEX-DUALDVI module looks like this and allows these connections: JFLEX-DUALDVI User’s Guide...
-
Page 9: Specification
Instruments TFP410 The JFLEX-DUALDVI supports DVI resolutions from VGA to SXGA@60Hz Programmable by Using the I2C Serial Interface To activate the JFLEX-DUALDVI please enable in the Phoenix Bios Setup: -> Advanced -> Display Control : EFP Only or CRT+EFP Mechanical Specifications Dimensions 3.2.1. -
Page 10: Electrical Specifications
Kontron 15,00 5,00 10,00 140,6 Electrical Specifications Supply Voltage 3.3.1. † 5V DC +/- 5% † 3,3V DC +/- 5% Supply Voltage Ripple 3.3.2. † Maximum 100 mV peak to peak 0 – 20 MHz JFLEX-DUALDVI User’s Guide... -
Page 11: Supply Current
Power-consumption tests were executed during different applications conducted. Environmental Specifications Temperature 3.4.1. † Operating: • Ambient temperature: 0 to +60 °C Non-operating: -10 to +85 °C † Humidity 3.4.2. † Operating: 10% to 90% (non condensing) † Non operating: 5% to 95% (non condensing) JFLEX-DUALDVI User’s Guide... -
Page 12: Module Functions
MODULE FUNCTIONS AC ’97 Sound Controller The JFLEX-DualDVI uses a Realtek ALC650 sound codec. The ALC650 is an 18-bit, full duplex AC’97 2.2 compatible stereo audio CODEC designed for PC multimedia systems, including host/soft audio and AMR/CNR based designs. The ALC650 incorporates proprietary converter technology to achieve a high SNR, greater than 90 dB. -
Page 13: Cd-Rom Input X8
Pin 1 DVI (Digital Video Interface) The JFLEX-DualDVI is equipped with a standard Digital Video Interface. DVI has the potential to unify the digital display industry. The DVI 1.0 specification was endorsed in April 1999 by the Digital Display Working Group (DDWG), an industry organization established by Intel. -
Page 14: Dvi Connector X3 Pinout On Jflex-Dualdvi
Kontron DVI Connector X3 Pinout on JFLEX-DUALDVI Name Name TMDS Data2- Not connected TMDS Data2+ +5 V Power Not connected Hot Plug Detect Not connected TMDS Data0- DDC Clock [SCL] TMDSData0+ DDC Data [SDA] Not connected Not connected TMDS Data1-... -
Page 15: Dvi Connector X4 Pinout On Jflex-Dualdvi
Kontron DVI Connector X4 Pinout on JFLEX-DUALDVI Name Name TMDS Data2- Not connected TMDS Data2+ +5 V Power Not connected Hot Plug Detect Not connected TMDS Data0- DDC Clock [SCL] TMDSData0+ DDC Data [SDA] Not connected Not connected TMDS Data1-... -
Page 16: Appendix A: Block Diagram
Kontron APPENDIX A: BLOCK DIAGRAM CD-Sound Connector 3,5 mm female connector Realtek 3,5 mm female AC ‘97 connector ALC650 connector connector Digital Panel Signals connector TFP410 Digital Panel Signals Connector SIL164 +3.3V JFLEX-DUALDVI User’s Guide... -
Page 17: Appendix B: Connector Layout
Kontron APPENDIX B: CONNECTOR LAYOUT Connector Locations JFLEX-DUALDVI User’s Guide... -
Page 18: Appendix C: Literature And Standards
I/O functionality in PC systems. This specification does not explicitly define the companion AC ’97 Digital Controller component (sometimes referred to or abbreviated as DC ’97), which typically varies in features and implementation, but is AC ’97 compliant with this specification. JFLEX-DUALDVI User’s Guide... -
Page 19: Appendix D: Document-Revision History
Kontron APPENDIX D: DOCUMENT-REVISION HISTORY Revision Date Edited by Changes 30.05.06 Created preliminary manual. 08.01.2007 Updated support contact data and added product images JFLEX-DUALDVI User’s Guide...
