Summary of Contents for Onbon BX-V320

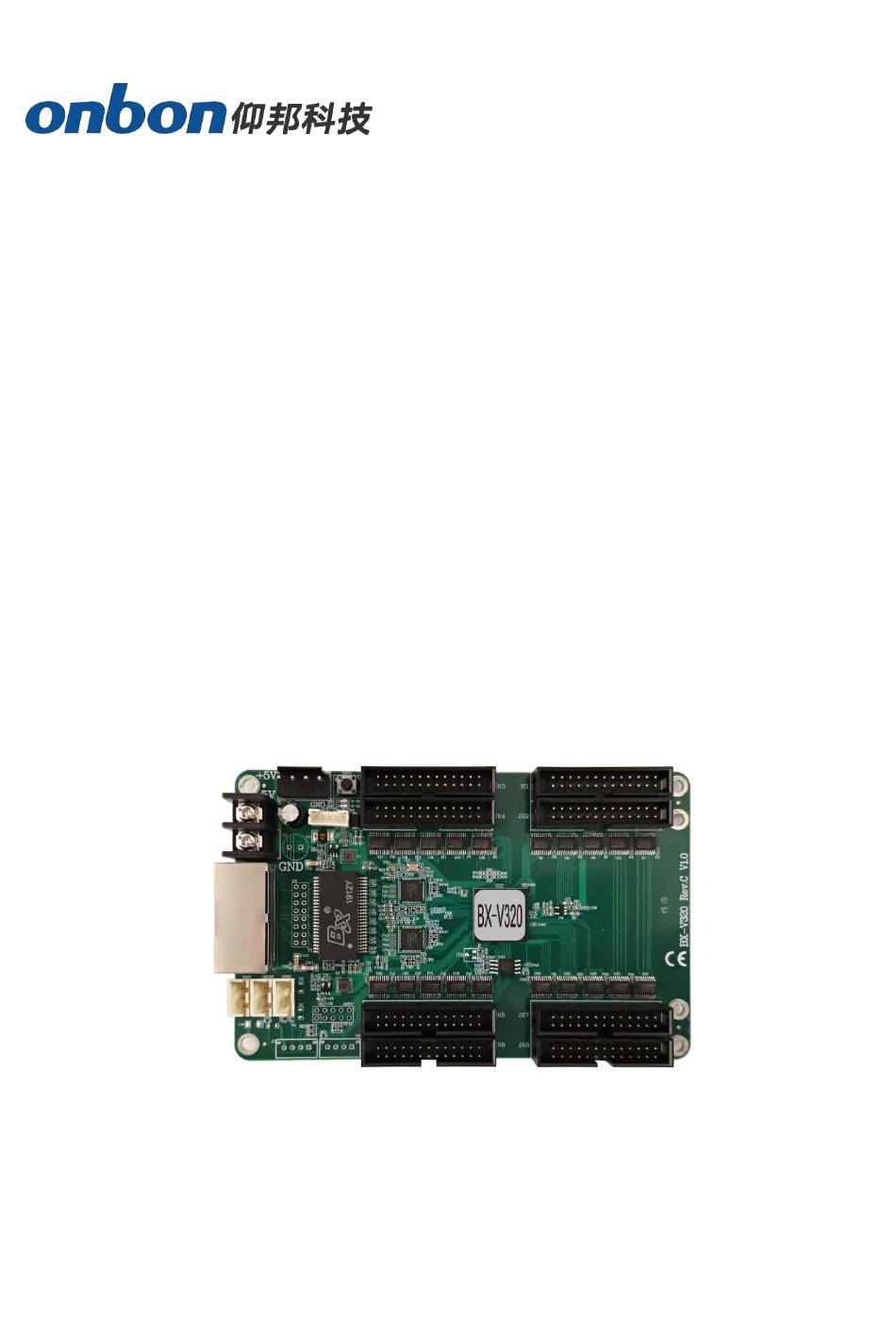

- Page 1 BX-V320 SPEICIFICATION VERSION：V1.0 DATE：2019.11.1...
-
Page 2: Table Of Contents
DIRECTORY Instruction................................3 About software.............................3 Features................................3 GUIDING.................................4 Safety notification............................4 FUNCTIONS................................5 Easy installation............................5 Flexible interface............................5 More folio modes............................5 Variable data trends............................5 Support irregular screen..........................6 More scan mode............................6 Compatible with more chips........................6 Superior display effect..........................6 Adjust clock..............................6 Blanking adjustment...........................6 Easy maintenance............................7 Recommend loading............................ -
Page 3: Instruction
Instruction Thank you for purchasing our LED control card.Hope you can enjoy the excellent performance of this product.The LED control card is designed to meet international and industry standards, but if not properly operated, it may cause personal injury and property damage.In order to avoid possible hazards of the equipment and to benefit from your equipment as much as possible, please follow the instructions in this manual when installing and operating the product. -
Page 4: Guiding
Safety notification This product rated working voltage 5V, voltage range 4.V ~ 6V, please strictly guarantee the BX-V320 series power quality. When you want to connect or unplug any signal cord or control cord, make sure all power cords are unplugged beforehand. -
Page 5: Functions
The new high refresh technology allows you to have ultra HD picture quality experience.Product structure is simple, easy to install, Easy operation is to achieve the best results, no need training.BX-V320 receiving card hardware system can be upgraded online to maximize user benefits. -
Page 6: Support Irregular Screen
recommended. Support irregular screen Support display data line offset, can be flexibly adjusted within the range of 0 to 511 points, depending on the specific load width, the maximum can be set 384 line height display offset or data path as the unit of offset, convenient configuration for irregular screen. More scan mode Match with LedshowTV software, support 32 scan, 16 scan, 8 scan, 4 scan and other kinds of straight and folding scanning fast configuration;Support no 138 line decoding, 595 line... -
Page 7: Easy Maintenance
content. Easy maintenance The receiving card supports configuration parameter read-back function, single point parameter setting and query read-back, and supports online upgrade, which is convenient for customer system upgrade and maintenance. Recommend loading The receiving card can achieve the best display effect and application experience under the control area of 256*256. -
Page 8: User Manual
with 8 lines of data, please refer to 1/8 values,If 1/4 scan with 16 lines of data, you should refer to the 1/16 values. If possible better to use the folio mode to improve the effect. USER MANUAL Set parameters Display mode ... -
Page 9: Technical Parameters
display mode is fixed, then, the higher the brightness is, the lower the refreshment will be. Or, on the same refreshment, the control width will be smaller. So, when the brightness is enough, you can choose lower brightness mode, as to obtain a better refresh rate and shooting effect. -
Page 10: Interface Diagram
All kinds of full color LED screens Application All kinds of full color LED chips Chips Interface 8 nos 320 interface，32 nos RGB data 256 grade Brightness Details Input power supply 4V~6V; Please make sure the quality of power supply. Power Dissipation ≤5W Temperature... -
Page 11: Interface Definition
○ ○ ○ ○ ○ ○ Interface 320 interface 320 interface（JK1，JK2，JK3，JK4，JK5，JK6，JK7，JK8） TEST/SELECT screen test button Power 5Vpower interface ,DC volts, standard 5V ,support 4.5V-5.5V Power 5V power terminal,DC volts,standard 5V support 4.5V-5.5V terminal 1000M Gigabit port ,connect with sending card Interface Definition www.onbonbx.com 第... -
Page 12: Demension
Function Pin No Pin No Function DEMENSION www.onbonbx.com 第 12页... -
Page 13: Faq
Gigabit or Sending card If need better shoot effect, choose sending card mode. Is there any affect for shooting by environment? Usually, the environment brightness is the biggest fact for shoot. Cause the time of the camera shutter is according the the environment brightness. In indoor, the brightness is lower, so, the shutter will be slower, usually, 1/60 - 1/200 seconds. - Page 14 Contact Us Shanghai ONBON Technology Co.,ltd (Headquarters) Address: 7 Floor, Tower 88, 1199#, North Qinzhou Road, Xuhui District, Shanghai City, China Tel Phone: 086-21-64955136 Fax: 086-21-64955136 Website: www.onbonbx.com ONBON (Jiangsu) Optoelectronic Industrial Co.,LTD Address: 1299#, Fuchun Jiang Road, Kunshan City, Jiangsu Province, China...
