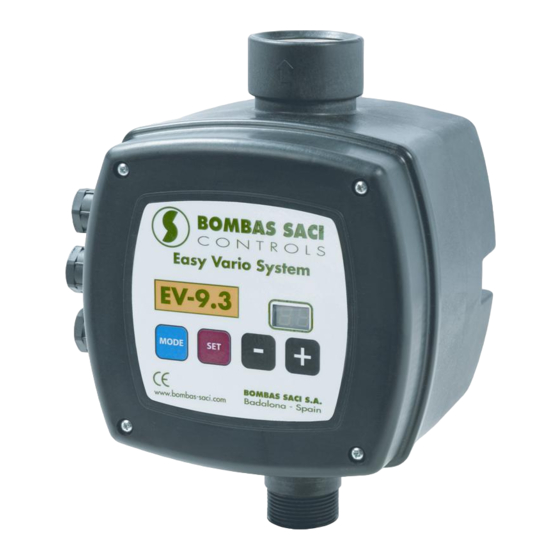

- Page 1 BOMBAS SACI S.A. MANUAL DE USO Y MANTENIMIENTO AMPLIACION MANUAL DE FUNCIONAMIENTO Y MANTENIMIENTO DE EQUIPOS DE PRESIÓN CON VARIADOR DE FRECUENCIA EASY VARIO-SYSTEM BADALONA – LA CORUÑA portada easy vario...
- Page 2 GUIA RAPIDA DE PUESTA EN MARCHA El objetivo de este manual es explicar como poner en marcha por primera vez el equipo Easy Vario System. El variador se entrega con la programación estándar de fabrica y se debe proceder a su puesta marcha, para ello debemos introducir tres parámetros básicos.
-
Page 3: Table Of Contents
INDICE Introductión..............................3 Instalación..............................3 Conexiones hidráulicas ........................3 Conexiones eléctricas........................3 2.2.1 Conexión a la línea de alimentación PWM 230 3basic ...............3 2.2.2 Conexiones eléctricas a la electrobomba..................4 Botonera y pantalla ..........................5 Operaciones a llevar a cabo para el primer encendido................6 Visualizaciones en la pantalla ........................7 Significado de cada parámetro ......................8 Parámetros configurables .......................8 6.1.1... -
Page 4: Introductión
INTRODUCTIÓN El PWM 230 3basic es un dispositivo con alimentación monofásica a 220 V y es capaz de modular la velocidad de una electrobomba trifásica 220 V a fin de mantener constante la presión de una instalación hidráulica. INSTALACIÓN 2.1 Conexiones hidráulicas Instale una válvula de retención en la tubería montada antes del PWM. -
Page 5: Conexiones Eléctricas A La Electrobomba
La conexión de la línea al PWM 230 debe incluir la puesta a tierra. La resistencia de tierra total no debe superar 100 Ohm. 2.2.2 Conexiones eléctricas a la electrobomba La tensión de alimentación del motor de la electrobomba instalada debe ser de 230V 50Hz trifásica. -
Page 6: Botonera Y Pantalla
BOTONERA Y PANTALLA Figura 5 : Botonera-Pantalla PWM. En la pantalla se visualizan las magnitudes y los botones del PWM. Las magnitudes están caracterizadas por un identificador alfanumérico y por el valor. El significado del identificador alfanumérico está explicado en la tabla del capítulo 5. Durante la exposición de una magnitud, aparece cíclicamente durante 1 segundo el identificador y durante 6 segundos el valor. -
Page 7: Operaciones A Llevar A Cabo Para El Primer Encendido
OPERACIONES A LLEVAR A CABO PARA EL PRIMER ENCENDIDO Después de haber efectuado correctamente las operaciones de montaje de la instalación hidráulica y eléctrica, se puede alimentar el PWM. En la pantalla aparecerá escrito "ZF" . 1. Desde el estado normal de funcionamiento pulse “MODE” & “SET” & “-“ hasta que en la pantalla aparezca “rt”... -
Page 8: Visualizaciones En La Pantalla
VISUALIZACIONES EN LA PANTALLA Identificador Descripción Indicaciones en la pantalla durante el funcionamiento normal Electrobomba encendida Electrobomba apagada Condiciones de error y de estado Bloqueo por falta de agua Bloqueo por sobrecorriente en los terminales de salida Bloqueo por cortocircuito en las fases de salida Bloqueo por recalentamiento de los terminales de potencia E0...E7 Error interno 0...7... -
Page 9: Significado De Cada Parámetro
SIGNIFICADO DE CADA PARÁMETRO 6.1 Parámetros configurables 6.1.1 Parámetros para el usuario (botones de acceso MODE & SET) Atención: Si durante esta etapa se produce un error o un problema de funcionamiento, la pantalla no se modifica. Según el tipo de error, la electrobomba puede apagarse. Sin embargo es posible efectuar la calibración deseada. -
Page 10: Parámetros Para El Instalador (Botones De Acceso Mode & Set & -)
Para la selección de los valores de dP, el PWM está dotado de un sistema de limitación que se activa cuando se configuran setpoints de presión inferiores a 2,0 bares. En este caso, dP se limita a 0,5. Por ejemplo, si SP valía 3,0 y dP valía 1,0, después que Sp se ha colocado en 1,9, dP valdrá 0,5. Por el contrario, si dP era inferior a 0,5 (por ejemplo valía 0,3), durante el paso de SP = 3,0 a SP = 1,9, el valor de dP no se modificará. -
Page 11: Visualizaciones Y Configuraciones Asistencia Técnica (Botones De Acceso Mode & Set & +)
6.1.3 Visualizaciones y configuraciones asistencia técnica (botones de acceso MODE & SET & +) 6.1.3.1 tB: Configuración del tiempo de bloqueo por falta de agua (valor preconfigurado 10s) La configuración del tiempo de espera del bloqueo por falta de agua permite seleccionar el tiempo (en segundos) utilizado por el sistema PWM para señalar la falta de agua de la electrobomba. -
Page 12: Ft: Configuración Del Umbral De Flujo Bajo (Valor Preconfigurado 15)
La ventaja de seleccionar un dP diferente de cero es que se puede redimensionar el caudal si hubiera pérdidas en la instalación y permitir un ahorro de energía, pudiendo funcionar la electrobomba a bajas revoluciones cuando los flujos requeridos son bajos. Los posibles valores configurables de dP son de 0 a 1,0 bar, salvo limitaciones automáticas (véase párrafo 6.1.1.1). -
Page 13: Fm: Visualización De La Frecuencia Máxima De Rotación (En Hz)
6.2.2.3 FM: Visualización de la frecuencia máxima de rotación (en Hz) 6.2.2.4 tE: Visualización de la temperatura de los terminales de potencia (en °C) 6.2.2.5 GS: Visualización del estado de running bomba en funcionamiento para mantener la presión “SP” bomba en funcionamiento para “anticongelante” 6.2.2.6 FF: Visualización del historial de los errores ( + &... -
Page 14: Reajuste Manual De Las Condiciones De Error
Cada vez que se produce un cortocircuito, un contador de eventos aumenta y se guarda en la memoria permanente (EEPROM). ¡DESPUÉS DEL CENTÉSIMO CORTOCIRCUITO, LA MÁQUINA SE BLOQUEA DE MANERA PERMANENTE Y NO SE PODRÁ DESBLOQUEAR MÁS! 7.1 Reajuste manual de las condiciones de error En estado de error, el operador puede cancelar el error intentando nuevamente, pulsando simultáneamente los botones + y -. -
Page 15: Acceso A La Modalidad Manual De La Máquina
La siguiente tabla muestra las secuencias de las operaciones ejecutadas por el PWM por diferentes tipos de bloqueo. Reajustes automáticos sobre las condiciones de error Indicación en la Descripción Secuencia de reajuste automático pantalla - Un intento cada 10 minutos por un total de 6 intentos Bloqueo por falta de agua - Un intento cada 1 hora por un total de 24 intentos - Un intento cada 24 horas por un total de 30 intentos... -
Page 16: Configuraciones De Fábrica
10 CONFIGURACIONES DE FÁBRICA Identificador Descripción Valor configurado Presión de setpoint 3.0 bares Sentido de rotación Modalidad de funcionamiento Presión para arranque 0.3 bares Tiempo de bloqueo por falta de agua 10 s Ganancia del coeficiente proporcional 1.0 para PWM230 Ganancia del coeficiente integral 1.0 para PWM230 Frecuencia máxima de rotación... - Page 17 EASY VARIO Instruction manual PWM230 PWM400 PWM400/7.5 Ver. 2.3...
- Page 18 Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 TABLE OF CONTENTS INTRODUCTION ............................7 Applications ............................8 Technical features..........................8 INSTALLATION ............................9 Hydraulic connection........................... 9 Electrical connection PWM 230 ......................10 2.2.1 Connection to the PWM 230 power supply line ................. 10 2.2.2 Electrical connection to the electro pump for PWM 230 device ..........
- Page 19 Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 5.1.3.7 CM: Role exchange policy in booster sets ................. 32 5.1.3.8 AE: Enabling the anti-frost/anti-block function..............32 5.1.3.9 Setup of the IN1, IN2 and IN3 auxiliary digital inputs with the i1, i2 and i3 parameters..33 5.1.3.9.1 I1: Setting function of input 1 (external float) ..............
- Page 20 PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual TABLES INDEX Table 1: Technical features ..........................8 Table 2: PWM 230 power supply requirements ....................10 Table 3: Minimum section as a function of power cord’s length for PWM 230..........11 Table 4: PWM 400 power supply requirements ....................
- Page 21 Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 Conventions used in this manual In the manual the following symbols will be used: Generic danger. Failure to comply with the safety regulations that follow can irreparably damage the equipment. Electric shock risk.
-
Page 22: Introduction
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 CE EN 55014-1 (2001/11) CEI EN 55014-2 (1998/10) CE EN 61000-3-2 (2002/04) CEI EN 61000-3-3 (1997/06) CE EN 60335-1 (2004/04) Basic Regulation: EN 61000-6-2 (2002/10) Rif: CE EN 61000-4-2 (1996/09) Rif: CE EN 61000-4-3 (2003/06) Rif: CE EN 61000-4-4 (1996/09) Rif: CE EN 61000-4-5 (1997/06) -
Page 23: Applications
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 1.1 Applications PWM systems are useful in all cases we need to control one or more pumps managing their turn-on and turn-off. The PWM system maintains a constant pressure by changing the frequency of rotation of the pump. Normally, the pump takes water from a basin or a well. -
Page 24: Installation
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 INSTALLATION 2.1 Hydraulic connection Always install a check valve on the pipe between pump and PWM as shown in Figure 1 part n° 12. The following Picture shows the scheme of a correct Hydraulic installation. See installation note Parts that make up the system Gun barrel... -
Page 25: Electrical Connection Pwm 230
PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual PWM400 and PWM400/7.5 must be installed only in vertical position, while PWM230 can be installed in any position. Internal pipe where water flows shows horizontal or vertical direction, while the arrows on the same pipe show flow direction. Ice/Frost danger: Pay attention to the environmental conditions where the PWM will be installed and to the electrical connection in the cold months. -
Page 26: Electrical Connection To The Electro Pump For Pwm 230 Device
PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual Figure 2: Power supply terminal If the installed electro pump’s power equals the PWM’s maximum allowed one, the power cord wires’ section should be greater than a given value, depending on the cord’s length. Table 3 shows the minimum wires’ section as a function of the cord’s length. -
Page 27: Electrical Connection Of Pwm 400 And Pwm 400/7.5
PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual Figure 5: Three-phase electro pump output terminal Wrong connection of the earth line to a terminal other than the earth one may cause irremediable damage to the whole appliance. Wrong connection of the power supply line on output terminals intended for the load may cause irremediable damage to the whole appliance. -
Page 28: Connection Of The Pwm 400 - Pwm400/7.5 To The Power Supply Line
PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual 2.3.1 Connection of the PWM 400 – PWM400/7.5 to the power supply line Normally PWM devices are equipped with a power cord labelled “Line” to connect to a 380V-415V 50-60Hz three-phase electric line. -
Page 29: Electrical Connection Of User Inputs And Outputs Of Pwm230 Pwm400 Pwm400/7.5
PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual Typical connection for devices with power Typical connection for devices with power lower than 5,5 kW greater or equal to 5,5 kW Figure 7: Connection to be made on a motor managed by PWM 400 Normally the PWM devices are equipped with a cable labelled “Pump”, for connection to the motor. - Page 30 Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 The +12Vdc voltage supplied to the pin 1 and 7 of J22 can supply max. 50mA. Output contacts features: Relay switch OUT 1: Pin 8 and 9. Relay switch OUT 2: Pin 10 and 11. Potential-free contact ratings: 250 Vac, 6 A max resistive load, 3 A max inductive load.
- Page 31 PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual Optocoupled input contacts’ electrical features: Opto coupler IN 1: Pin 5 and 6. Opto coupler IN 2: Pin 2 and 4. Opto coupler IN 3: Pin 3 and 4. Inputs can be driven with any polarity with respect to their own earth return and they work with alternate or direct current.
- Page 32 PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual Driving with potential-free contacts Driving with external Voltage IN 1 usage example Potential-free contacts When IN 1 is enabled, the pump is stopped and the display reports "F1".(e.g. IN 1 could be connected to a float switch).
-
Page 33: Electrical Connections For Interconnection And Exchange
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 2.5 Electrical connections for interconnection and exchange Each PWM has a communication port through which it can be connected by means of a special cable, to another PWM or to a compatible controller board. When interconnection cable’s length exceeds 1m, usage of a shielded cable with braid WARNING: connected to earth (central pin number 2) is recommended on both devices. - Page 34 Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 Figure 14: Wiring diagram for connection of PWM to the “Da Vinci” controller board. Note: For PWM systems wired and configured to work with “Da Vinci” controller board operation of input 2 is disabled (see sec.
-
Page 35: The Keypad And The Display
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 THE KEYPAD AND THE DISPLAY Figure 15: PWM’s Keypad and Display. The PWM front panel is equipped with a control keypad with 4 keys and a two-digit display used to show quantities, numerical values and possible block and protection conditions. -
Page 36: Meaning Of The Messages Shown On The Display
PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual The name of the parameter appears at first for a second. Thereafter the hundreds are shown and, finally, the tens and the units are shown. The Hundreds are represented on the right digit, while the left one is off; thereafter the left digit represents the tens while the right digit represents the units. - Page 37 Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 Setting of lack of water blockage latency time [s] Setting of proportional gain of the PI Setting of integral gain of the PI Setting of the max. rotation frequency of the electro pump [Hz] Setting of the min.
-
Page 38: Start And First Operation
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 START AND FIRST OPERATION 4.1 Start up operation After a craftsmanlike installation of the hydraulic and electric systems (see sec. 2.1 and 2.2), we can turn on the PWM. “ZF” will appear on the display and after a few seconds the error code “EC” will be displayed. The PWM doesn’t start, since it is necessary to set the value of rated current (in A) and frequency (in Hz) of the electrical pump being used. - Page 39 Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 Wrong setting of the electro pump’s rated frequency may irreparably damage the electro pump. c) Setting the direction of rotation. From “Fn” parameter, press the key once. The current and frequency settings are activated and the current parameter becomes “rt”;...
-
Page 40: Typical Installation
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 d) Setting the set-point pressure. From normal operation status keep the keys both pressed until “SP” appears on the display. In these conditions the keys allow to increase or decrease the desired pressure value. -
Page 41: First Installation Troubleshooting
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 4.3 First installation troubleshooting PWM message Possible causes Solution Current (rC) or frequency (Fn) of Set “rC” parameter (see sec. 4.1) the pump not set Set “Fn” parameter (see sec. 4.1) 1-2) Prime the pump and check there is no air in the pipeline. -
Page 42: Parameter Meanings
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 PARAMETER MEANINGS 5.1 Configurable parameters 5.1.1 User’s parameters (MODE & SET access keys) If during this phase an error or a malfunctioning occurs, the display will not be modified. WARNING: Depending on the kind of error, the electro pump can be stopped. -
Page 43: Fn: Setting The Rated Frequency
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 For PWM 400 and PWM 400/7.5 the motor must be configured to work with a three-phase set of voltages of 400V rms in amplitude. Typically, for electro pumps absorbing up to 5,5 KW a star wiring is used, whereas for higher power a delta wiring is used (the indications shown on the rating plate or on electro pump terminal board should always be followed, anyway). -
Page 44: Rp: Setting The Restart Pressure Drop
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 GP and GI parameter values change when switching from one operating mode to Important note. the other one. Moreover, the GP and GI values set in mode 1 are contained in a separate memory area from the GP and GI values set in mode 2. -
Page 45: Setting Address For Connection To "Da Vinci" Controller Board
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 Note: During operation it is possible to change all parameters of PWM (both those that are aligned at communication establishment and the others) on each of the two devices. If one of the above mentioned parameter’s value is changed on one PWM, it will change on the other PWM too. -
Page 46: Technical Assistance Displays And Settings (Access Keys Mode & Set & +)
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 continues modulating the rotation frequency according to the user demand, so that the formerly halted pump now works more than the formerly working one. Section 5.1.3.7 “CM: Role exchange policy in booster sets “ explains how to choose the way the booster and leader roles are exchanged between the pumps. -
Page 47: Fl: Setting The Min. Frequency
PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual 5.1.3.5 FL: Setting the min. frequency With FL we set the min operating frequency of the pump. FL values may range between 0 Hz and 60% of Fn; for example, if Fn =50 Hz, FL can be chosen between 0 and 30 Hz. FL is reset to the default each time we set a new Fn value. -
Page 48: Setup Of The In1, In2 And In3 Auxiliary Digital Inputs With The I1, I2 And I3 Parameters
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 5.1.3.9 Setup of the IN1, IN2 and IN3 auxiliary digital inputs with the i1, i2 and i3 parameters. The function assigned to each of the digital inputs IN1; IN2; IN3 may be activated or modified by means of the i1;... -
Page 49: I3: Setting Function Of Input 3 (General System Enabling)
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 i2 = 02: 2 set point system (NC) IN2: 0 (not energized input) active set point is P1. In normal display mode “Go” or “Sb” is displayed; the read-only GS parameter values “P1”... -
Page 50: P1: Setting The Set-Point P1 Function Of Input 2
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 5.1.3.10 P1: Setting the set-point P1 function of input 2 When the parameter i2 is set at a value other than zero, input 2 is used to select one of the two settable set points. -
Page 51: Monitor Menu (Accessed By Set & - Keys)
PWM 230 - PWM 400 - PWM 400/7.5 Instruction manual 5.2.2 MONITOR menu (accessed by SET & - keys) From normal operating status hold down the “SET” and “-“ (minus) keys simultaneously until “UF” appears on the display. Now it is possible to display all the following parameters, by pressing each time the MODE key. 5.2.2.1 UF: Display of the flow Display of the instantaneous flow in uncalibrated internal measure unit. - Page 52 Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 Maximum frequency limiting as temperature increases over a potentially dangerous value The second type of protection is used on: power devices supply capacitor printed circuit It acts when a potentially dangerous temperature is reached, by gradual decrease of the maximum frequency of rotation FS.
-
Page 53: Manual Reset Of Error Condition
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 pressure loss that the system cannot compensate. The result is that pressure is constant on the PWM device but not on the user. “bP” Blockage due to a fault of pressure sensor If the PWM does not detect the presence of a pressure sensor the pump blocks and the “bP”... -
Page 54: Switching To Manual Mode
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 The following table shows the procedures performed by PWM when different error conditions occur: Automatic reset of error conditions Display indications Description Sequence of automatic reset - One attempt every 10 min. for a total of 6 attempts Blockage due to lack of - One attempt every 1 hour for a total of 24 attempts water... -
Page 55: Parameters In Manual Mode
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 frequency and rotation direction of the pump) Moves to the next item in the following menu: FP Setting of the frequency (measured in Hz); must be ≤ than the FS value. UP Display of pressure (in bar) “MODE”... -
Page 56: Uf: Display Of The Flow
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 Without changing the amount of water taken, change the direction of rotation directly by simultaneously pressing the keys (see sec. 7.2.3) and take note of the pressure again while the pump is running. -
Page 57: Direction Of Rotation Reversal
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 Note: in manual mode if the pump is stopped pressure of the key restores normal operating mode, but if the pump is running pressure of the key only stops the pump. 7.2.3 Direction of rotation reversal By simultaneous pressure of the... -
Page 58: Reset And Factory Settings
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 RESET AND FACTORY SETTINGS 8.1 General system reset To restart the appliance without disconnecting the power supply, press the 4 keys simultaneously. 8.2 Factory settings The PWM leaves the factory with a set of default parameters’ values (shown on Table 16). Name Description Factory parameters... -
Page 59: Appendix
Instruction manual PWM 230 - PWM 400 - PWM 400/7.5 APPENDIX 9.1 Pressure loss Pressure loss diagram of PWM Pressure loss on PWM Flow (sqm/h) 9 10 11 12 13 14 15 16 17 18 Flow (l/min) Figure 16: PWM’s pressure loss 9.2 Energy saving Use of the PWM system instead of traditional On/Off systems drastically reduces energy consumption.
