Jumbl JUMWODKTCH User Manual

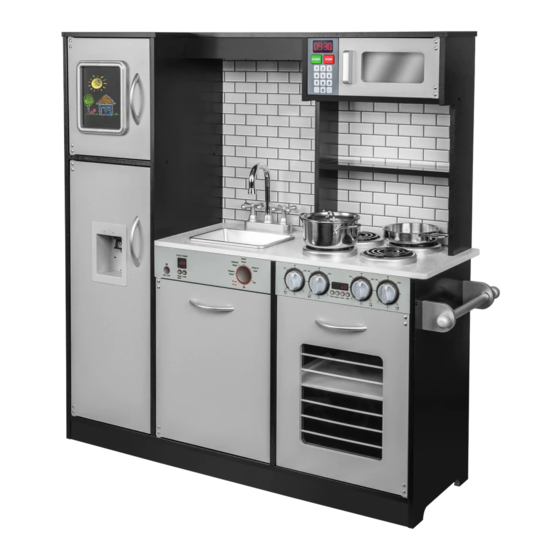

Wooden play kitchen
Hide thumbs

Advertisement

Quick Links

Download this manual

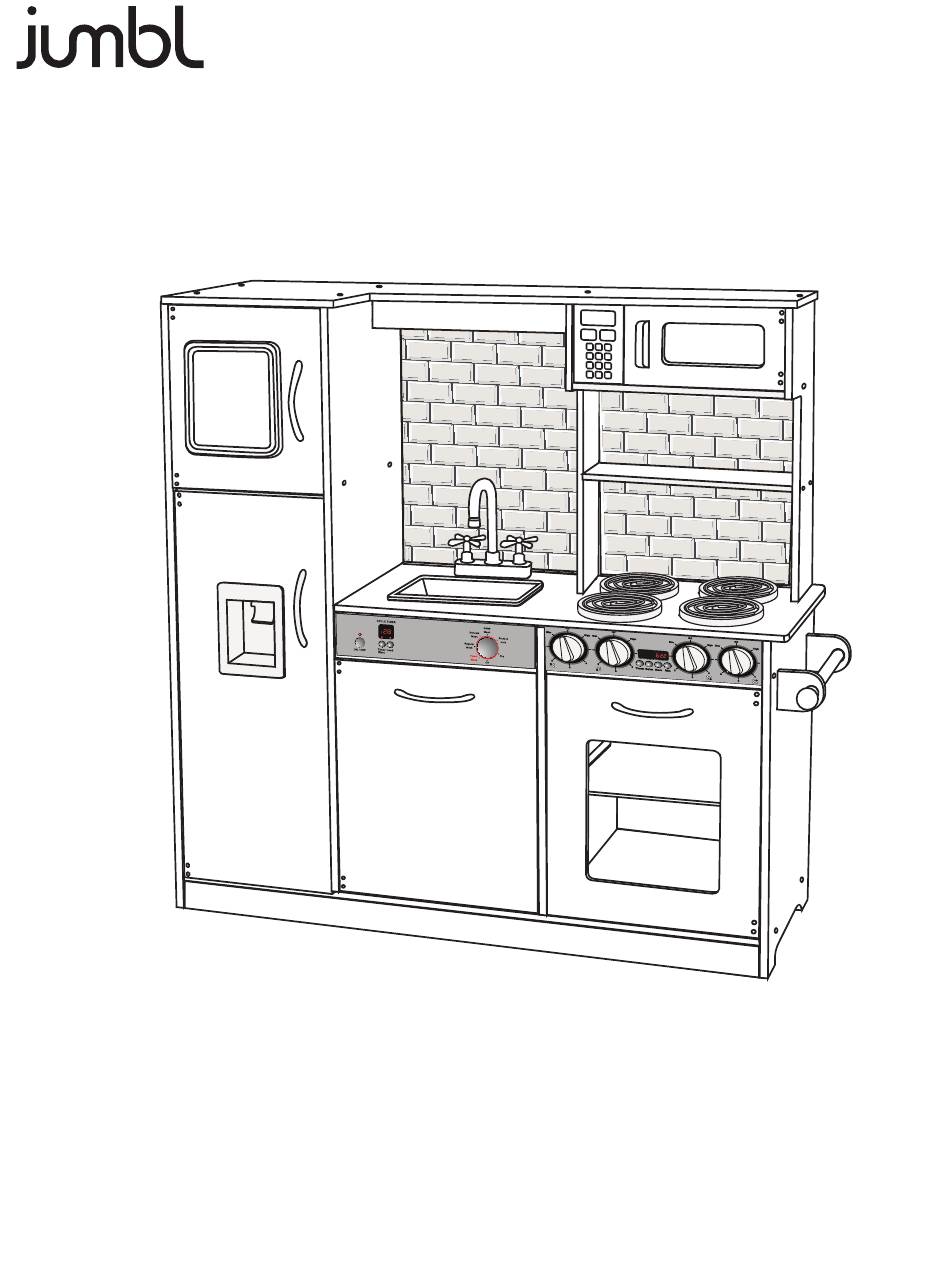

Wooden Play Kitchen
UMWODKTCH, JUMKTCHPNK1, JUMKTCHPNK2, JUMKTCHWHIT
J
User Guide
Thank you for purchasing the Jumbl Wooden Play Kitchen. This User Guide is intended to
provide you with guidelines to ensure that operation of this product is safe and does not
pose risk to the user. Any use that does not conform to the guidelines described in this
User Guide may void the limited warranty.
Please read all directions carefully before using the product and retain this guide for
reference. This product is intended for indoor use only. It is not intended for outside use.
This product is covered by a limited one-year warranty. Coverage is subject to limits and
exclusions. See warranty for details.
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the JUMWODKTCH and is the answer not in the manual?

Questions and answers

Summary of Contents for Jumbl JUMWODKTCH

  • Page 1 UMWODKTCH, JUMKTCHPNK1, JUMKTCHPNK2, JUMKTCHWHIT User Guide Thank you for purchasing the Jumbl Wooden Play Kitchen. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty.

  • Page 2: Safety Precautions

    Safety Precautions Please read all safety precautions and instructions carefully before using this product. Failure to properly follow the guidelines established here WARNING could result in serious injury. This product is not recommended for children under 3 years old. Choking hazard – small parts associated with this product WARNING are a choking hazard for children under 3 years old.

  • Page 3: Package Contents

    Package Contents...
  • Page 4 Package Contents (continued)
  • Page 5 Package Contents (continued) Hardware 42 mm 32 mm 9 mm 25 mm 20 mm 9 mm 30 mm 18 mm 28 mm...

  • Page 6: Recommended Tools

    Package Contents (continued) Accessories Recommended Tools • Wrench (included) • Philips head screwdriver (not included)
  • Page 7 Assembly Instructions Step 1 • Fasten all handles to doors 7, 8, 9, 10, and 11 using two (2) E screws on each door. Orient each door as shown. x10 x4 x1 Door 7 uses a different handle than the other doors.
  • Page 8 Step 2 • Fasten the chalkboard to door 8 using four (4) C screws. • Fasten the ice dispenser to door 11 using four (4) C screws. Chalkboard Ice dispenser...
  • Page 9 Step 3 • Fasten one (1) I latch to each of the five (5) doors using two (2) G screws on each door.
  • Page 10 Step 4 • Fasten two (2) H latches to panel 2 and one (1) H latch to panel 29 as shown. Use G screws to fasten.
  • Page 11 Step 5 • Fasten one (1) H latch to each side of panel 3 using two (2) D screws. Use the provided wrench to hold the nut in place as you tighten the screws.
  • Page 12 Step 6 • Mount the four (4) dials onto panel 16 using four (4) K screws. Make sure the inner piece of the dial fits into the lower holes on panel 16 and that the dial spins after tightening the screws.
  • Page 13 Step 7 • Insert one (1) wooden dowel into panel 6 and attach it to panel 5. • Then, insert four (4) additional dowels into the sides of panel 6.
  • Page 14 Step 8 • Fasten panel 1 to panel 5 using two (2) A screws while aligning the dowels from panel 6 into panel 1. Make sure the back grooves of panels 1 and 5 are aligned and that the hinges on panel 5 are facing up.
  • Page 15 Step 9 • Fasten panel 4 to panel 5 using two (2) A screws while aligning the dowels from panel 6 into panel 4. Make sure the back grooves on panels 4 and 5 are aligned.
  • Page 16 Step 10 • Fasten panel 2 to panel 5 using two (2) A screws. Make sure latches on panel 2 are facing panel 1 and the back grooves on panel 2 align with panel 5.
  • Page 17 Step 11 • Fasten panel 3 to panel 5 using two (2) A screws. Make sure the back grooves on panel 3 align with panel 5.
  • Page 18 Step 12 • Insert backboards 12 and 13 into their respective slots.
  • Page 19 Step 13 • Fasten two (2) shelf holders on opposite sides of panel 3 using two (2) B screws. Be sure to use the inner screw holes on the shelf holders.
  • Page 20 Step 14 • Fasten one shelf holder each on panel 2 and panel 4 using two (2) E screws each. Be sure to use the inner screw holes on the shelf holders.
  • Page 21 Step 15 • Insert shelves 14 into their respective slots.
  • Page 22 Step 16 • Mount panel 17 between panels 1 and 2 on the bottom-most screw holes using four (4) A screws. Ensure the smooth side is facing up on panel 17.
  • Page 23 Step 17 • Mount panels 23 to the outside of panel 4 using four (4) A screws.
  • Page 24 Step 18 • Unscrew one end of towel rack 24, pass the rack between panels 23, and reattach the end to lock in place.
  • Page 25 Step 19 • Align doors 9 and 10 into the hinges on panel 5.
  • Page 26 Step 20 • Connect panel 15 to panel 2 with the icons facing out. • Use a dowel for the upper connection and fasten one (1) A screw for the lower connection.
  • Page 27 Step 21 • Insert two (2) dowels into panel 15 through the holes on panel 3. • Push these entirely through.
  • Page 28 Step 22 • Insert two (2) dowels into panel 16 and align the panel into the holes on panel 3. • Attach panel 16 to panel 4 using one (1) dowel for the upper connection and one (1) A screw for the lower connection.
  • Page 29 Step 23 • Fasten faucet to countertop using two (2) L screws.
  • Page 30 Step 24 • Mount the four (4) stovetop burners to the countertop using eight (8) E screws.
  • Page 31 Step 25 • Fasten panels 27 and 28 to the countertop with one (1) A screw each. Make sure that the back grooves are aligned. Panel 27 will have back grooves on both sides while panel 28 will only have a back groove on one side.
  • Page 32 Step 26 • Screw four (4) F cam lock screws into the bottom of the countertop.
  • Page 33 Step 27 • Align the four (4) F cam lock nuts into the holes on panels 3 and 4.
  • Page 34 Step 28 • Align the countertop onto the main assembly with the four (4) F cam lock screws lining up with the holes on panels 3 and 4. • Once aligned, give each F cam lock nut a half turn to lock in place.
  • Page 35 Step 29 • Fasten two (2) A screws to the countertop through the holes on panel 2.
  • Page 36 Step 30 • Insert panels 25 and 26 into their respective slots. Make sure the grey area on panel 26 is facing up.
  • Page 37 Step 31 • Attach panel 18 to panels 1 and 2 by the back two (2) A screws only. Make sure the smooth side of panel 18 is facing up, and the hinge is on the front left side.
  • Page 38 Step 32 • Align door 11 between the hinges on panel 5 and panel 18. • Then, fasten panel 18 in place using the front two (2) A screws to mount the door in place.
  • Page 39 Step 33 • Insert four (4) dowels into panel 20 and connect it to panels 27 and 28.
  • Page 40 Step 34 • Mount panel 19 using four (4) dowels and two (2) A screws between panels 27 and 28 with the hinge facing up on the right-hand side. Panel 20 may slide while mounting. Be sure panel 20 is in the proper place before tightening the final A screw on panel 19.
  • Page 41 Step 35 • Align door 7 and the microwave control panel with the hinge and slots on panel 19.
  • Page 42 Step 36 • Attach panel 21 between panels 2 and 27 using four (4) wooden dowels.
  • Page 43 Step 37 • Align door 8 with the hinge on panel 18.
  • Page 44 Step 38 • Align panel 29 with the hinges on door 7 and door 8. • Fasten panel 29 to the assembly using six (6) A screws. Make sure the microwave control panel slots into the grooves on panel 29.
  • Page 45 Step 39 • Drop the sink in place, bring over the other accessories, and enjoy.
  • Page 46 Company’s property. Refunds can only be given if the original Product is returned. This Warranty does not apply to: (a) Any non-Jumbl Wooden Play Kitchen product, hardware or software, even if packaged or sold with the Product; (b) Damage caused by use with non-Jumbl Wooden Play Kitchen product;...
  • Page 47 (i) If any Jumbl Wooden Play Kitchen serial number has been removed or defaced. This Warranty is valid only in the country where the consumer purchased the Product, and only applies to Products purchased and serviced in that country. The Company does not warrant that the operation of the Product will be uninterrupted or error-free.
