Summary of Contents for KINSHOFER Auger Torque T150

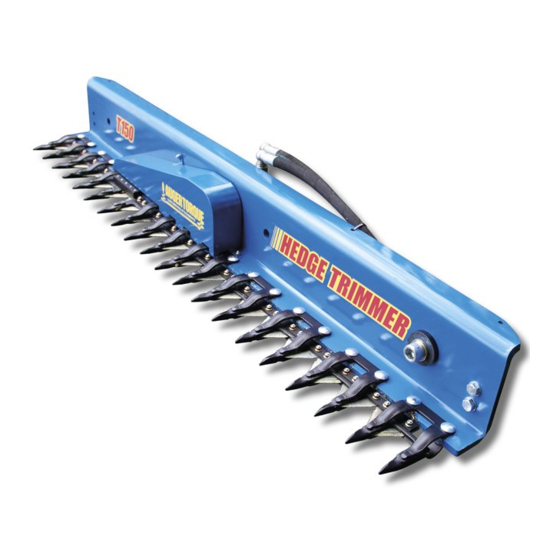

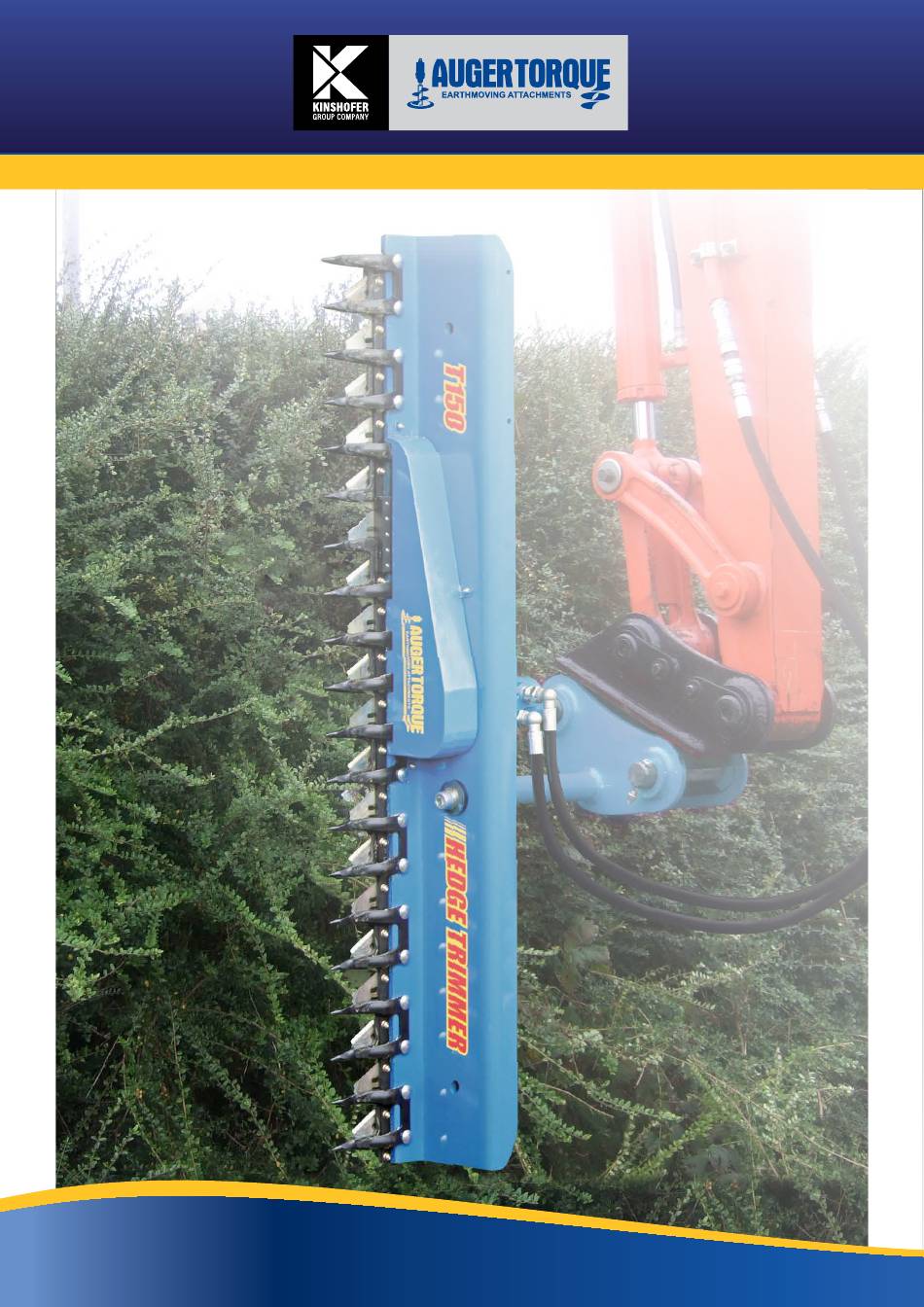

- Page 1 99-95518005 - ISSUE 6 ENGLISH Part No: 51-8901/ 51-8902 Document No: 99-95 518001 - Rev 1 Doc Date: 18-03-2021 T150 HEDGE TRIMMER OPERATORS MANUAL www.augertorque.com...
-
Page 2: Table Of Contents
INDEX FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Enquiries . - Page 3 CONTROL BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 OFFSET MOUNT OPERATION .
-
Page 4: Foreword
FOREWORD Enquiries Please state the model type and serial number when making enquiries or orders and all written correspondence . The serial number is recorded on a plate located on the main body next to the hydraulic motor . 99-5057 Distributed by: Serial No: Model:... - Page 5 Manufactured By Auger Torque Europe Limited EU Declaration of Conformity The responsible person: Name Position Company Name Auger Torque Europe Ltd. Address Hazelton, Cheltenham, GL54 4DX, England Telephone ++44 (0) 1451 861652 ++44 (0) 1451 861660 Declares that the product described: Manufacturer Auger Torque Europe Ltd.
-
Page 6: Registration
REGISTRATION Complete this form and keep it with the manual Auger Torque Australia Pty Ltd Auger Torque Europe Ltd Auger Torque USA LLC Hazleton 122 Boundary Rd 2640 Jason Industrial Parkway Rocklea Winston, GA 30187 Cheltenham GL54 4DX Queensland 4106 Tel: (+1) 844 287 6300 England Australia... - Page 7 REGISTRATION For warranty purposes this form MUST be completed and returned to Auger Torque within 14 days of purchase by the end user . Auger Torque Europe Ltd Auger Torque Australia Pty Ltd Auger Torque USA LLC 122 Boundary Rd 2640 Jason Industrial Parkway Hazleton Cheltenham...
- Page 8 For warranty purposes the form on the reverse of this page should be completed and returned to the appropriate address. Auger Torque Europe Ltd Auger Torque Australia Pty Ltd Auger Torque USA LLC Hazleton 122 Boundary Rd 2640 Jason Industrial Parkway Rocklea Winston, GA 30187 Cheltenham...
-
Page 9: Introduction
INTRODUCTION Auger Torque thank you for purchasing your new product . This operating manual has been prepared to enable you to operate the equipment in a safe manner . Auger Torque Hedge Trimmer Units have been designed for use with specific Auger Torque mounting frames . -
Page 10: Safety Notes
SAFETY NOTES Protect Yourself Make sure you wear protective clothing and personal safety items . You May Need • A Hard Hat • Safety Goggles • Hearing Protection • Foul Weather Clothing • Reflective Clothing • Protective Gloves • Safety Boots DO NOT wear items of loose clothing, jewellery or other items and tie up any long hair which could entangle in the controls or other parts of the machine . -
Page 11: Protective And Safety Devices
Protective And Safety Devices Keep all protective devices in place and securely fastened . Make sure all guards, sheilds and safety signs are properly installed and are in good condition . Check The Equipment Before you operate the equipment, take time to check your machine and ensure that all systems are in good operational order . -
Page 12: Safety Precautions
Safety Precautions NEVER operate or assemble the equipment without fully understanding the operating instructions of both the equipment unit and the parent machine . Auger Torque recommend you receive dealer instruction before operating the unit . NEVER operate the equipment unless you are in good physical condition and mental health . NEVER operate the equipment under the influence of any substance (including drugs &... -
Page 13: Identification
IDENTIFICATION Typical Setup Main Body Hydraulic Motor Lifting Eye Blade Bar Guard Knife Blade Finger 1M Extension Hitch Bar Link Plates Mounts and Hitches Offset Mount Double Pin Hitch Universal Mount Angle Mount Storage Stands Long Reach Arm www.augertorque.com... -
Page 14: Specification
SPECIFICATION T150 TECHNICAL INFORMATION 50cc Motor 80cc Motor 100cc Motor 1 .5 - 2 .5T 2 .5 - 4 .5T 4 .5 - 8 .0T CARRIER WEIGHT Excavators Excavators Excavators Skid Steer Loaders Skid Steer Loaders Skid Steer Loaders BLADE LENGTH 1500 mm 1500 mm 1500 mm... -
Page 15: Mounting And Adjusting The Hedge Trimmer
MOUNTING AND ADJUSTING THE HEDGE TRIMMER SAFETY FIRST ALWAYS check parent machine: • Is in correct working order • Is parked correctly on flat ground • Has its hand brake ON, its hydraulic circuit locked out and its engine switched OFF . Check that the mounting frame is of the correct model and type to fit the parent machine . -
Page 16: Angle Mount
Angle Mount The angle mount allows the hedge trimmer to be mounted at 90° to the hitch . When the excavator is fitted with a double pin hitch and a hedge trimmer mounted in a vertical position, the cab and boom have to be at 90°... -
Page 17: Long Reach Arm
Long Reach Arm The long reach arm can be used with all our hitches and the angle mount and extends the reach of the hedge trimmer by a metre . 100Nm/73.7ft-lb 100Nm/73.7ft-lb Adjustment Slacken the fixing bolt to allow adjustment to the required angle of operation . Carefully slide the cutter head along the mounting shaft 20-25mm to disengage the dog gear (A) . -
Page 18: Hydraulic Connections
HYDRAULIC CONNECTIONS WARNING: Hydraulic fluid under pressure can penetrate the skin or eyes and cause serious per- sonal injury, blindness or death . Fluid leaks under pressure may not be visible . Use a piece of card or wood to find leaks . DO NOT use your bare hands . Wear safety goggles to protect your eyes . -
Page 19: Mounting - Skidsteer And Miniloader Offset Mount
MOUNTING - Skidsteer and Miniloader Offset Mount SAFETY FIRST ALWAYS work in pairs (2 skilled operatives) whenever the components are being assembled or disassembled from the parent machine . Always check the weight of the attachment and ensure you have the correct equipment for handling it . ALWAYS check parent machine: •... - Page 20 • Slide offset mount body assembly in to the right-hand side of the back plate with the ram uppermost . NOTE: If the valve block is rotated through 180° the offset mount body can be fitted on the left- hand side dependent on customer requirements . •...
-
Page 21: Hydraulic Connections- Skidsteer And Miniloader Offset Mount
HYDRAULIC CONNECTIONS - Skidsteer and Miniloader Offset Mount WARNING: Hydraulic fluid under pressure can penetrate the skin or eyes and cause serious per- sonal injury, blindness or death . Fluid leaks under pressure may not be visible . Use a piece of card or wood to find leaks . -
Page 22: Control Box
CONTROL BOX • Mount control box in a suitable position in the operators area so that the toggle switches are accessible . • Route diverter valve cable along parent machine to the control box in the operator’s area . Secure as necessary, ensure cable is free and clear of blades . -
Page 23: Offset Mount -Storage Stands
OFFSET MOUNT - Storage Stands SAFETY FIRST The Hedge Trimmer should NEVER be operated with the storage stands fitted . When the offset mount is not in use it can be placed on storage stands for ease of storage and access . Retract the ram as far as possible to position the hedge trimmer over the mount . -
Page 24: Hedge Trimmer Extension
HEDGE TRIMMER EXTENSION A 1 metre extension can be fitted to either end of the Hedge Trimmer . Attaching the optional extension provides a combined 2 .5m cutting length . When using the extension the Hedge Trimmer MUST be fitted to the parent machine in the centre mount position . -
Page 25: Working Procedure
WORKING PROCEDURE Operating Practices - See Page 12 for Safe Operating Practices notes . Oil Flow Limitations - See page 14 for Operating Limitations . Care should be taken to match movement speed to the maturity and density of the hedge . For best results the operator can use the slewing movement of the parent machine to cut through thick, heavy growth . -
Page 26: Maintenance
MAINTENANCE WARNING: Before any maintenance is carried out on the Hedge Trimmer, make sure the hydraulics and electrics are switched off . Daily • Check that all hydraulic and electrical systems are in good operational order . • Ensure all bolts are tightened correctly . •... -
Page 27: Removing The Blade Bar
Removing The Blade Bar 1 . Remove the protection cover by removing the three M6 bolts . 2 . Undo the M10 bolt connecting the cam link arm to the receiver of the blade . Take care not to misplace the spacer bushings . 3 . -
Page 28: Replacing A Blade
Replacing A Blade 1 . To replace broken or worn blades, first remove the finger section by undoing the two M10 coach bolts . 2 . With the coach bolts removed, slide the finger of the trimmer, allowing you access to the desired blade . -
Page 29: Troubleshooting
TROUBLESHOOTING IF IN DOUBT ASK! - Seek Auger Torque / parent machine dealer for advice & repair . BE SAFE - only use genuine Auger Torque / parent machine spare parts . MOUNTING BRACKET ASSEMBLY FAULT POSSIBLE CAUSE ACTION Incorrect pin centres Mounting bracket does not fit Wrong mounting bracket Replace with genuine bracket... -
Page 30: Warranty Statement
WARRANTY STATEMENT All Auger Torque products are warranted to be free from defects in materials or workmanship for the periods summarised below: •Hydraulic Motors - 36 Months •All Other Parts / Products - 12 Months The warranty periods will commence from Date of Sale by an authorised Auger Torque Dealer . Evidence of the date of sale may be required and for Hydraulic Motor warranties to be valid the product must be registered with Auger Torque within 4 weeks of the date of sale . - Page 31 Notes ................
- Page 32 CHELTENHAM BUFFALO NINGBO TAHITI BRISBANE MELBOURNE YOUR DEALER IS Auger Torque Europe Ltd Auger Torque Australia Pty Ltd Auger Torque USA LLC Hazleton 122 Boundary Rd 2640 Jason Industrial Parkway Cheltenham Rocklea Winston, GA 30187 GL54 4DX Queensland 4106 England Australia Tel: (+1) 844 287 6300 Tel:+44(0)1451 861652...
