Sfera
360
220
400
410
100

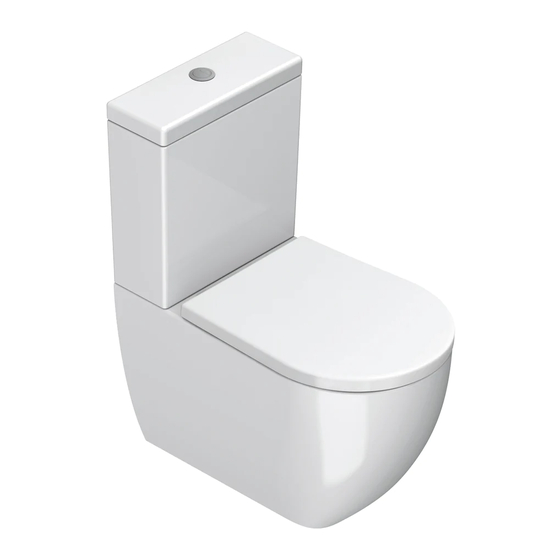

Sfera Sfera Newflush
Rimless Toilet Suite with
Standard Seat
3213001803 — White Gloss
435
630
185
Please note
• The pan should be bedded with an acetic cured silicone sealant and
fixed with the supplied fixing brackets.
• Suitable for both S & P trap installation
• S trap 185mm setout & P trap 180mm setout
• Back inlet installation only
• This is only an installation guide. Rogerseller recommends having
the product on-site before commencing rough in.
Dimensions are approximate. Information in this technical overview is representative of the product available at the time of printing.
Due to our policy of continuous product development, the design and specifications depicted are subject to change without notice.
Please confirm all particulars with your sales consultant prior to purchase.
Key
Waste outlet
Water inlet
720
310
180
Technical Overview
270
270
135
