Summary of Contents for Stage right ix4B

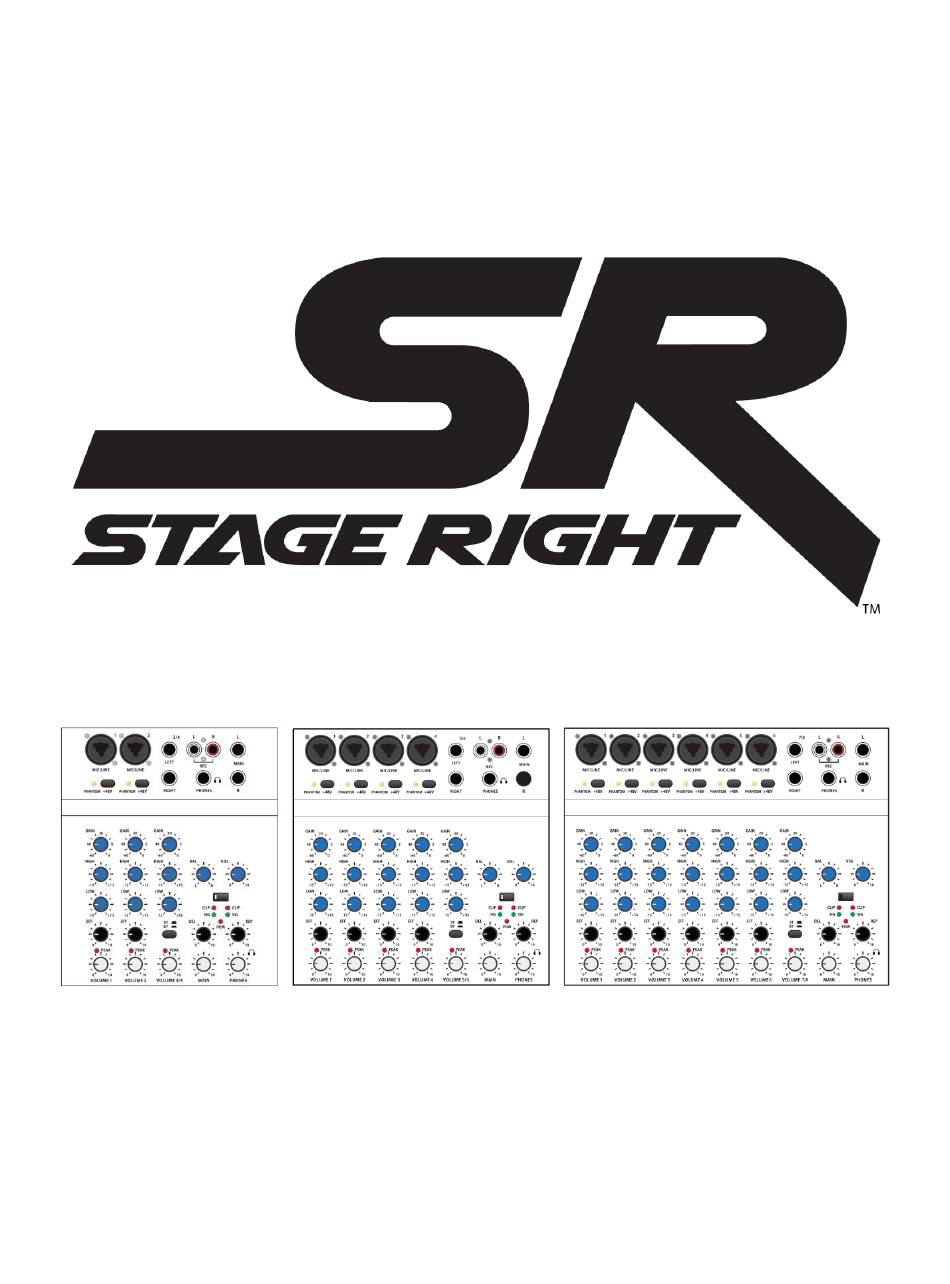

- Page 1 / ix6B / ix8B Live Sound and Recording Mixer P/N 625910, 625911, 625912 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. •... -
Page 3: Customer Service
CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. - Page 4 SAMPLE CONNECTION DIAGRAMS ix4B...
- Page 5 ix6B...
- Page 6 ix8B...
-

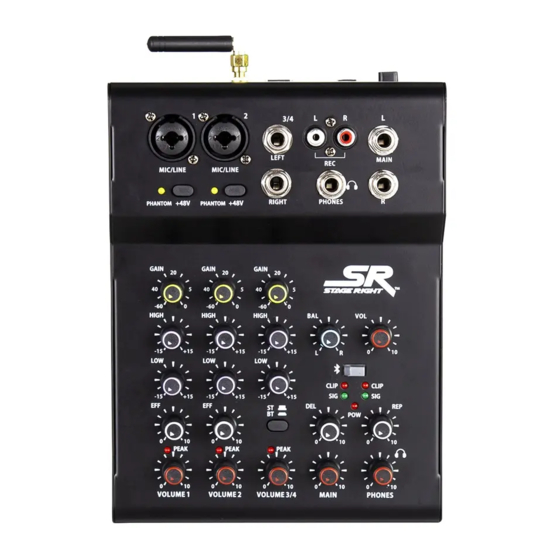

Page 7: Product Overview
PRODUCT OVERVIEW Mono Channels MIC/LINE: Combination balanced XLR and 1/4" TRS input connector. The XLR portion is the MIC input and the 1/4" TRS portion is the LINE connector. PHANTOM +48V: Press the button to enable +48V phantom power for use with condenser microphones. The LED to the left of the button illuminates when phantom power is in use. - Page 8 Stereo/Bluetooth Channel LEFT/RIGHT: Two unbalanced 1/4" TS line level inputs. The inputs are ganged together to form a stereo pair. GAIN: Adjusts the level of the input signal for the Stereo channel only. The input level of the Bluetooth® channel is determined by the output level of the connected Bluetooth device.
- Page 9 Outputs REC: Two unbalanced RCA outputs for connecting a recording device. The signal on this output is identical to the MAIN output signal. PHONES: Unbalanced 1/4" TRS stereo output for use with headphones. The signal on this output is identical to the MAIN output signal.
-
Page 10: Bluetooth Pairing
Rear Panel 1. POWER: Power switch for turning the mixer on or off. 2. 12 VDC In: DC barrel connector for connecting the included AC power adapter. 3. USB: USB connector for attaching the mixer to a computer for use as a recording device. - Page 11 5. Locate and select the ix4B, ix6B, or ix8B entry. If prompted for a passcode, enter 0000 (four zeros). 6. Once pairing is complete, the mixer will emit a sound through the MAIN and PHONES outputs and the LED inside the Pairing Button will stop flashing and will illuminate steadily.
- Page 12 Unbalanced 1/4" TS Connector Balanced 1/4" TRS Connector...
-
Page 13: Technical Support
Insert Send/Return 1/4" TRS Connector TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 14: Specifications
SPECIFICATIONS Model 625910 (ix4B), 625911 (ix6B), 625912 (ix8B) Microphone Inputs Connector Type Balanced XLR Number of Mic/Mono Inputs 2 (ix4B), 4 (ix6B), 6 (ix8B) E.I.N. @ 0Ω Source Impedance -134dB/135.7dB A-Weighted E.I.N. @ 50Ω Source Impedance -131dB/133.3dB A-Weighted E.I.N. @ 150Ω Source Impedance -129dB/130.5dB A-Weighted... -
Page 15: Regulatory Compliance
L/R MAIN Output Connector Types 2x unbalanced 1/4" TS Impedance 120Ω Maximum Output Level +28dBu PHONES Output Connector Type Unbalanced 1/4" TRS stereo Maximum Output Level +19dBu/150Ω +25dBm REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 16: Radio Notice For Industry Canada
(2) this device must accept any interference received, including interference that may cause undesired operation. Monoprice™, Stage Right™, the Stage Right logo, and all Monoprice logos are trademarks of Monoprice Inc. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
