ENFORCER SK-91ERSD Manual

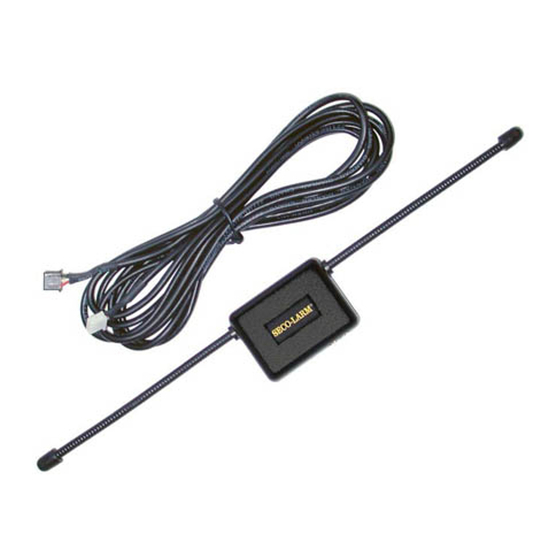

Extended Range Antenna
Manual
SK-91ERSD – 315MHz
SK-93ERSD – 433.92MHz*
• Extends the range of an RF receiver
• Range up to 1,000ft (300m) in open air with
existing remote
• Easily plugs into a connector on the receiver's
PCB – No extra wiring needed
• Includes 9ft cable
*Special order

Installation:

Please read manual before the installation.
Remove the top cover of the RF receiver case.
1.
Plug one end of the 9ft antenna cable into the red
2.
3-pin connector on the receiver's PCB.
Cut the wire loop marked
3.
NOTE: If the extended range antenna is later
removed, the LP3 loop must be re-
soldered.
Run the 9ft cable through the front of the case and
4.
then close the case by snapping the top cover back
on.
Plug the other end of the 9ft cable into the 3-pin
5.
connector on the antenna.
Mount the antenna as high as possible for maximum
6.
range.
IMPORTANT:
Do not cut, fold, or crimp, the antenna mast.
1.
Mount the antenna at least 3ft (1m) from the
2.
receiver.
The SK-91ERSD/SK-93ERSD is not weatherproof. If
3.
installed outdoors, please use a silicone sealant to
seal the case seams, the wiring connection point,
and the two antenna connection points.
