Summary of Contents for Comfier CF-6023

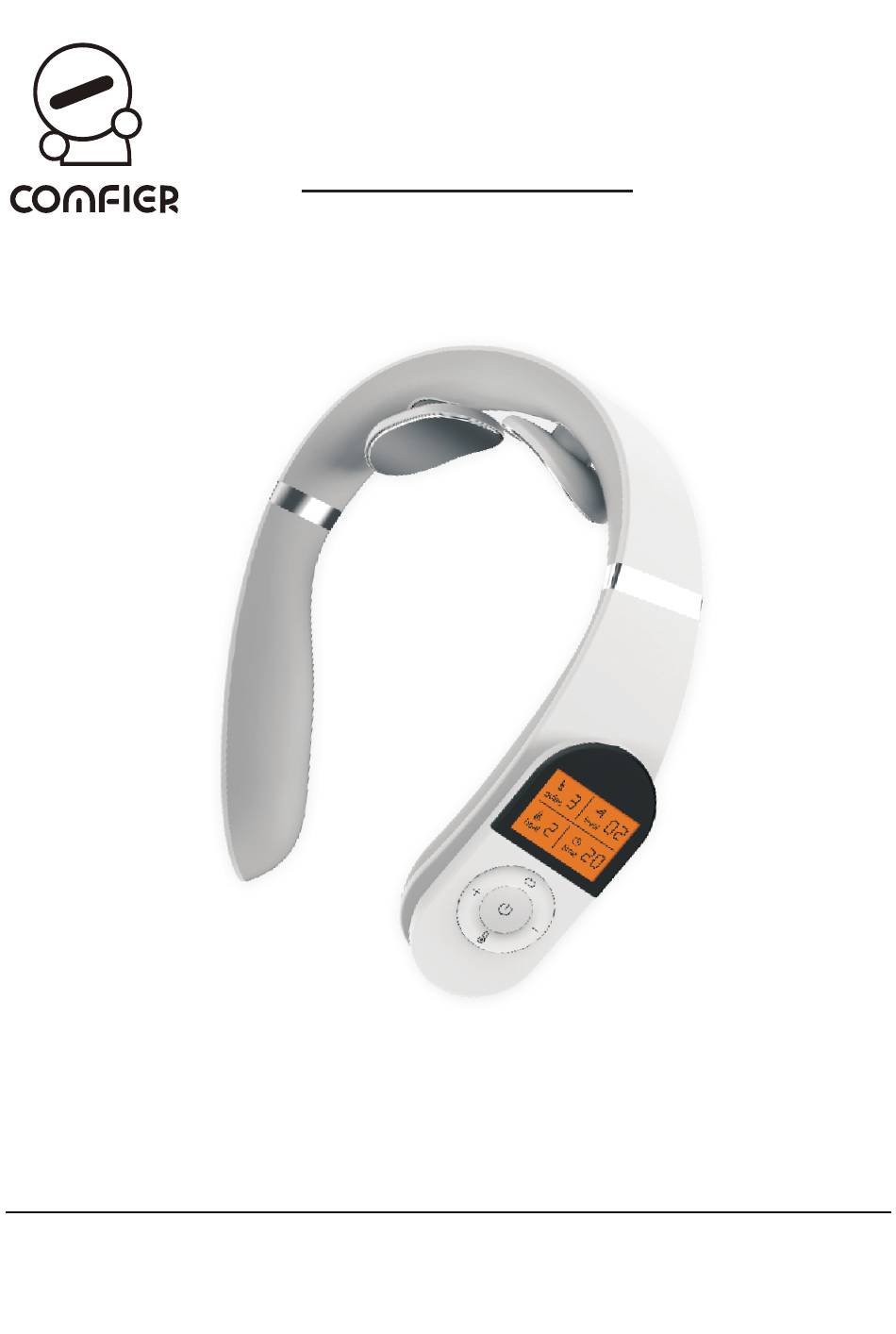

  • Page 1 User Manual CF-6023 Neck Massager...
  • Page 2 Instruction Thank you for purchasing COMFIER Neck Massager. Comfier neck massager is of a streamline ring -shaped design consistent with the human cervical vertebra physiological curvature. It combines four functions of low frequency electric pulse, magnetic effect, far infrared heating and circular traction which can lead the curative effect to reach directly the body's deep tissues.This massager can help promote local...

  • Page 3: Technical Parameters And Specifications

    Technical Parameters and Specifications 1.Product specifications Name: intelligent cervical vertebra massagen Tvpe: PG-2601B19 Power supply: 5V DC 1A Power adaptor(optional): Input100-240V AC 50/60Hz 0.2A Output 5V DC 1A Lithium battery: 3.7V DC 1500mAh Input power: 5W Host size: 166x134x42mm Remote control size:37x82.5x11.8mm Net Weight: about 190 g 2.
  • Page 4 Contents • Neck Massager • Cordless LCD controller • USB charging cable Product Host Conducting/Heating Strip Working/charging Indicator ON/OFF (Power button) Power Iutput Power Output Interface Interface...
  • Page 5 Instruction for use Electric pulse Pulse intensity (6 modes) (16 levels) Heat Indication Timer Indication (3 levels) (5/10/15/20/25/30) On/off/ Mode Button Timer Button Press to change the massage Press to turn on, mode between M1 to M6 Short Press again Down Button to set the timer of 5/10/15/20/25/30,...
  • Page 6 Instruction for use Six Massage Modes: M1: Auto-combination mode M2:Auto-combination mode M3: Scratch M4: Shiatsu M5: Rolling M6: Beating Note: 1.In each massage mode, you can freely set the heat level,pulse intensity,and timer to achieve the best massage as you need. 2.Please set an appropriate massage intensity for yourself.

  • Page 7: Battery Charging

    Battery Charging Charge the battery Connect the USB cable to any USB charger, it can be plugged in the portable power bank, mobile phone battery chargers, laptop and any USB port. Laptop Power bank Phone adapter 1. When the buzzer beeps for continuous three times during massage, The battery power is low, please charge it in time.
  • Page 8 Instructions for button battery of controller 1.The remote controller is powered by Model. CR2032 button battery. It is not rechargeable battery, it can be used for about 3months (30min each day). 2.When the LCD backlight becomes dim or Pressing the buttons to control the massager is not sensitive, it indicates that the battery capacity is low,please replace it with a new battery;...
  • Page 9 Remove the Rechargeable battery How to remove the rechargeable battery 1. The lithium battery built into this product contains substances that may pollute the environment. Before disposing of this product, the built-in lithium battery should be taken out 2. Before disassembling the product and takina out the lithium battery e sure to turn off the power or turn off the power 3.

  • Page 10: Safety Instructions

    Safety Instructions The warning symbols and illustrations shown in the manual are intended to enable you to use the product safely and correctly and to prevent injury to you and others. Warning signs and their meanings are as follows: Warning Meaning Symbol it indicates that there is a danger of personal casualty or...
  • Page 11 Safety Instructions Warning This apparatus cannot be used for pregnant women and those in menstrual period and people with sensitive skin, heart disease, abnormal blood pressure, malignant tumor, cerebral vascular disease, or acute disease, or others under treatment before consultation with the doctor 1.

  • Page 12: Troubleshooting And Solution

    Troubleshooting and Solution Problems Inspection Item Solution Is the internal rechargeable If it is in low power, please power batterv of the main unit low? it with an extemal power supply. Failure to Boot Check if the USB charging cable is plugged in.
  • Page 13 Troubleshooting and Solution Check if the patient's skin had any allergies in the past; if any slight allergy, please shorten the massage time; and if any Check whether the patient's serious allergy, please stop skin is sensitive to electrodes using this apparatus immediately and then offer desensitization treatment Patient feels...

  • Page 14: Cleaning, Maintenance And Storage

    Cleaning, Maintenance and Storage 1. Cleaning and Maintenance 1) Before cleaning and maintaining this product, please turn off the main unit. 2) Please wipe it with a dry soft cloth or dry towel 3) Please clean the conducting strips frequently with a wet soft cloth or towel dipped with water;...

  • Page 15: Warranty

    24 hours. 30 days unconditionally Return Comfier product can be returned to receive a full refund for any reason within 30days. Please contact our customers service (supportus@comfiermassager.com), our staff will contact you within 24 hours.
  • Page 16 COMFIER TECHNOLOGY CO.,LTD. Address: 17421 Gale Ave, Unit a, City of Industry,CA, 91748 supportus@comfiermassager.com www.comfiermassager.com www.facebook.com/comfiermassager Tel: +1.248.819.2623...
