Easy Order Switching Board - 3PDT Toggle Switch Version

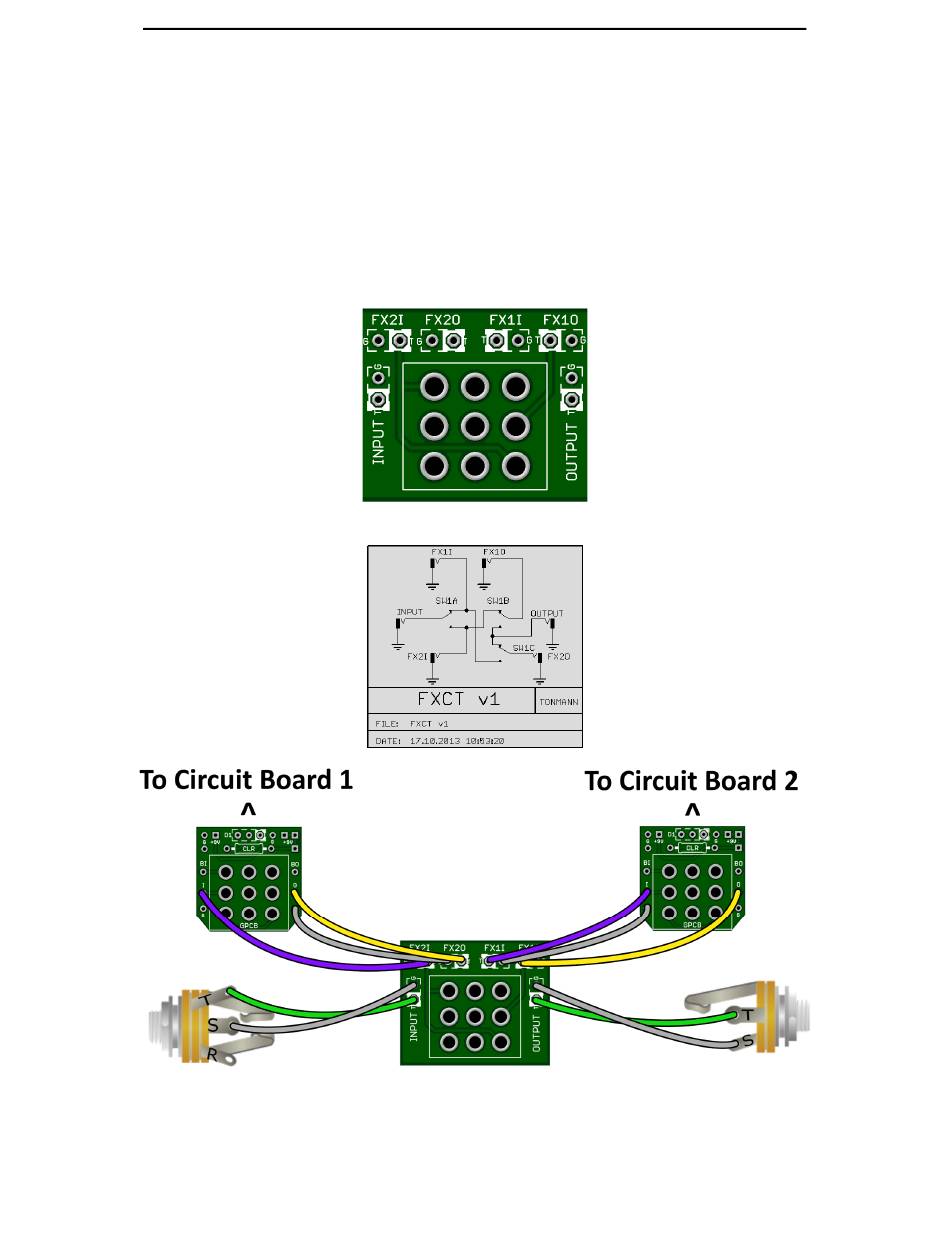

The FXCT is a small order switching circuit that allows you to change the order of two external circuits or
internal circuits. Switching is achieved via a 3PDT On-On solder lug toggle switch.
● Switch the order of the overdrive circuits and use in tandem!
● Set the Boost to follow the Overdrive or cascade into it.
● With a Boost following an Overdrive you get an increase in Volume.
● With a Boost preceding the Overdrive you get an increase in Distortion
Starting to see the potential? Make your build stand out in the crowd and make it boutique.
Board Dimensions only (W x H)
1.1" x 0.9" ca. 28 mm x 23 mm
