Summary of Contents for Westward GMRLK1

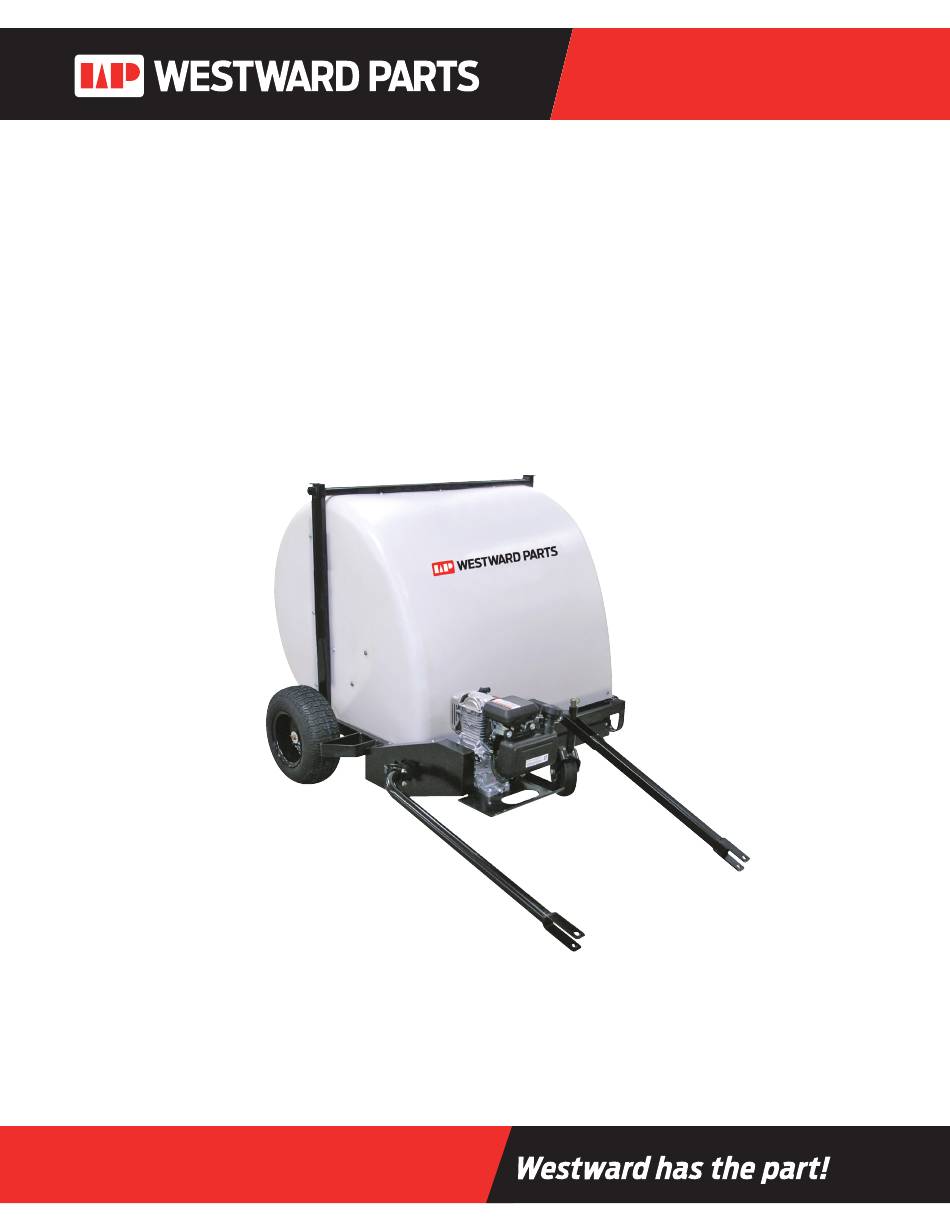

- Page 1 GMRLK1 LAWNKEEPER OWNER'S MANUAL Westward Parts Services Ltd. reserves the right to make changes in design, material or specification without notice thereof. © 2019 www.westwardparts.com...
- Page 2 Congratulations on your purchase of a WESTWARD PARTS LAWNKEEPER MODEL GMRLK1 Note: Add proper oil to the engine crankcase and gasoline to the gas tank. Refer to the engine manual for the correct type and amount. Your Lawnkeeper was designed for use on large lawns where grass clippings accumulation may become a problem.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS CAUTION must be exercised when operating the Lawnkeeper as with any outdoor power equipment. Whenever adjustments are being made make sure the motor is turned off. Never refuel the engine in an enclosed area. Fuel should never be transported in any container not approved for gasoline. Wipe fuel spills around the engine before starting it. - Page 4 ADJUSTING THE HEIGHT OF THE BRUSH (CASTER WHEEL) The front caster wheel determines the height of the pick-up brush. Interchanging the bushings on the caster wheel spindle will change the height of the brush. Remember to re-insert the lynch pin after adjustments are made. Sweeping Hard Surfaces: Position the caster wheel so that the brush lightly touches the ground.
-
Page 5: Maintenance And Adjustments
HOW TO UNLOAD THE LAWNKEEPER Push the locking lever down and lift the hatch until it locks open. Drive the tractor ahead several feet. Close the hatch gently. Lift the grab handle and push down on the locking lever. NOTE: Never let the hatch slam shut. MAINTENANCE AND ADJUSTMENTS Engine Maintenance Check the engine oil before each operation. -
Page 6: Troubleshooting Chart
STORAGE See the instructions for "Engine Storage" in the Engine Manual. Lubricate grass collection door hinge pins and latch with WD-40 or similar lubricant. Grease all bearings and bushings. NOTE: Never store Lawnkeeper with clippings in the drum. TROUBLESHOOTING For problems relating to the engine, refer to the enclosed Engine Manual. The following Troubleshooting Chart is provided for quick diagnosis of problems that may arise during the life of the Lawnkeeper. - Page 7 Figure #1 UNCUT DISCHARGED GRASS GRASS Figure #2 UNCUT CUT GRASS GRASS CUT GRASS tree DISCHARGED GRASS CUT GRASS flowerbed...
-
Page 8: Shroud Assembly
SHROUD ASSEMBLY REFERENCE PART NUMBER QUANTITY DESCRIPTION GMP LS001-007 Frame GMP LS001-010 Shroud Retainer GMP LK1-1 Shroud GMP LS001-010 Apron Retainer GMP 1010225 Apron GMP LS001-018 Clamp Plate, Baffle... - Page 9 HATCH ASSEMBLY REFERENCE PART NUMBER QUANTITY DESCRIPTION SPT H004.24 Capscrew, 1/4 x 3/4 SPT H020.56 Capscrew, 1/2 x 3 SPT H020.01 1/2 Lock Nut SPT H004.01 1/4 Lock Nut SPT H020.01 1/2 Lock Nut SPT H066.06 Cotter Pin, 3/16 x 1 SPT H080.10 Self Tap Screw SPT H004.08...
-
Page 10: Frame Assembly
FRAME ASSEMBLY REFERENCE PART NUMBER QUANTITY DESCRIPTION SPT H010.50 Capscrew, 3/8 x 2 1/4 BLT 508450 Capscrew, 1/2 x 4 1/2 SPT H020.01 Nut, 1/2 HAR 252100 Lynch Pin SPT W7108 Wheel Assembly SPT ES120 Wheel Assembly GMP LS001-001 Offset Drawbar GMP LS001-002 Drawbar GMP LS001-003... -
Page 11: Brush Assembly
BRUSH ASSEMBLY REFERENCE PART NUMBER QUANTITY DESCRIPTION BEI SA205-16 Bearing, 1" c/w eccentric collar BEI SP05 Pillow block BEV B42 Belt, B42 SPT H004.28 Capscrew, 1/4 x 1 BLT 505300 Capscrew, 5/16 x 3 BLT 506150 Capscrew, 3/8 x 1 1/2 NC SPP 78477 Engine, 5 HP Honda SPT H004.01... -
Page 12: Warranty Policy And Conditions
Westward Parts new equipment of its own manufacturer, from an authorized Westward Parts dealer, that such equipment is at the time of delivery to such purchaser, free from defects in material and workmanship and that such equipment will be warranted for a period of one year from the date of delivery to the end user providing the machine is used and serviced in accordance with the recommendations in the Operator’s Manual and is operated under normal farm conditions. - Page 13 The judgement of Westward Parts in all cases of claims under this warranty shall be final and conclusive and the purchaser agrees to accept its decisions on all questions as to defect and to the exchange of any part or parts.
-
Page 14: Parts And Service
Service and parts replacement can be performed by the owner by following the procedures in this manual. However, if you feel inadequate in any way to repair or service your Lawnkeeper, take this "Owner's Manual" and your Lawnkeeper to a Westward Parts Authorized Dealer for repair. www.westwardparts.com...
