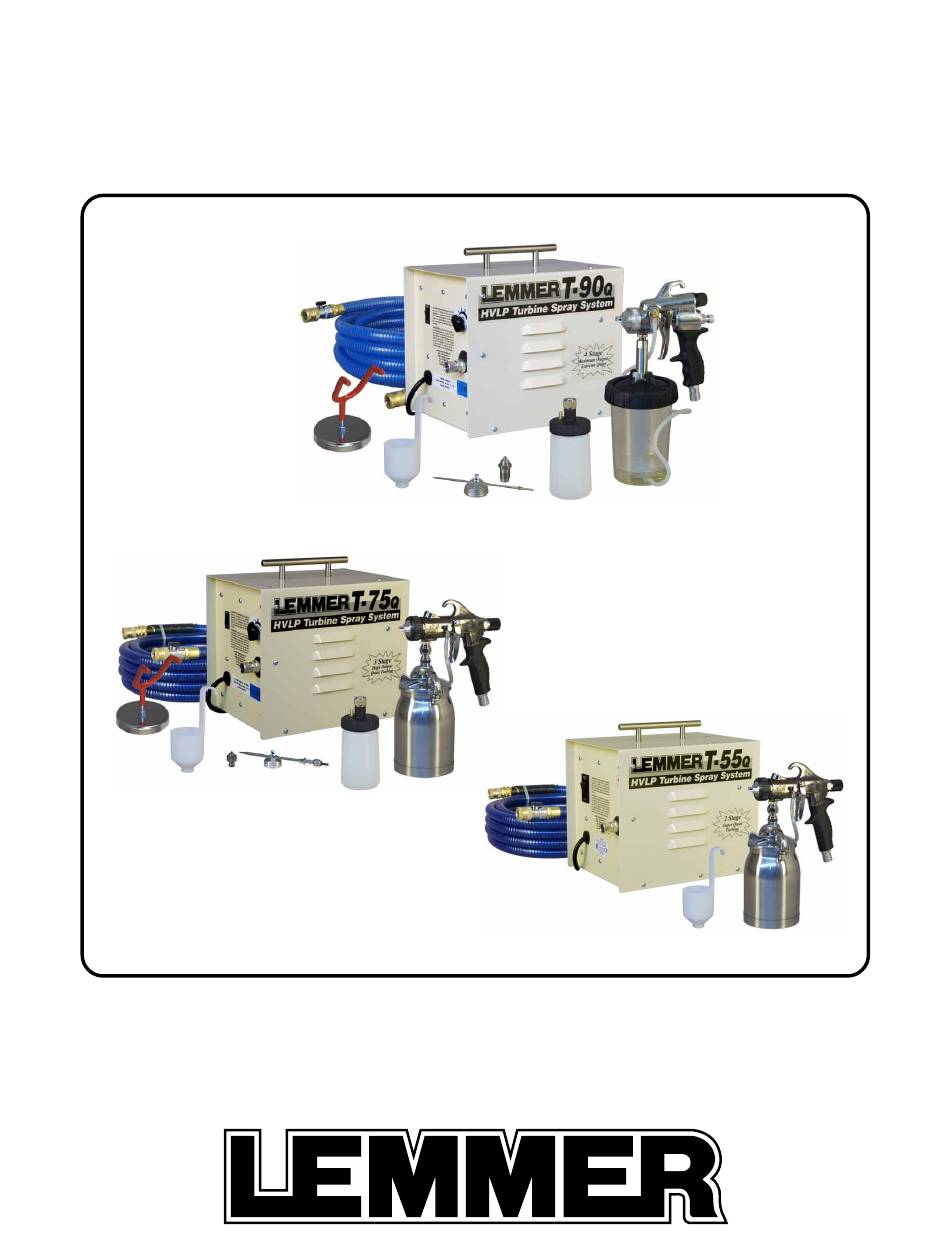

HVLP T-SERIES TURBINES
OWNER'S MANUAL
T-90Q turbine system

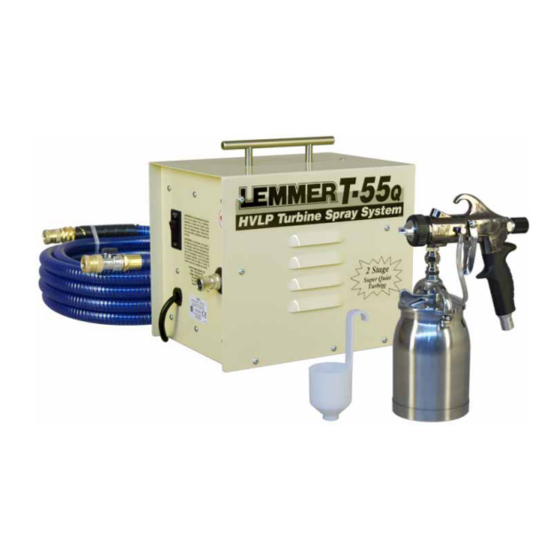

T-75Q turbine system
T-55Q turbine system
WARNING..Read all instructions carefully before assembling components and operating sprayer. Incorrect procedure
could result in damage to the unit, severe personal injury and/or property damage. When spraying flammable materials,
turbine must be placed at least 20 feet from target in a well-ventilated area. Vapours can be ignited by static discharge or
electrical sparks and result in severe personal injury.
CALGARY
•
TORONTO
•
MONTRÉAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HVLP T Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lemmer HVLP T Series

  • Page 1 HVLP T-SERIES TURBINES OWNER'S MANUAL T-90Q turbine system T-75Q turbine system T-55Q turbine system WARNING..Read all instructions carefully before assembling components and operating sprayer. Incorrect procedure could result in damage to the unit, severe personal injury and/or property damage. When spraying flammable materials, turbine must be placed at least 20 feet from target in a well-ventilated area.

  • Page 2: Table Of Contents

    WARNING Lemmer Air Turbines use a universal motor. This type of motor must not be used in an area contaminated by volatile or flammable materials since sparking can be expected in the normal operation of the motor and may ignite the contami- nants causing a DANGEROUS EXPLOSION.

  • Page 3: Special Safety Precautions

    Explosion Hazard Halogenated hydrocarbon solvents, Check with your local supplier or i.e. methylene chloride, and 1-1-1 tri- Lemmer for the availability of stainless chlorethane are not chemically steel nozzle holder order # L080-664 - Incompatible materials - compatible with aluminum or gal- and stainless steel 1 qt.

  • Page 4: Introduction

    • Turbine life is almost solely dependant on air quality. Any dust in the intake air will wear the turbine. The Turbine air in. Lemmer T-series all use a unique large area fine filter for trouble-free service! • The Lemmer T-55 turbine is a 2 stage, small diameter, low rpm, and low operating temperature.

  • Page 5: Prepare For Operation

    PREPARE FOR OPERATION SPRAY GUN CONTROLS Fan width control ring. Material volume control knob. Spray pattern control air cap. Round jet Horizontal Fan Vertical Fan Figure 3. - Spray pattern control (turn air cap). Spray pattern shape is determined by the 3 different to air control positions of the aircap on A700 guns.

  • Page 6: Power Supply, Motor Care

    PREPARE FOR OPERATION POWER SUPPLY, MOTOR CARE PAINT STRAINING AND THINNING All Lemmer Portable Turbine Systems are lifetime lubri- The surface to be sprayed should be completely clean cated. The only maintenance required is scheduled filter and dry to achieve proper adhesion.

  • Page 7: Selecting The Proper Fluid Set

    SELECTING THE PROPER FLUID SET The Lemmer series 700 spray gun comes with the 1.4 mm nozzle set which is desired for most industrial finish applica- tions. However, other combinations may be required for very fine finish work, or when spraying heavier materials.

  • Page 8: Tips & Techniques For Turbine Spraying

    SPRAY TIPS FOR TURBINE SPRAYING PROPER SPRAYING TECHNIQUES Warning: Keep the Turbine away from the spray area. Get professional looking results by following the spray Turbine filter must be clean to provide motor cooling tips below. and atomizing air. 1. Turn Turbine on a few minutes before spraying, to 1.

  • Page 9: Cleaning, Maintenance & Service

    CLEANING INSTRUCTIONS As with any spray equipment, your sprayer must be 3. Lube instructions. To keep the gun in proper work- cleaned properly or it will not operate properly. If ing order be sure to check and lubricate each num- followed, the following guidelines will insure trouble bered item in diagram using silicone-free spray gun free performance from your sprayer.
  • Page 10 MAINTENANCE & SERVICE Note: nozzle & needle must be the same size, eg: a 1.6 needle will not work with a 1.8mm nozzle. adjustment drum needle packing lock nut needle packing nut spring nozzle spring cap adjusting screw 1/16" spring travel, turbine 3/8"...

  • Page 11: Spraying With A Pressure Feed System

    SPRAYING WITH A PRESSURE FEED SYSTEM WARNING: NEVER AIM SPRAY GUN AT ANY PART TROUBLE SHOOTING: OF THE BODY. EVEN WHEN TURBINE IS OFF, THE SPRAY GUN WILL RETAIN FLUID PRESSURE. CONTAINER FAILS TO PRESSURIZE: Be sure the bleeder hole on the underside of the paint IMPORTANT: BEFORE TURNING ON AIR PRESSURE, tank lid under the regulator is clean.

  • Page 12: Other Lemmer Products & Turbine Accessories

    OTHER QUALITY LEMMER PRODUCTS Nov09 LEMMER'S Full line of equipment comes with FIRST CLASS SERVICE in numerous locations across CANADA, and a FULL ONE YEAR WARRANTY. For information on choosing the right sprayer for your job, please contact your nearest LEMMER outlet.
  • Page 13 2 1/4 Gallon paint tank Galvanized tank with inner teflon coating and replaceable plastic liner. Works with any Lemmer HVLP or air spray gun with an existing suction pot (bottom feed). Pressure feeding gun can improve delivery efficiency and gun speed, recommended when spraying glue.

  • Page 14: Troubleshooting

    If you find that you cannot correct the problem, then take the sprayer to your nearest Lemmer outlet. Many of the “causes” listed are unlikely to happen.
  • Page 15 TROUBLESHOOTING Problem Cause Remedy iV ORANGE PEEL - The atomized paint droplets are not 1) DROPLETS TOO LARGE - Be sure to PAINT SURFACE flowing together to form a smooth, maintain proper gun distance, 4" to 8". See NOT SMOOTH level, uniform surface.

  • Page 16: Hose Connection Diagram & Air Accessories

    HOSES & ACCESSORIES FOR AIR SPRAY EQUIPMENT Nov09 Air connectors Gun air controlers Other accessories (eg. L080-100 turbine cart) NOTE: HVLP guns must be pressure fed (either by fluid hose or by pressurized container); • pressure feed A700 series needs L080-586 plug installed. A728 gun uses L081-365 plug. •...

  • Page 17: Pressure Pot Parts List

    Handle lock nut Accessories: L011-167 Outlet elbow, 3/8"MM L080-990 Manual for 2 quart remote L011-173 Decal, pressure pot settings L011-168 Wing nut L075-276 Decal, Lemmer 5" gold logo L011-169 Retaining arm L011-170 L011-171 C-clip L011-172 Material tube L035-571 Elbow, 1/4"M L035-561 Plug, 1/4"...
  • Page 18 This is a feature unique to Lemmer. A good way to compare the venturi gun to the turbine units is as follows:...

  • Page 19: Series 700 Hvlp Gun Parts List & Diagram

    SERIES 700 HVLP GUN PARTS LIST Jun11 Pos. Part nos. Description Qty. Pos. Part nos. Description Qty. L080-500 A-710S HVLP Turbine gun (for turbine) L080-563 Cup gasket, thin (.078") water base only L080-501 A-710P HVLP Turbine gun (for turbine) L080-583 Fitting L080-502 NLA A-710HS gravity gun (for turbine)

  • Page 20: A728 Hvlp Gun Parts List & Diagram

    A-728 HVLP NON-BLEEDER TURBINE SPRAY GUN NOZZLE SIZING - A-728 HVLP Oct11 There are 5 sizes of fluid nozzle available: Material being sprayed Fine finish work with stains,lacquers, ....1.0 mm diameter (.039") enamels, automotive base/clear. Medium speed with lacquers, enamels, ..1.3 mm diameter (.051") urethanes, clear coats.

  • Page 21: T-55Q/T-75Q Parts List & Diagram

    T-55Q / T-75Q PARTS LIST (T55 S/N 10301 & UP) Sep07 Motor brush order numbers: L080-602 T55 GS motor L080-596 T55/CX5/CX7 Lamb motor Factory replacement only: L080-603 T75 Lamb motor L080-619 small inner turbine bearing (7/8" od) L080-604 T95 Lamb motor L080-636 large inner turbine bearing (1"...

  • Page 22: T-90Q Parts List & Diagram

    T-90Q PARTS LIST Aug12 T-90Q PARTS LIST Factory replacement only: L080-619 small inner turbine bearing (7/8" od) L080-636 large inner turbine bearing (1" od) Motor brush order numbers: L080-603 T75/T90 Lamb motor Canadian Patent 2671500 USA Patent 8,197,221 Pos. Part nos. Description Qty.

  • Page 23: Mini Compressor & Turbine Cart Parts List & Diagram

    NOTES...

  • Page 24: Distribution Centres Across Canada

    LEMMER PAINT SPRAYING EQUIPMENT LIMITED WARRANTY LEMMER Spray Systems Ltd. extends to the original purchaser of its paint spray equipment a limited one year warranty from the date of purchase against defects in material or workmanship provided that the equipment is installed and operated in accordance with the recommendations and instructions written in the owners manual.
