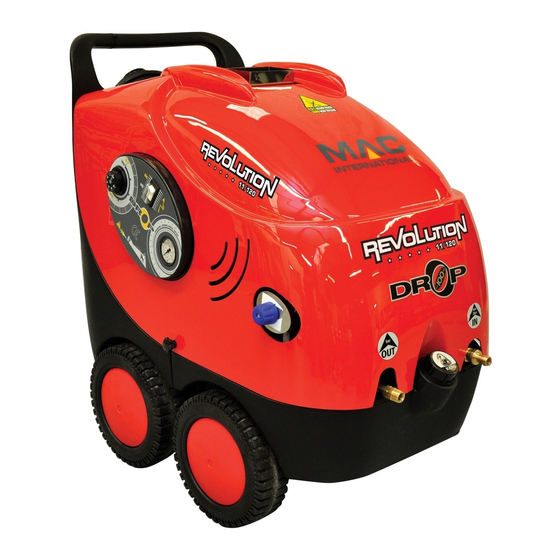

High Pressure Cleaner
DROP
REVOLUTION
Instructions for installation and use
Kellaw Road, Yarm Road, Industrial Estate, Darlington, Co. Durham, DL1 4YA
Phone: 0870 24 24 462 Fax: 0870 24 24 462
Email: sales@macinternational.co.uk
Website:
www.macinternational.co.uk
Advertisement
Related Manuals for MAC DROP REVOLUTION
Summary of Contents for MAC DROP REVOLUTION

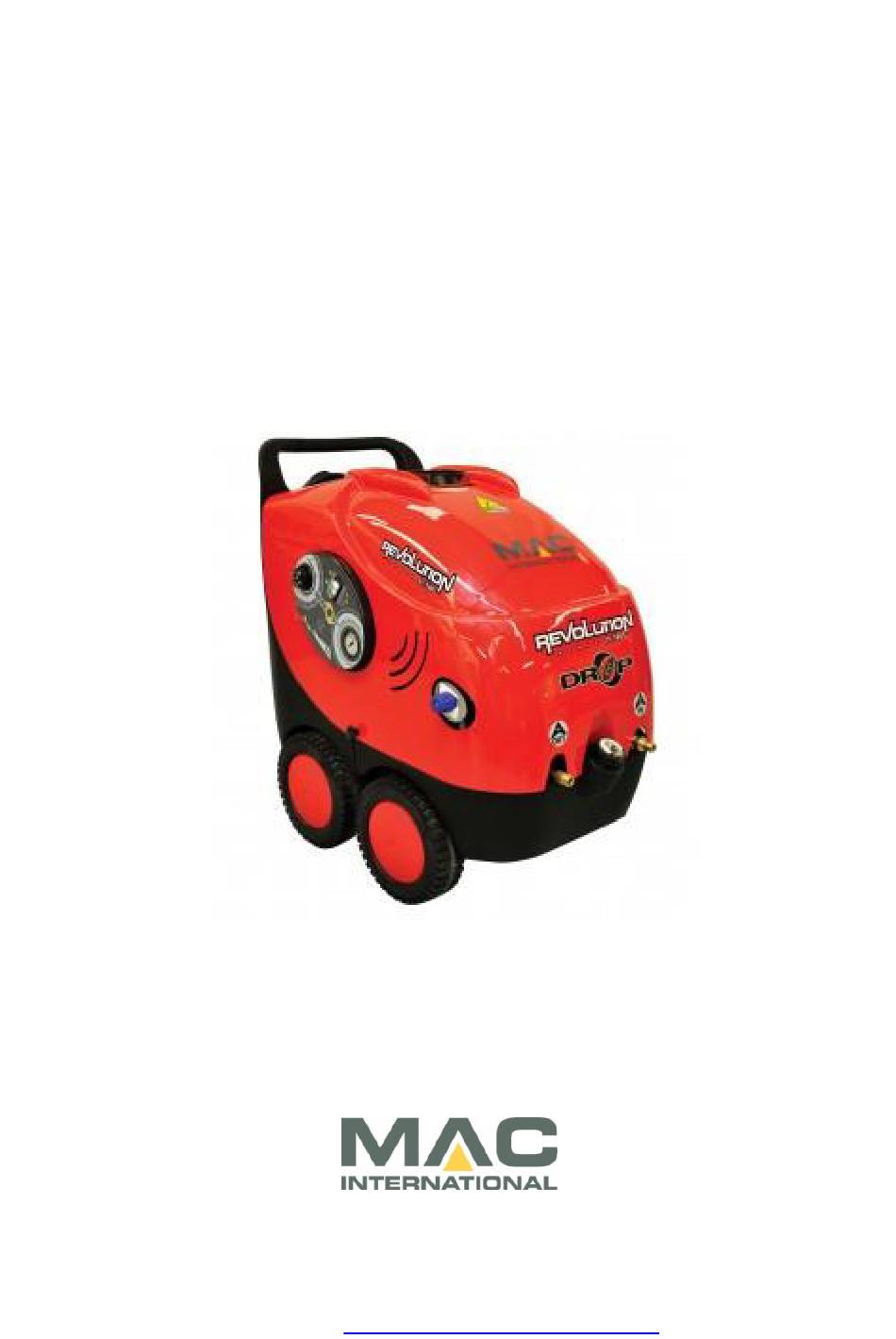

- Page 1 High Pressure Cleaner DROP REVOLUTION Instructions for installation and use Kellaw Road, Yarm Road, Industrial Estate, Darlington, Co. Durham, DL1 4YA Phone: 0870 24 24 462 Fax: 0870 24 24 462 Email: sales@macinternational.co.uk Website: www.macinternational.co.uk...
- Page 2 INSTRUCTION FOR INSTALLATION AND USE Congratulations! By purchasing a MAC high pressure cleaner, you have purchased a high technology machine that will allow you to realize, for a long time, washing operations with care, versatility and safety. The customer and buyer must verify that the operators have read and know the content of the manual and that, therefore, attentively and meticulously follow all the indications.
- Page 3 2.5. assignments and must be able to correctly interpret what described in this manual, guaranteeing correctness, safety, as well as scrupulousness in the controls. 2.6. Possible consequential responsibilities from the employed, and authorized personnel, to the installation or to the use of the machine are delegated to the customer buyer. 2.7.
- Page 4 3.16. ATTENTION: if used in the correct way and it is in a good state, the high pressure cleaner sends forth a sonorous level of pressure (noisiness) less than 90 Dbas, for which necessary particular protections are not made for the operators. Characteristics of the high pressure cleaners The high pressure cleaners DROP are divided in the following models: Model...
- Page 5 that the elements used in the high pressure packing could to hurt the operator if not handled with care. These packings must be digested therefore and not left to the course of children or of irresponsible persons. The same is worth for the objects used in the removal of the unpacking pack (knives, scissors.).
-
Page 6: Operation
Connection to the water supply 9.1. The pressure of the water supply must be at least 2 bar. If the pressure is insufficient, the pump will inhale air and will be subject to overheating and vibrations with serious damages to the pump and the car. - Page 7 12. Maintenance 12.1. It is absolutely forbidden to effect controls or operations of maintenance with the machine operating or under tension: always remove the electricity supply!!! Don't even effect reparations of fortune or precarious, and never use non-original spare parts. 12.2.
- Page 8 Boiler exploded view Transformer Plug Fitting Nozzle support Cable Fitting Seger Glass Seal Shell Fuel nozzle Cover Electrode Screw Plate Deflector Funnel air Band Ring Coil Hose Filter Hose Nipple Solenoid valve Nipple Copper pipe Motor burner Coupling Fuel pump Refractory Band Internal coil...
- Page 9 14.1. To improve the power of the boiler, is absolutely necessary to clean the coil. Effect this operation in the following way: 14.1.1. Get off the group boiler burner from the machine and to separate the boiler from the burner. 14.1.2.
- Page 10 personal or animals, consequential and consequent to the re-use of the single parts or the single components of the machine for function or situation of the assemblage different and different from those original for which the high pressure cleaner has been conceived. Finally, when demolished, it is to destroy well the nameplate of identification together to every other document related to the same car.
- Page 11 20. Hydraulic plan Water tank with ballcock Water inlet hose Flow rate adjustment tap Delivery hose Burner pressure switch Pump Engine Chemical product tap Chemical product inlet hose Tank Filter Nozzle Micro switch By pass valve By pass hose Gauge Fuel return hose Fuel inlet hose Fuel tank...
- Page 12 Kellaw Road, Yarm Road, Industrial Estate, Darlington, Co. Durham, DL1 4YA Phone: 0870 24 24 462 Fax: 0870 24 24 462 Email: sales@macinternational.co.uk Website: www.macinternational.co.uk...
