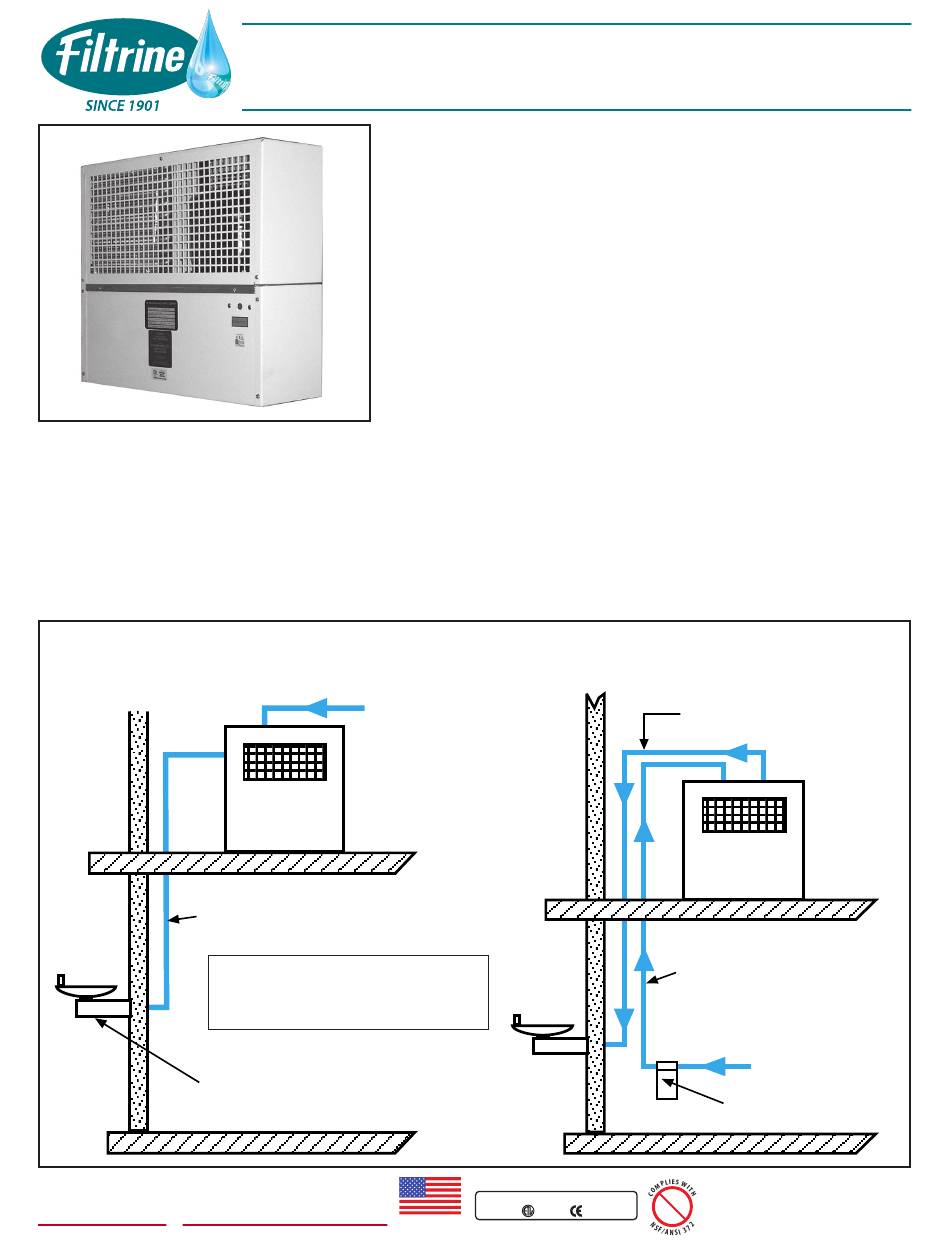

Filtrine OCM-2 Installation

TYPICAL OCM CHILLER
Illustration only.

CHILLER OPTIONS

• FILTRATION: Install a Filtrine Taste Master®
purifier on the make up water line to chiller to
improve taste.
• UV STERILIZATION: Install a Filtrine Steri Flo® UV
sterilizer to neutralize micro-organisms without
using chemicals.
Without Taste Master® Purifier
1/4" INSULATED
PIPE TO FOUNTAIN
NOTE
DRINKING
FOUNTAIN
Filtrine Mfg. Co. • 15 Kit St. Keene, NH 03431 USA
800-930-3367 • 603-352-5500 • FAX 603-352-0330
www.filtrine.com • drinkingwater@filtrine.com
Above-Ceiling Installation to Supply Nearby Outlets
INSTALL
FEATURES

SPECIFICATIONS

COOLING CAPACITY
Cooler to have capacity to cool water .......................................... 9 GPH [34 LPH]
from 80° to 50°F [27°-10°C]
COMPRESSOR .........................................................................................................1/4 HP
Compressor to be lifetime lubricated hermetic with condenser as
specified below and adjustable thermostat. Supplied fully charged with
R-134a "ozone safe"refrigerant.
CONDENSERS (designated by suffix):
A Air cooled
W Water cooled
STORAGE TANK .....................................................................................2 Gal. [7.5 liters]
Cooling tank and immersion coil evaporator constructed of 304
stainless steel, tested for 125# working pressure and insulated with
thermo-elastomer.
PLUMBING IN/OUT ...........................................................................1/4"MPT [63 mm]
OPERATING WEIGHT ............................................................................. 190 lbs [86 kg]
VOLTAGE .............................................................................................................. 115/60/1
OCM-2 Chiller Above-Ceiling Installation Instructions
WATER IN
OCM
CHILLER
Allow adequate ventilation
for above-ceiling installation
or warranty will be void.
MADE IN USA

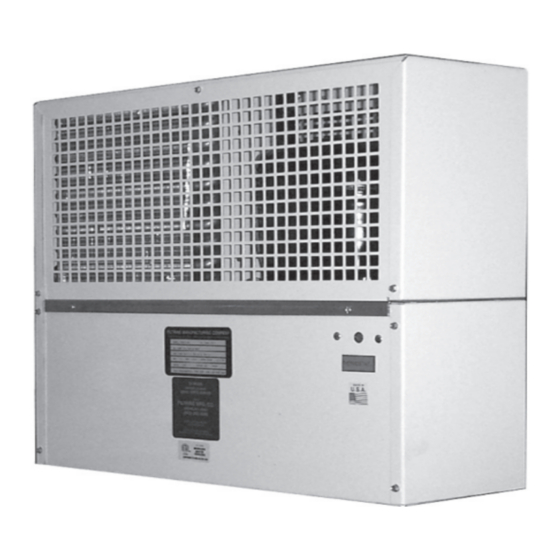

OCM-2 COMPACT CHILLER
• In air plenum-return or ventilated ceiling
• Oversized storage – satisfies peak demand
• Oversized condenser fan – increases air flow
(Other electrical available, please consult factory.)
FILTRINE IS ISO 9001-2008 REGISTERED
PRODUCT LINE APPROVED MARK AVAILABLE
With Taste Master® Purifier
1/4" INSULATED
PIPE TO FOUNTAIN
OCM
CHILLER
1/2" PIPE
TO CHILLER
WATER IN
TASTE MASTER
PURIFIER
LEAD
OCM-2
REV. 01.31.17
