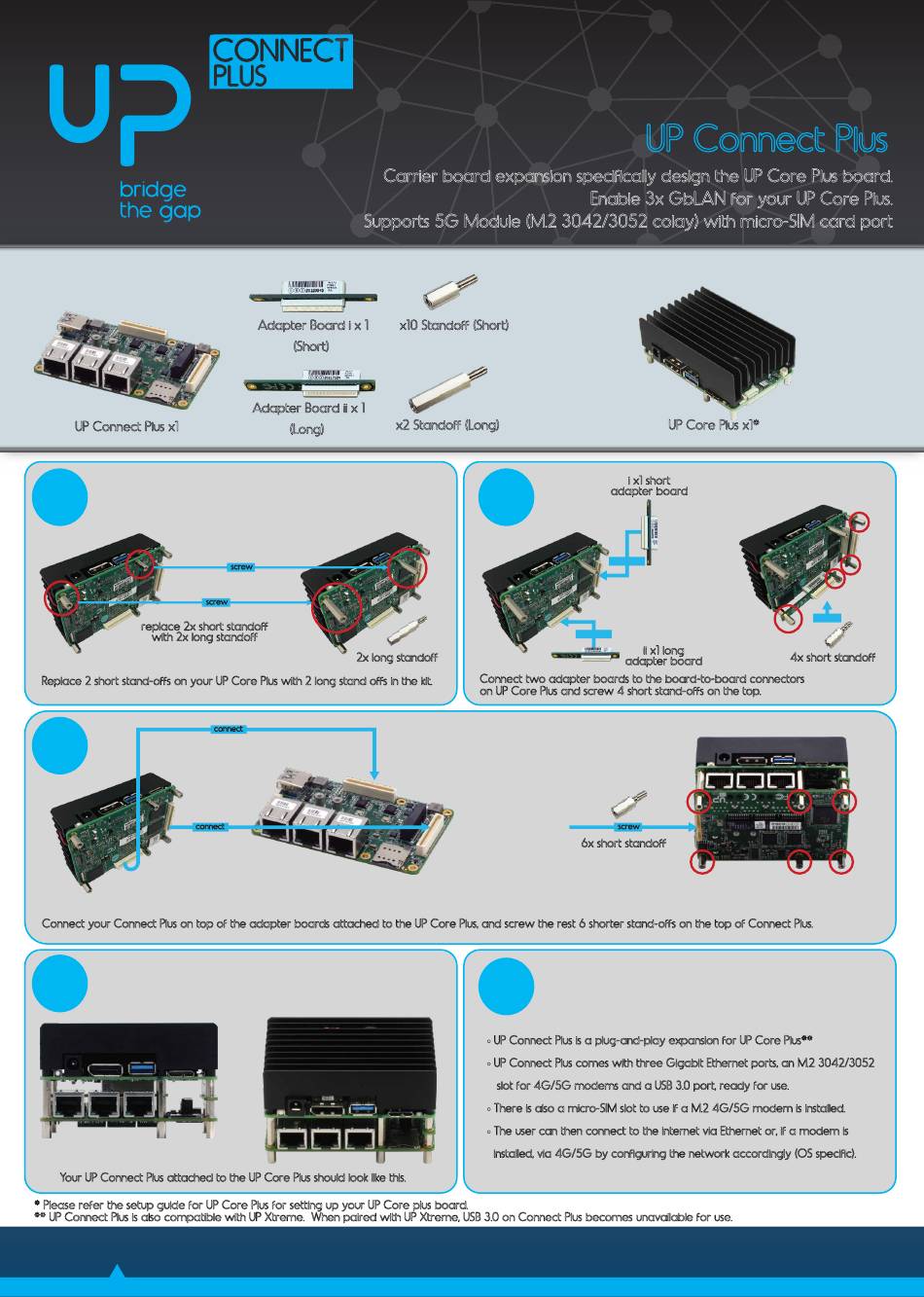

UP Connect Plus i210 Quick Start Manual

UP Connect Plus i210 Quick Start Manual

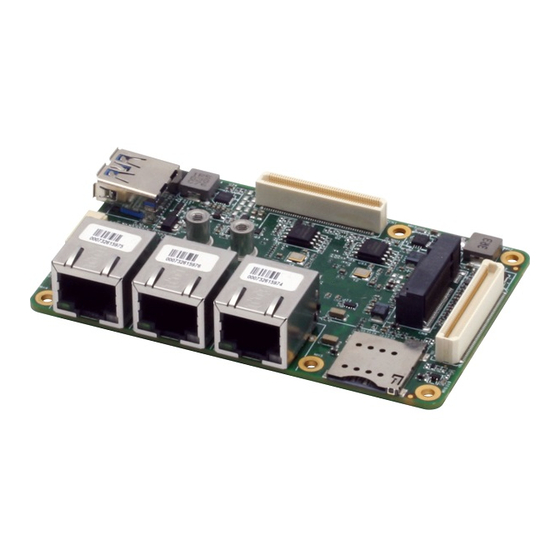

Carrier board expansion specifically design the core plus board. enable 3x gblan for your core plus. supports 5g module (m.2 3042/3052 colay) with micro-sim card port

Advertisement

Quick Links

What's in your kit?
UP Connect Plus x1
1
screw
replace 2x short standoff
with 2x long standoff
Replace 2 short stand-offs on your UP Core Plus with 2 long stand offs in the kit.
3
connect
Connect your Connect Plus on top of the adapter boards attached to the UP Core Plus, and screw the rest 6 shorter stand-offs on the top of Connect Plus.
>
Your UP Connect Plus attached to the UP Core Plus should look like this.
* Please refer the setup guide for UP Core Plus for setting up your UP Core plus board.
** UP Connect Plus is also compatible with UP Xtreme. When paired with UP Xtreme, USB 3.0 on Connect Plus becomes unavailable for use.
www.up-board.org /www.up-shop.org / www.up-community.org
Carrier board expansion specifically design the UP Core Plus board.
Supports 5G Module (M.2 3042/3052 colay) with micro-SIM card port
Adapter Board i x 1
(Short)
Adapter Board ii x 1
(Long)
screw
2x long standoff
connect
Quick Start Guide
x10 Standoff (Short)
x2 Standoff (Long)
2
Connect two adapter boards to the board-to-board connectors
on UP Core Plus and screw 4 short stand-offs on the top.
>>
>>
What's next?
• UP Connect Plus is a plug-and-play expansion for UP Core Plus**
• UP Connect Plus comes with three Gigabit Ethernet ports, an M.2 3042/3052
slot for 4G/5G modems and a USB 3.0 port, ready for use.
• There is also a micro-SIM slot to use if a M.2 4G/5G modem is installed.
• The user can then connect to the internet via Ethernet or, if a modem is
installed, via 4G/5G by configuring the network accordingly (OS specific).
UP Connect Plus
Enable 3x GbLAN for your UP Core Plus.

What fits with your kit?

UP Core Plus x1*
i x1 short
adapter board
>>
connect
connect
ii x1 long
adapter board
screw
6x short standoff
screw
4x short standoff
