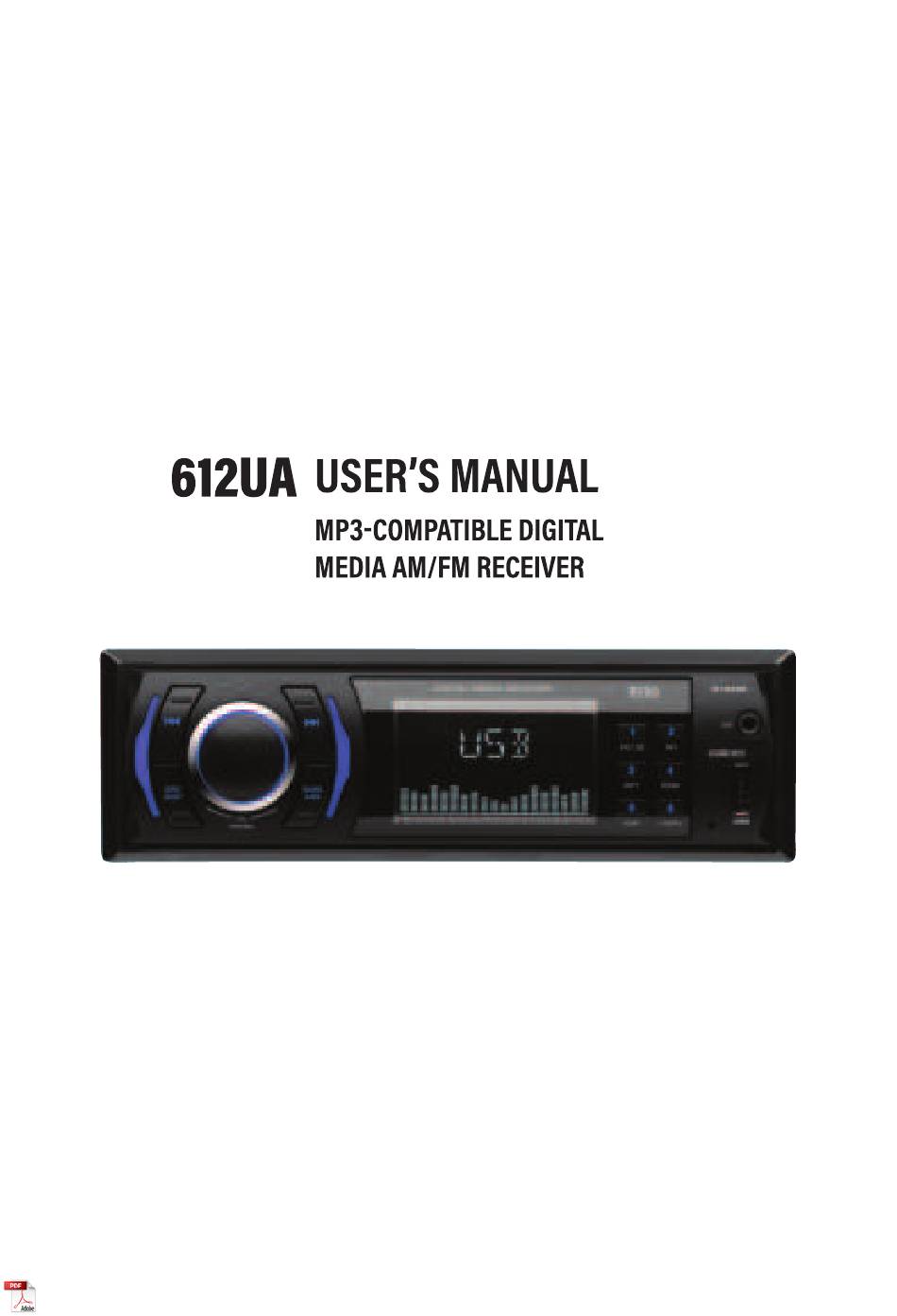

Page 2: Table Of Contents
CONTENTS Precautions..............................1 Precautions & Warnings .........................1 Installation ..............................2-3 Installation Procedures .......................... Installation Opening ..........................Wiring Connections ..........................3 Removal of the Main Unit ........................3 Overview of the Components ........................4 General Operation ........................... 4-5 Power On/Off ............................4 Adjust Volume (VOL) .......................... -
Page 3: Precautions
PRECAUTIONS Precautions & Warnings • To reduce the risk of fire, electric shock, and interference, do not attempt to repair this unit yourself. Refer all service to a qualified technician. • Some MP3/WMA files may not be playable. • Keep the volume at a reasonable level to avoid distracted driving. High volume levels may make it difficult to concentrate on traffic and road conditions while driving. -
Page 4: Installation
INSTALLATION Installation Procedures First complete the electrical connections and then check for correctness of connection. Installation Opening This unit can be installed in any dashboard which has an opening as shown below. 2.05 inches 7.20 inches Insert the mounting sleeve into the dashboard. Then bend the tabs on the mounting sleeve with a screwdriver to achieve fastening of the mounting sleeve. -
Page 5: Wiring Connections
INSTALLATION(CONT.) Connect all wiring harness and slide the head unit into the mounting collar until it clicks into place. Wiring Connections Radio Antenna White: Front Left PRE-AMP Output Red: Front Right PRE-AMP Output Red: Rear Right PRE-AMP Output ACC + (Red) GND - (Black) White: Rear Left PRE-AMP Output ANT + (Blue) -
Page 6: Overview Of The Components

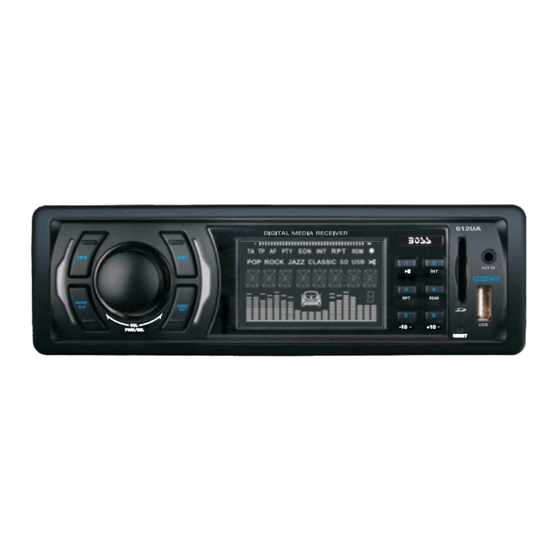

Overview of the Components 1. PWR(power On/Off), VOL (volume) knob and SEL (select/menu) button (tune/seek down, previous track, fast reverse) button (tune/ seek up, next track, fast forward) button 4. SRC (source) button, DISP(clock setting) button 5. BAND button, AMS(automatic store / preset station scan, automatic music search) button 6. -
Page 7: Change The Source
General Operation - ILL MID/HI/LOW: This receiver is equipped with 3 brightness settings. Rotate the volume knob to preset the illumination to middle, high or low. - BASS/TREBLE: -7, -6, ~, -1, 0, +1, ~, +6, +7 - BALANCE: L7, L6,~, L1, 0, R1,~,R6, R7 - FADER: R7,R6, ~, R1,0, F1,~,F6, F7 - Loudness: LOUD ON/OFF - EQ(Equalizer) Setting: OFF, FLAT, CLASSIC, POP, ROCK, JAZZ... -
Page 8: Radio Operation
Radio Operation Switch Between USA area and Europe area Frequency In radio mode, press the VOL knob to enter the switch state of the US(USA) and EU(europe) frequency, then rotate the VOL knob to switch between US (USA) and EU(europe) frequency. The system will change the frequency setting in about 3 seconds. -
Page 9: Usb Operation
USB Operation Play MP3/WMA music from a USB device Insert the USB stick with MP3/WMA musics into the USB port, it will play automatically. Note: the USB port also supports charging mobile phone, the maximum charging ability is 5V / 1A. Select Next Track or Previous Track In the USB mode, briefly press the button to play the the next or... -
Page 10: Troubleshooting
TROUBLESHOOTING If you suspect something is wrong, immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell, can cause fire or electric shock. Immediately stop using it and call the store where you purchased it. Never try to repair the unit by yourself because it is dangerous to do so. - Page 11 SPECIFICATIONS Specifications General Power supply Requirement : DC 12V 50W X 4CH Maximum power output : Speaker impedance : 4 - 8 Ohm Unit Dimensions(WxHxD) : 7.0 X 2.0 X 2.76 inches Weight : 1.04 lbs Fuse : 10 A RADIO Frequency Range: 87.5 MHz - 107.9 MHz (USA)
