TABLE OF CONTENTS
SPECIAL NOTES ON LCD MONITORS ..................................................... 1
INFORMATION FOR YOUR SAFETY AND COMFORT ............................ 2
UNPACKING............................................................................................ 5
ATTACHING / REMOVING THE BASE..................................................... 6
SCREEN POSITION ADJUSTMENT .......................................................... 6
CONNECTING THE POWER CORD.......................................................... 7
SAFETY PRECAUTION............................................................................. 7
CLEANING YOUR MONITOR .................................................................. 7
POWER SAVING...................................................................................... 8
DDC......................................................................................................... 8
CONNECTOR PIN ASSIGNMENT............................................................. 9
STANDARD TIMING TABLE .................................................................. 10
INSTALLATION...................................................................................... 11
USER CONTROLS .................................................................................. 12
TROUBLESHOOTING ............................................................................ 18
Advertisement
Table of Contents
Related Manuals for Acer P166HQL
Summary of Contents for Acer P166HQL
-
Page 1: Table Of Contents
TABLE OF CONTENTS SPECIAL NOTES ON LCD MONITORS ... 1 INFORMATION FOR YOUR SAFETY AND COMFORT ... 2 UNPACKING... 5 ATTACHING / REMOVING THE BASE... 6 SCREEN POSITION ADJUSTMENT ... 6 CONNECTING THE POWER CORD... 7 SAFETY PRECAUTION... 7 CLEANING YOUR MONITOR ... 7 POWER SAVING... -
Page 2: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. NOTES Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. -
Page 3: Information For Your Safety And Comfort
INFORMATION FOR YOUR SAFETY AND COMFORT Safety instructions Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. CAUTION for accessibility Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. -
Page 4: Tips And Information For Comfortable Use
Product servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel. Unplug this product from the wall outlet and refer servicing to qualified service person-nel when: •... -
Page 5: Developing Good Work Habits
Warning! We do not recommend using the product on a couch or bed. If this is unavoidable, work for only short periods, take breaks regularly, and do some stretching exercises. For more information and help in recycling, please visit the following websites: Worldwide: http://www.acer-group.com/public/Sustainability/sustainability01.htm http://www.acer-group.com/public/Sustainability/sustainability04.htm EN-4... -
Page 6: Unpacking
UNPACKING Please check the following items are present when you unpack the box, and save the packing materials in case you will need to ship or transport the monitor in future. AC Power Cord Audio Cable (Optional) LCD Monitor ... -
Page 7: Attaching / Removing The Base
ATTACHING / REMOVING THE BASE Note: Remove the monitor and monitor base from its packaging. Carefully place the monitor face-down on a stable surface -- use a cloth to avoid scratching the screen. Install: Align the base with the stand and push the base towards the top of the monitor. -
Page 8: Connecting The Power Cord
CONNECTING THE POWER CORD Check first to make sure that the power cord you use is the correct type required for your area. This monitor has a universal power supply that allows operation in either 100/120V AC or 220/240 V AC voltage area. No user-adjustment is required. Plug one end of the power cord to the AC Inlet, plug another end to a ... -
Page 9: Power Saving
POWER SAVING The monitor will be driven into Power Saving” mode by the control signal from the display controller, as indicated by the amber-color power LED. State LED Light Blue Power Saving Mode Amber The power saving states will be kept until a control signal has been detected or the keyboard or mouse is activated. -
Page 10: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT 15-Pin Color Display Signal Cable PIN NO. DESCRIPTION Monitor Ground DDC-return R-Ground G-Ground B-Ground PIN NO. Green Blue EN-9 DESCRIPTION Logic Ground Monitor Ground DDC-Serial Data H-Sync V-Sync DDC-Serial Clock... -
Page 11: Standard Timing Table
STANDARD TIMING TABLE Mode VESA SVGA SVGA SVGA SVGA VESA WXGA WXGA Resolution 640 x 480 640 x 480 640 x 480 640 x 480 66.66 720 x 400 800 x 600 800 x 600 800 x 600 800 x 600 832 x 624 74.55 1024 x 768... -
Page 12: Installation
INSTALLATION To install the monitor to your host system, please follow the steps as given below: Steps 1. Connect Video Cable a. Make sure both the monitor and computer are powered-OFF. b. Connect the VGA video cable to the computer. 2. -
Page 13: Using The Shortcut Menu
Press the function button to open the shortcut menu. The shortcut menu lets you quickly select the most commonly accessed settings. Empowering: Press the Empowering Key to open the Acer eColor Management OSD and access the scenario modes. Auto Adjust: AUTO Press this button to activate the Auto Adjustment function. -
Page 14: Operation Instructions
Acer eColor Management Operation instructions Step 1: Press “ ” key to open the Acer eColor Management OSD and access the scenario modes Step 2: Press ““ or “” to select the mode Step 3: Press “ AUTO “ key to confirm the mode and run Auto Adjust. -
Page 15: Adjusting Picture Quality
Adjusting the OSD settings Note: The following content is for general reference only. Actual product specifications may vary. The OSD can be used for adjusting the settings of your LCD Monitor. Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality, OSD position and general settings. - Page 16 Adjusting the OSD position 1 Press the MENU key to bring up the OSD. 2 Using the directional keys, select OSD from the on screen display. Then navigate to the feature you wish to adjust. EN-15...
- Page 17 Adjusting the setting 1 Press the MENU key to bring up the OSD. 2 Using the / keys, select the feature you wish to adjust. 3 The Setting menu can be used to adjust the screen Menu Language and other important settings.
- Page 18 Product information 1 Press the MENU key to bring up the OSD. 2 Using the / keys, select Information from the OSD. Then the basic information of LCD monitor will show up for current input. EN-17...
-
Page 19: Troubleshooting
TROUBLESHOOTING Before sending your LCD monitor for servicing, please check the trouble- shooting list below to see if you can self-diagnose the problem. (VGA Mode) Problems Current Status No Picture LED ON LED OFF LED displays amber color Abnormal Unstable Picture Picture Display is missing, center shift, or too small or too... -
Page 20: Declaration Of Conformity
P166HQL SKU Number: P166HQL********(“*” = 0~9, a ~ z, or A ~ Z) Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements. -
Page 21: Federal Communications Commission
Address of Responsible Party: Contact Person: Phone No.: Fax No.: Declaration of Conformity LCD Monitor P166HQL P166HQL******** Acer America Corporation 333 West San Carlos St. San Jose, CA 95110 U. S. A. Acer Representative 254-298-4000 254-298-4147 EN-20 Acer America Corporation 333 West San Carlos St., San Jose...
Need help?
Do you have a question about the P166HQL and is the answer not in the manual?
Questions and answers

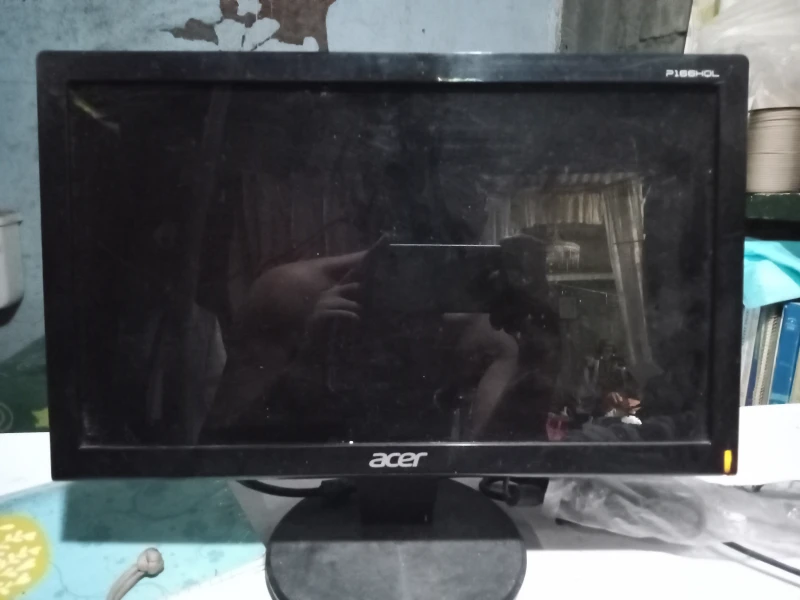

My PC monitor only displays the small orange square on the bottom right corner of the screen instead of blue, and the screen doesn't display the desktop. What should I do?
