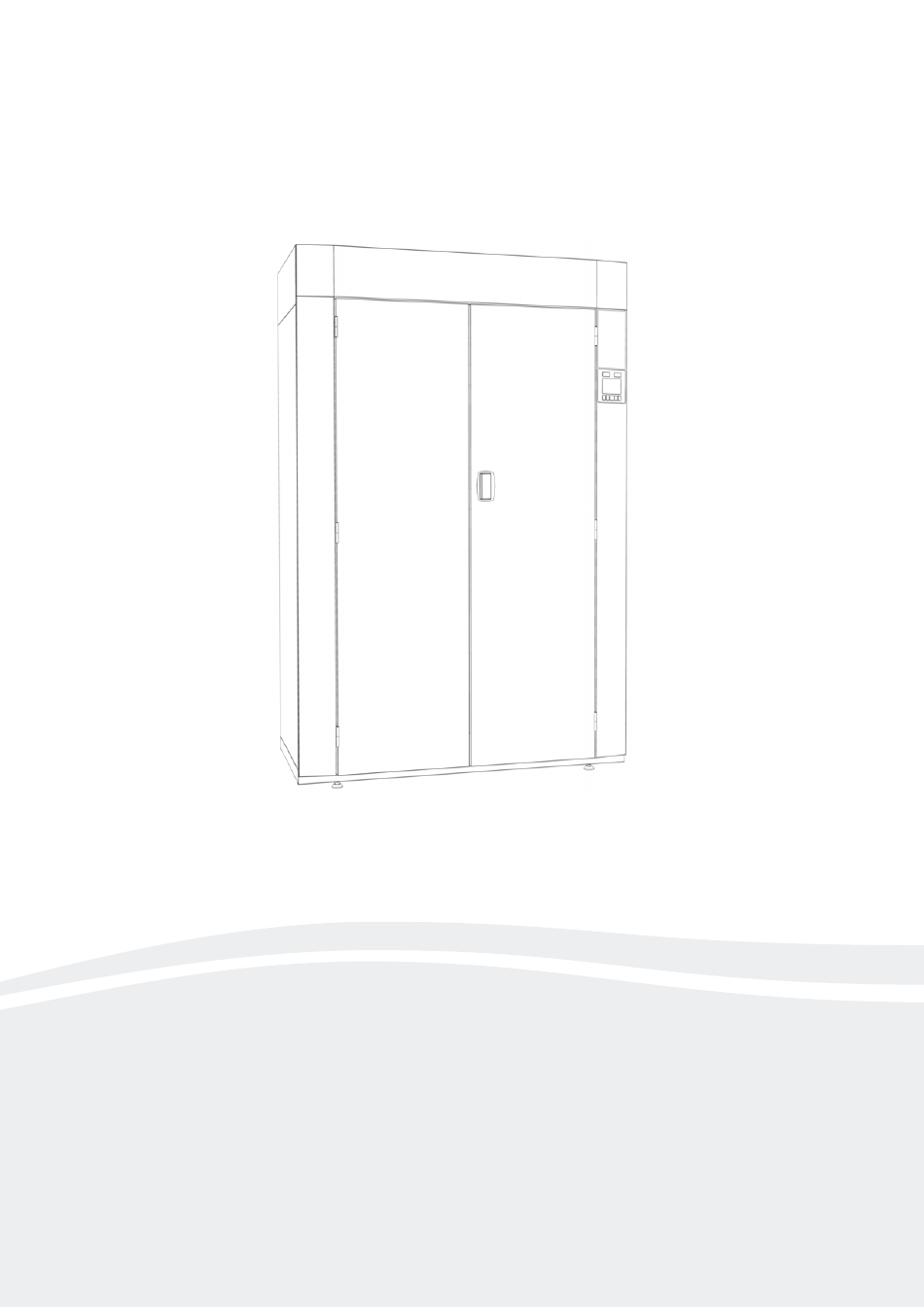

- Page 1 www.groupdynamics-laundry.com sales@groupdynamics.lv Service manual and spare parts list Drying cabinet with 8 kg cloth capacity 549225...
- Page 2 www.groupdynamics-laundry.com sales@groupdynamics.lv Thank you for choosing our drying cabinet. We hope that it will be of great use for you. 2011...
-
Page 3: Table Of Contents
www.groupdynamics-laundry.com sales@groupdynamics.lv Contents Specification Dimensions Technical information Main control board Service menu Parameter list Explanation of parameters Error codes Spare parts list Cabinet Electrical drawing 2011... -
Page 4: Specification
www.groupdynamics-laundry.com sales@groupdynamics.lv Specification Dimensions 1200 1855 A = Electrical connection B= Exhaust 2011... -
Page 5: Technical Information
www.groupdynamics-laundry.com sales@groupdynamics.lv Main control board Technical information This drying cabinet can be customized by adjusting the main control board´s parameters. The following pages describe how to adjust the parameters. Loading capacity, kg (lb) up to 8 (17,6) Service menu Drying capacity, g/min (oz/min)* 91 (3,2) Hanging length, m (ft) 16 (52,5) -
Page 6: Parameter List
Parameter list Parameter Alternative Factory position LANGUAGE SWE/ENG/FRE/GER/SPA MODEL TS 62/T 196/TS 92/DC 8 TS 62 RESET DEGREE UNIT MIN TEMP [-- --], 25 -> [MED-5] MED TEMP [MIN + 5] -> [MAX-5] MAX TEMP [MED + 5]-90... -
Page 7: Explanation Of Parameters
MODEL temperatures MIN, MED, MAX. The temperature values are the same as parameters MIN TEMP, MED TEMP and MAX TEMP. Choice of product model. Shall always be in position TS 62. PR# HU STOP RESET HU STOP affects the automatic drying function. Can be chan- Resets all parameters to initial factory position. -
Page 8: Error Codes
www.groupdynamics-laundry.com sales@groupdynamics.lv Error codes COIN The cabinet can be connected to a booking system. To acti- vate the function, set the parameter in position “ON”. To start a Disp Reason Activity programme, a connection to the control board’s COIN-contact is needed. Control board gets no Control that the sensor is signal from the tempera-... -
Page 9: Spare Parts List
www.groupdynamics-laundry.com sales@groupdynamics.lv Spare parts list Cabinet Detailed view A Part No Description TS 61084 Door left TS 61085 Door right TS 61086 Handle TS 61099 Service door lower, left TS 61096 Service door lower, right TS 61081 Lamp/Bulb 70107001 Door switch TS 61089 Magnet list 0110151-2... -
Page 10: Top
www.groupdynamics-laundry.com sales@groupdynamics.lv Part No Description TS 61080 Element 2000 W E 150020 Fan motor 0110155-2 Temperature sensor TS 61026 Over heat protection 120ºC 504142 Relay LC1-D12P7 230 V TS 61082 Disturbance filter 0110154-2 Humidity sensor TS 61083 Condenser 0110150-2 Main control board TS 61098 Service door upper 2011... -
Page 11: Electrical Drawing
www.groupdynamics-laundry.com sales@groupdynamics.lv Electrical drawing 3 400V N 50/60Hz R1-3 T1 120 C MAIN HEATER FAN1 FAN2 FAN MOTOR LAMP DOOR NTC1 FAN MOTOR RELAY HEAT RELAY FAN RELAY EXT FAN (OPTION) MICRO SWITCH MICRO SWITCH LIGHT NTC1 HUMIDITY SENSOR THERMISTOR NTC1 HEATING ELEMENT R1-R3... - Page 12 www.groupdynamics-laundry.com sales@groupdynamics.lv 2011-09-08...
