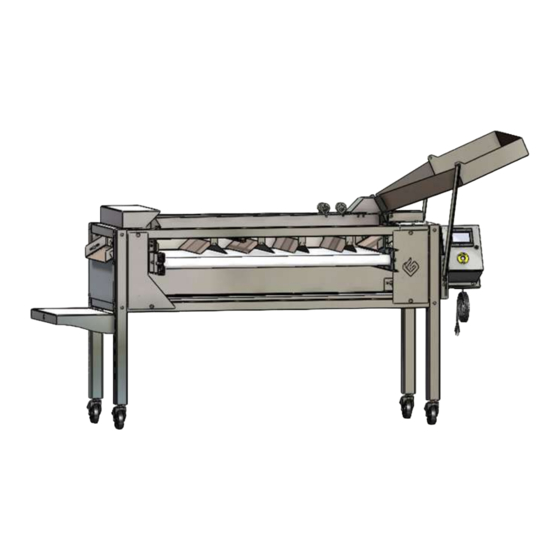

Greenbroz PRECISION SORTER User Manual

Greenbroz PRECISION SORTER User Manual

Hide thumbs Also See for PRECISION SORTER:

Advertisement

Quick Links

PRECISION SORTER
User Manual
GreenBroz.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRECISION SORTER and is the answer not in the manual?

Questions and answers

Summary of Contents for Greenbroz PRECISION SORTER

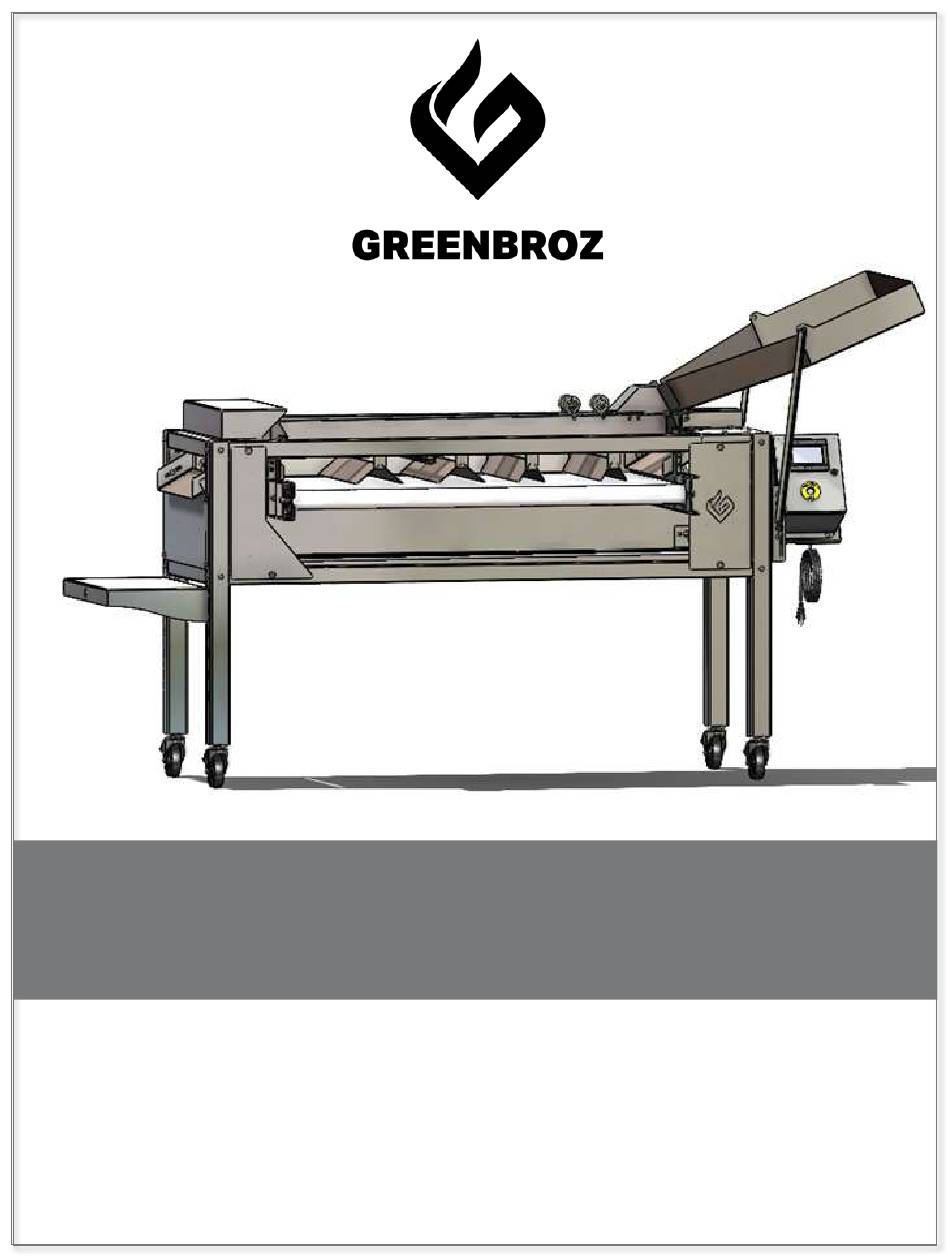

  • Page 1 PRECISION SORTER User Manual GreenBroz.com...
  • Page 2 7. Conveyor Belt: Moves sorted flowers into separate bins. (Adjustable Speed 0-30 RPM) 8. HMI Control Panel: Controls the machine functionality. 9. Touchscreen: turns bands and belt on and off and controls speed. 10. EMERGENCY STOP: Instantly stops the Sorter. 844.DRY.TRIM info@greenbroz.com greenbroz.com...
  • Page 3: Unpacking And Installation

    All parts noted in this manual will be included with your machine, unless otherwise noted. UNPACKING 1. Start by cutting the banding that is wrapped around the GreenBroz shipping crate. • Please use caution when cutting the banding. The banding is under tension.
  • Page 4 4. Position catch bins in desired locations under the conveyor (not included). 5. Tap touchscreen to begin. 6. Tap start sorting. 7. Adjust both belt and conveyor speed to your desired speeds. 8. Tap start to begin. 844.DRY.TRIM info@greenbroz.com greenbroz.com...
  • Page 5 DIMENSIONS I WEIGHT I SPEED Dimensions: With Hopper - 103”L x 32”W x 49”H Weight: 300Ibs (136 kg) Speed: Conveyor Speed: Adjustable 0-30 RPM Band Speed: Adjustable 0-60 RPM Power: Amps = 1.6A, Voltage = 110V, Hertz = 60hz 844.DRY.TRIM info@greenbroz.com greenbroz.com...
  • Page 6: Maintenance

    Inspect round belts quarterly for damage, replace if cracks are present. Motor Shiled “With the exception of the motor shield, please note. the images in this manual are missing the equipped safety shields. 844.DRY.TRIM info@greenbroz.com greenbroz.com...
  • Page 7: Troubleshooting

    - Check outlet power supply. - Ensure E-STOP is released by twisting the red knob clockwise. - Call GreenBroz technical support at 619-455-8052. 2. Conveyor belt not moving when motor is turning. - Adjust conveyor idle roller brackets to increase belt tension.
  • Page 8: Size Adjustment

    3. Remove guide bracket bolt hardware. 4. Move guide brackets to inside slot and place hardware back in. Do not tighten all the way down. Remove tine rail brackets. Remove top exit safe guard. Remove guide bracket hardware. After Before 844.DRY.TRIM info@greenbroz.com greenbroz.com...
  • Page 9 7. Re-Install top exit safeguard. 8. Re-Install large set of tine rails with tines (Larger tine set included with purchase). Before After Guide rails. Guide Brackets Re - install tine rails with tines. Re-install exit safe guard. 844.DRY.TRIM info@greenbroz.com greenbroz.com...
  • Page 10: Warranty Registration

    To Qualify for this warranty: The product must be purchased from GreenBroz, Inc., or a dealer authorized by GreenBroz, Inc., to sell the products. This warranty only applies to the first retail purchaser and is not transferable to subsequent owners.
