MODEL: RTTS-13RA

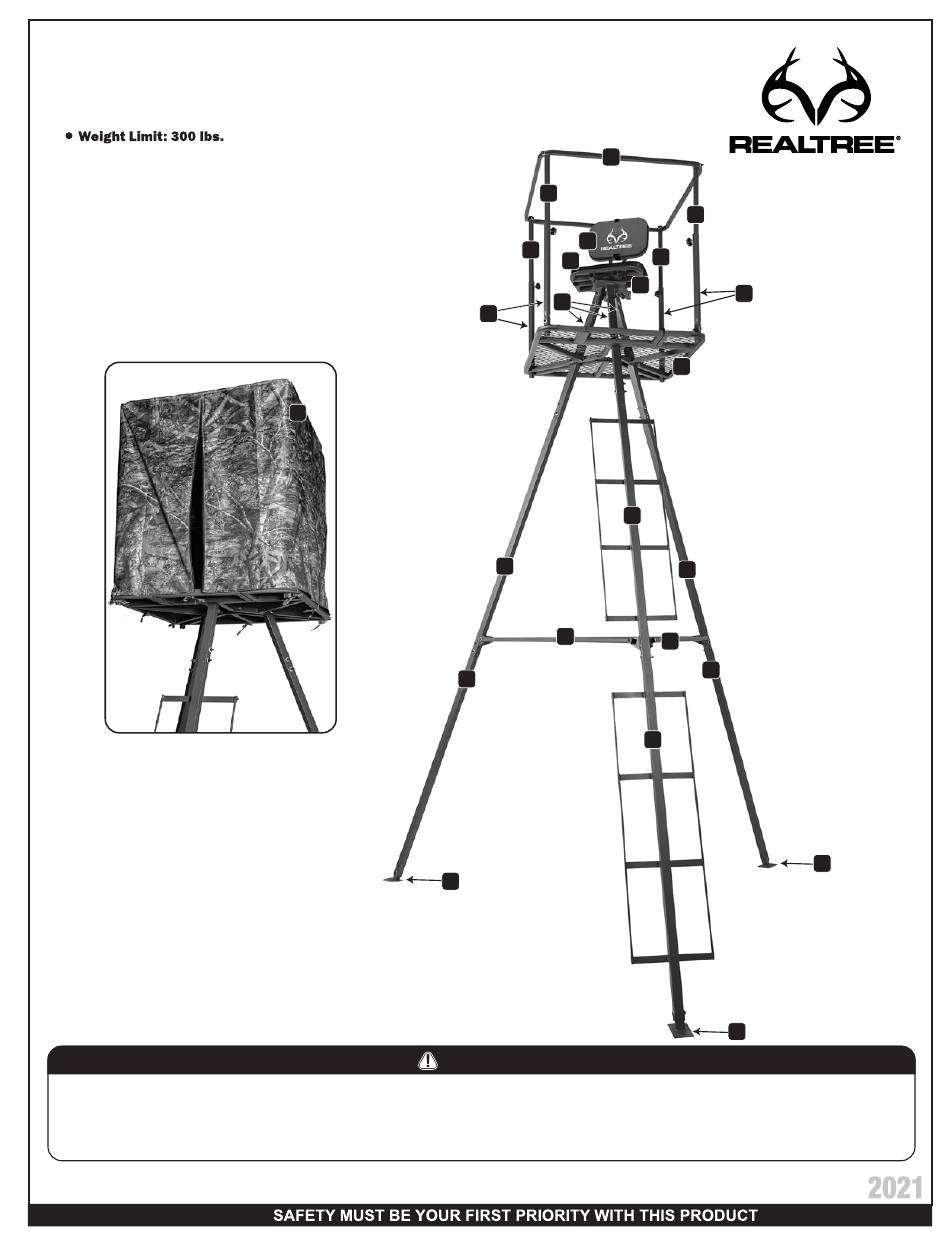

Single Man 13' Tripod Stand with Skirt Enclosure
Instruction and
Safety Manual
Every year serious injury or death can occur from hunting related accidents. To ensure your safety, please COMPLETELY read and follow this safety
manual and ALL warning labels BEFORE assembling, installing or utilizing this product.
DO NOT USE THIS PRODUCT BEFORE FULLY UNDERSTANDING ALL SAFETY WARNINGS AND INSTRUCTIONS. If you have questions, are unsure
about any information or need additional information concerning your product, contact our customer service department at 1-866-972-6168 or visit
www.primalvantage.com/realtree. Keep and maintain this safety and instruction manual in a safe location for future reference.
Distributed by Acheson Harriman Swan, LLC, 2407 W. Euclid Ave., Littleton, CO 80120
T
M
N
W A R N I N G
B
I
H
I
I
G
D
F
J
O
L
Q
Q
N
I
J
A
L
M
N
N
©2021 (rev. 1/21)
Advertisement
Summary of Contents for Realtree RTTS-13RA
- Page 1 DO NOT USE THIS PRODUCT BEFORE FULLY UNDERSTANDING ALL SAFETY WARNINGS AND INSTRUCTIONS. If you have questions, are unsure about any information or need additional information concerning your product, contact our customer service department at 1-866-972-6168 or visit www.primalvantage.com/realtree. Keep and maintain this safety and instruction manual in a safe location for future reference. ©2021 (rev. 1/21)
- Page 2 TRIPOD SAFETY WARNINGS Please read the following instruction manual and warning labels completely before utilizing this product. Failure to understand and execute the instructions and warnings may result in serious injury or death. In the event of an accident, have a plan for rescue, including the use of devices that may be easily reached while suspended.
- Page 3 TRIPOD SAFETY WARNINGS NEVER use this tripod for any use other than hunting. NEVER use this tripod for trimming trees. NEVER fall asleep in your stand as you may fall out resulting in serious injury or death. ALWAYS be sure to retighten all bolts BEFORE each new use of this tripod. ALWAYS have a minimum of three people present when installing or removing this tripod.
-
Page 4: Parts List
MODEL: RTTS-13RA Single Man 13’ Tripod Stand with Skirt Enclosure PARTS LIST Platform (1) Shooting Rail (1) 1 Platform........Part # RTP-13 1 Shooting Rail......Part # RTSR-13 1 Seat Back........Part # RSBC-13 1 Seat Frame.........Part # RTSF-13 1 Seat Base........Part # RSBS-13 3 Upper Tripod Legs......Part # RTUL-13... - Page 5 Model: RTTS-13RA Assembly Instructions Page 1 Single Man 13’ Tripod Stand Remove all contents from packaging and make sure all parts are present before attempting to assemble. Tighten all bolt connections by hand first and then when fully assembled, go back and tighten with a wrench.
- Page 6 Model: RTTS-13RA Assembly Instructions Page 2 Single Man 13’ Tripod Stand Bolt Upper Tripod Legs to Platform using 1 10 3-M8 x 110mm bolts 1 10 Place the Seat Washer on top of the Seat Base and set the Seat Frame...
- Page 7 Model: RTTS-13RA Assembly Instructions Page 3 Single Man 13’ Tripod Stand Insert Lower Shooting Rail Supports into the corner post of the Platform using 4-M8 x 40mm bolts . Make sure the welder nut is facing inward as shown. Lay Shooting Rail...
- Page 8 Model: RTTS-13RA Assembly Instructions Page 4 Single Man 13’ Tripod Stand Insert Upper Shooting Rail Supports into the Lower Shooting Rail Supports and secure using the 4 Adjustment Knobs Loosen all 4 Adjustment Knobs to adjust the Shooting Rail to the desired height.
- Page 9 Model: RTTS-13RA Assembly Instructions Page 5 Single Man 13’ Tripod Stand Left Right Tabs as viewed from the bottom end of the legs Lay Tripod on its back as shown. Lay the Right & Left Middle Legs on the ground and check the tabs at the bottom of each Middle Leg to make sure legs are in the proper left and right position.
- Page 10 Model: RTTS-13RA Assembly Instructions Page 6 Single Man 13’ Tripod Stand Connect the Middle Ladder Leg to the Left & Right Middle legs by attaching the Long Tripod Braces using 4-M8 x 40mm bolts Connect the Left Middle Leg to the Right Middle Leg...
- Page 11 Model: RTTS-13RA Assembly Instructions Page 7 Single Man 13’ Tripod Stand Connect the Bottom Ladder Leg to the Middle Ladder Leg using 2-M8 x 55mm bolts Attach the Tripod Feet to the the Bottom Ladder Leg and the Right and Left Bottom Legs...
-
Page 12: Installation Instructions
Model: RTTS-13RA installation Instructions Page 1 Single Man 13’ Tripod Stand W A R N I N G MAKE SURE ALL BOLTS ARE TIGHT BEFORE PROCEEDING TO INSTALLATION WITH THE HELP OF AT LEAST TWO OTHER PEOPLE , STAND THE TRIPOD UPRIGHT... - Page 13 W A R N I N G Failure to follow all warnings listed below could result in serious injury or death. DO NOT use this tripod without reading and following all warnings and NEVER use tripod during inclement weather. DO NOT use tripod during instructions before each use.
