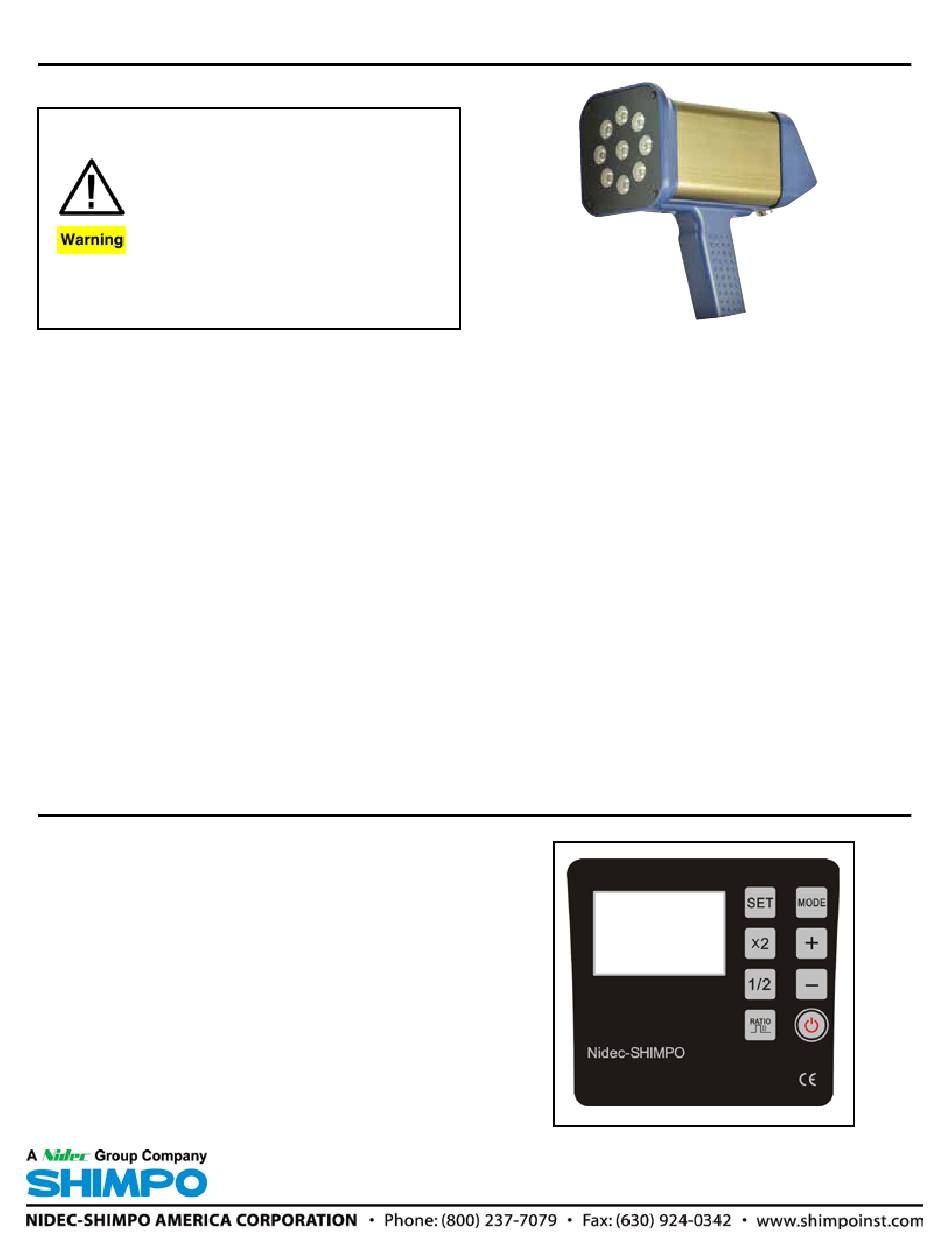

Shimpo ST-320BL Operation Manual

ST-320BL LED Stroboscope Array
Operation Manual
Use in flammable environments is prohibited. Use in this manner may
result in fire or explosive.
Don't look directly into the LED light Source. This may result in eye in-
jury.
Don't use or store in the following environments. Direct sunshine con-
densation, dust or caustic.
Do not alter, or modify of improperly. Such action may cause damage
and void warranty.
Operate with 0-35°C (32-95°F), 35-85% RH. Use outside of this range
may alter operation of the unit.
Case may become excessively hot when used continuously for more
than 2 hours. Mount unit on a tripod or other fixed device.
The ST-320BL is a portable or permanent mount stro-
boscope.
Utilizing super bright high-powered black light CREE
LED lamps, these stroboscopes are perfect for UV ink printing
applications. The ST-320BL's LED array provides a bright, stable
strobe light over a wide measurement range with a lifetime far
exceeding xenon lit stroboscopes. Operation is simple with the
8 button keypad and quick rate adjustment dial, combined with
large, backlit LCD display. Phase shift, flash duration, plus flash
rate are all quickly adjustable. The unit can work off user adjusted
flash frequency or from a remote sensor's signal which will auto-
matically adjust to corresponding process fluctuations.
The ST-320BL is designed for speed and frequency measure-
ments in the printing, packaging, textile, automotive, cable, min-
ing, steel, chemical, optical and medical industries in various ap-
plications.

Operation Panel Located on Control Enclosure

POWER: Power on and off.
MODE: Select mode of operation or Parameter Menu: Internal/
External/Parameter Settings
SET: Change Units (FPM to Hz); In Parameter Menu scroll through
Parameter Settings, Store setting values.
x2: Multiplies the flash rate/frequency by a factor of 2.
1/2: Divides the flash rate/frequency by a factor of 2.
RATIO: Adjusts flash duration (flash pulse width) in Internal/Ex-
ternal modes.
"+": Advance image forward 3 degrees at a time in internal mode.
In parameter setting mode, adjusts setting values.
"-": Retard image backwards 3 degrees at a time in internal mode.
In parameter setting mode, adjusts setting values.
Dial: Set flash rate or frequency. CW: Increase flash rate/frequen-
cy. CCW: Decrease flash rate/frequency. (Turn dial quickly to
drastically change value; Turn dial slowly to change value by 1
digit.) In parameter setting mode, CW or CCW rotation chang-
es the setting value. *Dial located on side of unit.
SHIMPO INSTRUMENTS

SPECIFICATIONS

Flash Rate Range: 60 to 120,000 FPM ; 1-2000 Hz
Accuracy: 0.01%±1 digit of F.S. @ 77° F (25°C)
Lamp Lifetime: Approximately 3~5 years depending on usage.
Display: Backlit LCD
Resolution: 60 ~12,000 FPM = 0.1 FPM; 12,001~120,000 FPM
= 1 FPM; 1~200 HZ = 0.01 Hz; 201~2000 = 0.1 Hz
Flash Duration: 0.1°- 2.5°
Phase Shift: 0-359°
Power Requirement: ST-320BL-1: 100-120 VAC; ST-320BL-2:
Rechargeable Battery.
Battery: (ST-320BL-2) Lithium DC 10.8V 2000mA
Battery Life: (ST-320BL-2): Approx. 12 hrs depending on settings
Input Signal: 12 V Pulse Input; 3 pin M-12
Input Signal Range: 60-120,000 FPM (1-2000 Hz)
Input Pulse Width: Over 50 µs
Input Signal Flash Delay: 0-999 ms; 0-359°
Temperature Limits: 32-95°F (0-35°C)
Humidity Limits: 35 to 85% RH
Enclosure: Aluminum & ABS
Mounting: 1/4-20 UNC Thread
Enclosure Rating: IP54
Product Weight: ST-320BL-1: 1.85 lb (0.84 kg);
ST-320BL-2: 1.98 lb (0.90 kg)
Package Weight: ST-320BL-1: 4.40 lb (2.0 kg);
ST-320BL-2: 5.73 lb (2.6 kg)
Approvals: CE
Warranty: 1 year
Included Accessories: Carrying Case, ST-320BL-1: 6.5' (2 m)
AC power cord; ST-320BL-2: Power Recharging Adapter with cord.
