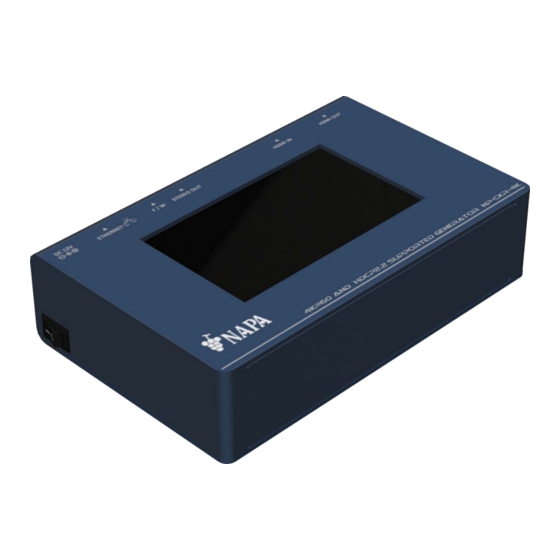

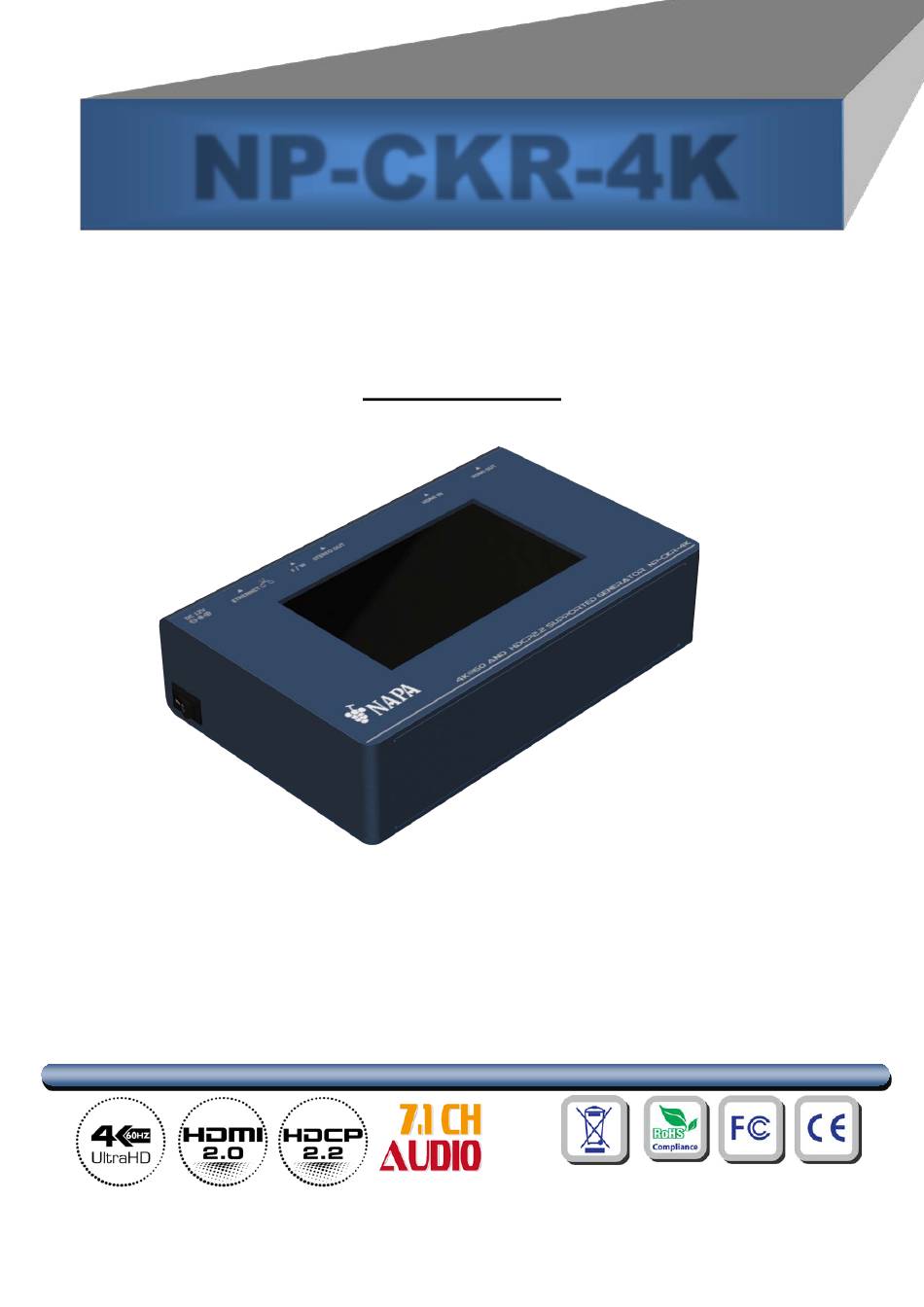

- Page 1 NP-CKR-4K HDMI 2.0 Generator / Analyzer User Manual...
-
Page 2: Table Of Contents
Safety and Notice NP-CKR-4K HDMI 2.0 Generator / Analyzer has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the NP-CKR-4K should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
INTRODUCTION The NP-CKR-4K HDMI 2.0 Generator / Analyzer is a versatile HDMI 2.0 toolbox with full bandwidth and HDCP 2.2 support. For ease of HDMI 2.0 installations, NP-CKR-4K is equipped with both HDMI 2.0 pattern generator and analyzer. With this handy and portable gadget, users will appreciate at the built-in long hour operation chargeable battery, video patterns, touch panel control, cloud based firmware upgrade access and many other features such as HDCP analyzer or loop test in single piece of device. -
Page 4: Specifications
SPECIFICATIONS Model Name NP-CKR-4K Technical Role of usage Generator / Analyzer Video bandwidth Single link 600MHz [18Gbps] HDMI compliance HDMI 2.0 and below HDCP compliance HDCP 2.2 and below Video Support Up to 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR) Video Format Support HDMI Audio support... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS NP-CKR-4K OUTPUT: HDMI output INPUT: HDMI input Stereo Out: Analog audio output USB: Connect to USB device for control or firmware update Ethernet: Ethernet control +12V DC: 12V 5A DC power jack Power Switch: Power ON/OFF switch Touch Panel: Touch screen for control... -
Page 6: Application Diagram
APPLICATION DIAGRAM... -
Page 7: Menu Operation
MENU OPERATION The major functions of the device are listed below HDMI Generator HDMI Receiver HDCP Test EDID Test Loop Test Please refer the table below and the following section to know how to operate these functions. OUTPUT SETTING Menu Items... -
Page 8: Generator
GENERATOR NP-CKR-4K as HDMI Generator After making the physical connections between NP-CKR-4K and the display device. User can select different generator function to display on the sink device under test. 1. Selecting the Signal Format NP-CKR-4K provides different signal resolution and signal types for user to select. User can touch the Signal Format Tab to select the signal type (HDMI / DVI) and signal resolution (HDTV / PC). -
Page 9: Receiver
RECEIVER NP-CKR-4K as HDMI Analyzer 1. Source Information from the HDMI source In the Test/Source menu, user can touch the read/refresh button to get the video format, source audio and packet information from the HDMI source device. 2. Testing the Video from the HDMI source NP-CKR-4K supports the incoming video from HDMI source/device to ensure user is receiving a valid video signal by displaying the information of incoming signal. -
Page 10: Hdcp Test
HDCP TEST NP-CKR-4K as HDCP Receiver When NP-CKR-4K set as receiver, it can verify HDCP of video player or other DUT (Device Under Test). NP-CKR-4K provides three options (HDCP 1.4 / HDCP 2.2 / no HDCP) for users to select and confirm the HDCP authentication of DUT. -
Page 11: Edid Analysis
EDID ANALYSIS NP-CKR-4K offers the most convenient way for user to analyze the EDID. You can verify, view and learn the EDID of an HDMI HDTV or other devices. Procedure of EDID Analyze: Make sure the connections between the NP-CKR-4K HDMI output port and the device. ... -
Page 12: Loop Test
LOOP TEST NP-CKR-4K offers the unique estimator for evaluating the quality of cables or DUT. Users can simply connect the cable to NP-CKR-4K to form a loop, the monitor will examine the HDMI bitstream pixel by pixel. The measurement statistics will be displayed on screen and offer useful information for building up robust A/V system. -
Page 13: Ethernet Control (Tcp/Ip)
ETHERNET CONTROL (TCP/IP) NP-CKR-4K also provides user control through Ethernet. The Ethernet control includes many major functions, it can offer user develop software to do advance setting. (TCP Port: 6133) Reply Format: Received = ACK + Feedback Date ACK: 0xaa 0xbb 0xcc Feedback Date: Data0 Data1 Data2…. - Page 14 Resolution: Index Resolution Index Resolution Index Resolution 720x480i@60 0x13 1920x1080p@24 0x26 1920x1200pRB 720x576i@50 0x14 1920x1080p@23.976 0x27 3840x2160p@60 720x480p@60 0x15 640x480p@60 0x28 3840x2160p@59.94 720x576p@50 0x16 640x480p@75 0x29 3840x2160p@50 1280x720p@60 0x17 800x600p@60 0x2a 3840x2160p@30 1280x720p@59.94 0x18 800x600p@75 0x2b 3840x2160p@29.97 1280x720p@50 0x19 1024x768p@60 0x2c 3840x2160p@25 1280x720p@30...
- Page 15 Default Pattern: Index Default Pattern Index Default Pattern Index Default Pattern Ramp Green H 1 0x17 Stair Blue 2 0x27 V Stripe Blue Ramp Blue H 1 0x18 Stair White 1 0x28 H Stripe Red Ramp Red H 2 0x19 Stair White 2 0x29 H Stripe Green...
- Page 16 Rate Index 48 KHz 96 KHz 192 KHz 32 KHz 44.1 KHz Rate Number Index 2 Ch 2.1 Ch 5.1 Ch 6.1 Ch 7.1 Ch Number TX HDCP Index HDCP 1.4 HDCP 2.2 Type0 HDCP 2.2 Type 1 TX HDCP RX HDCP Index HDCP 1.4...
-
Page 17: Upgrade Np-Ckr-4K
UPGRADE NP-CKR-4K User can upgrade the firmware and pattern on the NP-CKR-4K through the USB interface. If user encounters a problem with the upgrade, please contact the supplier of NP-CKR-4K. Procedure of Firmware Upgrade: *Before updating the firmware of NP-CKR-4K, please ensure the file of new firmware files are in the root directory of USB Flash Drive. - Page 18 3~5 seconds. While updating, please do not remove the USB Flash Drive. After completing the firmware update, please reboot the NP-CKR-4K. Make sure the arm.dat file is in the root directory of USB. Connect the USB Flash Drive on NP-CKR-4K USB interface. ...
- Page 19 Procedure of user defined pattern upgrade Pattern Create a folder (folder name is usr_pic) on USB Flash Drive. Ensure the file of pattern which user desire to update on the NP-CKR-4K is in the usr_pic directory of USB Flash Drive. The file suffix is .jpg. ...
-
Page 20: Eye Pattern
EYE PATTERN The device had been approved and supported by high performance oscilloscope (MSOX92004A) to make sure quality. The test result of this device (with Simplo battery) is shown as below: *This result is representative of the NP-CKR-4K. Each NP-CKR-4K’s performance is closed to these results but not exactly the same. - Page 21 Clock Jitter and eye pattern...
-
Page 22: Limited Warranty
LIMITED WARRANTY NP-CKR-4K HDMI 2.0 Generator / Analyzer The SELLER warrants the to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
