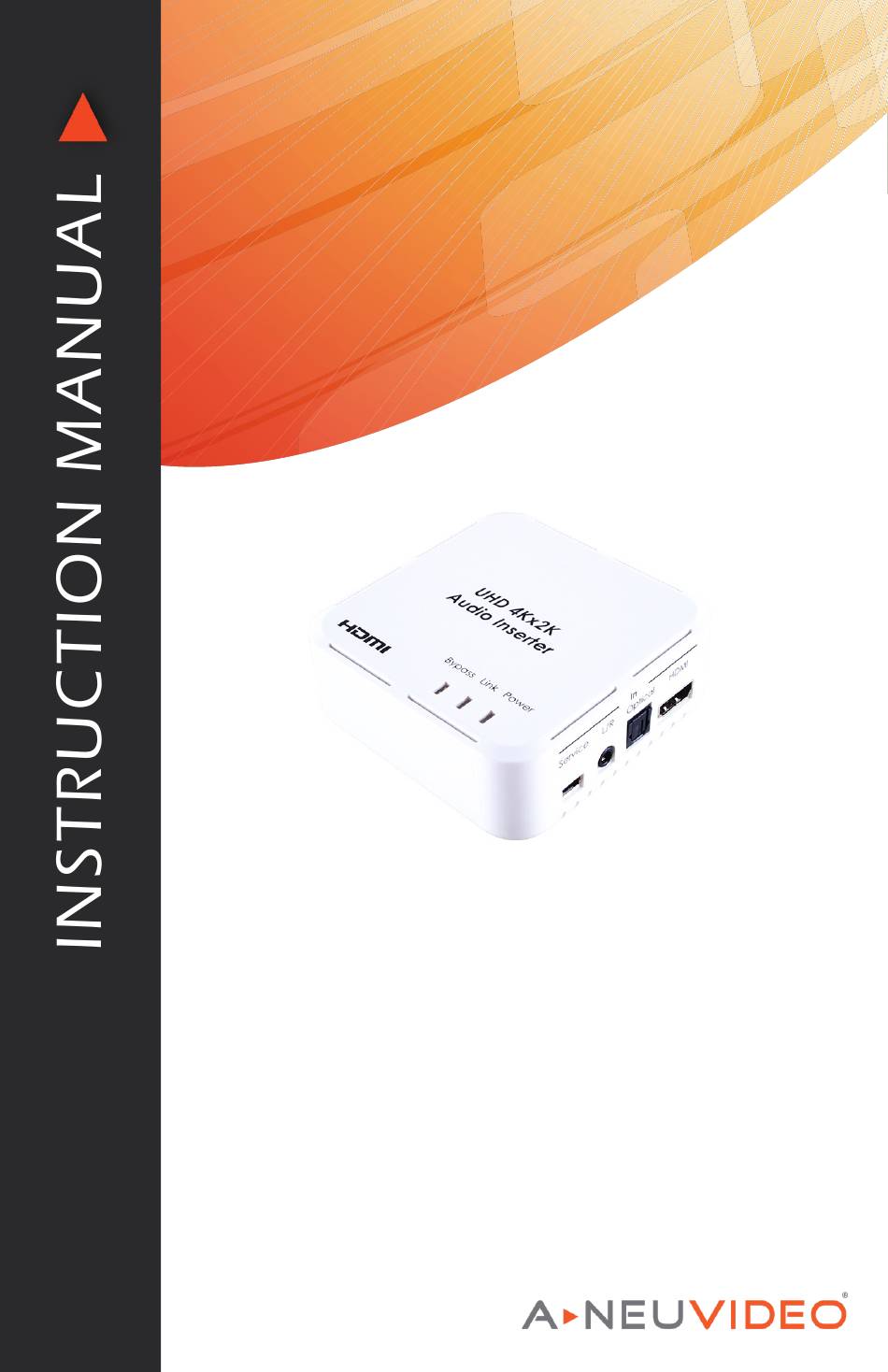

- Page 1 ANI-HDAINSERT4K3 HDMI 4K2K Audio Inserter AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
SUPPORTED AUDIO FORMATS.....................8 INTRODUCTION The ANI-HDAINSERT4K3 HDMI 4K2K Audio Inserter allows an external audio signal to be inserted into your HDMI or DVI (with an HDMI to DVI adaptor) signal path. The unit allows you to insert analog stereo or multi-channel surround sound (via the digital optical input) giving you the flexibility to add your choice of audio to the video while extending your HDMI signal. -
Page 5: Features
FEATURES • Compliant with HDMI, HDCP 1.2 and DVI 1.0 • Supports HDMI audio sampling rates up to 192kHz • Supports Optical (S/PDIF) digital audio sampling rates up to 192kHz • Supports selection of original HDMI audio or embedding of external Digital or Analog audio into HDMI signal pathway •... -
Page 6: Specifications
SPECIFICATIONS • Video Bandwidth: 300 Mbps/10.2 Gbps • Input Ports: • HDMI • Optical • 3.5mm Mini-jack, • Mini-USB (Manufacturer use only) • Output Port: HDMI • Audio Sampling Rates HDMI: Up to 192kHz • S/PDIF (Optical): Up to 192kHz •... -
Page 7: Operation Controls & Functions
OPERATION CONTROLS AND FUNCTIONS Top Panel q Bypass LED: This LED will illuminate when the audio input is switched to HDMI, bypassing the external audio inputs. w Link LED: This LED will illuminate when an active HDMI signal is being received. e Power LED: This LED will illuminate when the unit is connected to an active power supply and switched ON. - Page 8 OPERATION CONTROLS AND FUNCTIONS Left Panel q HDMI Out: Connect to a TV/display with an HDMI cable for output of the combined audio/video HDMI signal. Note: For playback of 4K2K/3D HDMI source signals, a 4K2K/3D capable display and High Speed HDMI cables are required.
-
Page 9: Connection Diagram
CONNECTION DIAGRAM... -
Page 10: Supported Audio Formats
Supported Audio Formats INPUT HDMI Optical Analog FORMAT LPCM 2CH ü ü ü LPCM 5.1CH ü LPCM 7.1CH ü Bitstream 5.1CH ü ü Bitstream 7.1CH ü... - Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 TERMS AND CONDITIONS OF USE PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions.
