3. Place your hands on each side of the monitor to tilt the LCD panel to the maximum tilt angle and lift up to the highest
position.

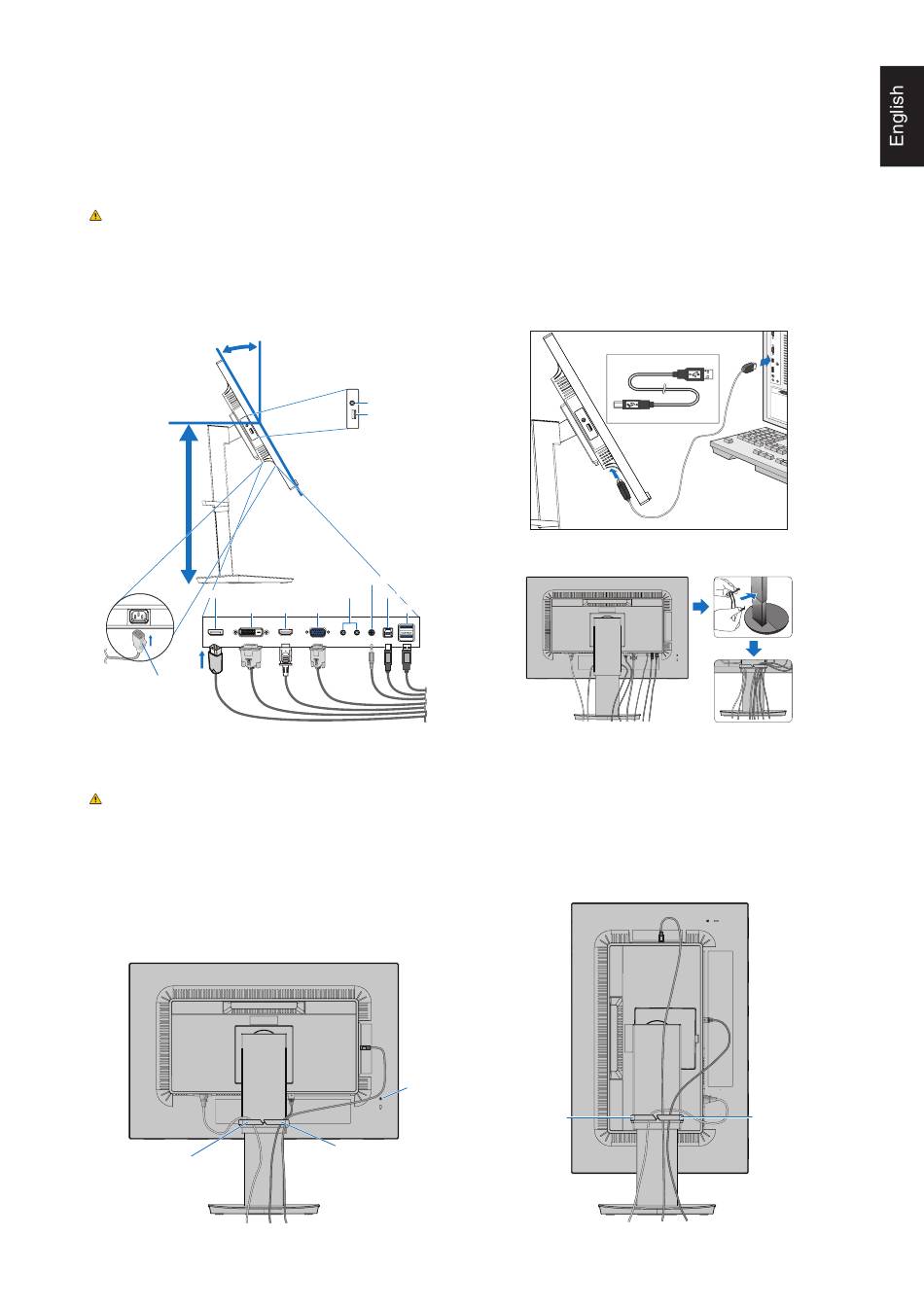

4. Connect all cables to the appropriate connectors (Figure C.1). When using the USB cable, connect the B type connector
to the USB upstream port on the rear side of the monitor and the A type connector to the downstream port on the computer
(Figure C.1a). If using the cord from a USB device, plug into the downstream port of the monitor.
NOTE:
Incorrect cable connections may cause abnormal operation, damage display quality/components of the LCD
module and/or shorten the module's life.
CAUTION: Do not bind the USB cable. It may trap heat and start a fire.
NOTE:
Do not use an attenuating (built-in resistor) audio cable. Using an audio cable with a built-in resistor will lower the
sound level.
NOTE:
Adjustment of the volume control as well as the equalizer to other settings than the center position may increase
the ear-/headphones output voltage and therefore the sound pressure level.
Maximum Tilt
Highest
Stand
Position
DisplayPort IN
Power cord
Figure C.1
* : See page 11.
1
CAUTION: Do not connect headphones to the monitor while you are wearing them.
Depending on the volume level, it may damage your ears and cause loss of hearing.
5. Place the cable holder onto the stand (Figure C.2).
Place the cables in the cable holder firmly and evenly (Figure C.3 and Figure C.4).
6. Please check that you can still raise and lower the monitor screen after you have installed the cables.
Power Cord
Figure C.3
Headphone
USB Downstream (USB Type-A)
Audio IN
ControlSync IN/OUT* USB Upstream (USB Type-B)
1
DVI-D HDMI D-Sub USB Downstream (USB Type-A)
Security Slot
USB Cable
DisplayPort Cable
B Type
Power Cord
English-7
A Type
A Type
B Type
Figure C.1a
Figure C.2
USB Cable
DisplayPort Cable
Figure C.4
