- Page 1 Radio remote control VFF/CDL-BF-11 with Bluetooth-Technology Operating Instructions...
-
Page 2: Foreword
Foreword Foreword Revision history Version Date 1 8.03.2020 Change First edition In your own interest Read these operation instructions and keep them in a safe place. Observe the safety instructions. -
Page 3: Table Of Contents
Table of contents Table of contents Foreword Revision history In your own interest Disclaimer Manufacturer's address Table of contents General ......5 How to use these instructions . -
Page 5: General
General General How to use these instructions Symbols used Warning Indicates about a dangerous situation; potential consequences: death or serious injury. Caution Potentially dangerous situation; potential consequences: slight or minor injuries. General information; Information that is important for the function or operation, or that will facilitate operation or assembly. -
Page 6: Safety Instructions
Safety instructions Intended usage The remote control is intended for the operation of a special adjustable bed frame from LS-Bedding with the number 1905802201v00. Caution The radio remote control is only designed for the designated purpose. Any other use is deemed improper and can lead to accidents or the destruction of the device. -
Page 7: Specific Safety Instructions
Safety instructions Specific safety instructions Caution The following safety instructions serve to protect you, third parties and the equipment, and must therefore be adhered to strictly. Operating environment • The radio remote control may not come into direct contact with damp or water. -
Page 8: Information About Radio Operation
Safety instructions Information about radio operation Please note that the transmission range depends on the local conditions. It may impact on other devices operated by radio, for instance WLANs, cordless phones or microwave ovens. Transmission / receiving frequency: 2.4GHz ISM band. Devices according to the standard of the Bluetooth SIG transmit as Short Range Devices (SRD) in a license-free... -
Page 9: Operating Instructions Of The Bed Manufacturer
Operating instructions of the bed manufacturer Also observe the safety notes in the operating instructions of the bed manufacturer! Depending on the design or model of the adjustable bed, hazards to the user may occur that are not covered by this manual. These installation instructions do not contain all information required to safely operate the end product,... -
Page 10: Commissioning / Operation

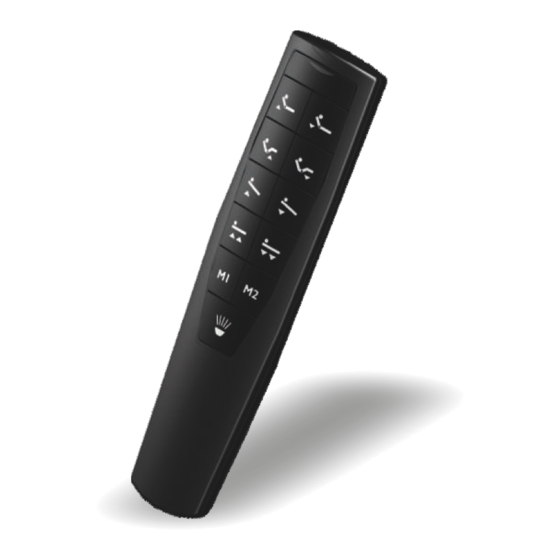

Comissioning Comissioning / Operation The remote control Status LED Back drive up Back drive down Leg drive up Leg drive down Head elevation drive up Head elevation drive down Bed height up Bed height down Memory position 1 Memory position 2 Torch LED on/off Torch LED Battery compartment... -
Page 11: The Double Drive
Comissioning The double drive LED module l Teach-in Button Drive 3 Drive 4 The single drives The two single drives for adjusting the head elevation and the bed height are identical and connected to sockets Connect the drive on the foot side of the bed to socket , the drive on the head side to socket... -
Page 12: Inserting The Batteries
Comissioning Inserting the batteries Insert the supplied batteries (2x 1,5V AAA LR03) into the battery compart- ment as shown in the picture. Ensure that the batteries are inserted in the right direction (+/-)! Once the batteries have been inser- ted, close the battery compartment lid again and the radio remote control is operational. -
Page 13: Initial Position
Comissioning / Operation • Briefly press any button on the remote control ► The status LED and the keypad illumination flash alternately. • Press button l on the double drive for approx. 1 s. ► The back adjustment motor moves briefly up/down. •... -
Page 14: Torch Function
Operation • Simultaneously press keys and keep them pressed until the keypad illumination is alternately flashing with the status LED • Release the buttons then and press one of the memory buttons • The current position is assigned to the corresponding memory button and saved. -
Page 15: 3.10 Reset To Factory Settings
Operation 3.10 Reset to factory settings Resetting the remote control: • Simultaneously press and hold the buttons • The status LED starts flashing. • When the status LED is steady, release the buttons. • The status LED goes off, the remote control is reset. -
Page 16: Malfunctions / Troubleshooting
Malfunctions, Tech. data, Maintenance Malfunctions / troubleshooting Before contacting the service office of the furniture manufacturing company, please try the following in the event of a malfunction: • Check to ensure that the dual drive VMAT-Basic is connected to the mains supply (power socket). -
Page 17: Disposal
Disposal Disposal The remote control and the double drive contain electronic components, cables, metals, plastics etc. and must be disposed of in accordance with the applicable environmental regulations of the respective country. This symbol on the product or its packaging indicates that the product may not be disposed of via the household waste system. - Page 18 Document is subject to change without prior announcement. All rights reserved. It is strictly forbidden to duplicate this document in any form without the prior consent of the company LS Bedding nv. LS Bedding nv is not liable for any errors in this document or for any ensuing damages connected to the delivery, performance or use of this material.
