Summary of Contents for Code Soft TM-15 Series
- Page 1 USER’s GUIDE TM-15 Series Touch Screen LCD Monitors Rev.A...
- Page 2 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced,translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
-
Page 3: Table Of Contents
Table of Contents Usage Notice Precautions..........................1 Introduction About TM-15 Series ........................ 2 Touch Screen for TM-15 ......................3 Package Overview ......................... 4 Installation Product Overview ........................5 Front View ........................5 Bottom View (Without Stand) ................... 5 Kensington Security Slot ......................6 VESA Mount for Your Monitor .................... -
Page 4: Usage Notice
Usage Notice Warning - To prevent the risk of fire or shock hazards, do not expose this product to rain or moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. -
Page 5: About Tm-15 Series

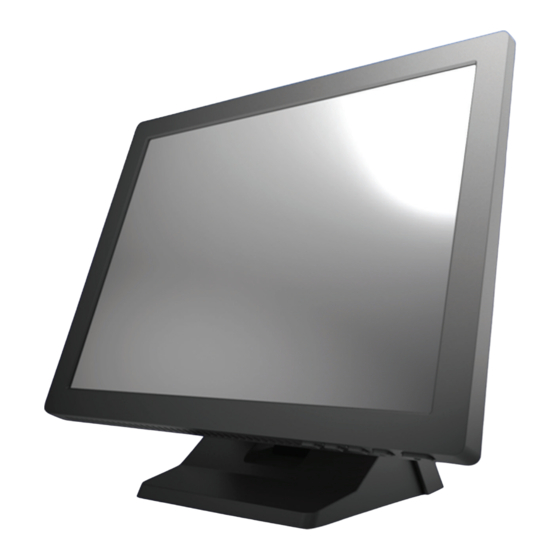

Introduction About TM-15 Series The TM-15 Series is a 15" flat panel screen with an active matrix, thin-film transistor (TFT) liquid crystal display (LCD). This unit is to be used as commercial and light industrial equipment only. Features include: • Direct Analog signal input •... -
Page 6: Touch Screen For Tm-15
Touch Screen for TM-15 • 5-wire resistive touch screen for finger and stylus input • Surface: Anti-glare treatment • Interface: USB controller • Transmittance: 82%±5% • Driver: Windows ® 7, VISTA, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Linux, Apple ®... -
Page 7: Package Overview
Package Overview LCD Display Power Cord VGA Signal Cable USB Cable ( A to B) Touch Driver CD Quick Start Guide DC Power Supply... -
Page 8: Installation
Installation Product Overview • Front View • Bottom View (Without Stand) POWER SWITCH DC IN... -
Page 9: Kensington Security Slot
Kensington Security Slot The monitor can be secured to your desk or any other fixed object with Kensington lock security products. The Kensington lock is not included. -
Page 10: Vesa Mount For Your Monitor
VESA Mount for Your Monitor This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which defines a physical mounting interface for flat panel monitors, and corresponding with the standards of flat panel monitor mounting devices, such as wall and table arms. The VESA mounting interface is located on the back of your monitor. -
Page 11: Start Your Installation
Start Your Installation Please follow these instructions so that you can hook up the cables to associated connectors. 1. Lay the LCD flat on an even surface. 2. Move the stand into position as seen in the step 1 diagram. 3. -
Page 12: Connecting The Display (Figure 10.1)
Connecting the Display (Figure 10.1) To setup this display, please refer to the following figure and procedures. 1. Be sure all equipment is turned off. 2. Connect the DC adapter to the power connector on the monitor and the other end into an electrical outlet (10.1). -
Page 13: (Figure 10.1)
(Figure 10.1) -
Page 14: Remove The Deskstand
Remove the Deskstand Remove 4 screws and then remove hinge. -
Page 15: User Controls
User Controls Front Panel Controls Icon Key Name Menu Plus Minus Enter Power Menu off status Menu on status Menu appear Menu disappear / return to main item Brightness Main item select up / Adjust up Contrast Main item select down / Adjust down Enter / Select sub-item function Power On / Off... -
Page 16: How To Use The Osd Menus
How to Use the OSD Menus Icon Key Name Menu Plus Minus Enter Power 1. Press the “MENU” button to pop up the “on-screen menu” and press “Plus” or “Minus” button to select among the five functions in the main menus. 2. -
Page 17: On-Screen Display Menus
On-Screen Display Menus Main OSD Menu: ITEM CONTENT Contrast The monitor luminance level control. Brightness The monitor backlight level control. Auto Adjust Fine-tune the image to full screen automatically. Left/Right Moving screen image horizontal position to left or right. Up/Down Moving screen image vertical position to up or down. -
Page 18: Appendix
Appendix Troubleshooting If you are experiencing trouble with the LCD display, refer to the following. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. ► Check that all the I/O and power connectors are correctly and well connected as described in the “Installation”... -
Page 19: Warning Signal
Warning Signal If you see warning messages on your LCD screen, this means that the LCD display cannot receive a clean signal from the computer graphics card. Below are the three kinds of Warning Signal. Please check the cable connections or contact your local dealer or our service center for more information. -
Page 20: Product Dimensions
Product Dimensions 350.6 mm ► Front View ► Side View 49.6mm 180.0mm ► Top View... -
Page 21: Compatibility Modes
Compatibility Modes Mode Resolution H-Frequency (KHz) V-Frequency (Hz) IBM VGA 720X400 31.47 IBM VGA 640X480 31.47 Apple MacII 640X480 35.00 VESA VGA 640X480 37.86 VESA VGA 640X480 37.50 VESA VGA 800X600 35.16 VESA VGA 800X600 37.88 VESA VGA 800X600 48.08 VESA VGA 800X600 46.88... -
Page 22: Touch Screen Driver Installation
Touch Screen Driver Installation The TM-15 is available with USB connections. The touch driver is located on the enclosed CD-ROM for these operating systems: Windows ® 7, VISTA 64/32 bits, XP, 2000, ME, 98, NT4.0, CE, XP Embedded, Linux, Apple ® Mac OS. Please Note: The TM-15 is Microsoft ®... -
Page 23: Driver Install Instructions
TLM-15R Install Instructions: If you are using a PC running Windows ® 7, VISTA, XP, 2000, ME, 98, NT4.0, follow the instructions below: 1. Power on the PC. 2. Be sure the USB cable is connected from the PC to the LCD display. 3.
