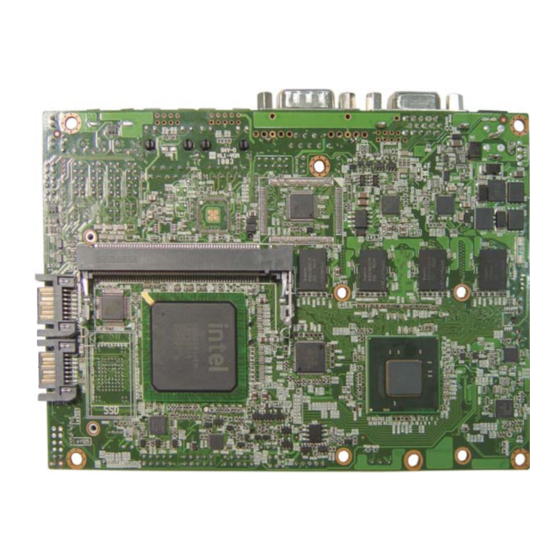

3I510CW / 3I510AW / 3I525CW / 3I525AW
667/800 MHz FSB / VGA / LAN / Audio /
Mini PCI / PCIe mini card
All-In-One
Intel Atom D510 / D525, 667 / 800 MHz FSB
CF socket, Mini PCI, PCIe mini card
Multi-COM Board, Audio, LAN, SATA, USB
NO. 3I510CW / 3I510AW / 3I525CW / 3I525AW
Release date: July . 15 . 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3I510CW and is the answer not in the manual?

Questions and answers

Summary of Contents for Lex 3I510CW

  • Page 1 Mini PCI / PCIe mini card All-In-One Intel Atom D510 / D525, 667 / 800 MHz FSB CF socket, Mini PCI, PCIe mini card Multi-COM Board, Audio, LAN, SATA, USB NO. 3I510CW / 3I510AW / 3I525CW / 3I525AW Release date: July . 15 . 2010...
  • Page 2 Copyright This manual is copyrighted and all rights are reserved. It does not allow any non authorization in copied, photocopied, translated or reproduced to any electronic or machine readable form in whole or in part without prior written consent from the manufacturer.
  • Page 3 Warning ! 1. Battery Battery on board is consumables. We doesn’t guarantee the life time of it. 2. Fanless solution with HDD Please be aware of specification & limitation for HDD when fanless solution is implemented. 3. We will not give further notification if there is any change about the product information and the manual.
  • Page 4 Hardware Notice Guide 1. Before installing the power supply with this motherboard, please attach the 12V/DC ( 2 pin connector )of the adapter to motherboard first. After that, plug the adapter power to AC outlet. Always normally shut down the computer before you move the system unit or remove the power supply from the motherboard.
  • Page 5 Photo 1 Insert Unplug...

  • Page 6: General Lnformation

    With the sizable memory bandwidth of on board 1GB DDR2/DDR3 module and the flexibility of expanding the memory to 4GB with DDR2/DDR3 SODIMM (maximum of total 4GB memory), 3I510CW/3I525CW will ensure the high performance levels required for today's most popular POS/Automation control applications including Embedded Car PC, POS, ATM, Kiosk and Panel PC applications.

  • Page 7: Major Feature

    1. Intel Atom D510/D525 CPU (FSB 667/800 MHz) 2. Intel Atom D510/D525 and ICH8M and Integrated Graphic Chip (DVMT 4.0) 3. 3I510CW / 3I525CW – 1GB of on board DDR2 / DDR3 memory and 1 x DDR2/DDR3 SODIMM socket (up to 4GB) 3I510AW / 3I525AW –...

  • Page 8: Specification

    1. CPU: Intel Atom D510/D525, 1.66 / 1.8GHz CPU ( FSB 667 / 800 Mhz ) 2. ChipSet: Intel Atom D510/D525 and ICH8M 3. Memory: 3I510CW / 3I525CW - 1GB of on board DDR2 / DDR3 memory and 1 x DDR2/DDR3 SODIMM socket (up to 4GB) 3I510AW / 3I525AW - 1 x DDR2/DDR3 SODIMM socket (up to 4GB) 4.

  • Page 9: Installing The So-Dimm

    1-3 Installing the SO-DIMM 1. Align the SO-DIMM with the connector at a 45 degree angle. 2. Press the SO-DIMM into the connector until you hear a click.
  • Page 10 Notices: 1.The connectors are designed to ensure the correct insertion. If you feel resistance, check the connectors & golden finger direction, and realign the card. 2. Make sure the retaining clips (on two sides of the slot) lock onto the notches of the card firmly.
  • Page 11 1-3-1.1 Removing the SO-DIMM 1. Release the SO-DIMM by pulling outward the two retaining clips and the SO-DIMM pops up slightly. 2. Lift the SO-DIMM out of its connector carefully.

  • Page 12: Installing The Mini Pci Card

    1-4 Installing the Mini PCI card 1.Align the Mini PCI card with the connector at 2. Press the Mini PCI into the connector until you hear a 45 degree angle. a click. Notices: 2. Make sure the retaining clips (on two sides of the slot) 1.The connectors are designed to ensure the lock onto the notches of the card firmly correct insertion.

  • Page 13: Directions For Installing The Mini Card

    1-5 Directions for installing the Mini Card 2. Plug in the Mini Card in a 45 angle 1. Unscrew the screw on the board 3. Gently push down the Mini Card and screw the screw back.

  • Page 14: Packing List

    1-6 Packing List 3I510CW / 3I510AW / 3I525CW / 3I525AW 6 SATA Data Cable 1 Mainboard 7 User’s Manual 2 Utility CD Disk 8 DC 12V Power Adapter (2P) 3 PS/2 Cable 9 USB Cable 4 DC Cable 10 COM Cable 5 SATA Power Cable 11 Audio Cable (Line out &...

  • Page 15: Unpacking Precaution

    Please follow the jumper setting procedure. 2-1 Unpacking Precaution The 3I510AW / 3I510CW / 3I525AW / 3I525CW board has been well packed with an anti-static bag to protect its sensitive components and circuitry from damage due to static electric discharge.

  • Page 16: Unpacking Checkup

    With reference to section 1-6, please check the delivery package again with following steps: 1. Unpack the 3I510AW / 3I510CW / 3I525AW / 3I525CW board and keep all packing material, manual and driver disc etc, do not dispose ! 2.
  • Page 17 Dimension 145 x102 mm (3.5 inch) 56.51 35.42 20.45 2.99 2.99 10.48 32.52 65.91 91.29 107.82 119.97 130.47 137.18...
  • Page 18 Layout - 3I510AW / 3I510CW / 3I525AW / 3I525CW CAR1 CAL1 CFP1 MPCE1 SWP1 JVU5 CPO1 JVC4 LED1 JSC3 CL21 CIO2 CC11 CIO1 MPCE2 CKM1 JSD1 JVL1 JVP1 JVC1 CPP1 LVDS1 JSB1 FAN1 CG11 SODIM1 CPI1 CPI11 COS1 CPI12 COH1...
  • Page 19 Diagram- 3I510AW / 3I525AW CAL1 MPCE1 CAR1 SWP1 JVU5 CPO1 JVC4 LED1 JSC3 CIO2 CIO1 MPCE2 CKM1 JVC1 JSB1 FAN1 CG11 CPI1 COS1 CPI12 COH1 SODIM1...
  • Page 20 2-5-1 Diagram- 3I510CW / 3I525CW CAL1 MPCE1 CFP1 CAR1 SWP1 JVU5 CPO1 JVC4 LED1 JSC3 CIO2 CIO1 MPCE2 CKM1 JSD1 JVL1 JVP1 JVC1 CPP1 LVDS1 JSB1 FAN1 CG11 CPI1 COS1 CPI12 COH1 SODIM1...

  • Page 21: Back Panel

    2-5-2 Bottom Side Diagram- 3I510AW / 3I510CW MPCI1 SATA1 SATA2 Back Panel- 3I510AW / 3I510CW LAN2 LAN1 DC 12V IN...

  • Page 22: Install Memory

    This motherboard provides one 200-pin Small Outline Dual In-line Memory Module (SODIMM) socket for memory expansion available maximum to of 4GB DDR2 / DDR3 SDRAM. DDR2 clock supports: DDR2 533, DDR2 667 (3I510AW/3I510CW) DDR3 clock supports: DDR3 800MT/S (3I525AW/3I525CW) Valid Memory Configurations...

  • Page 23: List Of Jumpers

    NOTE! When you install SODIMM module fully into the SODIMM socket, the eject tab should be locked into the SODIMM module very firmly and fit into its indention on both sides. WARNING! Once you hear " Beep Beep Beep" sounds after turning on the power , please check if the DRAM is installed properly or not.

  • Page 24: Jumper Setting Description

    2-8 Jumper Setting Description A jumper is ON as a closed circuit with a plastic cap covering two pins. A jumper is OFF as an open circuit without the plastic cap. Some jumpers have three pins, labeled 1, 2, and 3. You could connect either pin 1 and 2 or 2 and 3. The below figure 2.2 shows the examples of different jumper settings in this manual.
  • Page 25 JSB1: CMOS DATA SET Note: Do not clear CMOS unless 1. Troubleshooting 2. Forget password JSB1 Description 3. You fail over-clocking system *1-2 *Normal Set CMOS Data clear JSB1 Normal Clear Setting 2-10 JSC3: COM3 RS422/RS485 select JSC3 Description *1-2 *RS422 RS485 JSC3...

  • Page 26: Com Port Pin9 Select Ri Signal Or Voltage Source

    2-11 JSD1: DPC Duty select JSD1 Description Low 0% (Low level ) *2-3 Hi 100% (3.3V level) Note: for Panel backlight dimming default active set. JSD1 Low level *3.3V level 2-12 COM port pin9 select RI signal or Voltage source JVC1: COM1 PIN9 select JVC4: COM4 PIN9 select JVC1/JVC4...

  • Page 27: Jvl1: Lcd Panel Power Select

    2-13 JVL1: LCD panel power select JVL1 Description *2-3 +3.3V Note: Please be cautious about voltage setting. JVL1 *+3.3V 2-14 JVP1: LVDS panel Inverter power select JVP1 Description *1-2 +12V Note: Please be cautious about voltage setting. JVP1 *+12V...
  • Page 28 2-15 JVU5 : USB Port 5 Voltage select JVU5 Description *1-2 +3.3V Note: Please be cautious about voltage setting. JVU5 1 2 3 1 2 3 *+5V +3.3V...

  • Page 29: List Of Connectors

    Chapter-3 Connection This chapter provides all necessary information of the peripheral's connections, switches and indicators. Always power off the board before you install the peripherals. 3-1 List of Connectors CA1: Line-out phone jack (Share to CC1) CA2: Mic-in phone jack (Share to CC1) CA3: Line-out / Line-in / Mic-in 2x5 pin (2.0mm) Wafer CAR1,CAL1: Two Channel Speak out ports 2pin (2.0mm) Wafer CC1: COM1 DB9 Connector...
  • Page 30 List of Connectors CPO1: +12V/+5V power output 4 pin (2.0mm) Wafer LVDS1: LVDS 18 Bits 2x15 pin (1.25mm) connector CPP1: Panel inverter power connector 1x5 pin (2.0mm) Wafe CT1: Touch screen device 2x5 pin (2.0mm) Wafer CU1: USB1 port Type A connector CU2: USB2 port Type A connector CU3: USB 3 port 4pin(1.25mm) Wafer CU4: USB 4 port 4pin(1.25mm) Wafer...

  • Page 31: Fan Connector

    3-2 FAN Connector FAN1: CPU FAN connector (3pin 2.5mm wafer) PIN NO. Description +12V FAN speed detect Note: DC in +12V by switch to FAN power +12V, FAN1 so DC in need stable +12V input pin1 3-3 VGA port Connector CG1: VGA Connector (DB15 pin ) PIN NO.
  • Page 32 3-4 CF card Reader 3I510AW / 3I510CW / 3I525AW / 3I525CW configures CompactFlash Storage Card in IDE mode. It will use IDE channel when CompactFlash card is plugged in. This socket supports CF Card Type I/II socket spec. CF Socket 50pin--CF1 CF1: CF Socket For True IDE Mode (50pin CF Socket) PIN NO.

  • Page 33: Ps/2 Keyboard/Mouse Connector

    3-5 PS2 Keyboard / Mouse Connector CKM1: KB/MS port 1x6pin (1.25mm) Wafer PIN NO. Description pin1 Keyboard Data CKM1 Keyboard Clock Mouse DATA Mouse Clock 3-6 USB ports CU1 / CU2: USB1 / USB2 ports (USB Type A connector) PIN NO. Description DATA- DATA+...
  • Page 34 3-7 LAN port CL1 / CL2: LAN port Giga /100Mb (RJ45 Jack) PIN NO Description PIN NO. Description TR0-/TX+ TR2-/NC TR0+/TX- TR2+/RX- TR1-/RX+ TR3-/NC TR1+/NC TR3+/NC CL21: LAN port Giga /100Mb (2x4pin 2.0mm wafer) PIN NO. DESCRIPTION PIN NO. DESCRIPTION CL21 TR0+ / TX+ TR0- / TX-...

  • Page 35: Com Port Connector

    3-8 COM Port Connector CC1: RS232 Mode COM1 conector ( D-SUB 9pin) PIN NO. Description PIN NO. Description RI / Voltage CC1: RS485 Mode COM1 conector ( D-SUB 9pin) PIN NO. Description PIN NO. Description RS485 TX+ RS485 TX Note : 1. Default BOM set to RS232 Mode 2.

  • Page 36: Front Panel Connector

    Five RS485 ports (2x5pin 2.0mm Wafer) CC11: COM 1 CC2: COM2 CC4: COM4 CC5: COM5 CC6 : COM6 PIN NO. Description PIN NO. Description RS485 TX- RS485 TX+ pin1 Note : 1. Default BOM set to RS232 Mode 2. Option RS485 function for OEM BOM request 3.
  • Page 37 3-10 Audio Port Connector (Option) The 3I510AW/ 3I510CW / 3I525AW / 3I525CW has an on-board AC'97 3D sound interface. There are the connectors of LINE OUT, MIC-IN and CD-IN connectors. The MIC-IN Jack and CD-IN header are for audio sound input. The LINE-OUT connector is a 4-pin Jack for audio sound output.

  • Page 38: Digital Input / Output / Watch Dog Time

    Audio Amplifier class D Two channel 6W/8Ω CAR1: Audio Amplifier Line Out Right (2pin 2.0mm wafer) PIN NO. Description CAR1 CAL1 LINE-OUT_R+ LINE-OUT_R- pin1 CAL1: Audio Amplifier Line Out Left(2pin 2.0mm wafer) PIN NO. Description LINE-OUT_L+ LINE-OUT_L- Note : Audio Amplifier is option function 3-11 Digital Input / Output / Watch Dog Time CIO1 DIO 0—3 (2x5pin 2.0mm wafer) PIN NO.
  • Page 39 3-11-1 IO Device:F75111 under DOS The Sample code source you can download from Source file: F75111_Dos_Src.rar https://tprd.info/lexwiki/index.php/IO_Device:F75111_under_DOS Binary file: F75111_Dos_Bin.rar USERNAME & PASSWORD: temp How to use this Demo Application 1.Boot Ms-Dos Operating System 2.execute "75WDT.EXE" binary file 3.Input 1 to Enable WDT timer or input 0 to Disable it. 4.input numbers of second for chip countdown and Reset Computer Introduction Enable Watch Dog Timer...
  • Page 40 3-11-2 IO Device: F75111 under Windows The Sample code source you can download from Source file: F75111_DIOSrc.rar https://tprd.info/lexwiki/index.php/IO_Device:F75111 Binary file: F75111_DemoBin.rar USERNAME & PASSWORD: temp How to use this Demo Application 1. Press the "Start" button to test DIO function 2.

  • Page 41: Pulse Mode

    p.s. f75111 send "F75111_SetWDTEnable(BYTE byteTimer)" including a parameter "timer", if there's no disable signal (F75111_SetWDTDisable()) to stop it before timer countdown to 0, System will reboot. if there's disable signal received, resent Enable WDT signal, for a loop to prevent from reboot Introduction Initial Internal F75111 port address (0x9c) define GPIO1X, GPIO2X, GPIO3X to input or output...
  • Page 42 Set output value void F75111::InterDigitalOutput(BYTE byteValue) BYTE byteData = 0; byteData = (byteData & 0x01 )? byteValue + 0x01 : byteValue; byteData = (byteData & 0x02 )? byteValue + 0x02 : byteValue; byteData = (byteData & 0x04 )? byteValue + 0x04 : byteValue; byteData = (byteData &...
  • Page 43 Disable WatchDog void F75111_SetWDTDisable () WriteByte(F75111_INTERNAL_ADDR,WDT_CONFIGURATION,0x00); // Disable WatchDog 3-11-3 IO Device: F75111 VB6 under Windows The Sample code source you can download from Source file: 75111_VB_v10.rar https://tprd.info/lexwiki/index.php/IO_Device:F75111_VB6 Binary file: 75111_VB_Src.rar USERNAME & PASSWORD: temp How to use this Demo Application A Function - Enable WDT timer ,Key-in the value by seconds then system will reboot after value which you key-in in left text box !! B Function - Disable WDT timer ,Push down the button then WDT timer value will be clear !!
  • Page 44 SDK Function Introduction Function EnableWDT Function EnableWDT(timer As Integer) Call WriteI2CByte(&H3, &H3) Call WriteI2CByte(&H37, timer) Call WriteI2CByte(&H36, &H73) End Function Function DisableWDT Function DisableWDT() Call WriteI2CByte(&H36, &H0) End Function Function SetDOValue Function SetDOValue(dovalue As Integer) Call WriteI2CByte(&H23, &H0) Call WriteI2CByte(&H20, &HFF) Call WriteI2CByte(&H2B, &HFF) Call WriteI2CByte(&H21, dovalue) End Function...
  • Page 45 3-11-4 IO Device: F75111 under linux The Sample code source you can download from Source file: F75111v2.0L.tar.gz https://tprd.info/lexwiki/index.php/IO_Device:F75111_under_linux Binary file: F75111v2.0LBin.tar.gz USERNAME & PASSWORD: temp How to compile source code 1. Compile source code with Code::Blocks download and install the Code::Block with command "apt-get install codeblocks" Open an exist project(F75111.cbp) in Code::Blocks, click the compile button ( add an option 'pkg-config --libs gtk+-2.0 gthread-2.0' in "Project->Build Option->...
  • Page 46 1. Press the "Start" button to test DIO function 2. Press the "Enable" button to test WDT function 3. Press the "Disable" button to disable WDT 4. Check the "Enable Loop" box and press "Enable" to do WDT loop test 5.
  • Page 47 Set output value void F75111::InterDigitalOutput(BYTE byteValue) BYTE byteData = 0; byteData = (byteData & 0x01 )? byteValue + 0x01 : byteValue; byteData = (byteData & 0x02 )? byteValue + 0x02 : byteValue; byteData = (byteData & 0x04 )? byteValue + 0x04 : byteValue; byteData = (byteData &...
  • Page 48 Enable WatchDog void F75111_SetWDTEnable (BYTE byteTimer) WriteByte(F75111_INTERNAL_ADDR,WDT_TIMER_RANGE ,byteTimer); // set WatchDog range and timer WriteByte(F75111_INTERNAL_ADDR,WDT_CONFIGURATION,WDT_TIMEOUT_FLAG | WDT_ENABLE | WDT_PULSE | WDT_PSWIDTH_100MS); // Enable WatchDog, Setting WatchDog configure Disable WatchDog void F75111_SetWDTDisable () WriteByte(F75111_INTERNAL_ADDR,WDT_CONFIGURATION,0x00); // Disable WatchDog...
  • Page 49 3-12 LVDS Interface Connector (3I510CW / 3I525CW only) LVDS1: 18bits LVDS interface from D510 chipset (2x15 pin 1.25mm wafer) PIN NO. Description PIN NO. Description LVDS1 PWM dimming +LCD(5V or 3.3V) +LCD(5V or 3.3V) Audio SPDIFO Channel-0-DATA2+ Channel-0-CLK+ Channel-0-DATA2- Channel-0-CLK-...

  • Page 50: Touch Screen Device

    I2C Clock I2C DATA pin1 3-14 Touch screen device 3I510CW / 3I525CW only CT1: Touch screen (2x5 pin 2.0mm wafer) Default use USB interface, can change COM interface By oem BOM . For 8- wire type pin define PIN NO.
  • Page 51 3-15 DC 12V-IN power connector CPI1: DC 12V-in power Jack PIN NO. Description +12V DC-IN Note: Very important check Dc-in Voltage CPI11: DC 12V-in Internal connector (4pin ATX power 4.20mm) CPI1 PIN NO. Description +12V DC-IN Note: Very important check Dc-in Voltage CPI11 share with CPI1 position .
  • Page 52 3-17 LED Front side LED LED1 LED1 : Power LED (2pin 2.0mm Blue LED) 3-18 Mini PCI Express card MPCE1 / MPCE2 : Support USB and PCIe by one Interface (Mini card socket 52pin) PIN NO. DESCRIPTION PIN NO. DESCRIPTION NC(Wake up) +3.3V +1.5V...
  • Page 53 3-19 Mini PCI card MPCI1: Support PCI 2.2/2.3 spec for PCI Interface (Mini PCI socket 124pin) MPCI1 3-20 SATA Interface SATA1,SATA2: Two SATA connector (7pin wafer) PIN NO. DESCRIPTION DATA TX+ DATA TX- DATA RX- DATA RX+ SATA1 SATA2...

  • Page 54: Introduction Of Bios

    Chapter 4 Introduction of BIOS The BIOS is a program located in the Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gains control. The BIOS first operates an auto-diagnostic test called POST (Power on Self Test) for all the necessary hardware, it detects the entire hardware devices and configures the parameters of the hardware synchronization.

  • Page 55: Getting Help

    4-2 Getting Help Main Menu The on-line description of the highlighted setup function is displayed at the bottom of the screen. Status Page Setup Menu/ Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item.
  • Page 56 Standard CMOS Features This Menu is for basic system configurations. Advanced BIOS Features This menu is to set the Advanced Features available in your system. Advanced Chipset Features This menu is to change the values in the chipset registers and optimize your system performance.

  • Page 57: Standard Cmos Features

    4-4 Standard CMOS Features The items in Standard CMOS Setup Menu are divided into several categories. Each category includes none, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want to modify with this item.

  • Page 58: Advanced Bios Features

    4-5 Advanced BIOS Features Phoenix AwardBIOS CMOS Setup Utility Advanced BIOS Features Press Enter Hard Disk Boot Priority Press Enter USB Boot Priority Item Help Disabled Virus Warning Enabled Hyper-Threading Technology Enabled Quick Power On Self Test Menu Level > USB-FDD First Boot Device Second Boot Device...
  • Page 59 Hyper-Threading Technology This item allows you to enable or disable Intel Hyper Threading technology. Quick Power On Self Test This category speeds up Power On Self Test (POST) after you power on the computer. If this is set to Enabled, BIOS will shorten or skip some check items during POST.

  • Page 60: Hard Disk Boot Priority

    OS Select For DRAM > 64MB Allows OS2 to be used with >64MB or DRAM. Settings are Non-OS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running OS/2 4-5-1 Hard Disk Boot Priority Phoenix – AwardBIOS CMOS Setup Utility Hard Disk Boot Priority 1.

  • Page 61: Advanced Chipset Features

    4-6 Advanced Chipset Features The Advanced Chipset Features Setup option is used to change the values of the chipset registers. These registers control most of the system options in the computer. Phoenix-AwardBIOS CMOS Setup Utility Advanced Chipset Features Item Help System BIOS Cacheable [ Enabled ] PCI Express Root Port Func...

  • Page 62: Panel Number

    Total GFX Memory This item allows you to select the DVMT or FIXED graphics memory size. The memory size choice: 128MB (default), 256MB, 384MB Boot Display This item allows you to select the display device. Display Device: CRT, LVDS, CRT+LVDS (default) Panel Number This item allows you to select the panel resolution 640 X 480 18bit...

  • Page 63: Integrated Peripherals

    4-7 Integrated Peripherals Phoenix-AwardBIOS CMOS Setup Utility Integrated Peripherals OnChip IDE Device [ Press Enter ] Item Help Super IO Device [ Press Enter ] Onboard Serial Port 3 [ 3E8 ] Serial Port 3 Use IRQ [ IRQ10 ] Menu Level >...
  • Page 64 4-7-1 OnChip IDE Device Phoenix-AwardBIOS CMOS Setup Utility OnChip IDE Device [ Enabled ] IDE HDD Block Mode Item Help Enabled ] IDE DMA transfer access PATA DMA Mode [ Auto ] ＊＊＊ ＊＊＊ On-Chip Serial ATA Setting Menu Level >> SATA Mode [ IDE ] LEGACY Mode Support...

  • Page 65: Super Io Device

    OnChip IDE Primary/Secondary The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. Settings are: Enabled (default), Disabled. Primary/Secondary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports.

  • Page 66: Usb Device Setting

    4-7-3 USB Device Setting Phoenix-AwardBIOS CMOS Setup Utility USB Device Setting USB 1.0 Controller [ Enabled ] Item Help USB 2.0 Controller [ Enabled ] USB Operation Mode [ High Speed ] USB Keyboard Function [ Enabled ] Menu Level >> USB Mouse Function [ Enabled ] USB Storage Function...

  • Page 67: Power Management Setup

    4-8 Power Management Setup The Power Management Setup allows you to configure your system to most effectively save energy saving while operating in a manner consistent with your own style of computer use. Phoenix-AwardBIOS CMOS Setup Utility Power Management Setup PCI Express PM Function [ Press Enter ] Item Help...

  • Page 68: Pci Express Pm Function

    Video Off Method This determines the manner in which the monitor is blanked. DPMS (default) Initial display power management signaling. Blank Screen This option only writes blanks to the video buffer. V/H SYNC+Blank This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer.

  • Page 69: Pnp/Pci Configuration Setup

    4-10 PnP/PCI Configuration Setup This section describes how to configure the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at the speed the CPU itself keeps when CPU communicates with its own special components. This section covers some very technical items and we strongly recommended that only experienced users should make any change to the default settings.

  • Page 70: Pc Health Status

    4-10-1 IRQ Resources When resources are controlled manually, each system interrupt is assigned a type, depending on the type of device using the interrupt. Phoenix-AwardBIOS CMOS Setup Utility IRQ Resources IRQ-3 assigned to [PCI Device] Item Help IRQ-4 assigned to [PCI Device] IRQ-5 assigned to...

  • Page 71: Load Fail-Safe Defaults

    4-12 Load Fail-Safe Defaults When you press <Enter> on this item, you get a confirmation dialog box with a message similar to: Load Optimized Defaults ( Y/N )? N Press <Y> to load the default values that are factory settings for optimal system operation performance.

  • Page 72: Driver Installation

    Chapter 5 DRIVER INSTALLATION There is a SYSTEM INSTALL CD disk in the package. This CD has all the drivers you need and some free application programs and utility programs. In addition, this CD also includes an auto-detect software which can tell you which hardware is installed and which driver is needed so that your system can function properly.
  • Page 73 Auto install driver Menu 1. INF install Intel PineView D510 chipset system driver 2. VGA install on-board VGA driver 3. SOUND install VIA HID Audio Codec Audio driver 5. DIRECTX install DirectX 9 driver 6. LAN to LAN install driver readme file Each selection is illustrated as below:...
  • Page 74 5-1 INF Install INTEL PineView D510 Chipset system driver 1. Click INF when System Install MENU 2. Click NEXT when Chipset Software appears. Install Utility appears. 3. This license agreement appear, 4. This is Readme information appear, click Yes, the Click NEXT. Click NEXT.
  • Page 75 5.Click NEXT. 6.Click Finish to restart computer. NOTE: SYSTEM INSTALL will auto detect file path X:\driver\Intel\I945\INF\infinst911autol.exe This driver supports WINDOWS 2000/XP32/XP64/Win7 32/Win7 64...
  • Page 76 5-2 VGA Install Intel PineView D510 VGA Driver 1.Click VGA when System Install 2.Click NEXT when Intel ® Chipset MENU appears. Graphics Driver Software Setup appears. 3.Click NEXT when Intel ® Graphics 4.Click YES, This Announce CopyRight . Media Accelerator Driver Software appear.
  • Page 77 5.Click NEXT. 6.Click FINISH to Restart Computer. NOTE: The path of the file For WINDOWS XP 32 X:\driver\Intel\D510\VGA\winxp.exe For WINDOWS XP 64 X:\driver\Intel\D510\VGA\winxp64.exe For WINDOWS 7 32 X:\driver\Intel\D510\VGA\win7.exe For WINDOWS 7 64 X:\driver\Intel\D510\VGA\winvista64.exe...
  • Page 78 5-3 SOUND Install VIA HD Audio Codec Driver 1.Click SOUND when System Install 2.Click Next . MENU appears. 3.Click Next . 4.Click Next to begin installing driver. The program might be few minutes.
  • Page 79 6.Click FINISH to Restart Computer. 5.Click NEXT. NOTE: The path of the file For 2000/XP 32/XP 64 X:\driver\INTEL\I945\SOUND\VIAHDAudV7500a_Setup.exe For Win 7 32/Win7 64 X:\driver\INTEL\I945\SOUND\VIAHDAudV7500a_Setup.exe...

  • Page 80: How To Update Bios

    STEP 2. Copy utility program to your bootable disc. You may copy it from DRIVER CD X:\Dirver\bios\AWDFLASH.EXE or download it from our web site. STEP 3. Copy the latest BIOS for your LEX motherboard from our web site to your bootable disc.

  • Page 81: Appendix A: Power Consumption Test

    Appendix A: Power Consumption Test Condition Item Spec Intel Atom D510 1.66GHZ SDRAM DDR2 667 / 1GB Operating System Windows XPP/SP3 Test Program 3D Mark 2001SE HDD 3.5" SATA Standard HDD HDD 2.5" SATA Slim Type HDD Test Result for reference ! In Put Start up Operation...

  • Page 82: Appendix B: Resolution List

    Appendix B: Resolution list 640 x 480 x ( 256 / 16bit / 32bit ) 800 x 600 x ( 256 / 16bit / 32bit ) 1024 x 768 x ( 256 / 16bit / 32bit ) 1152 x 864 x ( 256 / 16bit / 32bit ) 1280 x 600 x ( 256 / 16bit / 32bit ) 1280 x 720 x ( 256 / 16bit / 32bit ) 1280 x 768 x ( 256 / 16bit / 32bit )
