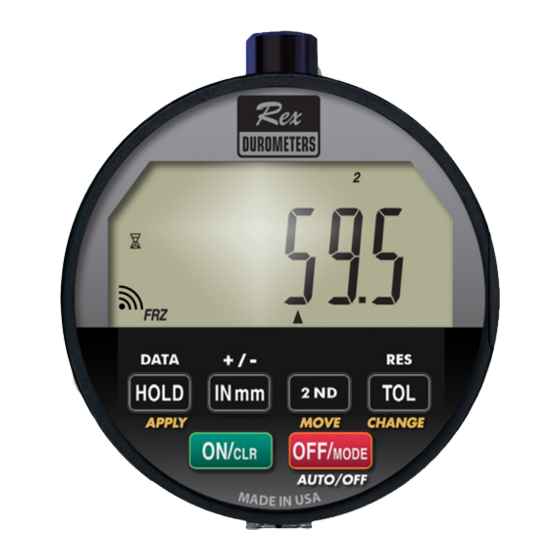

WIRELESS COMMUNICATION
Radio Menu
Allows for enabling of the radio interface as well as control over the measurement
update rate.
a.
To Enter Radio Menu
Press and Release 2
1.
2.
Press and Hold HOLD
3.
You will see radio displayed
b.
To Exit Radio Menu
Press and Release ON ZERO or OFF MODE
1.
Enable Radio / Set Update Rate (off, 0, 0.5, 1, 5)
The update rate is how often the measurement is transmitted over wireless in Hz.
Off – Will Disable the radio
0 – Will Disable automatic Transmission (Only Sent with DATA Button)
0.5 Hz – Update Every 2 Seconds
1 Hz – Update Every Second
5 Hz – Update 5 Time/Sec
Radio Menu
a.
Configure Radio (In Radio Menu)
1.
Press and Release change (TOL) to Cycle
2.
Press and Release apply (HOLD) to Enter
(Or Wait 5 Seconds)
b.
Disable Radio
1.
Repeat Steps Above and Select Off
Wireless Icon
The wireless icon will indicate the state of the radio.
Off – Radio is Disabled
Blinking – Indicates Radio is Enabled and Not Connected to a Device
Solid – Radio is Enabled and Connected
Icons
Lock Functions and Features
Cable Connection
Battery Warning
Wireless Data
Rex Durometer – Made in the U.S. A. Since 1942
FORM NO. 031721DD4W
