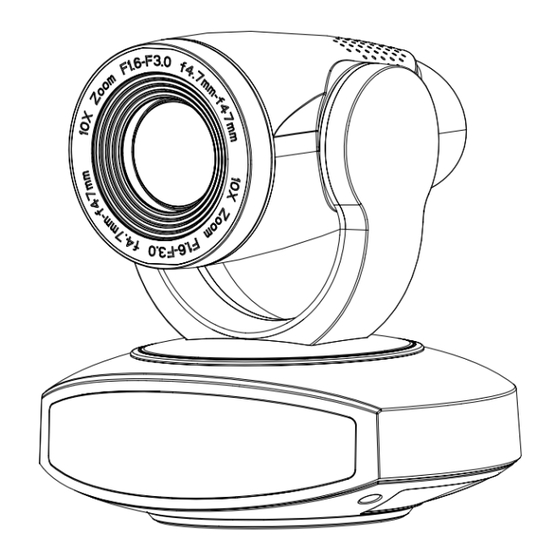

HD Video Conferencing Camera (SDI) w/ PoE
HD Video Conferencing Camera (HDMI) w/ PoE
User Manual
V1.1
Please read this user manual
thoroughly before using.
1
Model: AV-1280
Model: AV-1281
www.avipas.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-1280 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avipas AV-1280

Summary of Contents for Avipas AV-1280

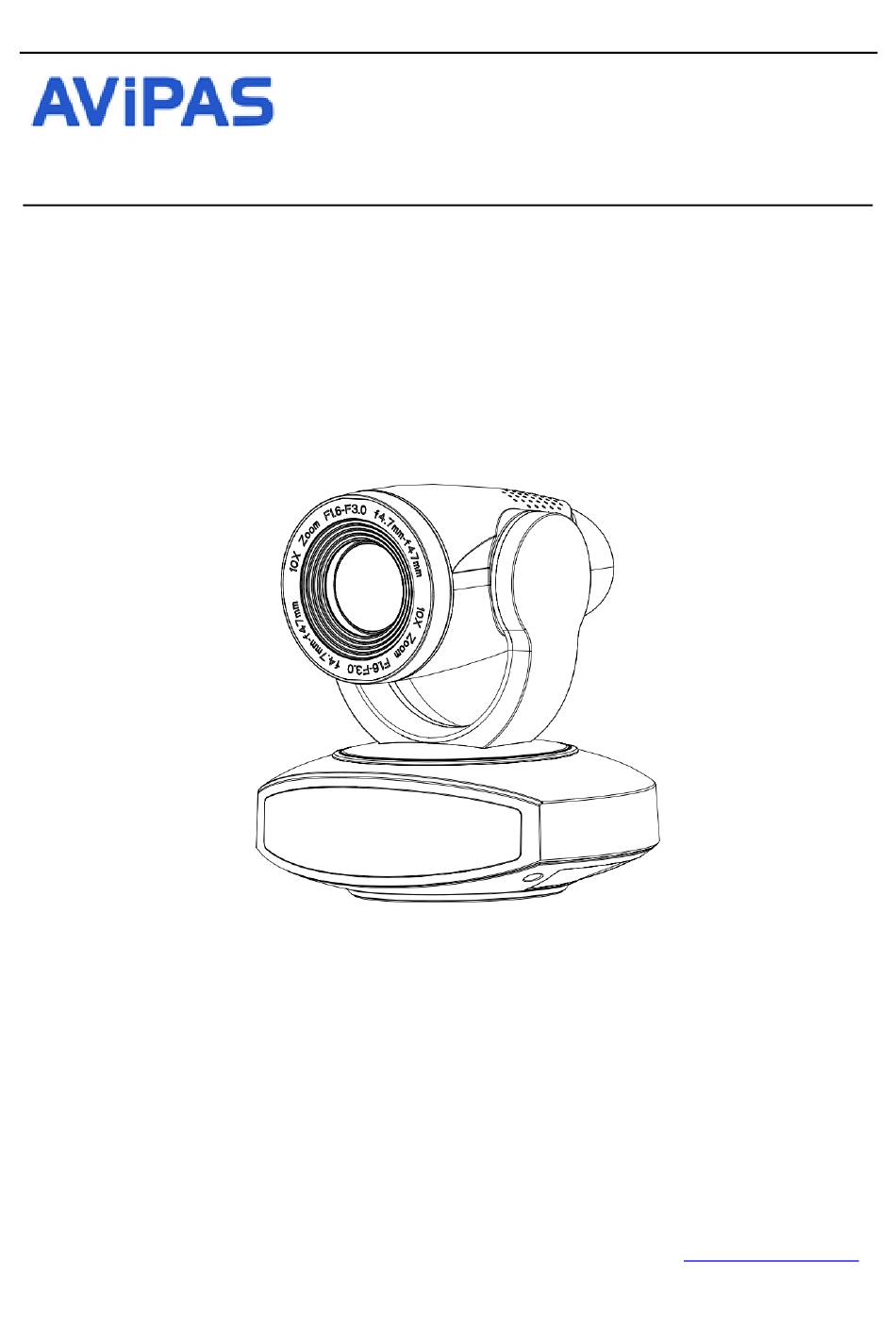

  • Page 1 Model: AV-1280 HD Video Conferencing Camera (SDI) w/ PoE Model: AV-1281 HD Video Conferencing Camera (HDMI) w/ PoE User Manual V1.1 Please read this user manual thoroughly before using. www.avipas.com...
  • Page 2 Preface Thanks for using this HD Video Conferencing Camera. This manual introduces the functions, installation process and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product should only be used under the specified conditions in order to avoid any damage to the camera: ...

  • Page 3: Table Of Contents

    Contents Attentions ......................4 Supplied Accessories ..................4 Quick Start ......................5 Features ......................8 Product Specifications ..................9 Main Units ....................... 11 Dimensions ...................... 12 IR Remote Control Menu ................. 13 RS-232 Interface ....................14 Serial Communication Control ................ 16 Menu Settings ....................

  • Page 4: Attentions

    Attentions  Electric Safety Installation and operation must accord with electric safety standard.  Use caution to transport Avoid stress, vibration or soakage in transport, storage and installation.  Polarity of power supply The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power supply plug is shown in the drawing below.

  • Page 5: Quick Start

    Quick Start 1. Camera Interface Illustration (Notice：Each model comes with the corresponding interface. Users should read the manual according to the particular model) Fig 1.1 Interface of AV-1280 Interface of SDI Model： 1. Camera Lens 4. Locating Hole 7. SDI Interface 2.
  • Page 6 Bracket mount Note: Bracket can only be wall mounted or ceiling mounted (upside down) on concrete wall, It cannot be installed on plasterboard. Wall mount...
  • Page 7 Ceiling mount...

  • Page 8: Features

    Features AV-1280 series camera is the upgraded version of AV-1080 with RS232 out and PoE. It features advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

  • Page 9: Product Specifications

    Product Specifications Name AV-1280 Series HD Video Conference Camera Camera Sensor 1/2.8'', CMOS, 16:9, Effective Pixel: 2.07MP Scanning Mode Progressive Lens 10x, f＝4.7～47mm, F1.6 ~ F3.0 Digital Zoom Minimal Illumination 0.5 Lux @ (F1.8, AGC ON) Focus Auto/Manual/ One Push...
  • Page 10 Communication Interface RS232I/O: 8pin Min DIN; Max Distance: 30m Protocol Pelco-D/ Pelco-P/ VISCA Baud Rate 115200/9600/4800/2400 AV-1280: SDI, LAN, RS232 I/O, A-IN Video Output Interface AV-1281: HDMI, LAN, RS232 I/O, A-IN Audio Input 1-ch 3.5mm audio interface, Line In Network interface...

  • Page 11: Main Units

    Main Units External interface of SDI models: RS232 (I/O), LAN, SDI Output, Audio Input, DC12V Power Interface. External interface of HDMI model: RS232(I/O), LAN, HDMI Output, Audio Input, DC12V Power Interface...

  • Page 12: Dimensions

    Dimensions...

  • Page 13: Ir Remote Control Menu

    IR Remote Control Menu 1. Standby Button Press this button and hold it for 3 secs to enter standby mode. The camera will do self-testing and return back to 【HOME】position. (Note: If Preset 0 is set, and with no operation for 12s, the camera will automatically turn to Preset position 0.

  • Page 14: Rs-232 Interface

    10. Menu Settings 【MENU】: to open/ close the OSD menu; to enter/ exit the OSD menu, or to return to the previous submenu. 11. Key Combination Functions 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【9】: Flip switch 4) 【*】+【#】+【AUTO】: Enter the auto mode 5) 【*】+【#】+【3】: Set language to Chinese 6) 【*】+【#】+【4】: Set language to English...
  • Page 15 RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data System Ground Receive Data System Ground IR OUT IR Commander Signal No Connection RS232 (DB9) Port Definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready...

  • Page 16: Serial Communication Control

    VISCA networking Serial Communication Control Under normal working condition, the camera could be controlled through RS232 interface. RS232C serial parameters are as below: • Baud rate: 2400/4800/9600/115200bps; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. • Pan-Tilt function rotates the camera to its maximum position of top left upon startup, then it returns to the center, and the process of initialization is finished.

  • Page 17: Menu Settings

    Menu Settings 2. SETUP- System Settings 1. Maun Menu Move the cursor to [SETUP] in the main Press [MENU] to display the main menu on menu and press [HOME], [SETUP] menu is the screen. Use the arrow buttons to move the shown below.
  • Page 18 EV: On/ Off (only available in auto mode) CAMERA Compensation Level: -7~7 (only available in ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ auto mode & when EV is ON) (Exposure) BLC: On/ Off (only available in auto mode) (Color) Flicker: anti-flicker: OFF/ 50Hz/ 60Hz (only (Image) available in Auto/ Iris priority/ Brightness priority (Focus) modes)
  • Page 19 IMAGE: Enter image settings Move the cursor to [IMAGE] and press [HOME], COLOR [IMAGE] menu is shown below. ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto IMAGE RG Tuning ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ BG Tuning Brightness Saturation 100% Contrast Sharpness AWB Sensitivity High Flip-H Flip-V B&W-Mode Color Gamma Default DZoom...
  • Page 20 [FOCUS] menu is shown below. 4. P/T/Z FOCUS Move the cursor to [P/T/Z] in the main menu ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ and press [HOME], [P/T/Z] menu is shown below. Focus Mode Auto AF-Zone Center P/T/Z AF-Sensitivity ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Speed by Zoom Zoom speed Image Freezing Acc Curve Slow Focus Mode: Auto/ manual/ one-push...
  • Page 21 VERSION VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 2.0.0.15 2015-12-18 1080P60 1080P50 Camera Version 1080I60 1080I50 2.0.0.13 2015-12-18 1080P30 1080P25 AF Version 2.0.0.6 2015-12-11 720P60 720P50 Lens 5X(10X) 720P30 720P25 1080P59.94 1080I59.94 1080P29.97 720P59.94 720P29.97 MCU Version: Display MCU version Camera Version: Display camera version AF Version: Display the focus version Lens: Display the lens zoom Note: After modifying video format, reboot to...
  • Page 22 2/ 3/ 4, the corresponding camera address will be restored to 1 when all parameters or system parameters are restored.

  • Page 23: Network Connection

    Please make sure that your computer is in the same network segment as the camera IP address. The device will not be accessible if the segment is not consistent. For example, AV-1280/1281’s default IP address is 192.168.5.163, then segment 5 must be added to your computer. Specific steps are as below: •...
  • Page 24 Note: The IP address to be added cannot be same as that of other computers or devices. The existence of this IP address needs to be verified before adding. Confirm Access Click “Start” and select “Operation”. Input “cmd” as shown in the picture below to verify whether the network segment has been successfully added.
  • Page 25 User can also verify network connection as steps above mentioned after the finish of camera self-check. If IP is default, open DOS command window and input 192.168.5.163, then press Enter key. It will show message as below: which means network connection is normal.
  • Page 26 Download/Install Plug in When using IE browser to access the AV-1280/1281 for the first time, a message will show at the login page: “Playback plug-in is not installed, please download and install!”. Click on this message, download and install MRWebXinstall.exe according to instruction prompts.
  • Page 27 Playback Playback video files • Before Playback, please make sure that you have recorded, snapshot and saved the file. Click “Playback” tag to enter the page, then select “Video File” and click “Search”. Choose the video file you want to play. Playback picture (snapshot) files •...
  • Page 28 Recording packing time (minute): To set recording video packing time (default is 10, range from 1~120 minutes). Recording/Snapshot file type: To set the recording file type (default MP4, other option: TS). Recording/Snapshot file storage route: To set local recording video/snapshot file storage route (default D:\MyIPCam\).
  • Page 29 Bit Rate (Kb/S): To set the video bit rate (Main stream default 4096, ranges from: 64~12288; sub stream default 512, ranges from 64-10240). Frame Rate (F/S): To set the video frame rate (Default: 25, other options: main stream ranges from 5~60; sub stream ranges from 5~30). I Frame Interval: To set the key frame interval (Default: 75, other options: main stream ranges from 1~300;...
  • Page 30 Multicast Port: To set the multicast port (Main stream port default: 4000; sub stream port default 4002). Note: Access Method: rtp://224.1.2.3:4000; udp://@224.1.2.3:4000; 4) Video Parameters a. Focus: Focus Mode: To set the focus mode (Default: Auto, other options: Manual, OnePush). AF-Zone: To set the focus range (Default: Center, other options: Top, Bottom, All).
  • Page 31 d. Image: Brightness: To set the brightness (Default 7, ranges from 0~14). Contrast: To set the contrast (Default 7, ranges from 0~14). Sharpness: To set the sharpness (Default 7, ranges from 0~15). Gamma: To set the Gamma value (Default, 0.45, 0.50, 0.55, 0.63). DCI: To set the DCI value (Default: OFF, other options: 1~8).
  • Page 32 Master Stream OSD Font Size: To set the character size of main stream (Default: 48, ranges from 28-200). Slave Stream OSD Font Size: To set the character size of the sub stream (Default: 48, ranges from 28-200). Video Out Output Out Format: To set the video output format. 1080P60/ 1080P50/ 1080P30/ 1080P25/ 1080I60/ 1080I50/ 720P60/ 720P50/ 720P30/ 720P25/ 1080P59.94/ 1080I59.94/ 1080P29.97/ 720P59.94/ 720P29.97.
  • Page 33 3) DNS parameters Preferred DNS server: To set the preferred DNS server (Default 0.0.0.0). Alternate DNS server: To set the alternate DNS server. (Default 0.0.0.0). 4) GB28181 Enable: Check to enable GB28181. ClockSync: Check to set time synchronization. Video Type: To choose the stream (Default: main stream). Registration Valid Time(s): To set the sign-in effective time (in seconds): Default: 3600, ranges from 5-65535.
  • Page 34 Date Format: To set the date format (Default YYYY-MM-DD, other options: MM-DD-YYYY, DD-MM-YYYY). Date separator: To set the date separator (default '/', other options: '.', '-'). Zone: To set the time zone (Default East eight districts, other time zones available). Hour Type: To set the time types (Default 24 hours, other option: 12 hours).
  • Page 35 Click "Browse", and choose the upgrade file in the pop-up window. Click "Upgrade" button, and an upgrade dialog will show. The device will reboot automatically after update successfully. (Note: make sure to keep the power and network connected during the process. or the upgrade will fail.) Note: After the version upgrade is complete, users need to restore factory defaults, and there are 2 ways: a) through web login, and restore the factory default;...

  • Page 36: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Camera Maintenance  If camera will be idle for a long time, please turn off the power switch and disconnect AC power cord from the outlet.  Use soft cloth or tissue to clean the camera (lens cleaning not recommended). ...
  • Page 37  Unable to access IP Camera by IE browser. 1. Access network with PC, check if network works. In this way, the user can get rid of any cable failure or network failure. 2. Disconnect IP Camera from network. Connect IP Camera to PC, and re-set the IP address following the proper operations.

  • Page 38: Appendix

    Appendix VISCA protocol list Camera return command • Ack/Completion Message Command packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. * z = camera address + 8 Error Messages Command packet Note...
  • Page 39 Command Function Command packet Note Near (Variable) 8x 01 04 08 3p FF 8x 01 04 48 0p 0q 0r 0s Direct pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF Manual Focus 8x 01 04 38 03 FF 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM _Zoom Focus...
  • Page 40 Command Function Command packet Note 8x 01 04 0B 02 FF Down 8x 01 04 0B 03 FF 8x 01 04 4B 00 00 0p 0q Direct pq: Iris Position CAM_Gain Limit Gain Limit 8x 01 04 2C 0p FF p: Gain Positon Reset 8x 01 04 0D 00 FF...
  • Page 41 Command Function Command packet Note Reset 8x 01 04 3F 00 pq FF pq: Memory Number(=0 to 254) CAM_Memory 8x 01 04 3F 01 pq FF Corresponds to 0 to 9 on the Remote Commander Recall 8x 01 04 3F 02 pq FF 8x 01 04 61 02 FF Image Flip Horizontal CAM_LR_Reverse...
  • Page 42 Command Function Command packet Note 3:1080i50 B：1080i59.94 4:720P60 C：720P59.94 5:720P50 D：1080P29.97 6:1080P30 E：720P29.97 7:1080P25 8x 01 06 01 VV WW 03 01 FF 8x 01 06 01 VV WW 03 Down 02 FF 8x 01 06 01 VV WW 01 Left 03 FF 8x 01 06 01 VV WW 02...
  • Page 43 CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position y0 50 00 FF Auto y0 50 01 FF 3000K y0 50 02 FF 4000K CAM_WBModeInq 8x 09 04 35 FF y0 50 03 FF One Push Mode y0 50 04 FF 5000K...
  • Page 44 y0 07 7D 01 04 3F FF Camera _Memery y0 07 7D 01 06 01 FF Pan_titleDriver CAM_BrightnessInq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF pq: Brightness Position CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position y0 50 00 FF y0 50 01 FF...
  • Page 45 Upright 0xFF Address 0x00 0x0A Pan Speed Tilt Speed DownLeft 0xFF Address 0x00 0x14 Pan Speed Tilt Speed DownRight 0xFF Address 0x00 0x12 Pan Speed Tilt Speed Zoom In 0xFF Address 0x00 0x20 0x00 0x00 Zoom Out 0xFF Address 0x00 0x40 0x00 0x00...
  • Page 46 Pelco-P protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right 0xA0...
  • Page 47 Position Byte Low Byte Response...
  • Page 48 This Limited Warranty covers any defect in material and workmanship under normal use within the Warranty Period. AVIPAS Inc. will repair or replace the qualified products at no charge. AVIPAS Inc. provides a one (1)-year warranty (from the date of purchase) for this HD Conference Camera.
