Setting up Gateway (BEAM-GW)
This page explains the process of setting up the ACKCIO BEAM gateway device.
Installation
The gateway can be directly affixed to a flat surface using M4 screws. However, for more
sophisticated mounting scenarios, we recommend using the gateway bracket. The gateway
bracket can be used to easily mount the gateway on flat surfaces, on pipes using U-bolts, or in
other complicated settings. (One of our clients hung it using cable ties as well!)
If you are using the bracket, first fix the gateway device to the bracket using M4 screws and
nuts as shown below.

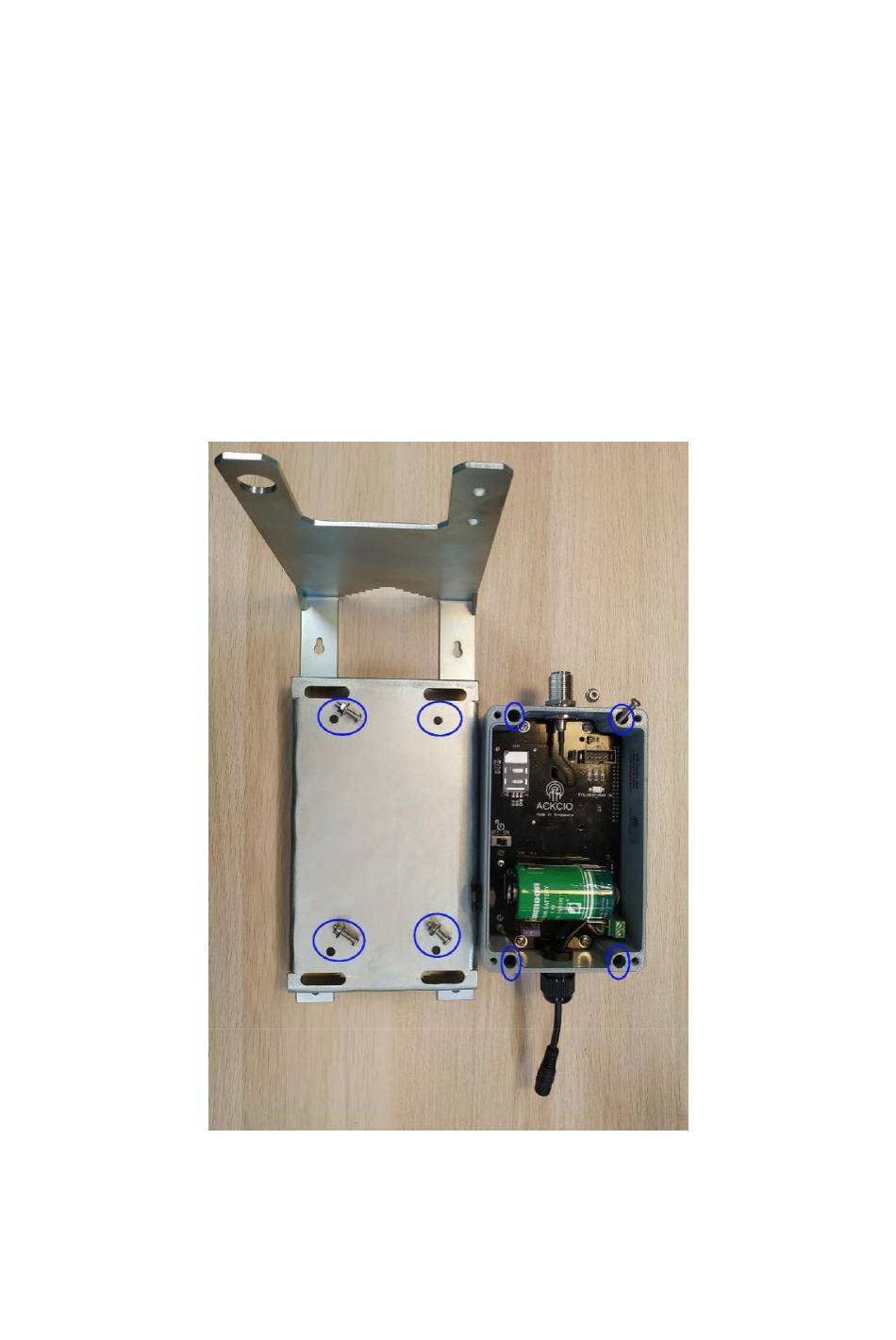

Four screws/nuts to attach the gateway to the bracket

Advertisement

loading
Need help?

Need help?

Do you have a question about the BEAM-GW and is the answer not in the manual?

Questions and answers

Summary of Contents for Ackcio BEAM-GW

  • Page 1 Setting up Gateway (BEAM-GW) This page explains the process of setting up the ACKCIO BEAM gateway device. Installation The gateway can be directly affixed to a flat surface using M4 screws. However, for more sophisticated mounting scenarios, we recommend using the gateway bracket. The gateway bracket can be used to easily mount the gateway on flat surfaces, on pipes using U-bolts, or in other complicated settings.
  • Page 2 Fix the gateway antenna and the cellular antenna to the bracket as shown below. Note that the Gateway has two identical ports at the bottom for GPS and Cellular (GSM) antennas. Therefore, please connect the cellular antenna to the correct port which is the GSM port. Gateway antenna &...

  • Page 3: Setting Up The Gateway

    Setting up the Gateway Gateway Settings 1. Connect a 12V DC power supply to the gateway. Ensure the polarities are affixed correctly while the power supply is connected. The power supply can be a 12V DC power adapter or a 12V solar panel power setup. 2.
  • Page 4 Date Select the time zone with respect to your country and click on “Sync" icon to sync with computer date and time. Click Save button afterwards. Radio Select the country and set the “Frequency” accordingly. Afterwards set the transmission power. Refer to the following link to get your country frequency. https://www.thethingsnetwork.org/docs/lorawan/frequencies-by-country.html...

  • Page 5: Upload Mode

    "Enable Internet Always" if you want to enable Internet permanently. Cellular option for Internet Upload Mode Out of the three upload modes, API, FTP, ACKCIO Cloud one could select either one or many modes to upload the data. Upload data to an API...
  • Page 6 Enter the respective URL, Port, Username and password if any, and the folder to which the data needs to be pushed as shown in the diagram below. (2) Select ACKCIO CLOUD mode if you are setting up project at Ackcio Cloud by entering the Ackcio Key.
  • Page 7 Activity Grid The activity grid will depict the key functionalities and changes that are conducted in the gateway where one could see information with related to the changes that are made. Using the red circled export icon in the below shown diagram one could can export the gateway logs.
  • Page 8 Remote Access If the gateway needs to be accessed remotely using a dynamic DNS, it could be done by providing the details requested, as shown below. Once they are provided the gateway could be remotely accessed via the dynamic DNS. Also, during this procedure, it is necessary to make sure that the gateway has the internet connection.
  • Page 9 That brings the end to the Gateway Settings. Setting up with ACKCIO cloud To kick start log in to Ackcio Cloud with your registered account. Connect your PC to internet LAN. Click on the following link to login Ackcio Cloud online portal with your registered account. https://live.ackcio.com...
  • Page 10 (ii) Expand the Devices list at the side menu by clicking the arrow mark. Then, Click on + button. Device ID (Mac ID): the first 4 digits found on the sticker of the device Device Name: Name the node as per your preference.(Ex: Your device location or sensor). No of Channels: Select either 1,4 or 8 based on the device channels (ports).
  • Page 11 (iii) You will see the prompt and added device information under “Device list” section. (iv) Repeat above steps to add additional Nodes. 2. Procedure to create a new Project. Click on “Setup” at side menu. 3. Input the requested information as per instructed below •...
  • Page 12 Click Next. 4. You can set the desired “Sampling Rate” at this page for all the nodes. Click Next. 5. For the Alert, please enable at least one channel (either email or message) 6. Click "Setup" to complete the project creation.
  • Page 13 7. Click on Dashboard at the side menu, you can now see newly created project. If you want to edit the project, click on pencil button.
  • Page 14 9. Once "Step.8" is done, please refer to Node Manual (Analogue or Vibrating Wire) to commission the nodes. 10. After you have commissioned all the nodes, go to "Online" dashboard, click on your project, you will now be able to see your Nodes under “Device Summary” Section. Setting up with Third Party Services Open your favourite browser, and visit http://192.168.0.10...

  • Page 15: Creating A Project

    Creating a Project 1. Click “+” icon next to the Projects to create new project. 2. Refresh (or) Click on "Sync Projects" icon if you need to refresh the project or sync with a cloud project (if any). 3. Import/Export Project Configuration if you have any previous saved project configuration file.
  • Page 16 You can now see the Node(s) that you have just added in the "Node List" section. On Node text field, please select your Nodes. (You can select multiple Nodes.) Click on the "Next" button afterwards. You will be navigated to the sensor Nodes and sensors page.
  • Page 17 On this screen, you will see all the added Nodes to the project on the left pane. 1. Click on arrow icon to expand selected Node information. 2. You can set a preferred “Sampling Rate (in mins)” at this page for your node. 3.
  • Page 18 After you have commissioned all the nodes, log in and click on your project, you will now be able to see your Nodes under “Node Summary” Section and sensor details under "Sensor Summary". Normal Operating Status of the Gateway 1. You should see (RPI, NET, RF LEDs) of the gateway should remain off most of the time.
  • Page 19 Also its necessary to note that upon the System restart button click, the gateway would restart and upon the shutdown button the gateway device would shutdown. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
