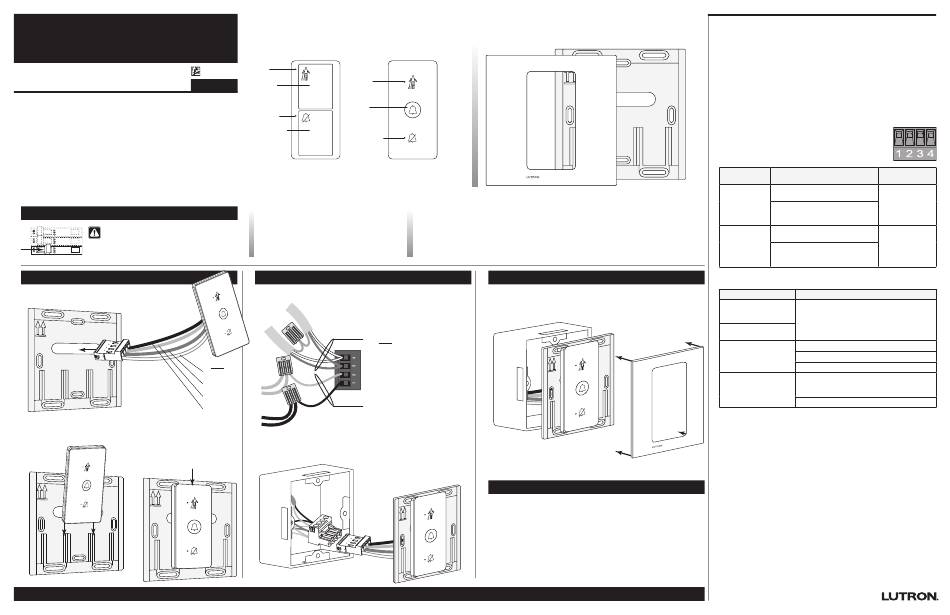

Lutron Electronics Pico Privacy Control QSWP-DM Installation Manual

Pico Wallstations
®
Installation
For use with Lutron Hospitality Guestroom Solution
®
QSWP-DM
QSWP-CP
IEC PELV/NEC Class 2 24 V- 30 mA
®
Important Notes
Please read before installing
• For installation by a qualified electrician in accordance with all local and
national electrical codes.
• Operate between 0 °C (32 °F) and 40 °C (104 °F).
• Do not connect line-voltage wires to wallstation terminals. Improper
wiring can result in personal injury or damage to the control or to other
equipment.
• Use only a cloth with warm water and mild soap to clean faceplates (no
chemical cleaners).
Start Here
WARNING. Shock Hazard. May result
in serious injury or death. Turn off
power at circuit breaker before installing
the unit.
1
Assemble
a. Insert the Pico control wiring connector through the
®
hole in the unmounted wallplate adapter.
b. Slide the Pico control onto the wallplate adapter guide rails that
®
match the opening in the wallplate.
Need Help? Call Lutron Technical Support at +44.(0)20.7680.4481 or visit www.lutron.com
Required Components
For each system, ensure that you have:
Pico Privacy Control (QSWP-DM) and/or
®
Pico Corridor Control (QSWP-CP)
®
040397 Rev. A Top LED
04/2013
(green)
Top LED
English Top Button:
(green)
toggle for
make-up-room
request
Button:
press to
Bottom LED
sound door
(red)
chime
Bottom Button:
toggle for
Bottom LED
do-not-disturb
(red)
request
Pico Privacy Control
®
Inside Guestroom
+
Lutron Hospitality Guestroom Controller
®
(GCU-HOSP)
2
Connect
a. Wire the connector terminals to the QS link wiring in wallbox. See QS
Link Wiring Notes for further details.
Drain
Data Link: 1 twisted, shielded pair
4: MUX
3: MUX
4: MUX
3: MUX
2: 24 V-
IEC PELV/NEC
1: Common
2: 24 V-
1: Common
b. Connect the Pico control connector to the QS link of the Lutron
®
Hospitality Room Controller.
+
One for each single Pico Control: Wallplate/Wallplate Adapter kit
®
(PWP-S1, PWP-S2, PWP-D3, PWP-D4)
Pico Corridor Control
®
Outside Guestroom
+
Radio Frequency (RF) Receiver with Door Chime or third-party door bell solution with QSE-IO.
3
Mount and Install
a. Carefully mount and align the wallplate adapter.
b. Attach wallplate adapter to wallbox with provided screws.
c. Snap wallplate onto wallplate adapter.
Class 2 control wiring:
®
®
4
Associate
a. Turn on power to the Wallstation control by energizing the link.
b. Wallstation controls must be programmed through the Lutron
Hospitality System Guestroom Control unit's software before the
controls will function as described.*
* Door chime functionality requires the installation and programming of the door
chime components
QS Link Wiring Notes
• Operating Voltage: 24 V- (IEC PELV/NEC Class 2), powered off of the
®
QS link or an external 24 V- supply
• Current Draw: 30 mA maximum
• Consumes 1 Power Draw Unit (PDU) on the QS link; for more
information on PDUs, see "Power Draw Units on the QS Link", Lutron
P/N 369405 at www.lutron.com
• Counts as one device and no zones on the QS link
• For more information regarding Lutron cable specifications, please see
®
Lutron P/N 369597 at www.lutron.com
• For wire runs over 610 m (2 000 ft), please contact Lutron
Support
Terminals
• Accept up to two 1.0 mm 2 (18 AWG) wires;
one twisted, shielded pair 0.50 mm 2 (22 AWG) wire; or
one 4.0 mm 2 (12 AWG) wire, typically.
• For wiring limits, see chart below.
QS Link Wire Gauge
Wiring Length
Less than Power (terminals 1 and 2):
2
153 m (500 ft) 1 pair 1.0 mm (18 AWG)
Data (terminals 3 and 4):
1 twisted, shielded pair 0.50 mm
(22 AWG)
Up to 610 m Power (terminals 1 and 2):
2
(2 000 ft) 1 pair 4.0 mm (12 AWG)
Data (terminals 3 and 4):
1 twisted, shielded pair 0.50 mm
(22 AWG)
Troubleshooting
Symptoms Possible Causes
No communication Miswire or loose connection at the control
with the Room link data lines 3 and 4.
Controller
Wallstation LEDs scroll
in reverse order
Wallstation buttons do Wallstation is miswired.
not work. LEDs and
Wallstation is not powered.
buttons do not function
as intended
Wallstation has been programmed incorrectly.
LEDs do not light Miswire or loose connection at wallstation(s)
or processor on the control link common and
power connections 1 and 2.
Wallstation has been programmed incorrectly.
Warranty
For warranty information, please visit
www.lutron.com/TechnicalDocumentLibrary/Warranty.pdf
Technical Assistance
U.S.A. / Canada: 1.800.523.9466
Mexico: +1.888.235.2910
Brazil: +55 11 3257 6745
United Kingdom: +44.(0)20.7680.4481
India: +91.124.471.1900
United Arab Emirates: +971.4.299.1224
China: 10.800.120.1536
®
Singapore: 800.120.4491
Other Countries: +1.610.282.3800
Lutron, Pico, and ) are registered trademarks of Lutron Electronics Co., Inc.
NEC is a registered trademark of National Fire Protection Association, Quincy, Massachusetts
©2013 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road | Coopersburg, PA 18036-1299
TEL: +1.610.282.3800
Technical
®
Lutron Cable
®
Part Number
GRX-CBL-346S
(non-plenum)
GRX-PCBL-346S
2 (plenum)
GRX-CBL-46L
(non-plenum)
GRX-PCBL-46L
2 (plenum)
