Summary of Contents for Medea TC936T5Y-S00E

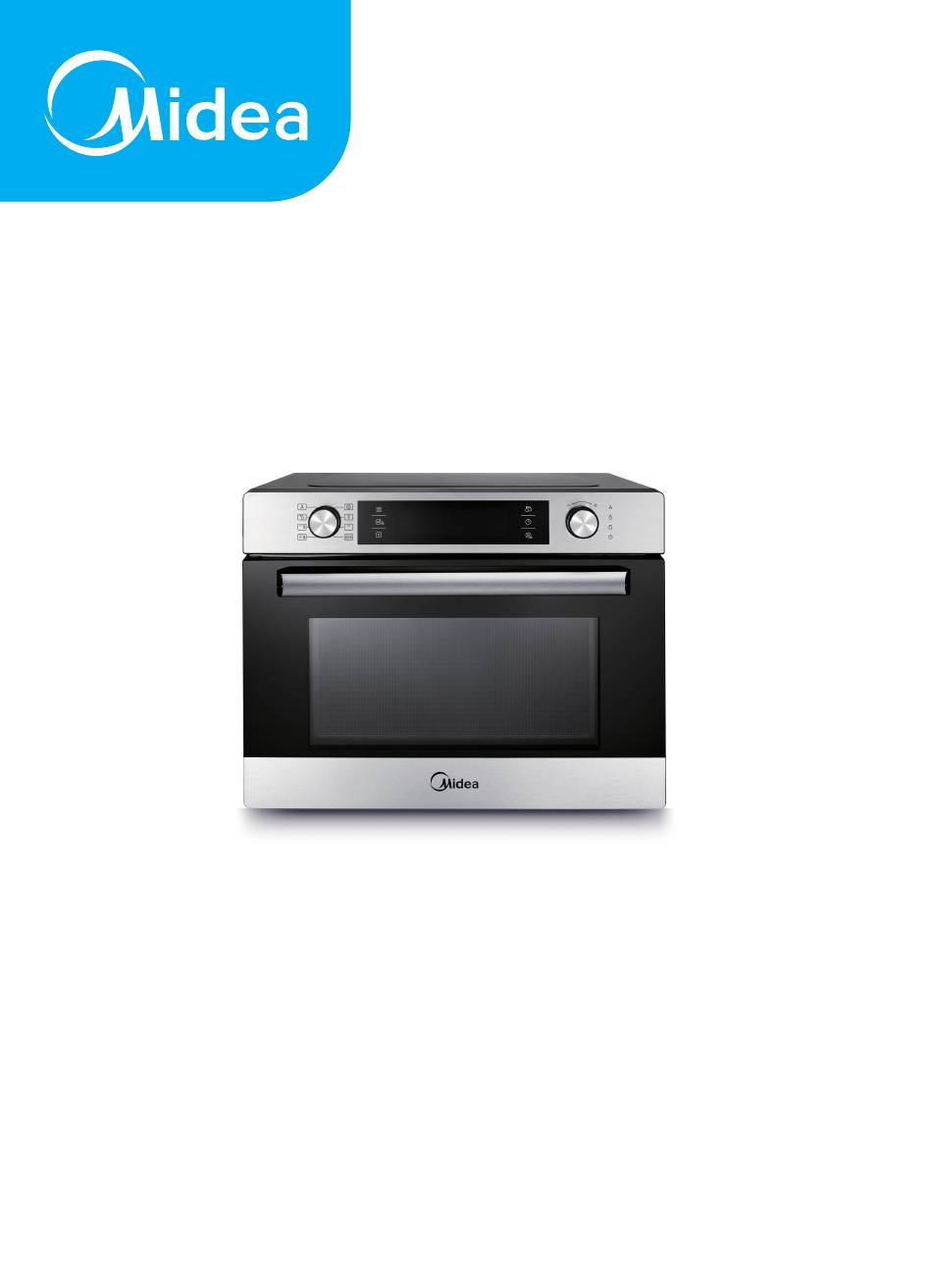

- Page 1 COMBINATION OVEN WITH MICROWAVE OPERATION MANUAL MODEL: TC936T5Y -S00E Read these instructions carefully before using your microwave oven , and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...
-
Page 3: Table Of Contents
Ú Table of contents [ e n ] I n s t r u c t i o n m a n u a l Important safety information ............2 Setting the time-setting options ...........11 Causes of damage................6 Setting the timer ..................11 Installation ..................6 Setting the cooking time..............12... - Page 4 This appliance can be used by children aged from 8 years and When heating food in plastic or ■ above and persons with reduced paper containers,keep an eye on physical, sensory or mental capacity the oven due to the possibilities or lack of experience and knowledge of ignition.
- Page 5 Risk of serious damage to health! sales technicians. If the appliance The surface of the appliance may is defective, unplug the appliance ■ become damaged if it is not from the mains or switch off the cleaned properly. Microwave circuit breaker in the fuse box. energy may escape.
- Page 6 hot steam may escape. Open the Alcoholic vapours may catch fire in Risk of burns! ■ appliance door with care. Keep the hot cooking compartment. children at a safe distance. Never prepare food containing large quantities of drinks with a high Risk of scalding! Microwave heating of beverages ■...
-
Page 7: Causes Of Damage
Causes of damage Caution! in the cooking compartment. An exception to this rule is a short Creation of sparks: Metal e.g. a spoon in a glass must be crockery test (see the section "Microwave, suitable crockery"). ■ kept at least 2 cm from the oven walls and the inside of the Using the appliance door for standing on or placing objects on: ■... -
Page 8: Your New Appliance
Your new appliance Use this section to familiarise yourself with your new appliance. explained. You will find information on the cooking compartment The control panel and the individual operating controls are and the accessories. Control panel Touch keys and display The touch s are used to set the various additional functions. -
Page 9: Accessories
Accessories Turntable As a surface for the wire rack. Food which particularly requires a lot of heat from underneath can be prepared directly on the turntable. The turntable can turn clockwise or anti-clockwise. Place the turntable on the drive in the centre of the cooking compartment. -
Page 10: Rapid Preheating
Rapid Preheating With rapid preheating, your oven reaches the set temperature The preheating process is complete particularly quickly. A signal sounds. The symbol in the display blinks. Put your dish in the oven. Rapid Preheating is avail able for the following types of heating: Cancelling rapid preheating During setting the rapid preheating function,touch the 3D Hot air... -
Page 11: Setting The Microwave
Setting the microwave Changing the cooking time Example: Microwave power setting 300 W, cooking time 17 minutes Turn " " This can be done at any time. Touch the key. knob to change the cooking time. Touch the key .The default microwave power 900W Changing the microwave power setting will appear.And the default cooking time will blink. -
Page 12: Defrosting Programmes
Defrosting programmes Auto Menu You can use the 2 defrosting programmes to defrost meat, poultry and bread. Programme no. Category Item Set the function selector to automatic programmes Vegetables Fresh vegetables P 01** The first programme number appears in the display. Side dishes Potatoes-peeled/cooked P 02**... -
Page 13: Setting The Cooking Time
Setting the clock The timer duration has elapsed A signal sounds. 0:00 is shown in the display. Once the appliance is connected, "00:00"will blink,buzzer will ring once. Set the clock. Cancelling the timer duration turn" " knob key to cancel the timer duration. Touch the between 00:00 and 23:59 Touch the... -
Page 14: Care And Cleaning
Care and cleaning With careful care and cleaning your microwave oven will retain its Area Cleaning agents looks and remain good order. We will explain here how you Appliance front Hot soapy water: should care for and clean your appliance correctly. Clean with a dish cloth and dry with a soft Risk of electric shock.! cloth. -
Page 15: Malfunction Table
Malfunction table Malfunctions often have simple explanations. Please refer to the Risk of electric shock! malfunction table before calling the after-sales service. Incorrect repairs are dangerous. Repairs may only be carried out If a meal does not turn out exactly as you wanted, refer to the by one of our trained after-sales engineers. -
Page 16: Energy And Environment Tips
Energy and environment tips Here you can find tips on how to save energy when baking and For longer cooking times, you can switch the oven off ■ roasting and how to dispose of your appliance properly. 10 minutes before the end of the cooking time and use the residual heat to finish cooking. - Page 17 Defrost Weight Microwave power setting in watts, Notes cooking time in minutes Fish fillet, fish steak or slices 400 g 300 W, 5 mins + 100 W, 10-15 mins Separate any defrosted parts Whole fish 300 g 300 W, 3 mins + 100 W, 10-15 mins 600 g 300 W, 8 mins + 100 W, 10-15 mins Vegetables, e.g.
- Page 18 Caution! Always cover the food. If you do not have a suitable cover for ■ your container, use a plate or special microwave foil. Metal e.g. a spoon in a glass must be kept at least 2 cm from the oven walls and the inside of the door.
-
Page 19: Microwave Tips
Popcorn for the microwave Notes Make the settings as described in the table. You can adjust the ■ timings according to product and amount. Use heat-resistant, flat glass ovenware, e.g. the lid of an ■ ovenproof dish, a glass plate or a glass tray (Pyrex) So that the popcorn doesn't burn, briefly take the popcorn bag ■... -
Page 20: Baking Tips
Baking in tins Accessories Type of Temperature Microwave Cooking time heating °C power in watts in minutes Yeast dough with moist topping Round pizza tray 170-190 55-65 Plaited loaf with 500 g flour Round pizza tray 170-190 35-45 Stollen with 500 g flour Round pizza tray 160-180 60-70... -
Page 21: Roasting And Grilling
Roasting and grilling oven and allow it to rest for an additional 10 minutes. This allows better distribution of the meat juices. About the tables Poultry: ■ Turn the pieces of meat after of the cooking time has The temperature and roasting time depend on the type and elapsed. - Page 22 Lamb Note: Turn the leg of lamb halfway through the cooking time. Lamb Accessories Type of Temperature Microwave power Cooking time in heating °C in watts minutes Saddle of lamb on the bone, Ovenware without lid 210-230 40-50 approx. 1 kg* Leg of lamb, boned, medium, Ovenware with lid 190-210...
-
Page 23: Tips For Roasting And Grilling
Poultry Accessories Type of Temperature in Microwave power Cooking heating °C, grill setting in watts time in minutes Duck breast with skin, 2 pieces, Ovenware without lid 20-30 300-400 g each** Goose breast, 2 pieces, 500 g each* Ovenware without lid 210-230 25-30 Goose legs, 4 pieces, approx. -
Page 24: Convenience Products, Frozen
Convenience products, frozen The values in the table apply to food placed in a cold oven. ■ Do not lay chips, croquettes or potato röstis on top of each ■ Notes other. Turn half way through the cooking time. Observe the instructions on the packaging. ■...
