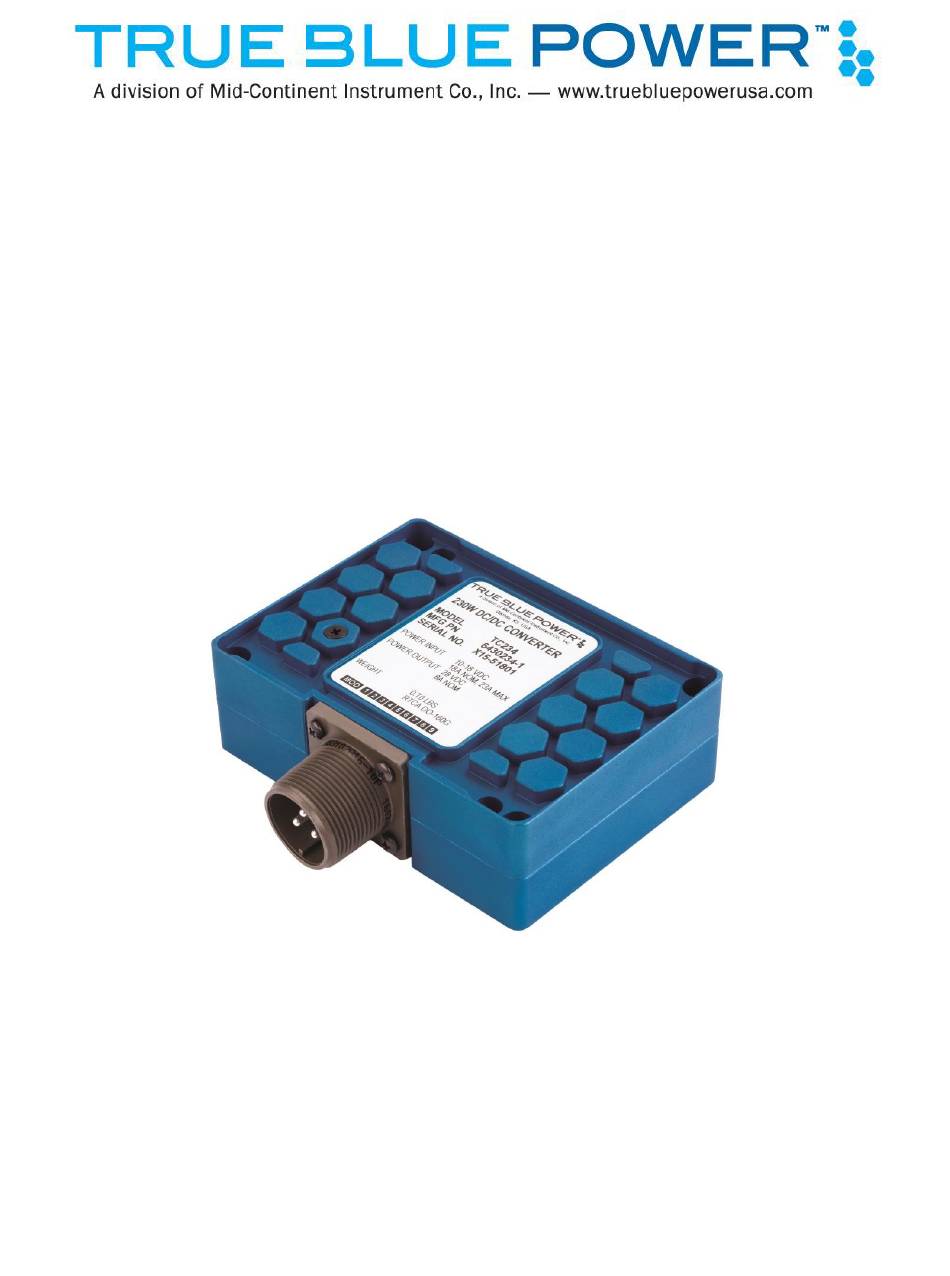

Installation Manual and Operating Instructions
Model TC234
DC/DC Power Converter
®
True Blue Power
is a division of Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
th
9400 E. 34
Street N.
Wichita, KS 67226
Manual Number 9018670
PH (800) 821-1212
FX (316) 630-0723
Rev A, August 31, 2016
Advertisement
Table of Contents
Related Manuals for Mid-Continent Instrument True Blue Power TC234
Summary of Contents for Mid-Continent Instrument True Blue Power TC234
- Page 1 Installation Manual and Operating Instructions Model TC234 DC/DC Power Converter ® True Blue Power is a division of Mid-Continent Instrument Co., Inc. Mid-Continent Instrument Co., Inc. dba Mid-Continent Instruments and Avionics 9400 E. 34 Street N. Wichita, KS 67226 Manual Number 9018670...
- Page 2 Wichita, KS 67226 USA PH (316) 630-0101 FX (316) 630-0723 All products produced by Mid-Continent Instrument, Co., Inc., including those identified as Mid- Continent Instruments and Avionics or True Blue Power, are designed and manufactured in Wichita, KS, USA. Copyright 2016 Mid-Continent Instrument Co., Inc.
- Page 3 REVISION DETAIL Revision Date Approved Detail 08/31/16 Initial release Rev A, August 31, 2016 Manual Number 9018670...
-
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION 1 GENERAL DESCRIPTION INTRODUCTION TECHNICAL SPECIFICATIONS SECTION 2 INSTALLATION CONSIDERATIONS COOLING EQUIPMENT LOCATION ROUTING OF CABLES LIMITATIONS SECTION 3 INSTALLATION PROCEDURE GENERAL INFORMATION UNPACKING AND INSPECTING CABLE HARNESS 3.3.1 Wire Gauge Selection 3.3.2 Pin Assignment Information 3.3.3 Harness Verification 3.3.4 Output Voltage Adjustment MOUNTING... -
Page 5: General Description
SECTION 1 GENERAL DESCRIPTION INTRODUCTION The model TC234 DC/DC Power Converter is a lightweight power converter that translates a direct current (DC) input of 14 volts to an output of 28 volts direct current (DC) output. The input operating voltage (11-18 VDC) makes the TC234 suitable for nearly any common general, business, or commercial aviation application. -
Page 6: Cooling
Table 1.3 SECTION 2 PRE-INSTALLATION CONSIDERATIONS COOLING The TC234 product does not require external cooling or contain internal active cooling. Cooling of the unit occurs exclusively through passive conduction through the base or radiated cooling across the metal case. Additional cooling can be realized through convection (exposure to free moving air) or conduction (mounting to a thermally conductive metal surface). -
Page 7: Installation Procedure
SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION This section contains interconnect diagrams, mounting dimensions and other information pertaining to the installation of the TC234 DC/DC Converter. After installation of cabling and before installation of the equipment, ensure that power is applied only to the pins specified in the interconnect diagram. The following two versions of the unit are available. -
Page 8: Harness Verification
(25 Amp circuit breaker recommended) DC Output – Connect pin C as the positive 28V DC output voltage. DC Return – Connect pin B to input power return or aircraft ground. Enable – 6430234-1: Not available 6430234-2: Pin D to be grounded to enable power output (via switch or other means. -
Page 9: Output Voltage Adjustment
(Update to TC234 and 6430234-1) DC INPUT DC RETURN TC234 DC OUTPUT 6430234-1 Figure 3.5: Typical 6430234-1 Aircraft Wiring Installation – Constant On (Update to TC234 and 6430234-2) DC INPUT DC RETURN TC234 DC OUTPUT 6430234-2 ENABLE ON/OFF Figure 3.6: Typical 6430234-2 Aircraft Wiring Installation – Remote On/Off Rev A, August 31, 2016 Manual Number 9018670... -
Page 10: Mounting
MOUNTING Refer to Section 2: Pre-Installation Considerations in regards to equipment location. The TC234 DC/DC Converter is designed for base mounting only. Four 6-32 mounting holes should be provided in the aircraft in accordance with Figure 3.7. Secure the unit with four 6-32 pan head screws, or equivalent. -
Page 11: Operation
SECTION 4 OPERATION ELECTRICAL PERFORMANCE The TC234 is designed as a non-isolated, boost topology, solid-state switch-mode power supply. The unit converts a direct current voltage (11-18VDC) input to a regulated 28 VDC output. It is capable of providing up to 252 watts of power to a variety of aircraft accessories including lights and onboard systems or portable consumer product power. -
Page 12: Conformance
SECTION 5 CONFORMANCE INSTRUCTIONS FOR CONTINUED AIRWORTHINESS No periodic scheduled maintenance or calibration is necessary for continued airworthiness of the TC234 DC/DC Converter. If the unit fails to perform to specifications, the unit must be removed and serviced by Mid-Continent Instruments and Avionics or their authorized designee. ENVIRONMENTAL QUALIFICATION STATEMENT PART NUMBER : 6430234... - Page 13 Rev A, August 31, 2016 Manual Number 9018670...
