ZN-NH22XE
This manual has been designed to guide you through basic installation, configuration and the webpage access
settings of the device.

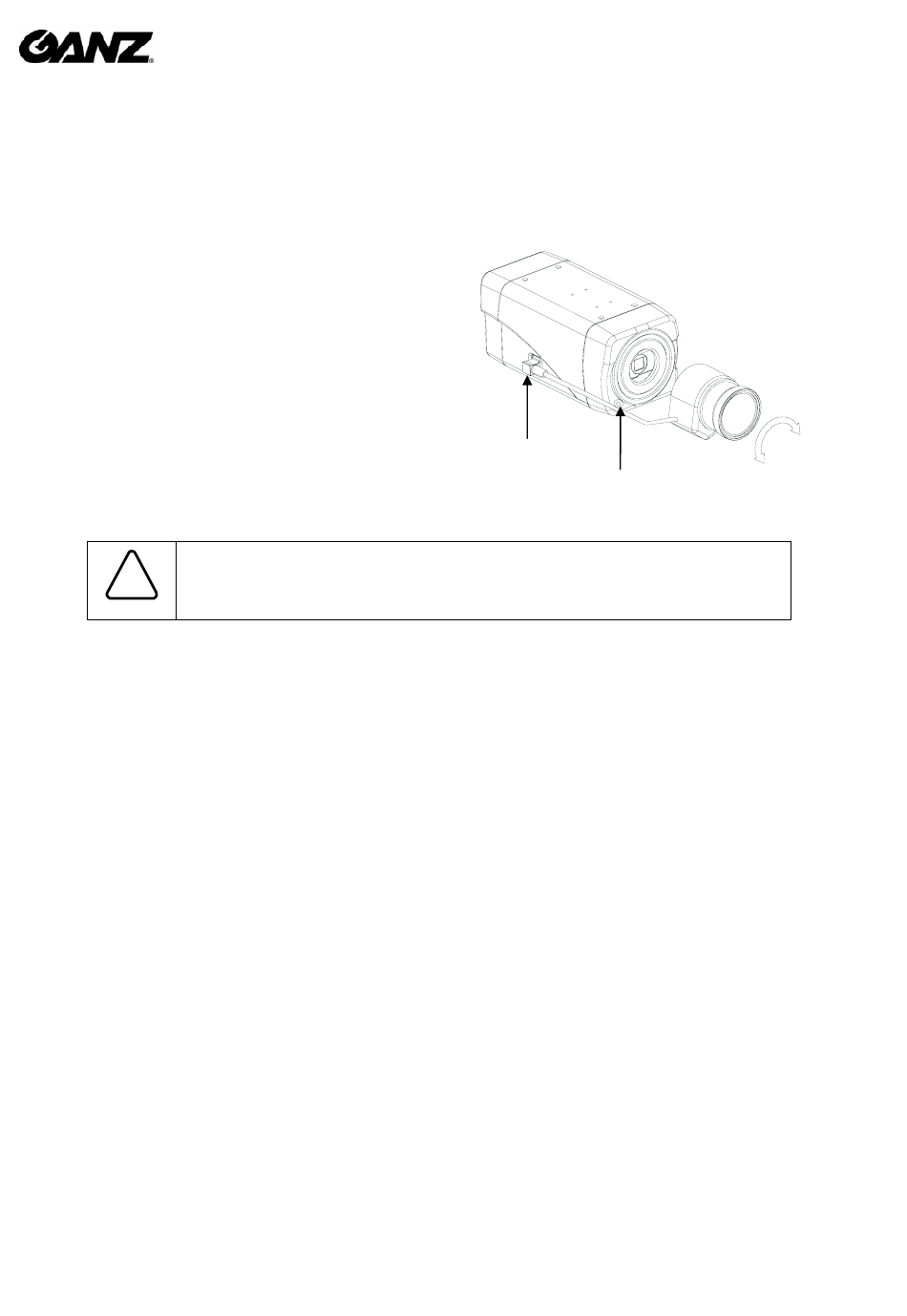

Step1. Install the lens
1. Place the lens mount to the camera and
tighten the mount by turning clockwise.
2. Connect the lens cable to the 4‐pin auto
iris connector on the side of the camera.
3. Manually adjust the zoom and focus of the
image with the zoom lever and focus lever on
the lens mount. (Refer to the manual
provided with your lens.)
!
Caution
NC1202HD Ver1.0
Make sure that the light sensor is not blocked by lens cable or other objects.
Quick User Guide
Auto Iris Lens
Connector
1
Light Sensor
Advertisement
Table of Contents
Summary of Contents for QANZ ZN-NH22XE
- Page 1 ZN-NH22XE Quick User Guide This manual has been designed to guide you through basic installation, configuration and the webpage access settings of the device. Step1. Install the lens 1. Place the lens mount to the camera and tighten the mount by turning clockwise. 2. Connect the lens cable to the 4‐pin auto iris connector on the side of the camera. 3. Manually adjust the zoom and focus of the image with the zoom lever and focus lever on ...
- Page 2 Step2. Connect cables Connect proper cables to the device. To see the correct positions of all connectors, refer to the following image below. * Model design and appearance are subject to change without any prior notice. BNC Video Out * Use only for installation tests. The video‐out works for 3 minutes when PAL/NTSC button is pushed. Reset Button PAL/NTSC Button ...
- Page 3 Step3. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. Generic IP Environment In case of generic private network environment where IP address 192.168.XXX.XXX are used, users may view the live streaming images on a web page using the device’s default IP address: Convert the device’s MAC address to the IP address. Refer to the Hexadecimal‐Decimal Conversion Chart at the end of the manual. (The MAC address of the device is attached on the side or bottom of the device.) MAC address = 00‐13‐23‐01‐14‐B1 → IP address = 192.168.20.177 Convert the last two set of hexadecimal numbers to decimal numbers. Start the Microsoft® Internet Explorer web browser and enter the IP address of the device. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation pop‐up window appears, authorize and install the ActiveX setup.exe. ...
- Page 4 2. Right‐click the mouse and select “IP Address”; IP Setup window appears. Give new unique IP address in last two sets and mirror other PC environment Info information in other boxes 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device. Refer to the image above for the setting 4. Click ‘Setup’ to complete the modification. NC1202HD Ver1.0 4 ...
- Page 5 Step4. View video on web page Once the device has the proper IP address, users can view the live streaming images through a web browser. 1. Type the correct IP address in the Microsoft® Internet Explorer If popup window appears and ask for user name and password, type root / pass. 2. Grant the AxUMF.cab setup and proceed with installations. 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, the video stream is displayed in the main view frame. If user doesn’t install ActiveX, the jpeg image is shown in a main view frame instead. If “This software requires the Microsoft XML Parser V6 or higher. Please download MSXML6 from the Microsoft website to continue. Error code: Cannot create XMLDOMDocument.” message appears, download and install the Microsoft Core XML Services (MSXML) 6.0. Caution NC1202HD Ver1.0 5 ...
- Page 6 Step5. Setting IP Address To set up the Network configuration: Click Setup on the upper right of the web page. The login page is displayed as below. Enter the default user name (root) and the default password (pass), and then select OK. The default username and password are: root and pass. Click Network Configuration on the left of the Setup page, and then select TCP/IP menu. Input the data for the IP address configuration, and click the Apply button on the bottom of the page. When modifying the IP address, be advised to have the correct Subnet mask and Gateway ready. To use DHCP, select Obtain an IP address via DHCP. To learn how to set up the web page for advanced configuration, refer to the Web Page User's Manual, which is available on the SDK at the following path. {SDK root}\DOC\ NC1202HD Ver1.0 6 ...
- Page 7 Rebooting Reset can be carried out as follows: 1. Use a pointed object to push the reset button for 1~2 seconds. 2. Wait for the system to reboot. Resetting to the Factory Default Settings Resetting the device to the factory default will reset all configured parameters to the initial factory settings. To perform the Factory Default settings: 1. Use a pointed object to push the reset button and hold for 5 seconds. 2. Release the Reset button. 3. Wait for the system to reboot. More Information To learn more about using other features of your devices, refer to the manual, which is available on the SDK at the following path. {SDK root}\DOC\ NC1202HD Ver1.0 7 ...
- Page 8 Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 00 0 94 148 25 37 4A 74 6F 111 B9 185 DE 222 01 1 26 38 4B 75 70 112 95 149 BA 186 ...
