- Page 1 WirelessCable PT -WC-G1 User Manual Model:PT-WC-G1 Version:1.0...
-
Page 3: Table Of Contents
Trouble shooting and PNP configuration, can fully meet the needs of various indoor and outdoor shooting, especially the feature of free wiring, which will PT-WC-G1 Setup Instructions bring you a safer and more professional enjoyment. Features The maximum transmission rate can be up to 300Mbps echnology at the transmitter terminal Adopt 4×4 MIM... -
Page 4: Packing List

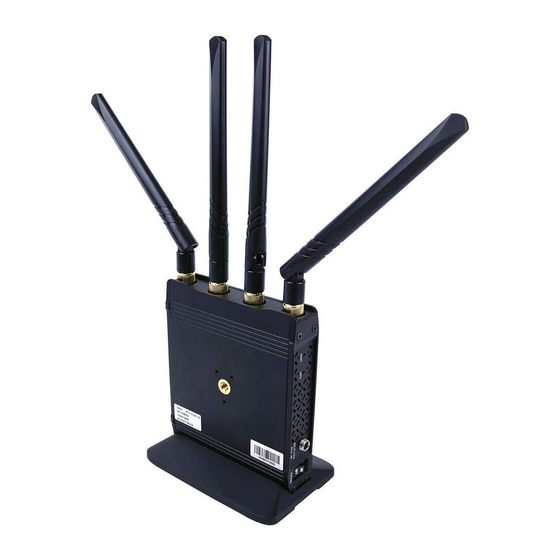

Packing List Structure & Interface Model: PT-WC-G1 Check the packing list details after unpacking. If any parts are missing, contact the dealer. For the parts involved in each model, refer to the packing list below. Wireless high-speed data transmitter PT-WC-G1... - Page 5 1. DC IN: This port is connected to the power adapter (SPEC: 5.5mm; “positive inside and negative outside icon”) 2. Rj45 interface: Connection supports RJ45 interface devices 3. Power switch: Rocker switch controls power on or off 4. WPS button: Press the WPS button of both modules (set to AP/STA mode, respectively) at the same time, and the two modules will automatically establish a connection.
- Page 6 Product Installation 2. Turn on the power switches of the camera and this product. 3. Wait for 30~60s. After the network connection indicator PT-WC-G1 Installation Instructions (point-to-point mode, changes from blinking to steady on, the connection is webcam usage example) established successfully.
-
Page 7: Indicator Description
Product Specifications Indicator Description Item PT-WC-G1 Frequency 5.15-5.25(GHz);5.725-5.85(GHz) Model indicator Mode Status Video communication system MIMO Modulation OFDM Frequency stability Steady on Power supply is normal ±20PPM 40MHz bandwidth Power Standard protocol 802.11a/n indicator Receiving sensitivity ≤- 70dBm Power is abnormal... -
Page 8: Pt-Wc-G1 Setup Instructions
PT-WC-G1 Setup Instructions 2. Select Wireless in the Config option on the menu page to modify the corresponding options, where ESSID can be specified by itself (AP and STATION should be consistent and case-sensitive), Encryption and Passphrase can also be Point-to-Point Connection Mode specified by themselves. - Page 9 Cascade Mode Note: 1. Cascading will reduce the bandwidth of the system. In some cases, a longer transmission distance may be required. At this time, It is recommended to cascade up to Level 3. we can use the cascade mode based on WDS technology. In this case, 2.
- Page 10 Mode Settings 2. Username: admin; password: admin; click LOGIN to log in. 1. The product can be set to AP or STA mode. After its IP address is logged in through the WEB, select “wireless” under “config” and click Device Mode to select between AP and STA modes. 3.
- Page 11 Product Pairing 4. After clicking CVW001, AP: CVW001 Passphrase will pop up. After entering the password “12345678”, click “connect”. 1. You can only pair with the AP in STA mode. 2. After the IP address of the product is logged in through the WEB, select “wireless”...
- Page 12 Product Software Upgrade 1. After the IP address of the product is logged in through the WEB, select “Upgrade” under “System”. 2. After selecting software upgrade under “Choose a file”, click “Upgrade” to upgrade. After clicking, wait for 2min, then refresh the page and log in again.
- Page 13 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital 3. After waiting for 2min, refresh the page and log in again, device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable you can see the upgraded software version.
