Summary of Contents for A-Neuvideo ANI-USBC4K

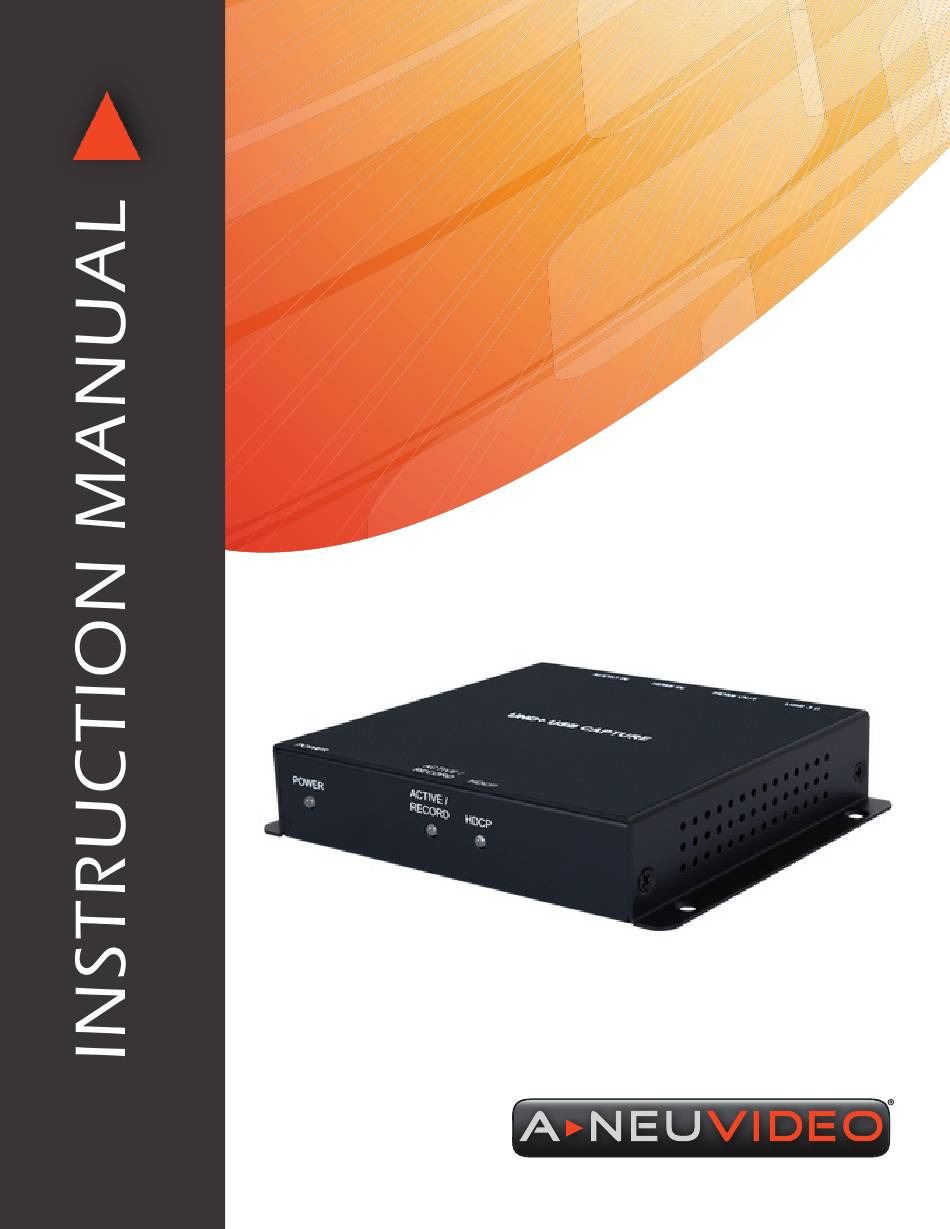

- Page 1 ANI-USBC4K 4K UHD+ HDMI to USB Video Capture Recorder/Live Streaming A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
• To protect the unit from overheating, do not block any vents or The ANI-USBC4K HDMI to USB video capture recorder with HDMI openings in the unit housing that provide ventilation and allow for bypass can support resolutions up to 18Gbps (600MHz) 4K UHD sufficient space for air to circulate around the unit. -
Page 4: Features
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI input and output with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output •... -
Page 5: Operation Controls & Functions
NEUVIDEO OPERATION CONTROLS AND FUNCTIONS Front Panel POWER LED: This LED will illuminate RED to indicate the unit is on and receiving power but does not yet have a live HDMI source. When a live HDMI source is detected, the LED will illuminate GREEN. ACTIVE/RECORD LED: When software on the connected PC is actively receiving video from the unit via USB, this LED will illuminate GREEN. -
Page 6: Configuration & Video Capture
NEUVIDEO Configuration and Video Capture Configuration and Video Capture VIDEO CAPTURE CONFIGURATION The USB Video Capture Control software provides control over a selection of basic functions of the unit, including: audio source, HDCP, video settings and volume. An option to return the unit to its factory defaults is also provided. - Page 7 NEUVIDEO Configuration & Video Capture Configuration & Video Capture VIDEO CAPTURE Video capture is accomplished using 3rd party software. The choice of video capture software is entirely up to the user. This unit adheres to the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including support for the Free OBS (Open Broadcaster Software) streaming software, among many other choices.
-
Page 8: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM... -
Page 9: Video & Audio Specifications
NEUVIDEO Video Specifications Video Specifications Input Output HDMI HDMI Bypass Supported Resolutions (Hz) ü ü 720x400@85 ü ü 720x480p@60 ü ü 640x480@60/72/75/85 ü ü 720x576p@50 ü ü 800x600@56/60/72/75/85 ü ü 1280x720@50/60 ü ü 1024x768@60/70/75/85 ü ü 1280x768@60/75 ü ü 1360x768@60 ü... - Page 10 NEUVIDEO Audio & cable Specifications Audio Specifications Analog Input Max Audio Level 2Vrms Impedance 10kΩ Type Unbalanced HDMI Input/Output LPCM Maximum Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats None Cable Specifications 1080p 4K30 4K60...
- Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
