Openplan DSH-L Assembly Manual

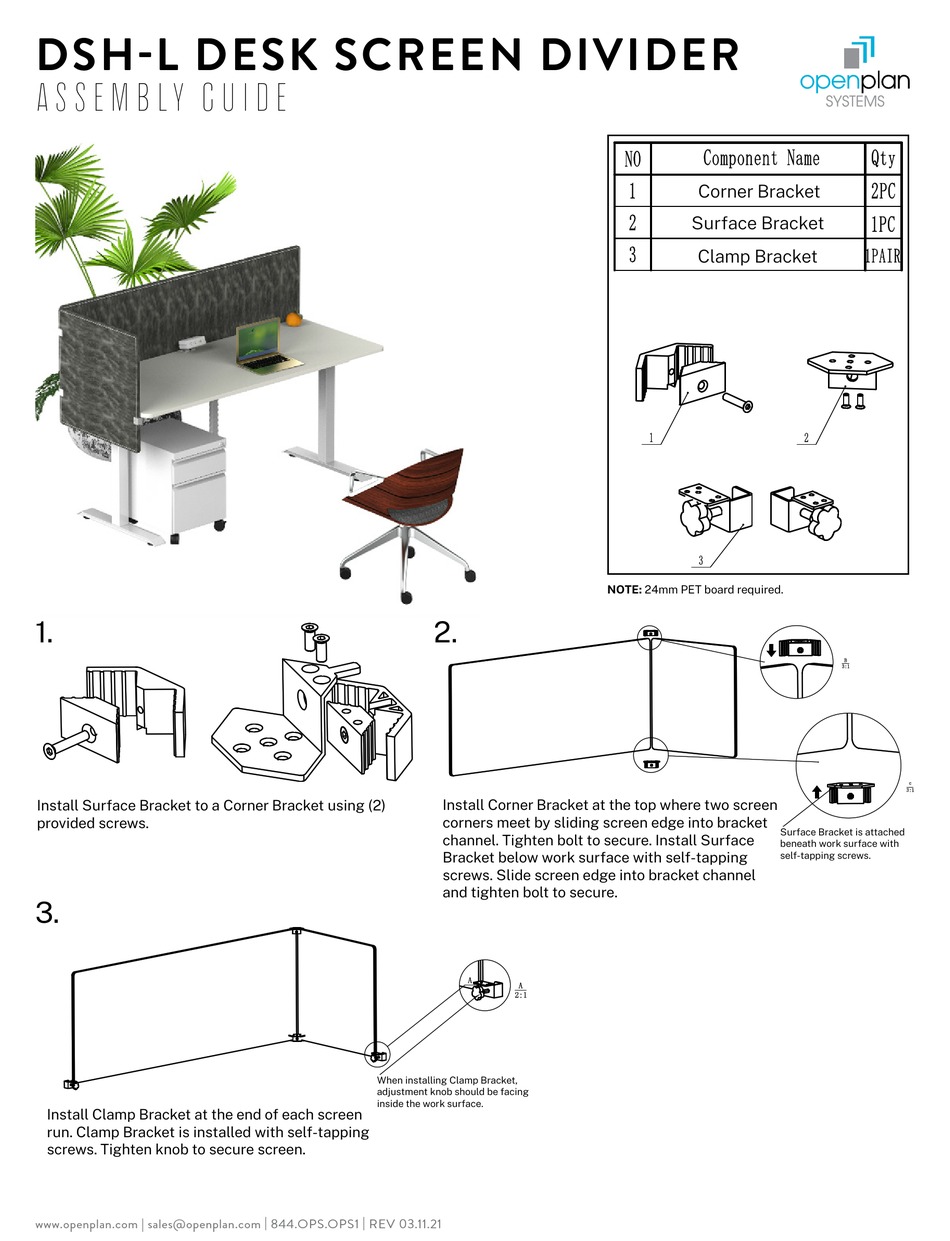

DSH-L DESK SCREEN DIVIDER
ASSEMBLY GUIDE
1.
Install Surface Bracket to a Corner Bracket using (2)
provided screws.
3.
Install Clamp Bracket at the end of each screen
run. Clamp Bracket is installed with self-tapping
screws. Tighten knob to secure screen.
www.openplan.com | sales@openplan.com | 844.OPS.OPS1 | REV 03.11.21
2.
Install Corner Bracket at the top where two screen
corners meet by sliding screen edge into bracket
channel. Tighten bolt to secure. Install Surface
Bracket below work surface with self-tapping
screws. Slide screen edge into bracket channel
and tighten bolt to secure.
When installing Clamp Bracket,
adjustment knob should be facing
inside the work surface.
Corner Bracket
Surface Bracket
Clamp Bracket
NOTE: 24mm PET board required.
Surface Bracket is attached
beneath work surface with
self-tapping screws.
