INDUSTRIAL MULTIGAS DETECTOR, FD-600
FORENSICS DETECTORS
INDUSTRIAL SPEC
GAS ANALYZER with
BUILT-IN PUMP
Model: FD-600
Headspace Analyzer
Air Quality Analyzer
Welding Analyzer
Ozone Analyzer
USER MANUAL
FORENSICS DETECTORS
www.forensicsdetectors.com
TM
CONFIGURATION &
COMPONENTS INCLUDED
Serial #:
LEL% sensor
OZONE sensor
Telescopic Probe Kit
Syringe/Headspace Kit
Hard Carry Case
USB Charger
QC/CAL Certificate
User Manual
TM
O2 sensor
CO sensor
H2S sensor
CO2 sensor
Welding Kit
Analyzer
USB Cable
Other
Belt Clip
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FORENSICS DETECTORS FD-600
Summary of Contents for FORENSICS DETECTORS FD-600
- Page 1 INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS INDUSTRIAL SPEC GAS ANALYZER with CONFIGURATION & COMPONENTS INCLUDED BUILT-IN PUMP Serial #: Model: FD-600 O2 sensor Headspace Analyzer CO sensor Air Quality Analyzer LEL% sensor Welding Analyzer H2S sensor Ozone Analyzer CO2 sensor...
- Page 2 INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS CUSTOM GAS SENSOR OPTIONS RANGES & DEFAULT ALARM POINTS Contact forensicsdetectors@gmail.com to order Target High Range Alarm Alarm 0-100%LEL 20%LEL 50%LEL C3H8 0-100%LEL 20%LEL 50%LEL 0-100%LEL 20%LEL 50%LEL 0-1000ppm 35ppm 250 ppm 0-100ppm 10ppm...
-
Page 3: Analyzer Specifications
1.6lb with analyzer and all accessories Dimension: 9 x 7 x 5 inches Our Model FD-600 Analyzer is prepared for three primary applications: 1. Air Quality Analyzer: Used for air quality measurements and comes with tubing and a telescopic probe. Used for indoor air quality to detector many gases such as CO, O2, O3, NH3, H2S, combustibles, NOx, SO2 and many others. -
Page 4: Product Features

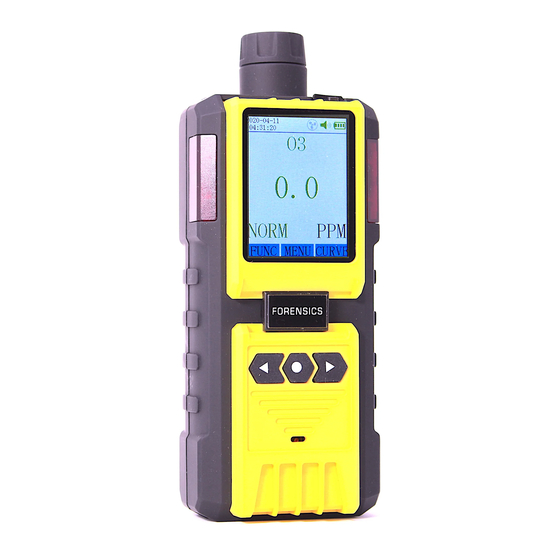

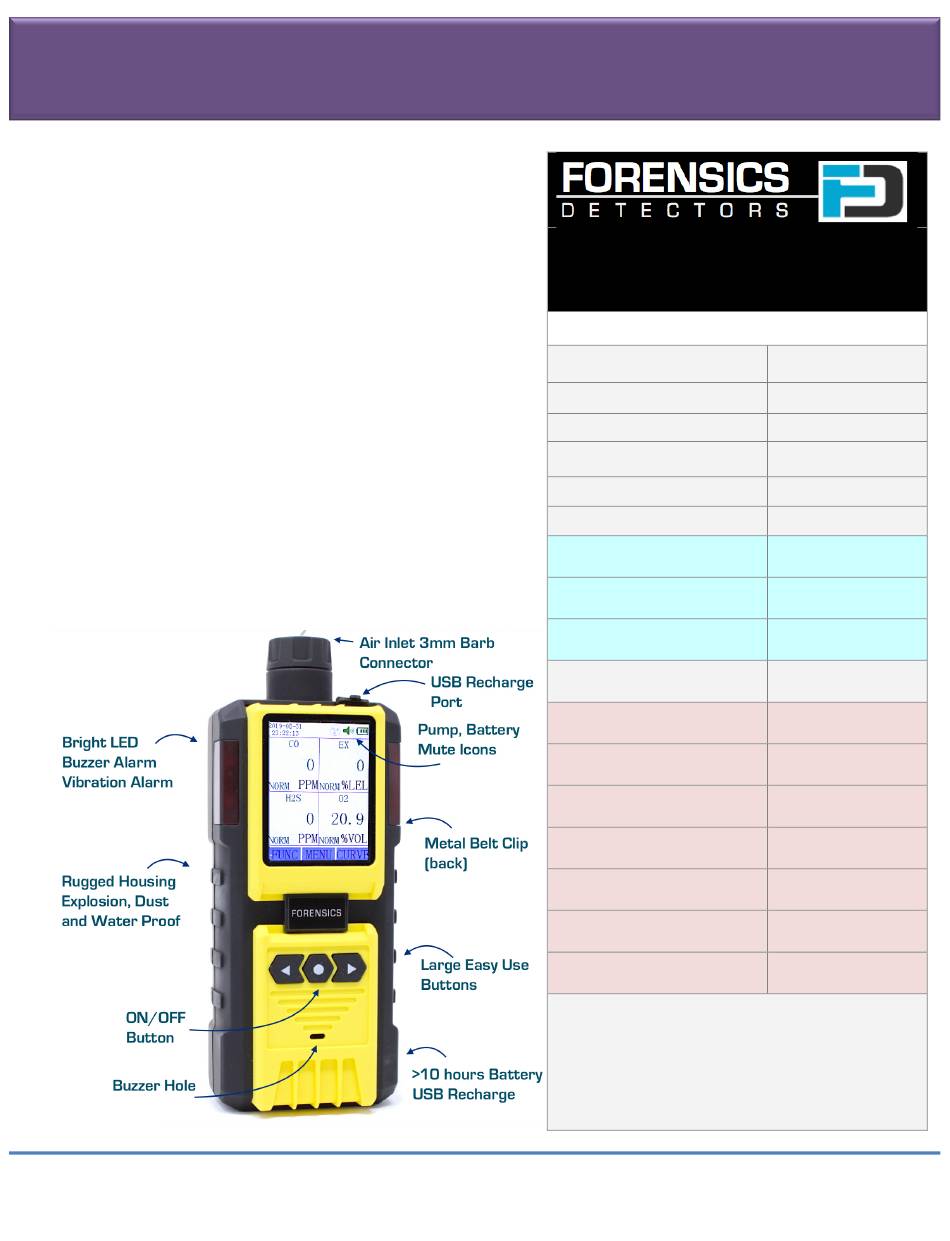

• Professional aluminum hard-case • ATEX, CNEX, FCC, IP65 certifications • Built-in pump and easy 3mm barb hose connector 1. INTRODUCTION You have purchased the FD-600 INDUSTRIAL GAS DETECTOR by FORENSICS DETECTORS The detector is factory calibrated, TURN ON AND GO! This product is a INDUSTRIAL gas analyzer with graphing, color display and alarm logging. -
Page 5: Analyzer Operation
INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS 3. ANALYZER OPERATION ON/OFF: Press MIDDLE button for 3 seconds. After 60 sec countdown gas detection begins, pump is ON and real time detected gas levels is show on the HOME DETECTION SCREEN. Start measuring. To turn OFF, press MIDDLE button for 3 secs. -
Page 6: Function Set
INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS PUMP CONTROL AND MUTE: When in the Home Detection Screen, press the left button (FUNC) selection. This will take you to a screen menu that allows you to control the PUMP ON/OFF and MUTE ON/OFF. Use the left and right button to select and toggle. -
Page 7: Menu Options
INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS MENU OPTIONS MENU: To enter the MENU mode, press the middle button when in the HOME Detection Screen. The MENU screen is like the picture in the below left. MENU SCREEN SETTING SCREEN Shutdown: This is an alternative way to shutdown the device. -
Page 8: Alarm Settings
INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS ALARM SETTINGS AlarmSet: Alarms are triggered (LED flashes, Buzzer and Vibration) when alarms points are met/exceeded. To change the alarm set points select AlarmSet in the Main Menu (see prior section). A screen to select your gas will appear like the image below on the left. -
Page 9: Recording Alarm Data
INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS RECORDING ALARM DATA Record: When alarms are triggered they are automatically recorded with a date and time stamp along with the (min or max) alarm data point. This is useful for safety personnel to keep track of exposures for record keeping and exposure analysis purposes. -
Page 10: Zero Calibration
INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS ZERO CALIBRATION GasZero: GasZero should not be used very often - only if for some reason the baseline zero value of the sensor value is flickering or drifting and does not maintain a zero value. For gases such as oxygen however, exposing the sensor to pure ZERO nitrogen gas is important to maintain accuracy and for good measure this should be undertaken periodically between 6-12 months (i.e. -
Page 11: Span Calibration
INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS SPAN CALIBRATION GasCheck: Span calibration is undertaken to ensure accurate gas concentration reading (i.e. ensure that the display reading in ppm is accurate and true). For example, an OSHA safety officer using a CO detector used in the field would want to calibrate to a concentration of 50ppm, since ambient CO is usually in the lower range. -
Page 12: Battery Charging
INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS 4. BATTERY CHARGING The ANALYZER has a built-in lithium battery and can be charged via micro-USB port. Any USB charger will work, ensure >1.0A for fast charging. Before charging, TURN OFF the analyzer to avoid any potential damage. Charging takes about 4 hours. - Page 13 INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS AIR QUALITY ANALYZER WITH TELESCOPIC PROBE FORENSICS DETECTORS www.forensicsdetectors.com...
- Page 14 INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS ANALYZER WITH FOOD HEADSPACE KIT FORENSICS DETECTORS www.forensicsdetectors.com...
-
Page 15: Warranty Disclaimers
Product Tested, QA/QC in California, USA, Product Made in China Copyright © 2020, FORENSICS LLC, all rights reserved. FORENSICS, FORENSICS DETECTORS are registered trademarks of FORENSICS LLC. All other trademarks, trade names, service marks and logos referenced herein belong to their respective companies. - Page 16 INDUSTRIAL MULTIGAS DETECTOR, FD-600 FORENSICS DETECTORS Support & Sales WEB: www.forensicsdetectors.com Email: forensicsdetectors@gmail.com FORENSICS DETECTORS www.forensicsdetectors.com...
