Summary of Contents for extronics ISOLATE 100: ISOLATE 100M

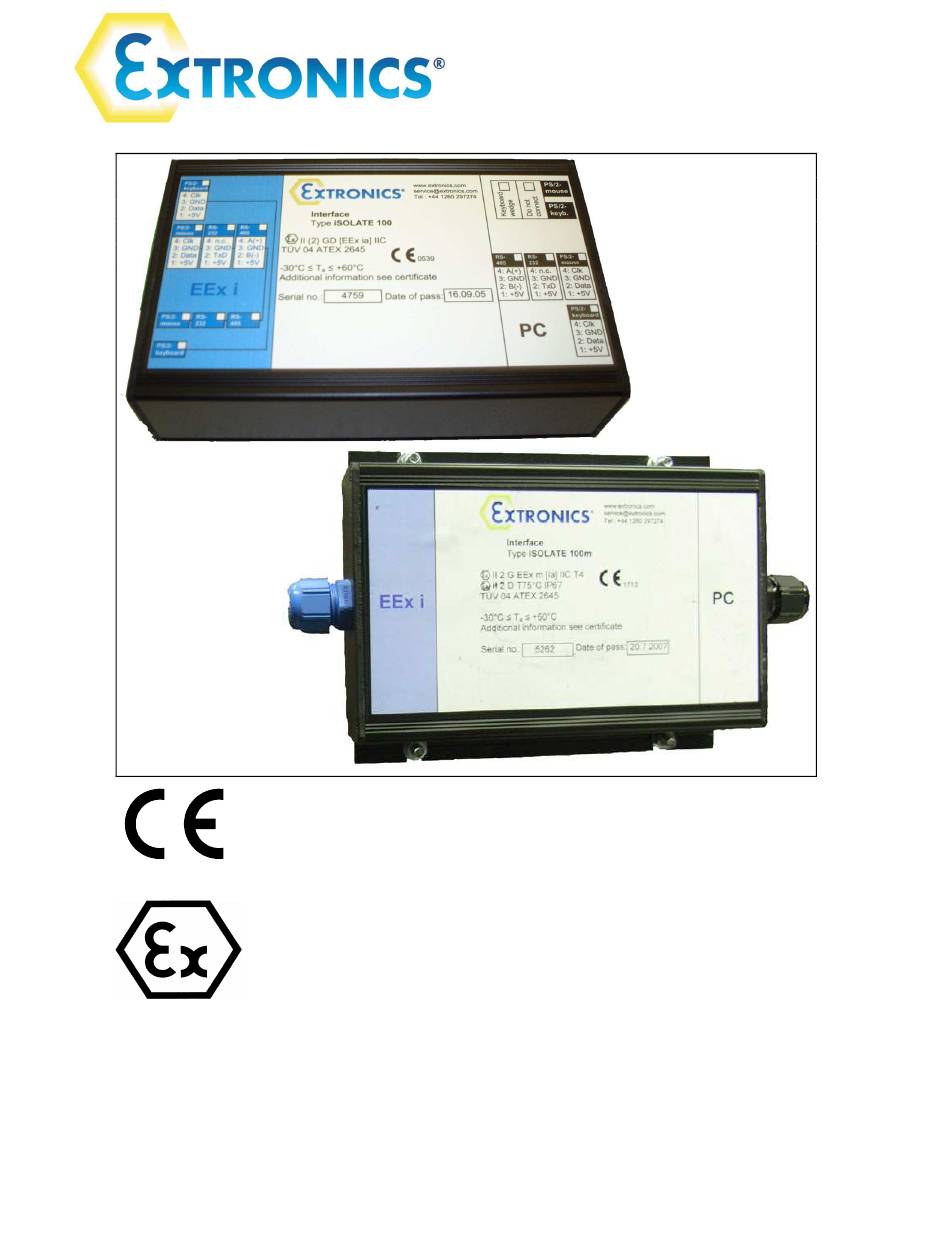

- Page 1 Operating Manual iSOLATE100 & iSOLATE100M iSOLATE100 II(2) GD Ex [ia] IIC T4 iSOLATE100m II(2) GD Ex m [ia] IIC T4 IP 67 T135° C...
- Page 2 This page is intentionally left blank. 313960 Document Number (See Last Page for Revision Details) ©2006 Extronics Limited. This document is Copyright Extronics limited. Extronics reserve the right to change this manual and its contents without notice, the latest version applies.
-
Page 3: Table Of Contents
Operating Manual Contents Introduction......................4 Safety Information and Notes ................5 Storage of this Manual ................. 5 List of Notes ....................5 Installation and Setting-to-Work ................6 Operation ..................... 6 Installation ....................6 Version EX01 ....................6 Version EX02 ....................9 Version EX03 ....................10 Version EX04 ....................11 iSOLATE100M ....................12... -
Page 4: Introduction
PC systems located in a safe area. The iSOLATE100 is designed for use with Extronics own range of keyboards and pointing devices such as trackball, trackpad or finger mouse but can be used with other manufacturers compatible equipment. -
Page 5: Safety Information And Notes
Notes on the optimum use of the device Warning Repairs, Dangerous Chemicals If the unit is in need of repair, please contact Extronics for an RMA form and returns number. A note describing the fault must always accompany equipment sent to Extronics Ltd for repair. -
Page 6: Installation And Setting-To-Work
& the hazardous area devices connected to the hazardous area connection, as shown in the drawings below. The iSOLATE100 can be configured in 4 modes these are detailed below. NOTE Modes can only be configured by Extronics. 3.3 Version EX01 Keyboard Interface... - Page 7 Operating Manual PS/2 scanner connections with version EX01: PS/2 Interface Keyboard Type iSOLATE100 Mouse II (2) GD [EEx ia] IIC TÜV 04 ATEX 2645 Keyboard -30° C ≤ T ≤ +60° C RS485 RS232 Additional information see certificate Mouse An EExi PS/2 Scanner such as the iSCAN100 can be connected on the hazardous side of the iSOLATE instead of a keyboard.
- Page 8 Operating Manual • or using the external keyboard wedge KS-20 inside of an EEx d enclosure TT-100 for example PS/2 KS-20 Keyboard Interface Type iSOLATE-100 Mouse II (2) GD [EEx ia] IIC Keyboard TÜV 00 ATEX 1584 -30° C ≤ T ≤...
-
Page 9: Version Ex02
Operating Manual 3.4 Version EX02 Keyboard Interface Type iSOLATE-100 Mouse II (2) GD [EEx ia] IIC TÜV 04 ATEX 2645 -30° C ≤ T ≤ +60° C Keyboard Additional information see certificate RS485 RS232 Mouse The EX02 variant provides the capability to connect an EExi keyboard and/or pointing device in the hazardous as well as a safe keyboard and/or pointing device in the safe area. -
Page 10: Version Ex03
Operating Manual 3.5 Version EX03 PS/2 Keyboard Interface Type iSOLATE-100 Mouse RS-232 RS-232 II (2) GD [EEx ia] IIC TÜV 04 ATEX 2645 -30° C ≤ T ≤ +60° C Keyboard Additional information see certificate RS485 RS232 Mouse The EX03 variant provides the capability to connect an EExi RS-232 barcode scanner, such as the iSCAN100, in the hazardous area. -
Page 11: Version Ex04
Operating Manual 3.6 Version EX04 PS/2 Keyboard Interface Type iSOLATE-100 Mouse RS-232 RS-485 II (2) GD [EEx ia] IIC TÜV 04 ATEX 2645 -30° C ≤ T ≤ +60° C Keyboard Additional information see certificate RS485 RS232 Mouse The EX04 variant provides the capability to connect an EExi RS-232 barcode scanner, such as the iSCAN100, in the hazardous area. -
Page 12: Isolate100M
Operating Manual 3.7 iSOLATE100M The iSOLATE100M has been certified ATEX II 2 G EEx m [ia] IIC T4, II D T75° C IP67 for use inside the hazardous area. The unit can be supplied with 2 junction boxes connected to the iSOLATE100M via 1.5m of cable at each end as shown below;... -
Page 13: Intended Purpose Usage
ATEX regulations. Should you be in any doubt about the integrity of your keyboard then please return it to Extronics for inspection. -
Page 14: Safety Precautions
Operating Manual 4.4 Safety Precautions Important For the installation, maintenance and cleaning of the units, it is absolutely necessary to observe the applicable regulations and provisions concerned with explosion protection (EN 50014, EN 60079- 14:2003) as well as the Accident Prevention Regulations. 4.5 Cleaning and Maintenance Intervals The cleaning intervals depend on the environment where the system is installed. -
Page 15: Related Drawings
Operating Manual 5 Related Drawings... - Page 16 Operating Manual...
-
Page 17: Technical Data
Operating Manual 6 Technical Data Ingress Protection iSOLATE100 - IP20 iSOLATE100M - IP67 Enclosure Material Aluminium Weight iSOLATE100 - 0.25 kg iSOLATE100M – 1.6Kg Dimensions 105 x 166 x 44 mm Ambient Operating -30°C to 60°C Temperature Ambient Storage -30°C to 60°C Temperature Operating Voltage 5VDC... -
Page 18: Type Codes
Operating Manual 7 Type Codes iSOLATE100 Intrinsically Safe PS2/Serial Interface iSOLATE100 Description Part Number Intrinsically Safe Keyboard Interface PS/2 to PS/2 iSOLATE100-EX01 Intrinsically Safe Keyboard Interface PS/2 Keyboard Wedge iSOLATE100-EX02 Intrinsically Safe Keyboard Interface PS/2 and RS232 iSOLATE100-EX03 Intrinsically Safe Keyboard Interface PS/2 and RS485 iSOLATE100-EX04 iSOLATE100M iSOLATE100M-[#1]-[#2]]-[#3]... -
Page 19: Certification
Operating Manual 8 Certification... - Page 20 Operating Manual...
-
Page 21: Manual Revision
Operating Manual 9 Manual Revision Revision Description Date Initial Release 30/06/06 New Template, Various changes 21/11/08...
