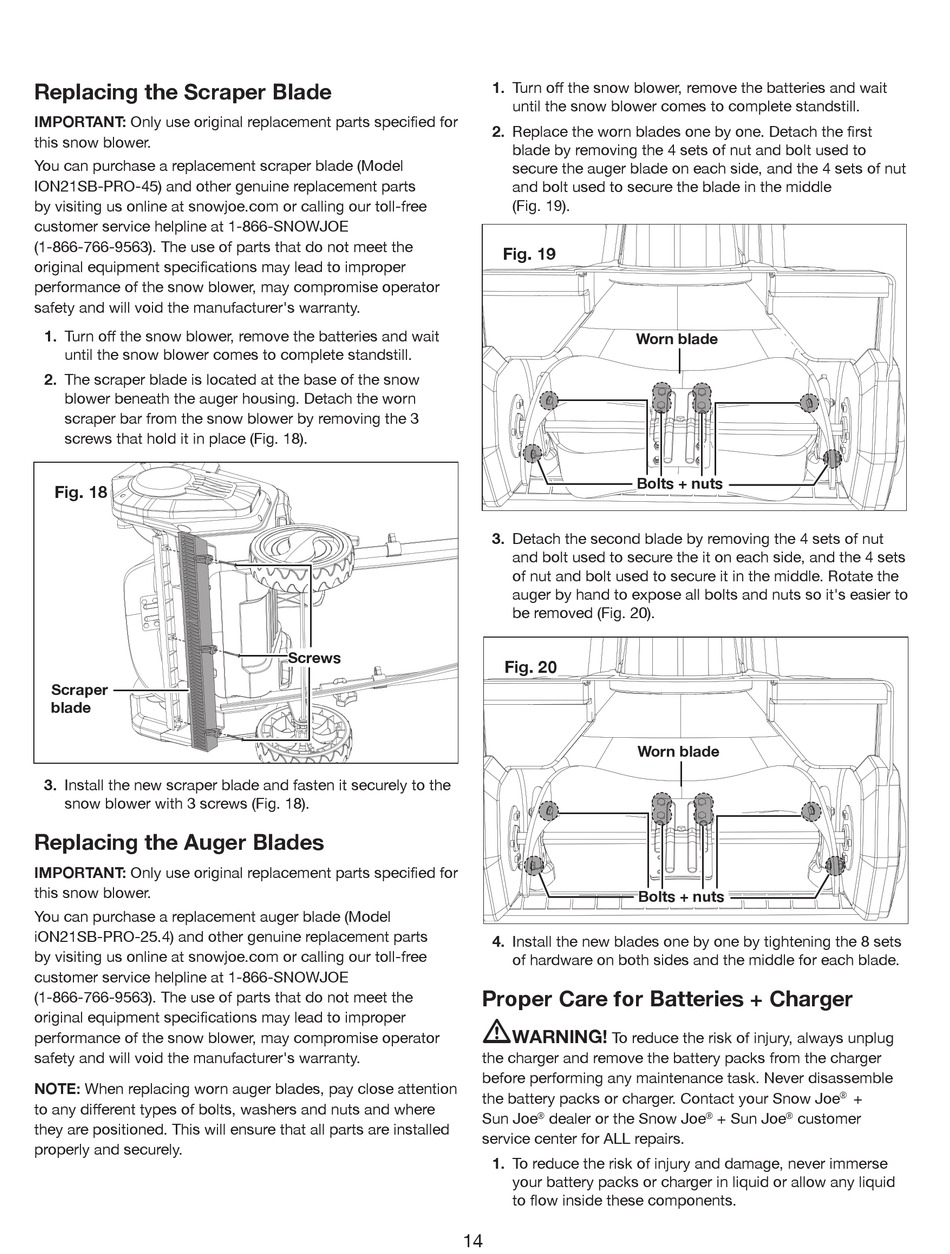

Replacing the Scraper Blade

IMPORTANT: Only use original replacement parts specified for
this snow blower.
You can purchase a replacement scraper blade (Model
ION21SB-PRO-45) and other genuine replacement parts
by visiting us online at snowjoe.com or calling our toll-free
customer service helpline at 1-866-SNOWJOE
(1-866-766-9563). The use of parts that do not meet the
original equipment specifications may lead to improper
performance of the snow blower, may compromise operator
safety and will void the manufacturer's warranty.
1. Turn off the snow blower, remove the batteries and wait
until the snow blower comes to complete standstill.
2. The scraper blade is located at the base of the snow
blower beneath the auger housing. Detach the worn
scraper bar from the snow blower by removing the 3
screws that hold it in place (Fig. 18).
Fig. 18
Scraper
blade
3. Install the new scraper blade and fasten it securely to the
snow blower with 3 screws (Fig. 18).
Replacing the Auger Blades
IMPORTANT: Only use original replacement parts specified for
this snow blower.
You can purchase a replacement auger blade (Model
iON21SB-PRO-25.4) and other genuine replacement parts
by visiting us online at snowjoe.com or calling our toll-free
customer service helpline at 1-866-SNOWJOE
(1-866-766-9563). The use of parts that do not meet the
original equipment specifications may lead to improper
performance of the snow blower, may compromise operator
safety and will void the manufacturer's warranty.
NOTE: When replacing worn auger blades, pay close attention
to any different types of bolts, washers and nuts and where
they are positioned. This will ensure that all parts are installed
properly and securely.
Screws
14
1. Turn off the snow blower, remove the batteries and wait
until the snow blower comes to complete standstill.
2. Replace the worn blades one by one. Detach the first
blade by removing the 4 sets of nut and bolt used to
secure the auger blade on each side, and the 4 sets of nut
and bolt used to secure the blade in the middle
(Fig. 19).
Fig. 19
Worn blade
Bolts + nuts
3. Detach the second blade by removing the 4 sets of nut
and bolt used to secure the it on each side, and the 4 sets
of nut and bolt used to secure it in the middle. Rotate the
auger by hand to expose all bolts and nuts so it's easier to
be removed (Fig. 20).
Fig. 20
Worn blade
Bolts + nuts
4. Install the new blades one by one by tightening the 8 sets
of hardware on both sides and the middle for each blade.
Proper Care for Batteries + Charger
m
WARNING!
To reduce the risk of injury, always unplug
the charger and remove the battery packs from the charger
before performing any maintenance task. Never disassemble
the battery packs or charger. Contact your Snow Joe
Sun Joe dealer or the Snow Joe
®
service center for ALL repairs.
1. To reduce the risk of injury and damage, never immerse
your battery packs or charger in liquid or allow any liquid
to flow inside these components.
+
®
+ Sun Joe customer
® ®
